Flysky FS-T4B 2.4G 6 CH Transmitter SPECIFICATIONS

Название бренда: NoEnName_Null

Происхождение: Материковый Китай

Материал: Металл

Запчасти и принадлежности RC: Передатчик

Размер: 220 *180 * 70 mm

Для типа автомобиля: Самолеты

Используйте: Транспортные средства и игрушки с дистанционным управлением

Сертификация: CE

Модернизация деталей/аксессуаров: Передатчик

Периферийные устройства/устройства дистанционного управления: Передатчик

Поставки инструментов: Собранный класс

Номер модели: Flysky FS-T4B+FS-R6BReceiver

Атрибуты полного привода: Сборка



Особенности:

*Super active and passive anti-jamming capabilities.

*Offering superior protection against interference while maintaining lower power consumption and high reliable receiver sensitivity.

*Each transmitter and receiver has it’s own unique ID. Once the transmitter and receiver have been paired, they will only communicate *with each other, preventing other systems accidentally connecting to or interfering with the systems operation.

*Use a linear spread of fine paragraph by an excess antenna.

*It covers the entire band width of the antenna bandwidth range.

*High quality and stability.

Описание:

Brand Name: Flysky

Item Name: FS-T4B transmitter + FS-R6B receiver

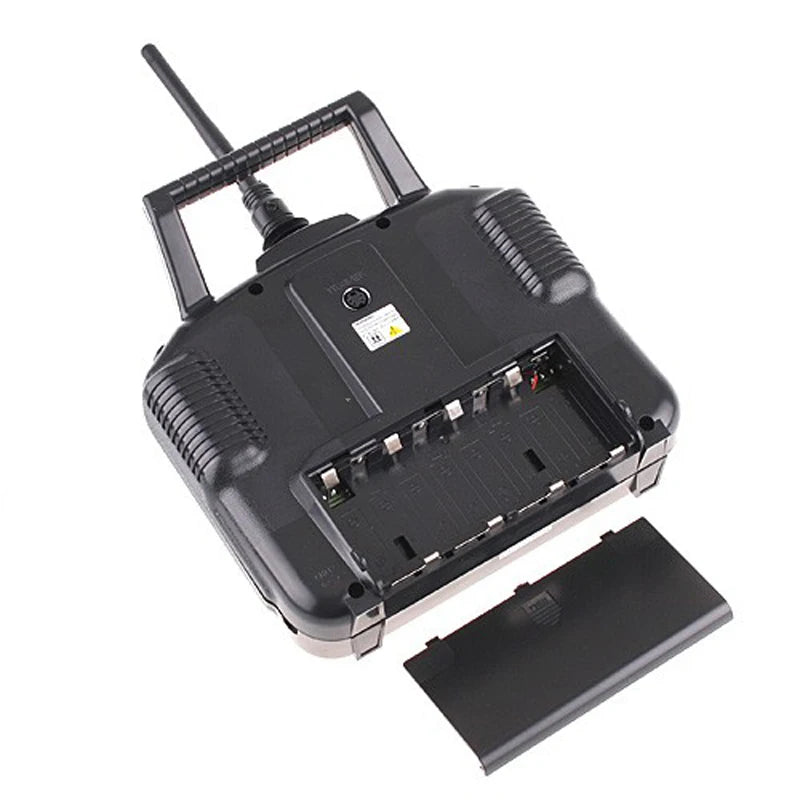

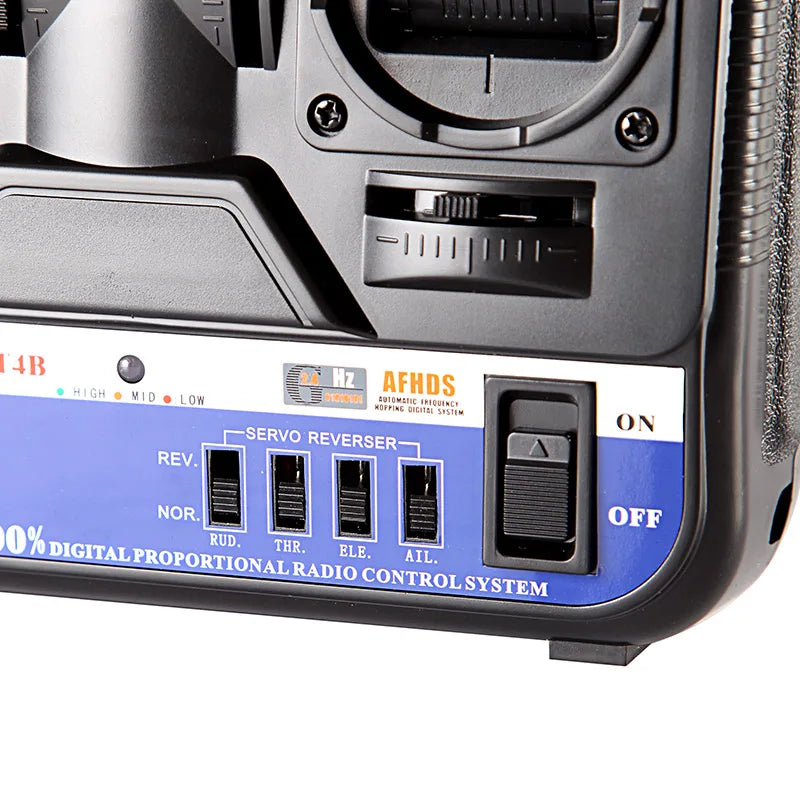

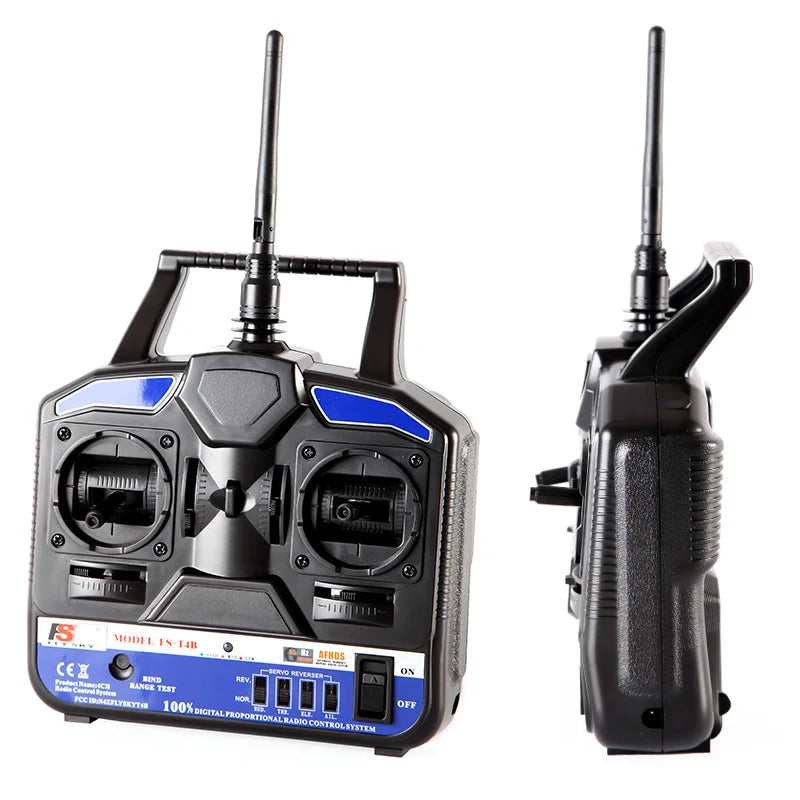

Specification of Transmitter:

Item Name: FS-T4B

Mode(optional): Mode 1 (Right Hand Throttle), Mode 2 (Left Hand Throttle)

Channels: 4 Channels

Model type: glider/heli/airlane

RF range: 2.40-2.48GHz

Volume: 160

RF power: less than 20 dB

2.4G system: AFHDS

Code type: GFSK

Чувствительность: 1024

Low Voltage Warning: Yes (less than 9 V)

DSC connector: Yes (PS2, Output, PPM)

Charging connection: Yes

Power: DC 12V (or 8x AA batteries)

Certification: CE FCC

Цвет: черный

ANT length: 115x26mm

Item weight: 510g

Item dimensions:220 *180 * 70 mm

Pack size: 360 * 250 * 112mm

Package weight: 950g

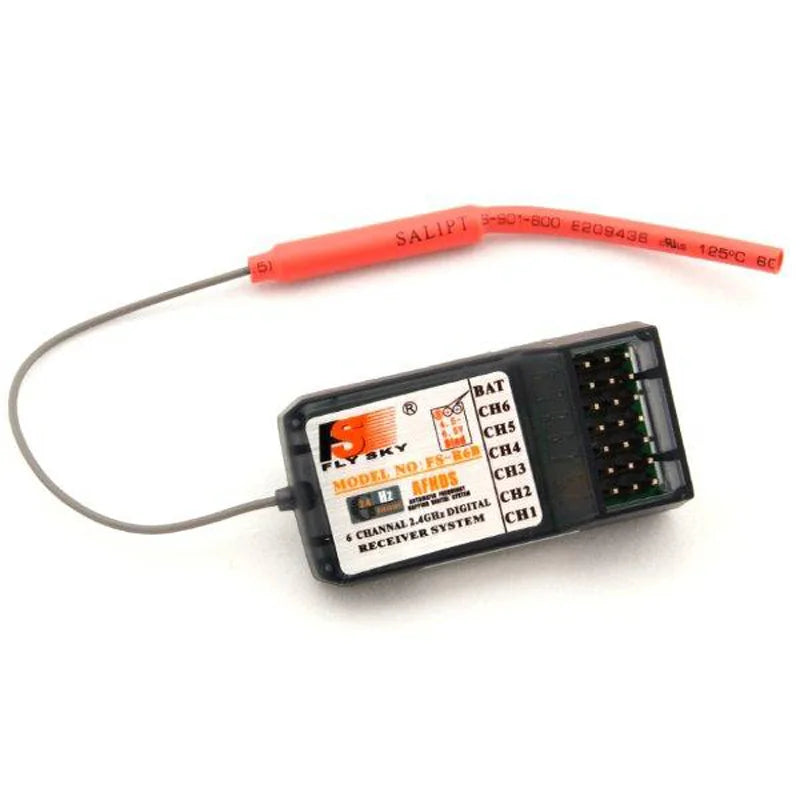

Specification of Receiver:

Item Name: FS-R6B

Model Type: Fixed-Wing/Glider/ Helicopter

100% Brand New

Channels: 6 Channels

RF power: less than 20DBm

modulation: GFSK

Code type: PCMA

Senditivity: 1024

Low voltage warning: LED

Charger port: yes

ANT length: 26mm

Frequency: 2.4G

Power: 5V DC(1.5V AAA*4)

weight: 25g

size: 30*25*8mm

Certificate: CE,FCC,RoHS

В комплект входят:

1x FS–T4BTransmitter

1x FS-R6B receiver

Примечание:

( Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm. please kindly understand.)

We provide you with the best product and service. If you have any problem, please let us know, and we will solve the problem ASAP. Thank you so much.
