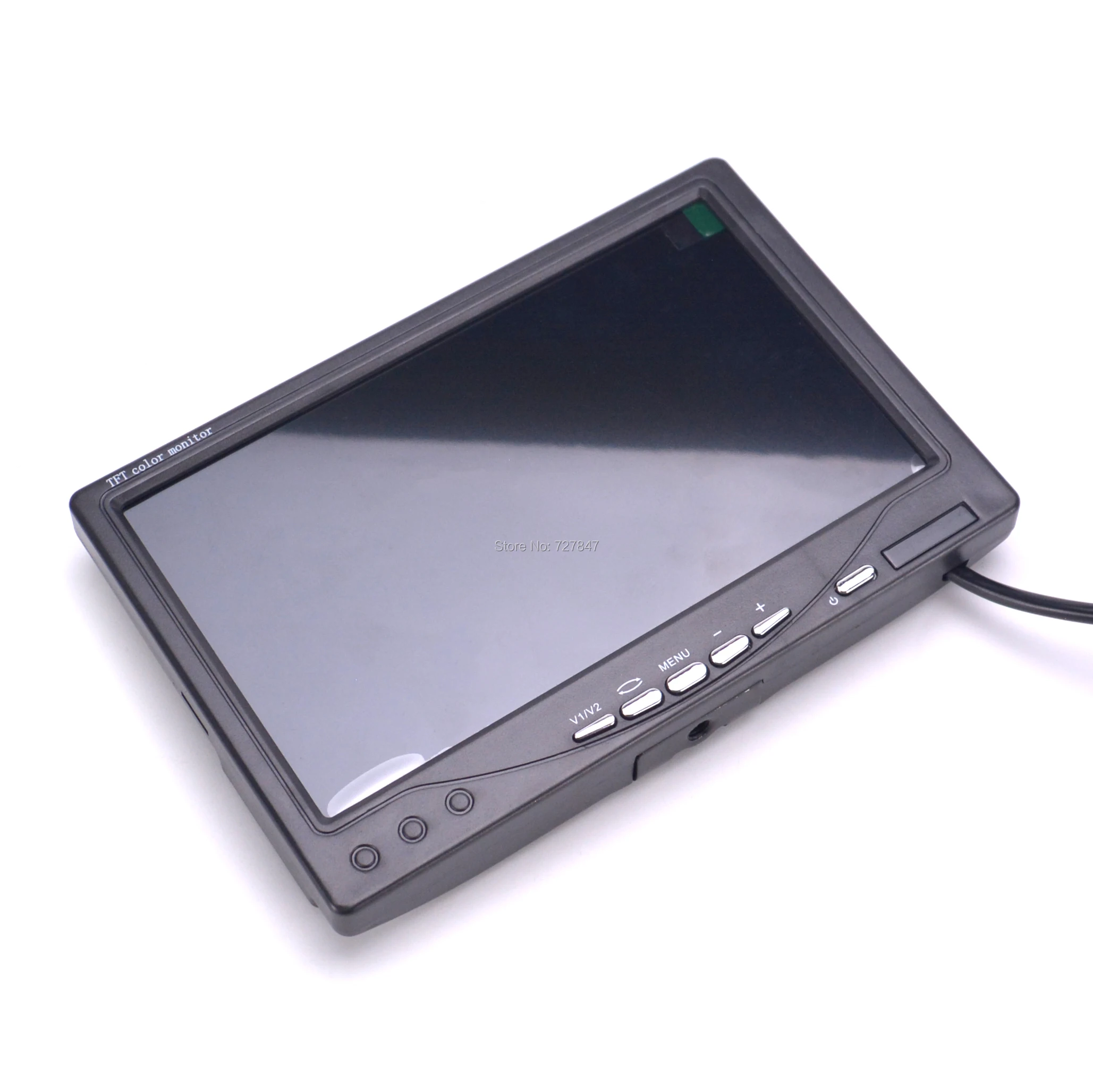

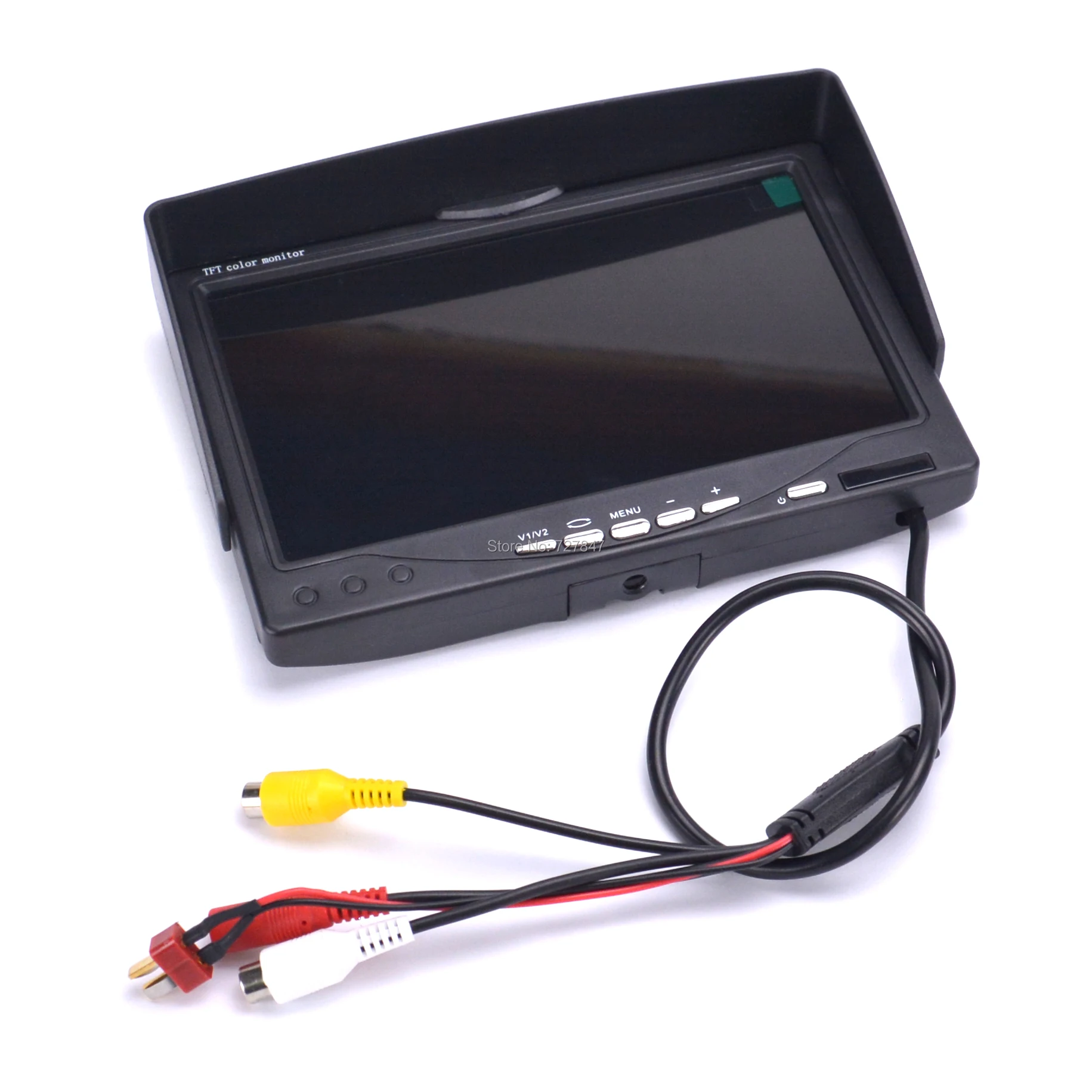

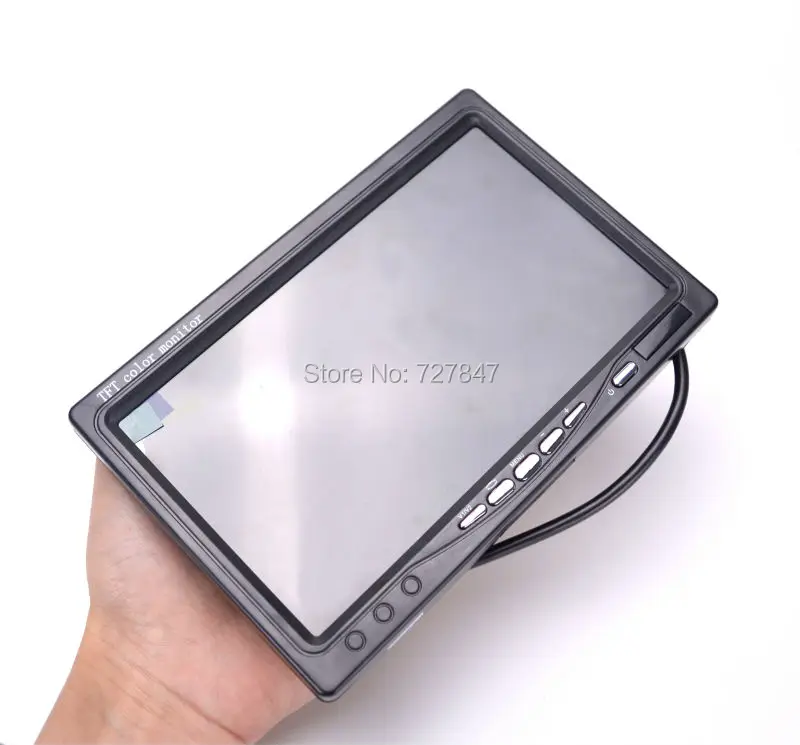

7 inch FPV Monitor Screen  SPECIFICATIONS

Используйте: Транспортные средства и игрушки с дистанционным управлением

Модернизация деталей/аксессуаров: Рама

Поставки инструментов: Измельченный

Технические параметры: Значение 3

Периферийные устройства/устройства дистанционного управления: Ресиверы

Рекомендуемый возраст: 12+y

Рекомендуемый возраст: 14+y

Запчасти и принадлежности RC: FPV Monitor

Количество: 1 шт.

Происхождение: Материковый Китай

Номер модели: 7 inch LCD TFT FPV 1024 x 600 Monitor

Материал: Композитный материал

Атрибуты полного привода: Слот

Для типа автомобиля: Самолеты

Название бренда: Редитоски

ReadyToSky is a professional FPV (First-Person View) RC module accessories company. If you are interested in learning more about wholesale or bulk purchasing options, please feel free to contact us.

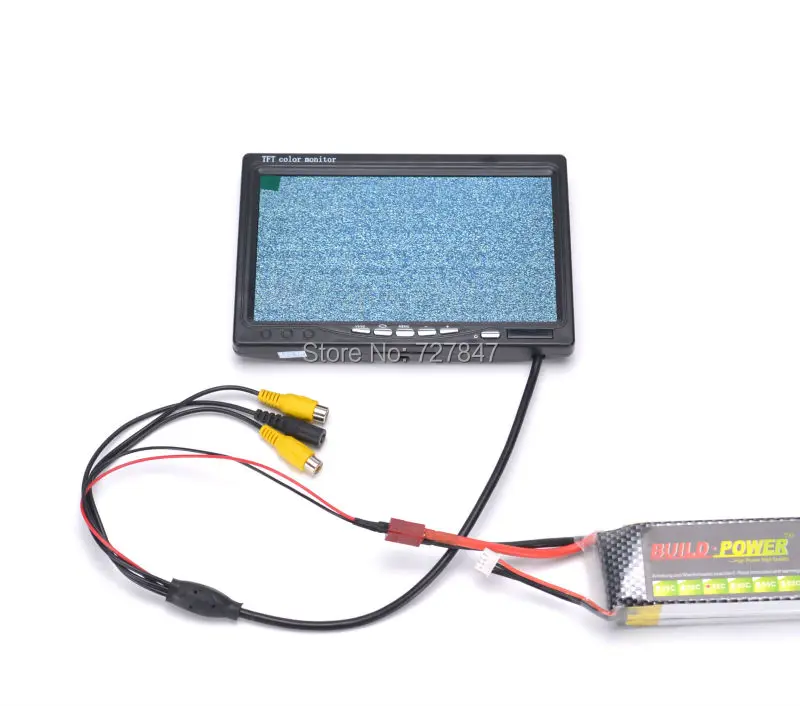

Designed specially for FPV and outdoor operation purpose. The monitor has very bright image(adjustable) and very wide power supply range(7-12V).The monitor also has a very important feature for FPV users.It doesn’t have “blue screen” problem when the signal gets weak. This feature makes you able to fly much further and never lose image. When VTX is not connected ,it just show static.

Note:The default display mode is PAL,if you use NTSC cam or other format, please choose it in the menu to get the most suitable view on the monitor.

Supported video format: NTSC M, PAL M, NTSC BG, PAL N, NTSC DK, PAL DK, PAL I and SECAM BG.

Особенности:

•Ultra Bright    500 CD/M⊃2;   High-Definition Display

•Supports Composite Video RCA Input

•Display Resolution up to 1024*600 Pixels

•16:9 or 4:3 Adjustable Display Ratio

Designed for FPV Application

Application to FPV or Wireless Composite Video Camera in making Movies.

Технические характеристики:

Panel Size: 7″ widescreen

Brightness: 500 CD/M⊃2;

LCD Type: TFT LCD

Resolution: 1024 x 600

Aspect Ratio: 16:9 & 4:3

Contrast Ratio: 500:1

Light Source: LED Backlight

Surface Treatment: Anti-Glare

Viewing Angle: 70°/70°,50°/70° (L/R,U/D)

Inputs: Compostie 2 Video RCA Input

Input Voltage: DC 7.4~35V (suggest 3S battery)

Input Current: DC 0.5A-1.5A

Power Consumption: ≤8W Watts

Storage Temperature: -20°C to 70°C

Operating Temperature: -10°C to 60°C

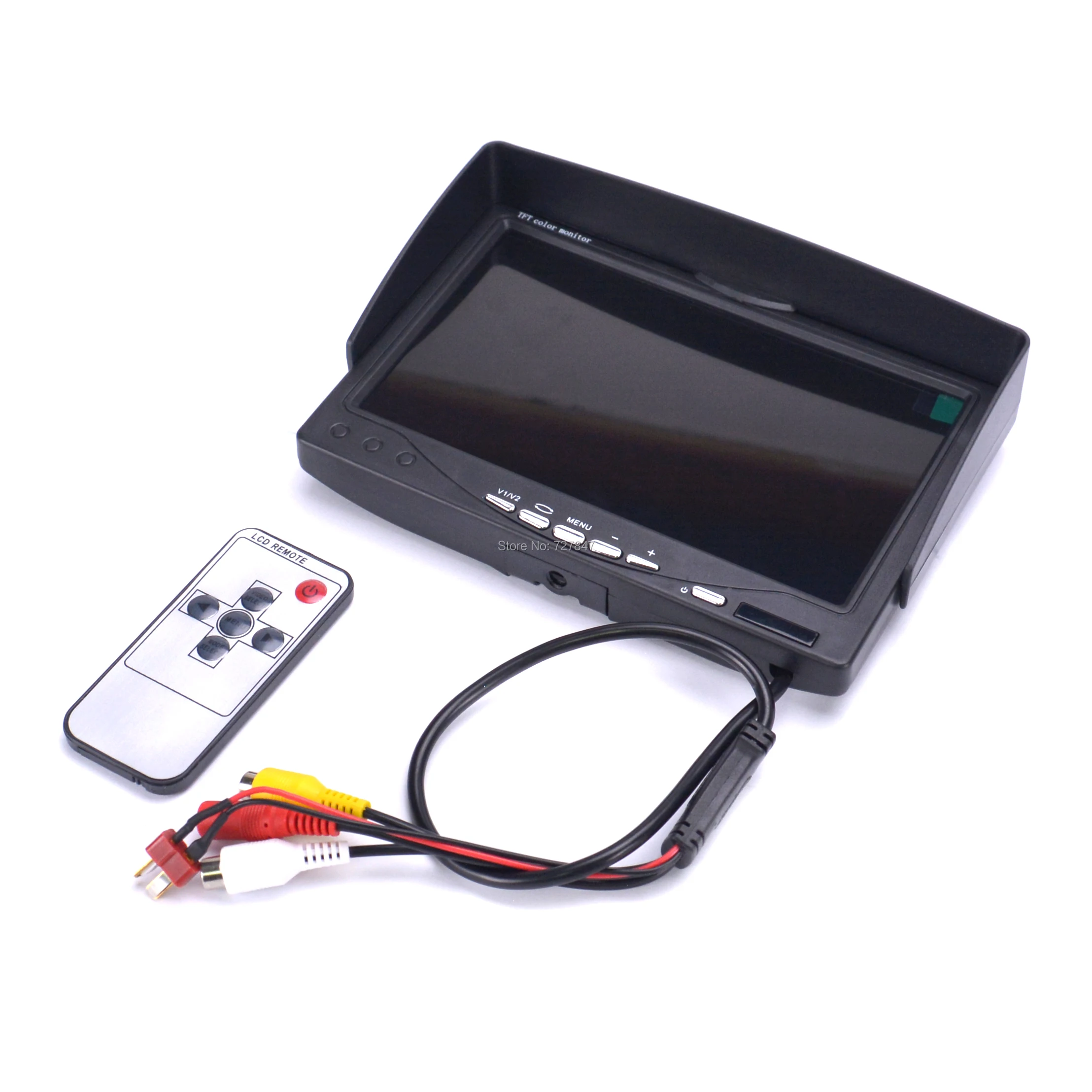

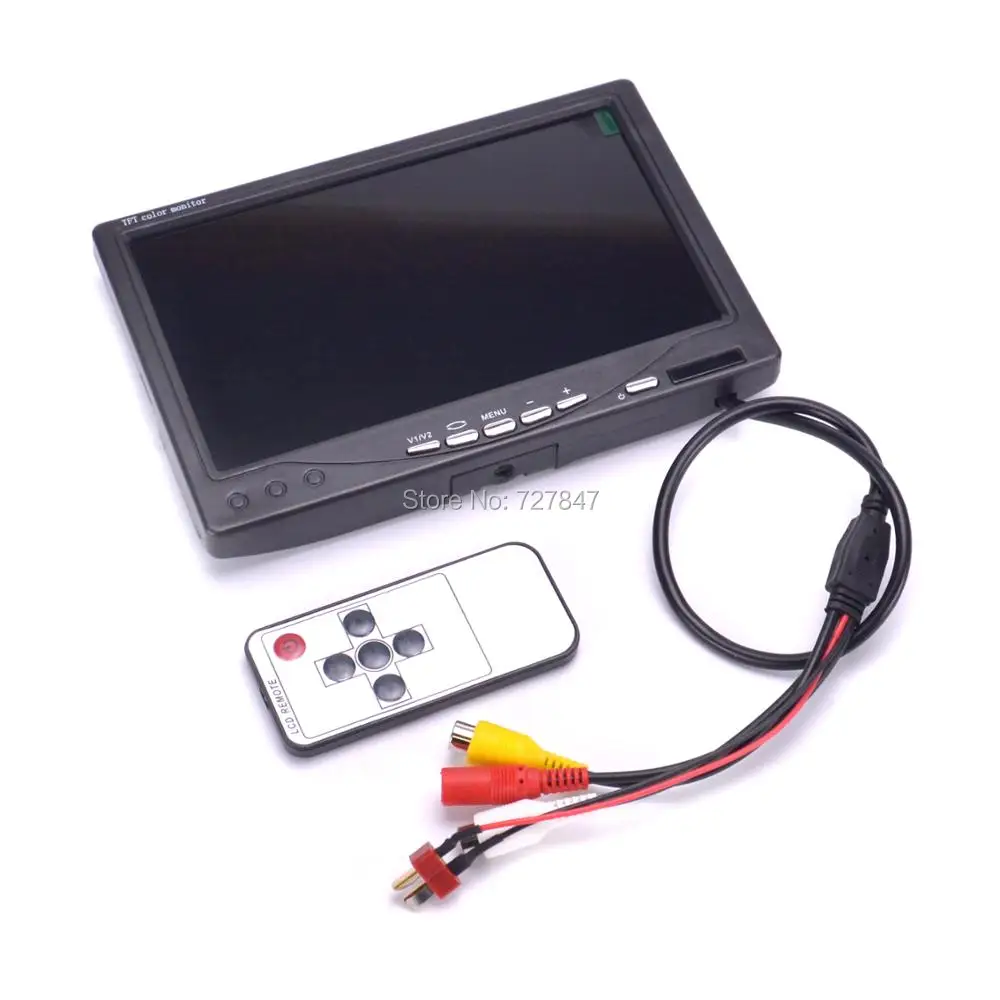

1 pcs 7 inch FPV monitor with cables ( battery is not included)

1 pcs Monitor remote control for Monitor

1 pcs Sun hood(send by your choice)

1 pcs FPV holder (send by your choice)
