ZD550 550mm / ZD680 680mm Carbon Fiber Quadcopter SPECIFICATIONS
use for: multicopter
Use: Vehicles & Remote Control Toys
Upgrade Parts/Accessories: Frame
Tool Supplies: Grinded
Technical parameters: Value 3
Size: ZD550 550mm / ZD680 680mm
Remote Control Peripherals/Devices: Battery Charging Units
Recommend Age: 12+y,14+y
RC Parts & Accs: Motor Components
Origin: Mainland China
Name: ZD550 / ZD680
Model Number: ZD550 / ZD680
Material: Carbon Fiber
Four-wheel Drive Attributes: Slot
For Vehicle Type: Airplanes
Flight Control: Pixhawk 2.4.8
Color: Black
Brand Name: Readytosky
ReadyToSky is a professional manufacturer specializing in FPV RC modules and accessories. If you’re interested in learning more about wholesale or bulk purchasing options, feel free to reach out to us.
Upgrade F550 ZD550 550mm Carbon fiber Quadcopter Frame FPV Quad with Carbon Fiber Landing Skid
Parameters:
– Diagonal wheelbase: 550mm
– Landing gear height: 260mm
– Weight: 630 ±2 g
– Material of the main board : 3k full carbon fiber
– thickness of the main board : 1.5mm
Recommended configuration:
– Motor: 3508
– Prop: 12-15 inch CW CCW
– ESC: 30A(2-6s) ; 40A (2-4S)
– Flight control: APM opensource flight control
– Battery: 4-6S Lipo
Upgrade ZD680 680mm Carbon fiber Quadcopter Frame FPV Quad with Carbon Fiber Landing Skid
Parameters:
– Diagonal wheelbase: 680mm
– Material of the main board : 3k full carbon fiber
– thickness of the main board : 1.5mm
Recommended configuration:
– Motor: 5010
– Prop: 15 inch CW CCW
– ESC: 30A(2-6s) ; 40A (2-4S)
– Flight control: APM/PIXHAWK opensource flight control
– Battery: 4-6S Lipo
Pixhawk PX4 Autopilot PIX 2.4.8 32 Bit Flight Controller
Features:
1. The advanced 32-bit ARM CortexM4 high-performance processors, can run NuttX RTOS real-time operating system;
2. 14 PWM / servo output;
3. Bus interface (UART, I2C, SPI, CAN);
4. The integrated backup power and backup controller fails, the primary controller fails over to the backup control is safe;
5. Provide automatic and manual modes;
6. Provide redundant power input and failover;
7. Multicolor LED lights;
8. Provide multi-tone buzzer Interface
9. Micro SD recording flight data;
Specifications:
Microprocessor
1.32 2 MB flash STM32F427 Cortex M4, with hardware floating-point processing unit
2. frequency: 168MHZ, 256K RAM
3.32 STM32F103 backup coprocessor
Sensor
1.L3GD20 3-axis digital gyroscope 16
2.LSM303D 3-axis accelerometer 14 / Magnetometer
3.MPU6000 6-axis accelerometer / magnetometer
4.MS5607 precision barometer
Interface
1 .5 high voltage compatible UART 1, 2 with hardware flow control
2. 2 CAN
3.Spektrum DSM / DSM2 / DSM-X satellite receiver compatible input
4.Futaba SBUS compatible inputs and outputs
5.PPM Signal Input
6.RSSI (PWM or voltage) Input
7.I2C
8.SPI
9.3.3 and 6.6VADC input
10. External MICRO USB Interface
5010 750kv Motor :
Description:
These are really great outrunners. We’ve tested this line and they work extremely well.
This is 5010-750kv Brushless Motor
Features:
1.Machined aluminum front housing with four fan-style cooling holes that pump air through the motor while it runs.
2.Rear threaded mounting holes with both 16 mm and 19mm hole spacings fit a variety of applications.
3.Specially designed NdFeB magnets with high temperature rating for trouble-free operation.
4.High Temperature 140 C (356 F) rated wire is used for winding the motors to minimize the risk of burning up the motor.
5.High quality stator plates are epoxy coated on the inner surface to prevent winding shorts. 0.20mm stator plate id used on this motor 5010.
6.High quality shielded and permanently lubricated ball bearings are used to support the motor shaft in all our motors.
7.High temperature adhesives are used to secure the stator windings and prevent them from shifting and getting pinched or shorting out .
Motor size: 50*10mm
Shaft size: 4mm
Weight: 80g
KV(rpm/v): 360/750
Battery: 2-6Li-Po
ESC: 20-40A
Best working with props of 14-16″
Aerial video://v.ku6.com/show/ga7IrggXzA9ew-NVGV20pQ…html?st=1_9_2_1&nr=1
Specification:
Brand:Hobbywing
Model Number:XRotor-40A
Cont.Current:40A
Burst Current(10sec):60A
BEC:None
Lipo:2-6S
Programming:Timing(high/middle)
Weight:26g
Size:68x25x8.7mm
Plug:Φ3.5mmx3
Usage:RC Multicopter
APAC means Asia-Pacific Version,the official ESC sold in Asia-Pacific areas.
NOTE : The new version of ZD550 , mainboard is like this.
Note ：Due to shipping restrictions, will be shipped in 2 or 3 parcels .
– Flysky i6 with ia10b receiver x1
– ZD550 Carbon Fiber Quadcopter frame kits x 1
– Carbon fiber Landing gear x 1( red color and green color landing protection foam send at random）
– 5010 750KV motor x 4
– Hobbywing 40A 2-6S ESC x 4
– 3 axis Gimbal x 1
-TS832 and RC832 X1
– Pixhawk 2.4.8 32bit ARM Flight Controllerx 1
– shock absorber x 1
– Safety button and buzzer x 1( 2 kinds of design send at random)
– 4G TF card (IO firmware has written) x1
– Neo-M8N Gps Module x1
– Black Gps Holder x1
– Power Module x1

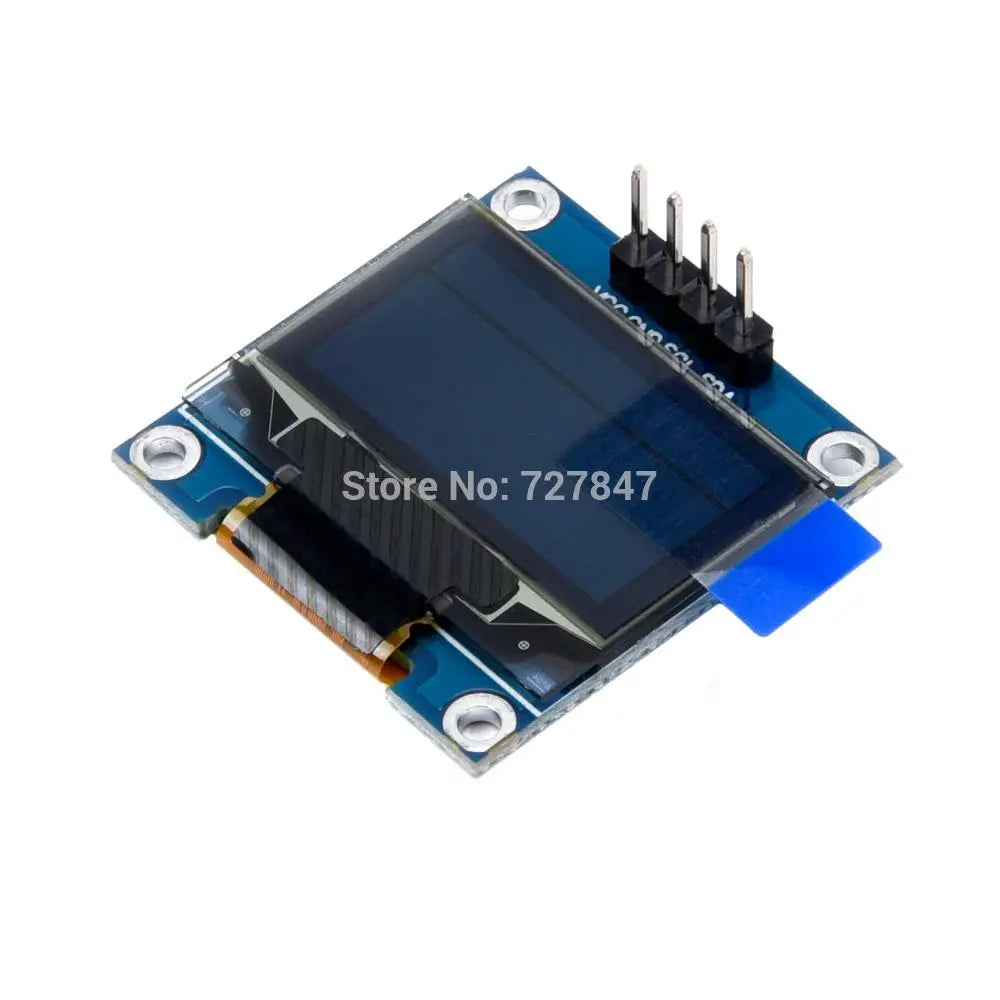

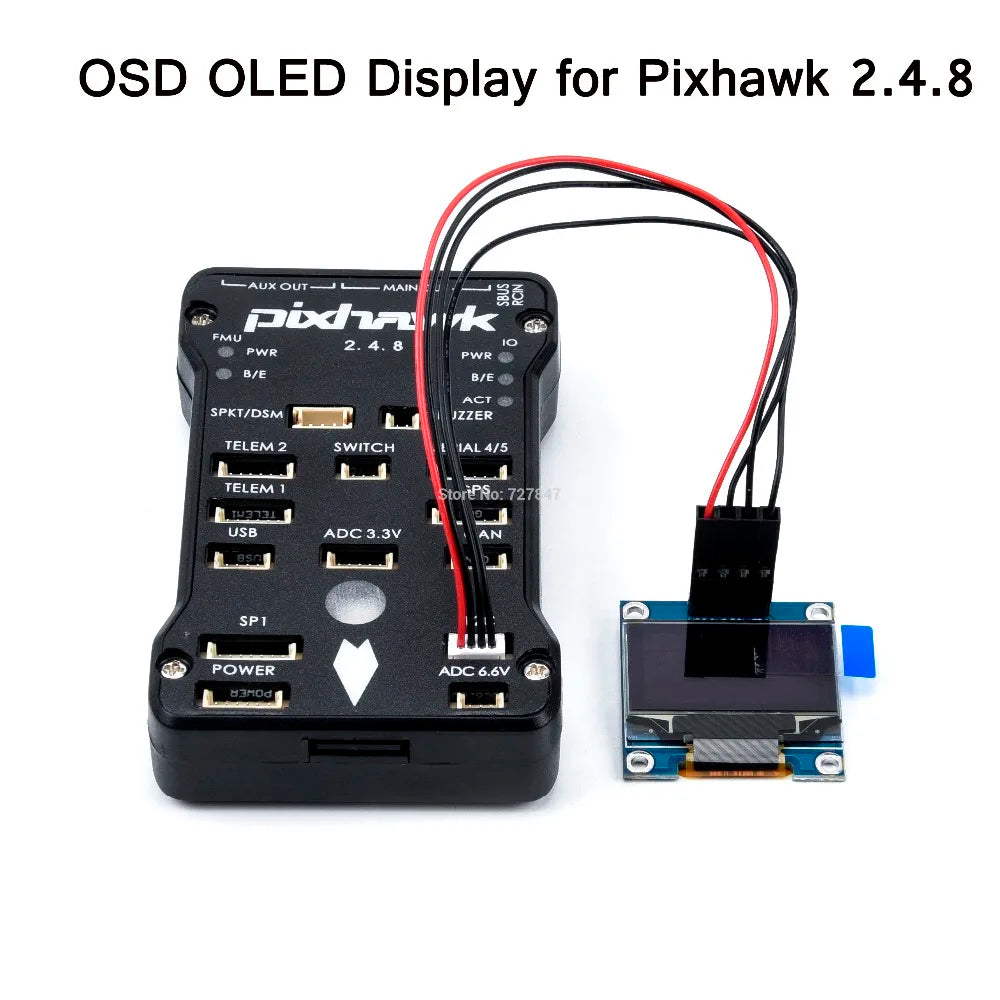

– Pixhawk OSD OLED Displayx1
– I2C Splitter Expand Module without x1
– PPM Module without shell x1
– 5v/12v PDB x1
– battery belt x 2
– alarm x 1
– silicone wire x 1m
– 1245 propeller x 4 pair (the color send at random ,for ZD550 frame )
or
– Flysky i6 with ia10b receiver x1
-ZD680 Carbon Fiber Quadcopter frame kits x 1
– Carbon fiber Landing gear x 1( red color and green color landing protection foam send at random）
– 5010 750KV motor x 4
– Hobbywing 40A 2-6S ESC x 4
– 3 axis Gimbal x 1
-TS832 and RC832 X1
– Pixhawk 2.4.8 32bit ARM Flight Controllerx 1
– shock absorber x 1
– Safety button and buzzer x 1( 2 kinds of design send at random)
– 4G TF card (IO firmware has written) x1
– Neo-M8N Gps Module x1
– Black Gps Holder x1
– Power Module x1
– Pixhawk OSD OLED Displayx1
– I2C Splitter Expand Module without x1
– PPM Module without shell x1
– 5v/12v PDB x1
– battery belt x 2
– alarm x 1
– silicone wire x 1m
-1555 Carbon Fiber Propeller X 2 Pairs for ZD680 frame
Readytosky Quadcopter Kit FLYSKY FS-16 Readyt * Im Rcoayt 5010-750KV ‘404 I404 | 1 A0A| I404| Toron 3010qbolv Ho 300GOr roton 3010.
40-6 Svidc L FS-i6 + IAlOB SwC ‘Vah Waus FLYSKY Ou KS- 0 DINDE Mode 2 LI04 UPDATE ACHz 10CHANNELS !
