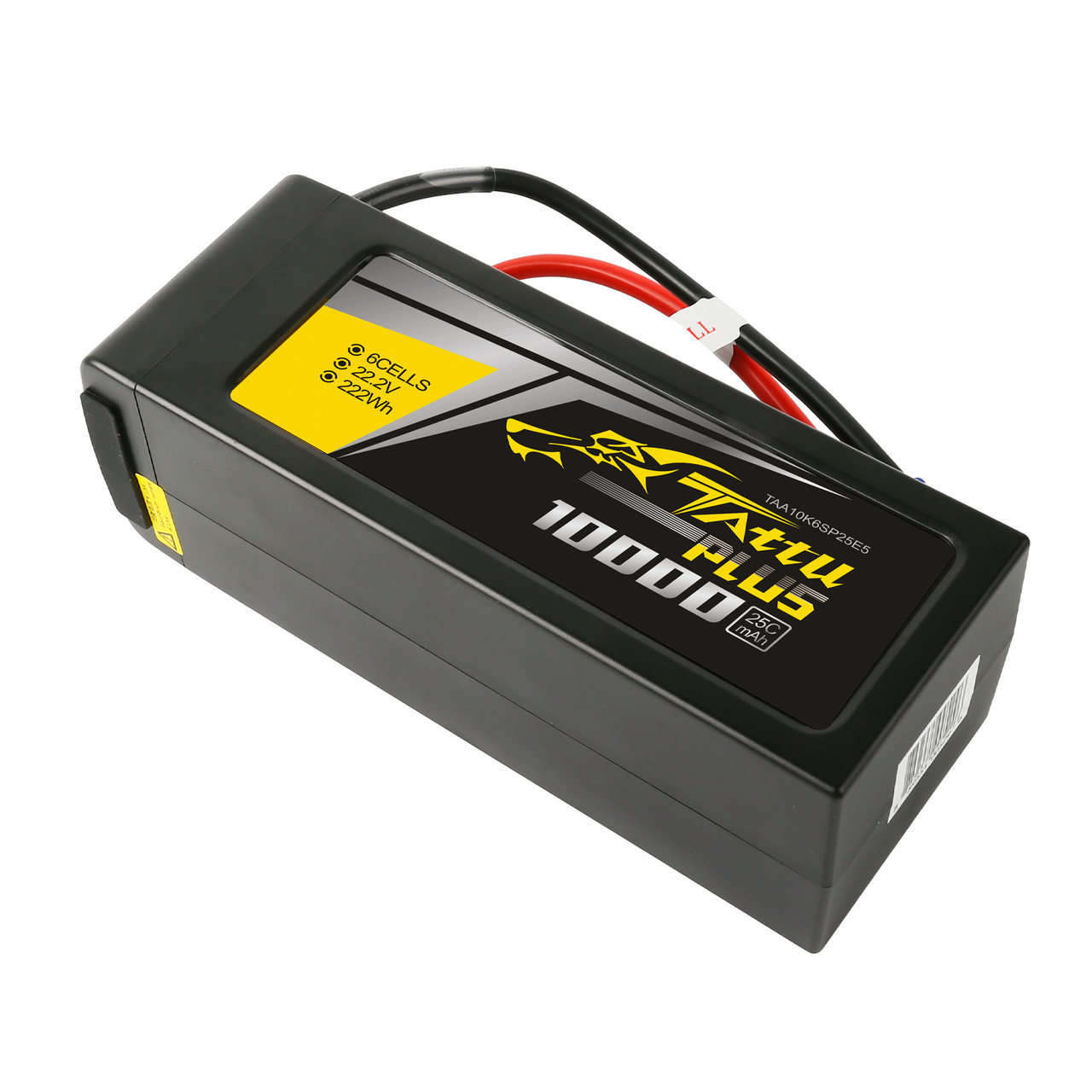

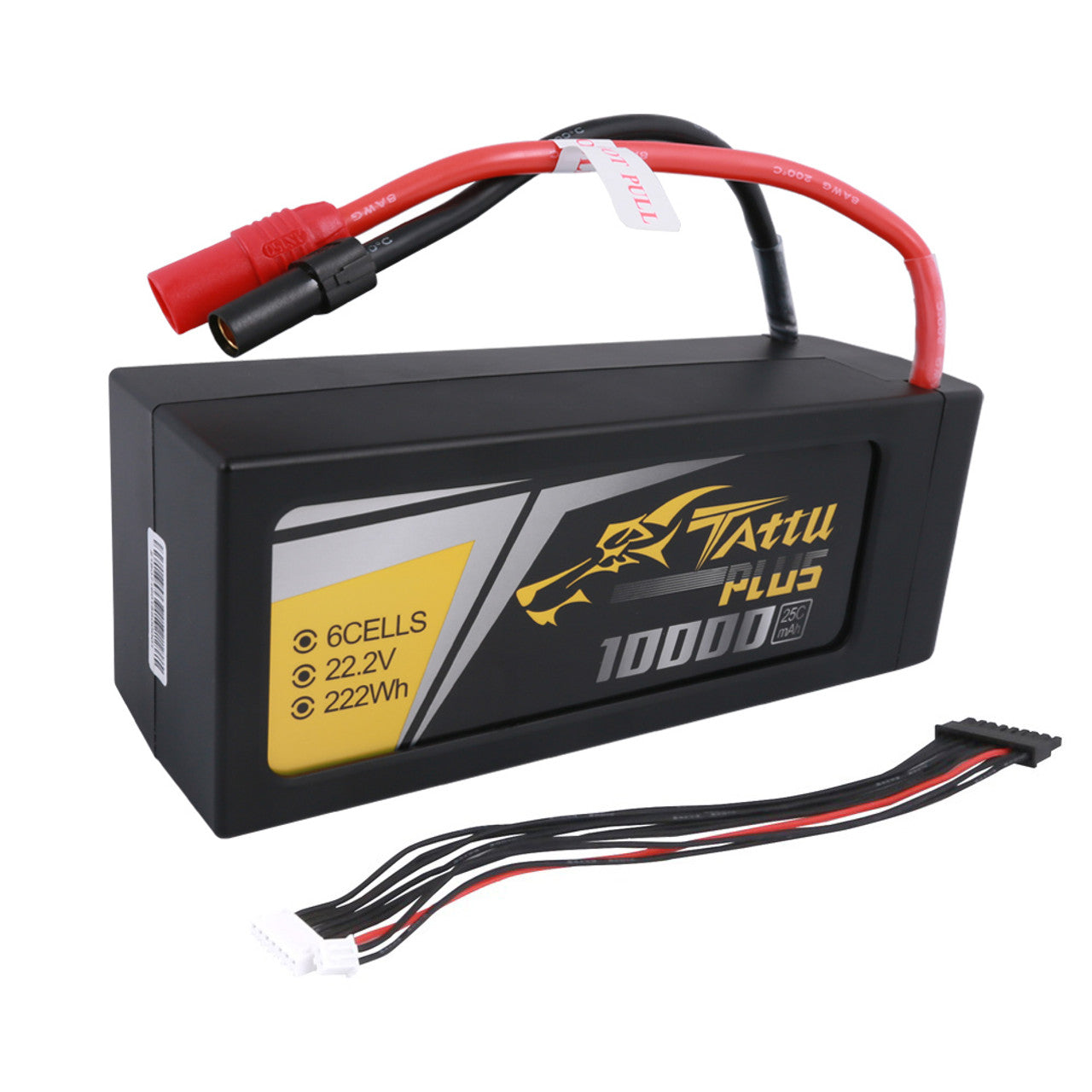

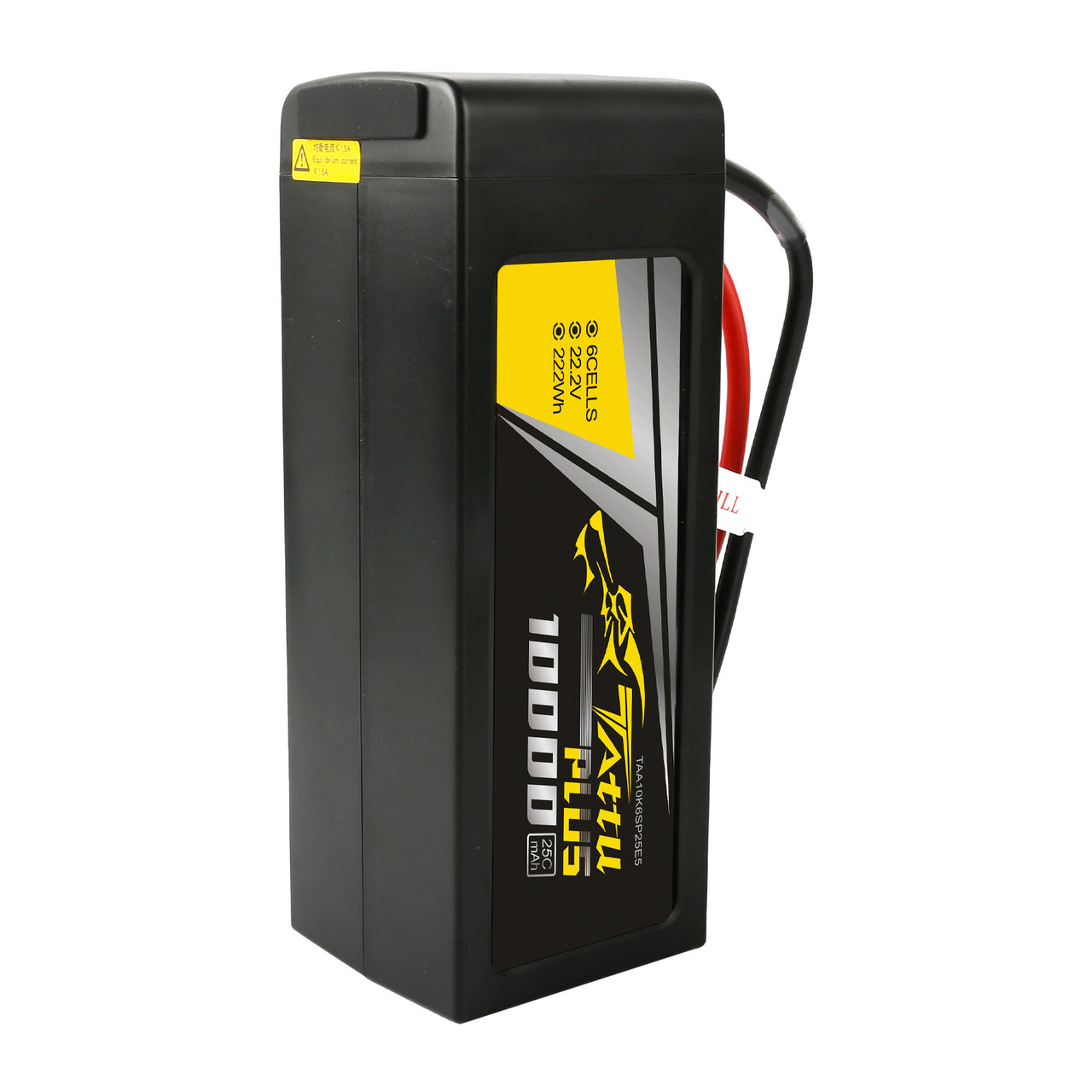

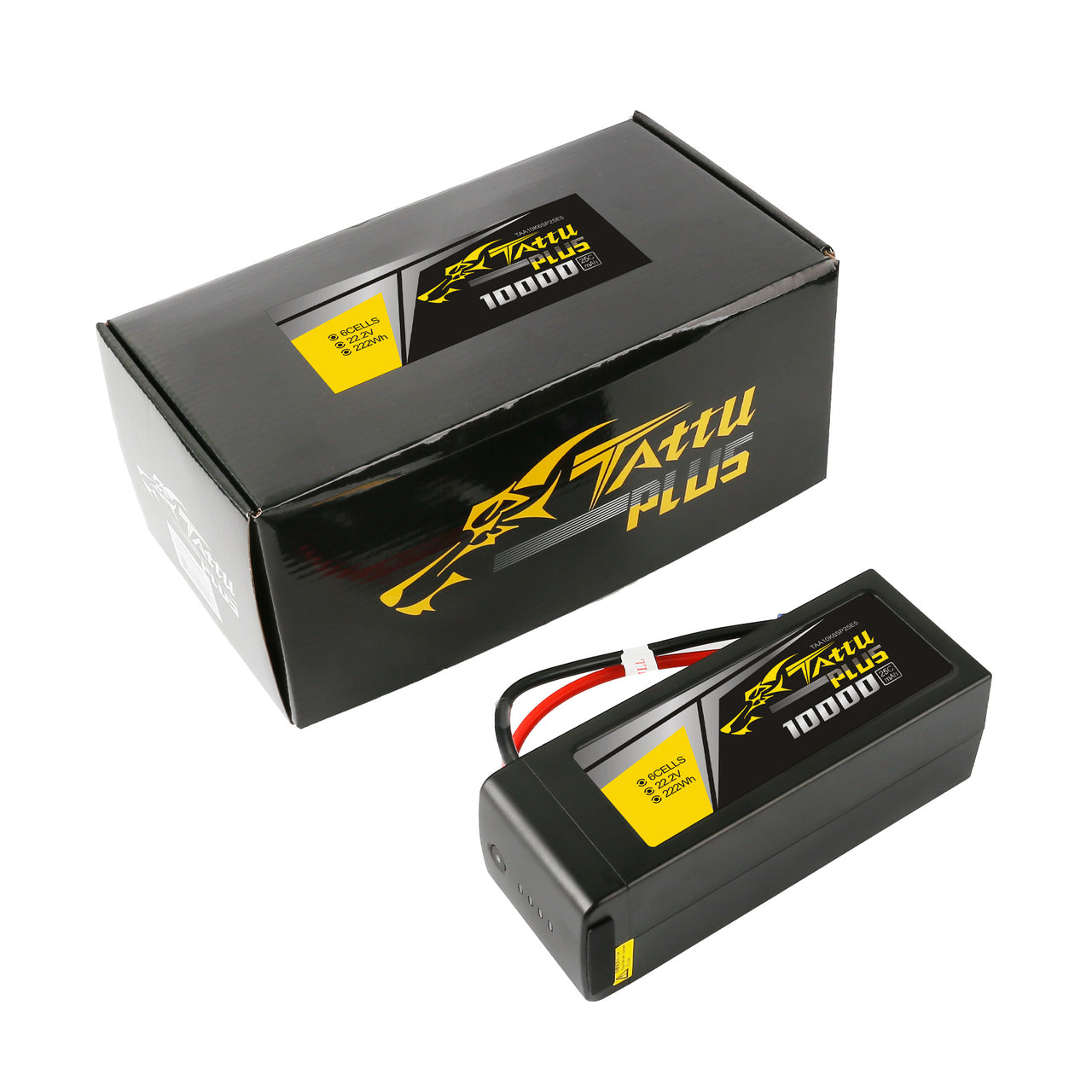

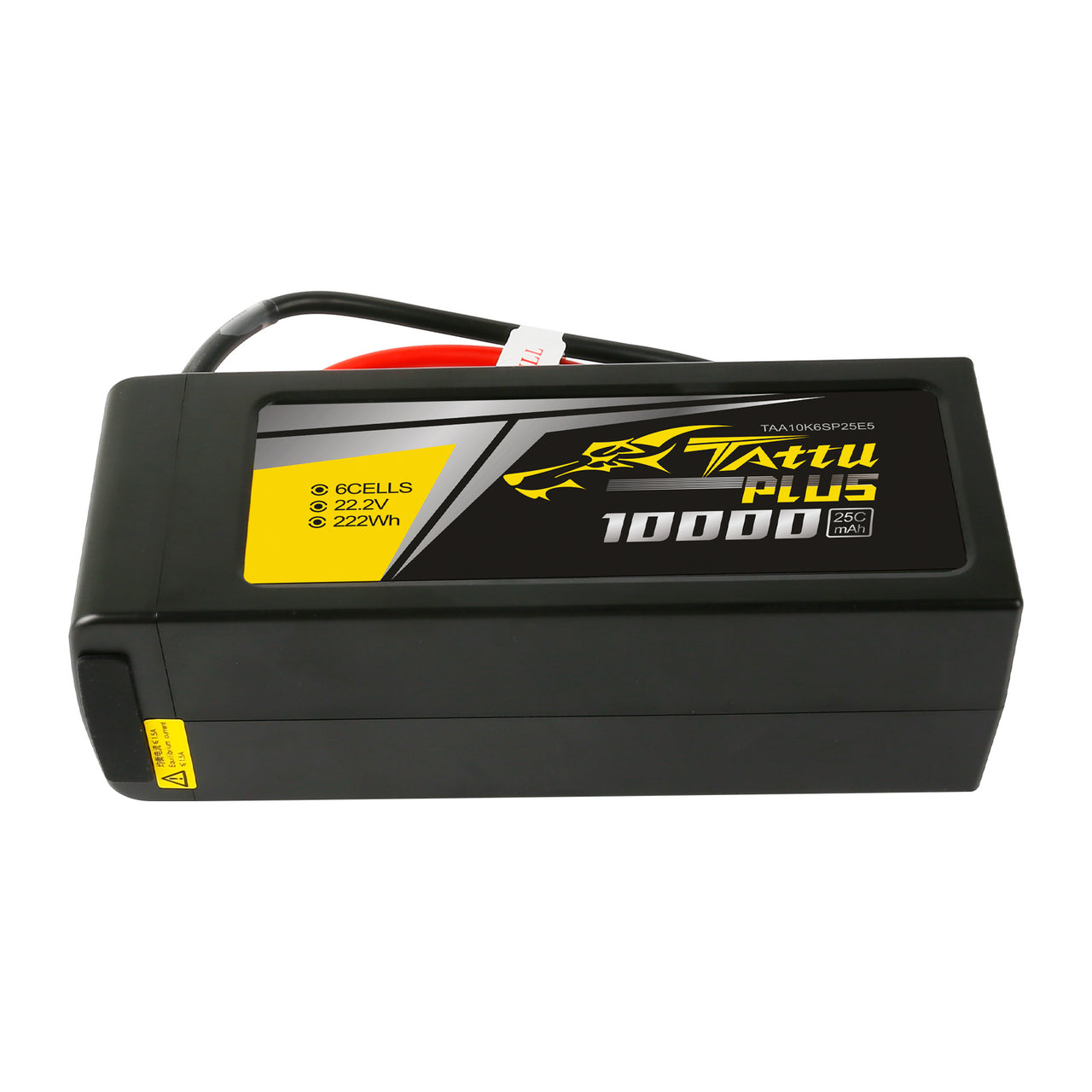

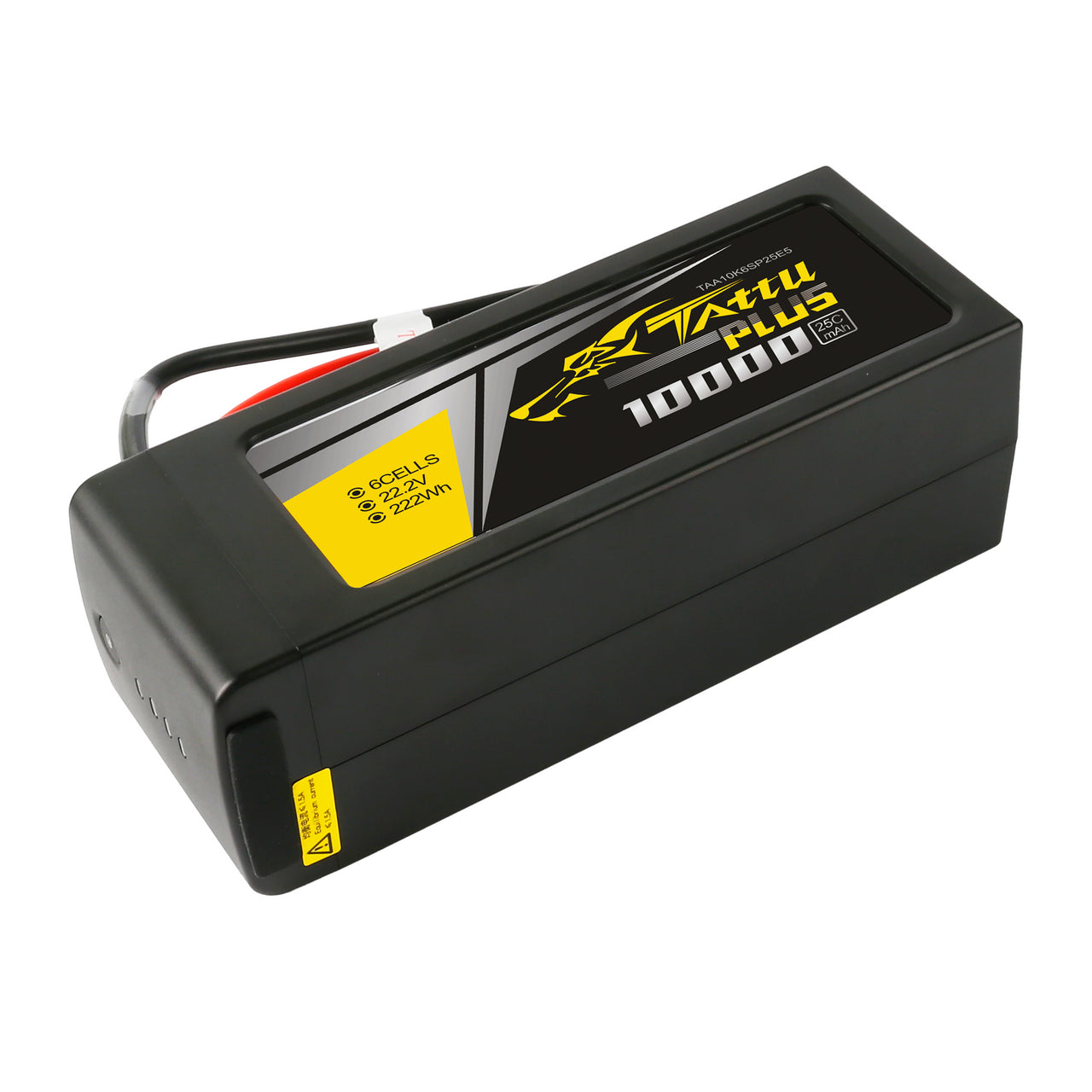

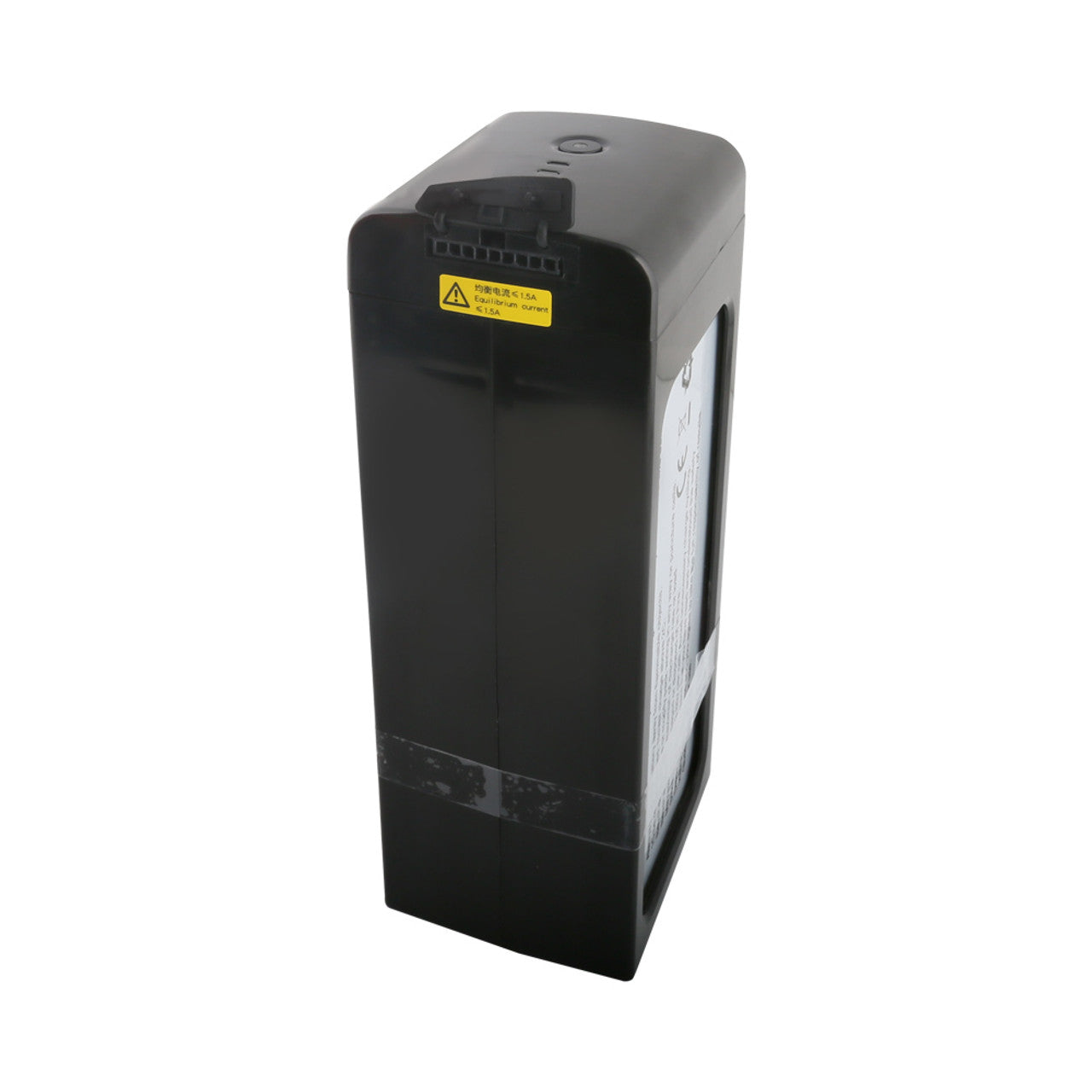

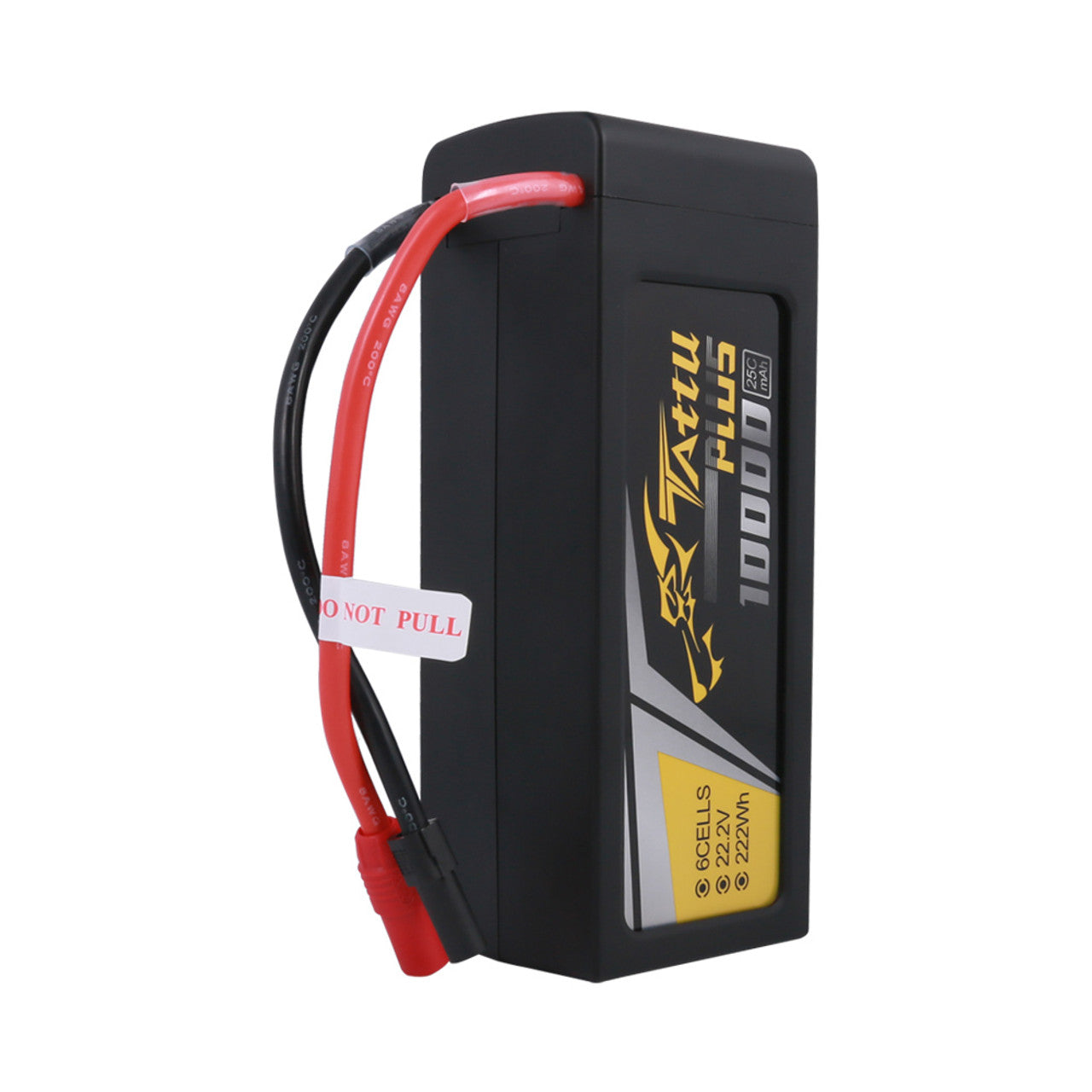

Tattu Plus 10000mAh 22.2V 25C 6S1P Lipo Battery Pack is compatible with LiPo balance chargers for Freefly ALTA, Walkera QR X800, FreeFly CineStar 6, CineStar 8, , etc.
Tattu Plus, a smart battery specially designed for UAV, it has an amazing battery management system (BMS), which will smartly manage your battery and extend your battery using life. The BMS of UAV battery will become a trend in the future. It should be a new generation of UAV battery.
Here is Tattu Plus video, which introduces all the function of Tattu Plus in details.
Feature:
– Battery status indicate the function
– Storage &self-discharge function
– Overvoltage and under voltage alert function
– Over Temperature and low-temperature alert function
– Cell abnormal alert function
– The difference of cell voltage fault temperature fault warning function
– Local after-sales service(located in Dublin, CA)
Specifications:
– Minimum Capacity: 10000mAh
– Configuration: 6S1P / 22.2v
– Discharge Rate: 25C
– Max Burst Discharge Rate: 50C
– Net Weight(±20g): 1517g
– Dimensions: 186 x 70 x 63mm
– Connector: EC5 plug
| Brand: | Tattu |
| Capacity(mAh): | 10000 |
| Configuration: | 6S1P |
| Connector Type: | EC5 / AS150+XT150 |
| Discharge Rate (C): | 25 |
| Height(±2mm): | 63 |
| Length(±5mm): | 186 |
| Max Burst discharge Rate (C): | 50 |
| Net Weight(±20g): | 1517 |
| Over 300wh: | No |
| over_power: | Yes |
| Part Number: | TAA10K6SP25E5 |
| Preorder config: | No |
| sorting: | TattuLarge |
| upc: | 889551005296 |
| Voltage(V): | 22.2 |
| Width(±2mm): | 70 |
| Wire Gauge: | AWG#10 |
| Discharge Wire Length(mm): | 160mm |
| Amount: | 4pcs/box |
| Capacity Range(mAh): | 10000-49999 |
| Part N: | TA-P2-25C-10000-6S1P-EC5 |
| Manual: | Tattu-Plus.pdf |
| Charge Plug: | MOLEX-436450-9P |
Chargers:
Recommended use of the Tattu matching charger.
Tattu TA3200 Charger for 6S~14S pouch cell / smart batteries.
