Product Description:

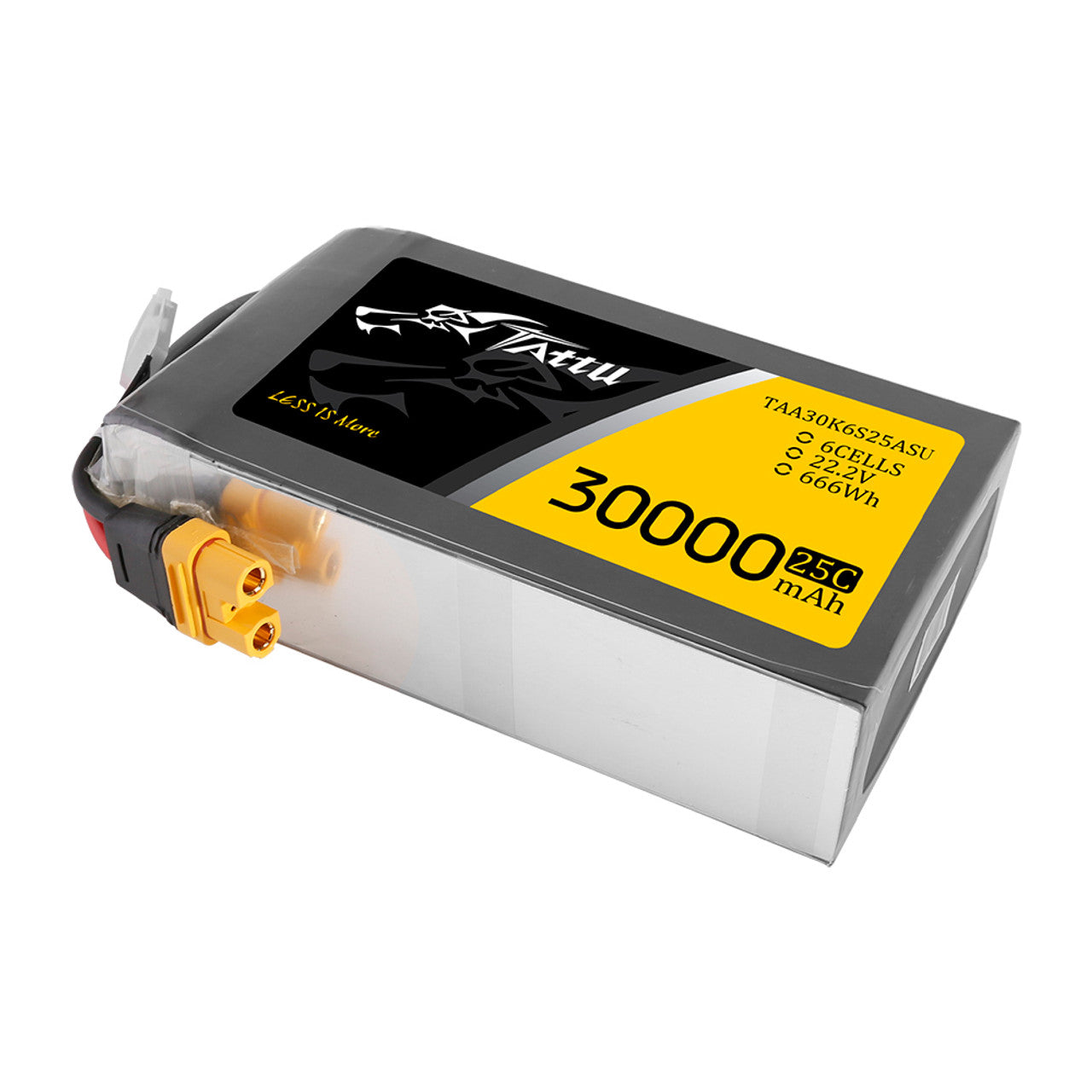

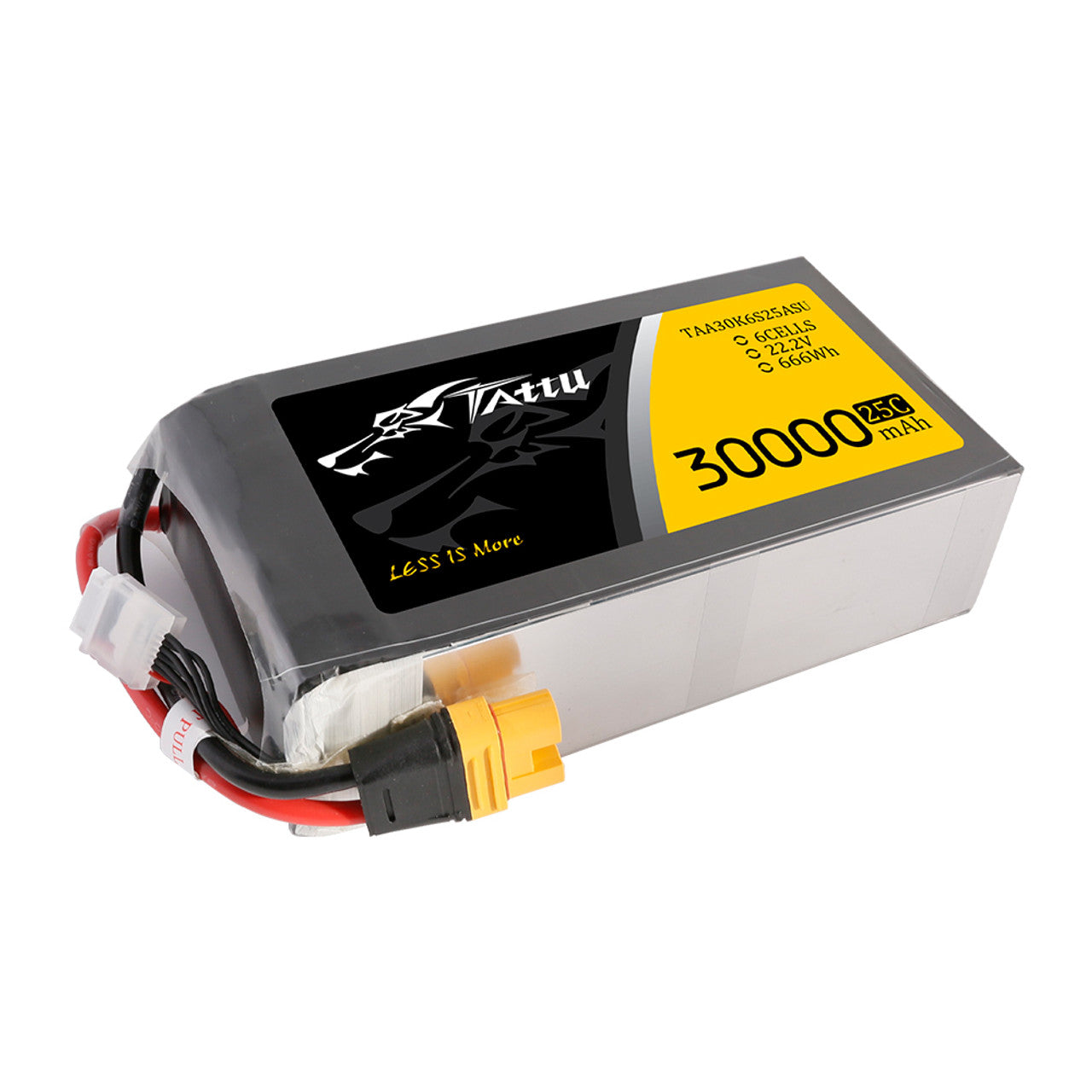

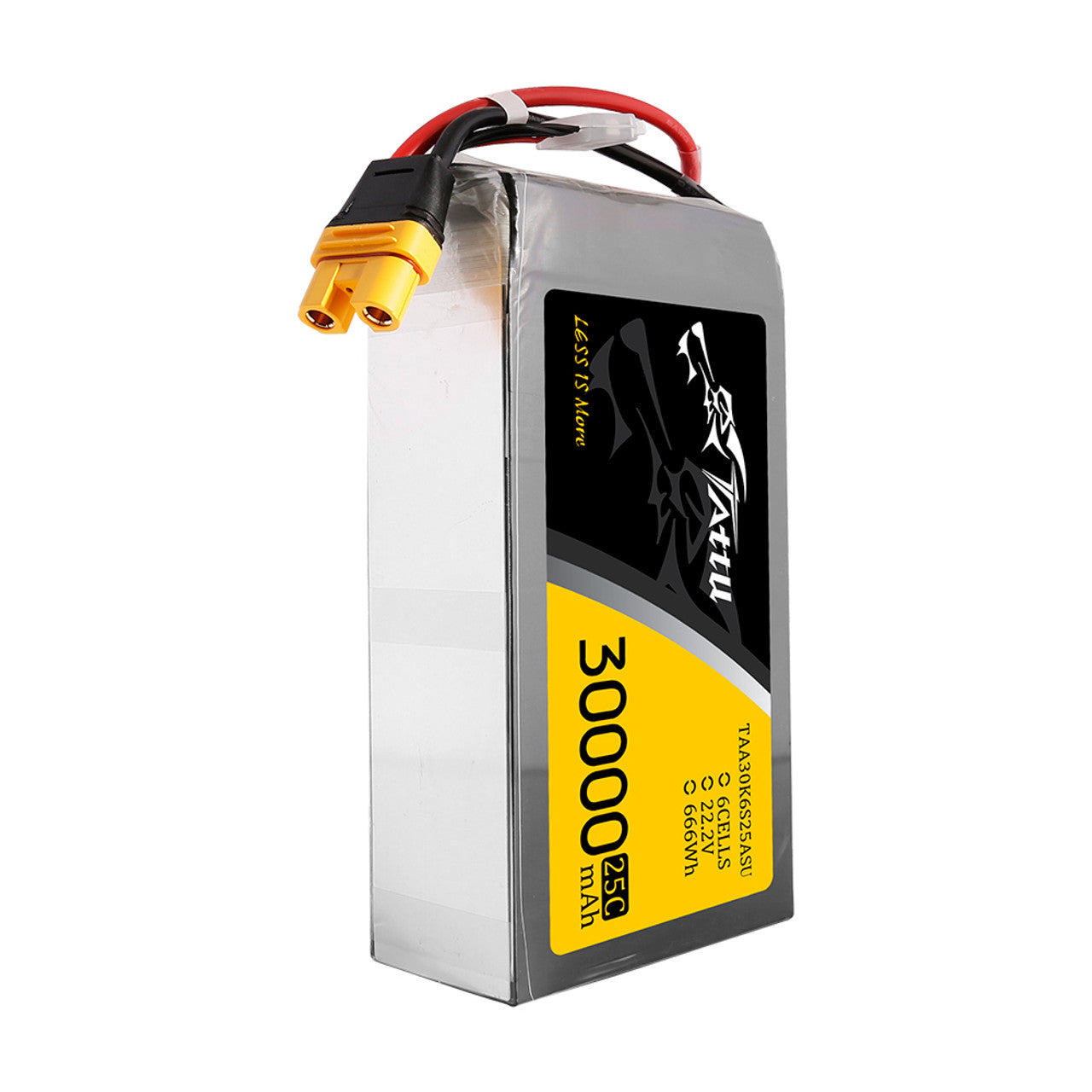

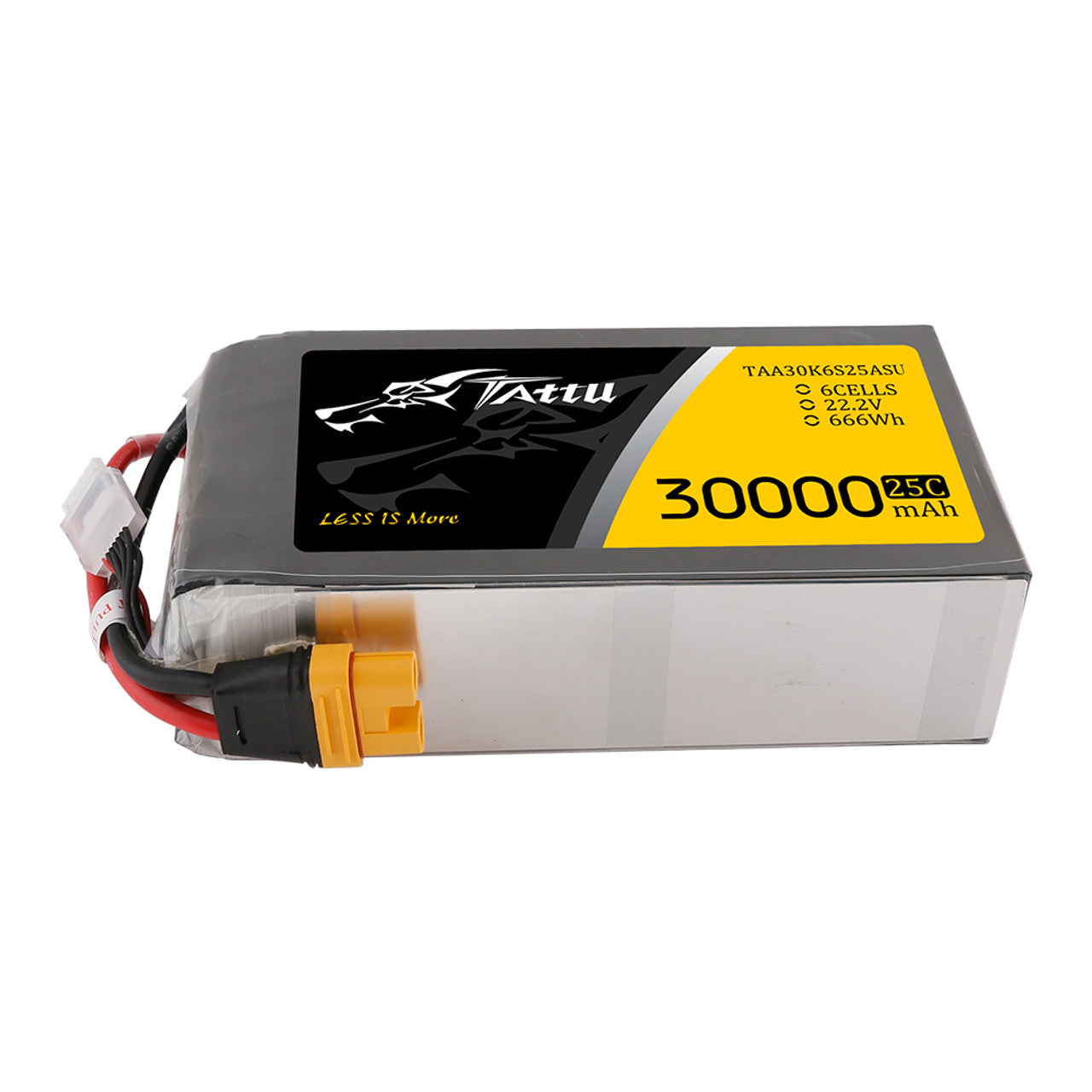

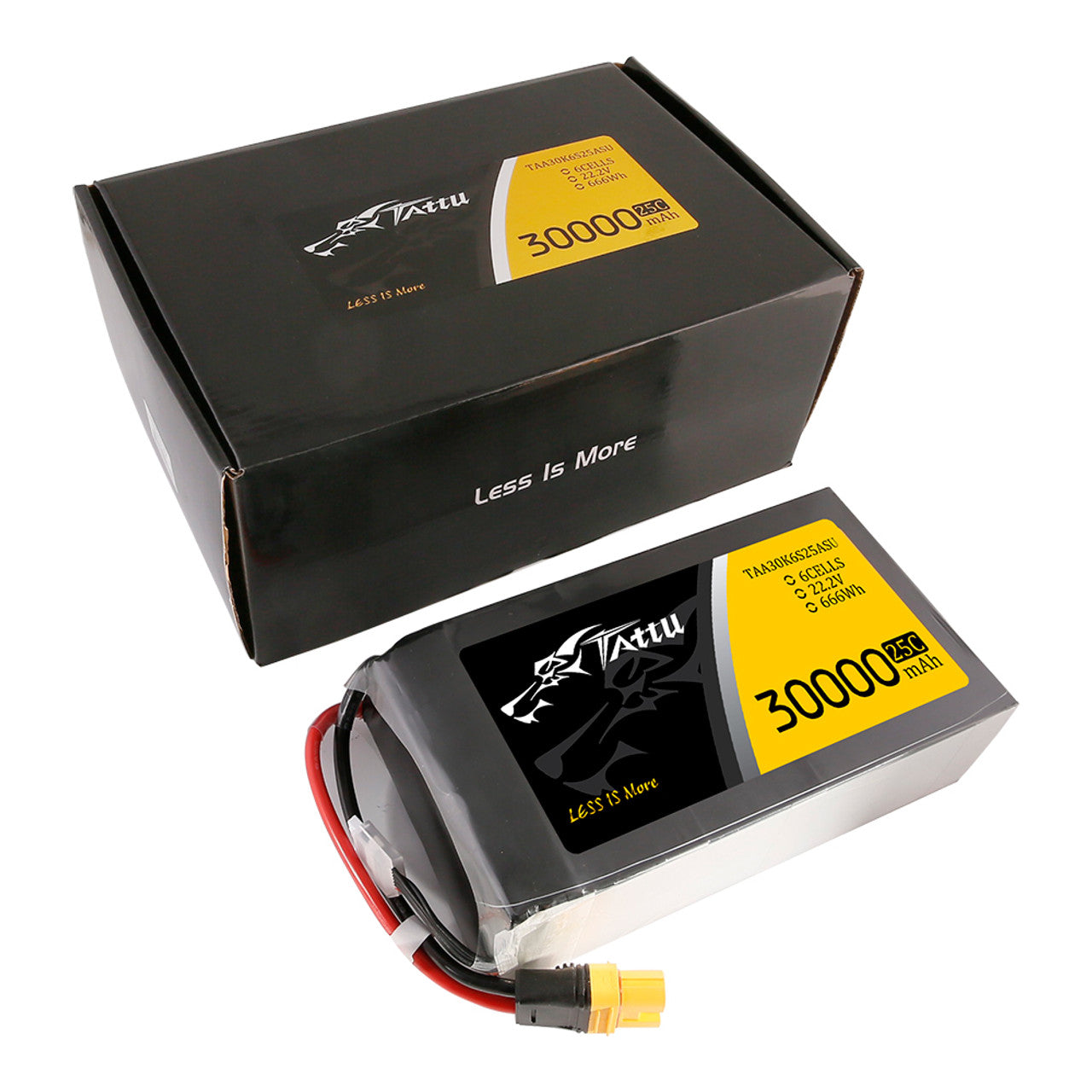

The Tattu G-Tech 30000mAh 22.2V 25C 6S1P Lipo Battery Pack is an ideal power source for UAV drones. As a product of Tattu, a sister brand of Gens Ace under the leadership of Grepow, the world’s leading manufacturer of high discharge rate lithium polymer batteries, this battery stands out for its superior performance and reliability.
Key Features:
- G-Tech Chip: Embedded with a G-Tech chip for automatic identification, communication, and charging with the G-Tech Eco Smart Charger, while also compatible with standard chargers.
- High Capacity: Provides 30000mAh capacity, ensuring longer flight times.
- Advanced Technology: Utilizes stable automatic stacking technology for enhanced stability and performance.
- Anti-spark Design: Features an anti-spark design for safety.
- Long Cycle Life: Almost double the cycle life of standard lithium-polymer batteries.
Specifications:
| Parameter | Value |
|---|---|
| Capacity (mAh) | 30000 |
| Voltage (V) | 22.2 |
| Configuration | 6S1P (6 Cells) |
| Discharge Rate (C) | 25 |
| Max Burst Discharge Rate (C) | 50 |
| Weight (±20g) | 3500g |
| Dimensions (L x W x H) | 218mm x 120.5mm x 60.5mm |
| Connector Type | AS150U-F |
| Balancer Connector Type: | JST-XHR-7P |
| Brand: | Tattu |
| Capacity(mAh): | 30000 |
| Balancer Wire Length(mm): | 65 |
| Configuration: | 6S1P |
| Connector Type: | AS150U-F |
| Discharge Rate (C): | 25 |
| Height(±2mm): | 60 |
| is featured product: | Yes |
| Length(±5mm): | 218 |
| Max Burst discharge Rate (C): | 50 |
| Net Weight(±20g): | 3500 |
| Over 300wh: | Yes |
| over_power: | Yes |
| Part Number: | TA-25C-30000-6S1P-AS150U-F |
| Preorder config: | No |
| sorting: | TattuLarge |
| Store No.: | OS404A/B. |
| upc: | 889551114875 |
| Voltage(V): | 22.2 |
| Width(±2mm): | 120.5 |
| Wire Gauge: | AWG8# |
| Discharge Wire Length(mm): | 150mm |
| Amount: | 2pcs/box |
| Capacity Range(mAh): | 30000 |
| Part N: | TA-25C-30000-6S1P-AS150U-F |
Applications:
This battery is designed to meet the rigorous demands of modern Unmanned Aerial Vehicles (UAVs) and is suitable for use in:
- Military drones
- Security surveillance drones
- Surveying and mapping drones
- Aerial filming drones (such as those used by DJI, Cinestar, Droidworx, etc.)
Additional Information:
- High-Quality Power: Ensures reliable power for various UAV applications.
- Recommended Charger: For optimal performance, use the Tattu TA1000 G-Tech Eco Smart Charger.
Advantages:
- High Capacity: Provides longer flight times with 30000mAh capacity.
- Safety Features: Includes an anti-spark design for enhanced safety.
- Advanced Technology: Embedded G-Tech chip for smart charging and communication.
- Durability: Longer cycle life compared to standard lipo batteries.
- Compatibility: Designed for use with both G-Tech Eco Smart Chargers and standard chargers.
For more details on compatible chargers, other battery options, and customization services, visit our website or contact us directly.
This high-capacity, advanced battery pack ensures your UAV drones operate efficiently and reliably, making it a top choice for professional and demanding applications.
