RDD-M 10KG Payload Release and Drop Device

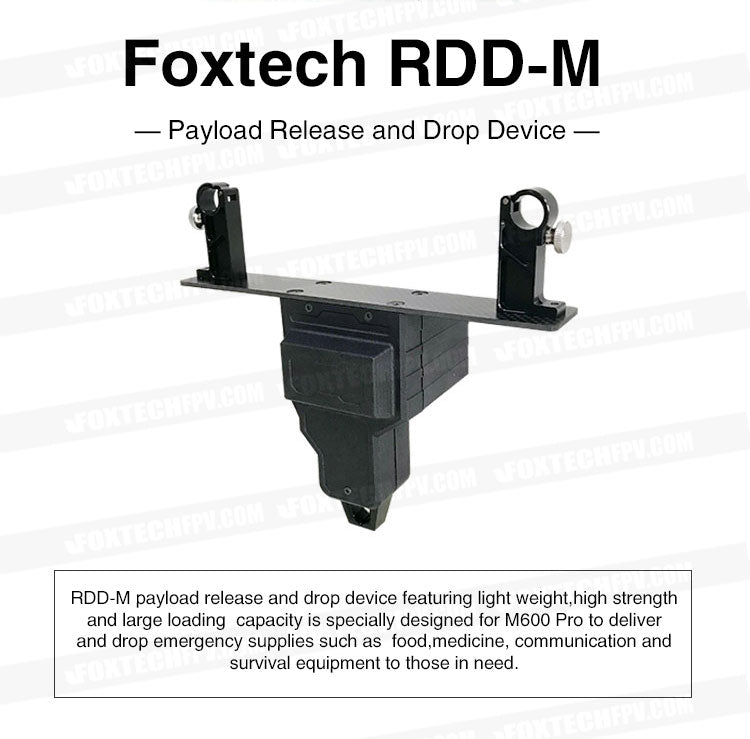

RDD-M payload release and drop device featuring LIGHT WEIGHT,HIGH STRENGTH and LARGE LOADING CAPACITY is specially designed FOR M600 PRO to deliver and drop emergency supplies such as food,medicine,communication and survival equipment to those in need.
The carbon fiber and aviation aluminum material make the device light but durable.The weight of RDD-M is ONLY 311G, it can LOAD 5-10KG easily. Adopting new sliding rail design,the release hook can open and lock more smoothly and securely; With the simple structure the device can be assembled in one minute.
This release and drop device is equipped with a 6CH remote controller, the operation range of which is 800m; The device can be controlled both by RC independently and FC (PWM signal), you can switch the control mode according to your need.

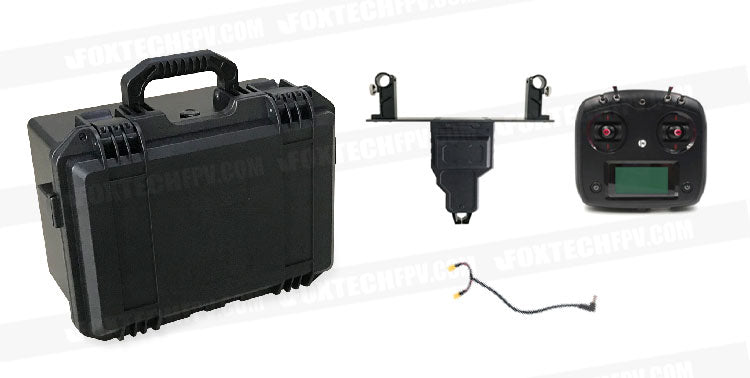

YOUR PURCHASE INCLUDES:
1x RDD-M Payload Release and Drop Device
1x 6CH Remote Controller
1x Power Cable
1x Carrying Case

OPTION:
Remote Controller Channel Expansion Kit for Lightbridge 2

Manual

The Foxtech RDD-M Payload Release and Drop Device is a lightweight, high-strength device with a large loading capacity. It’s designed specifically for use with the M600 Pro to deliver emergency supplies like food, medicine, communication equipment, and survival gear to those in need.

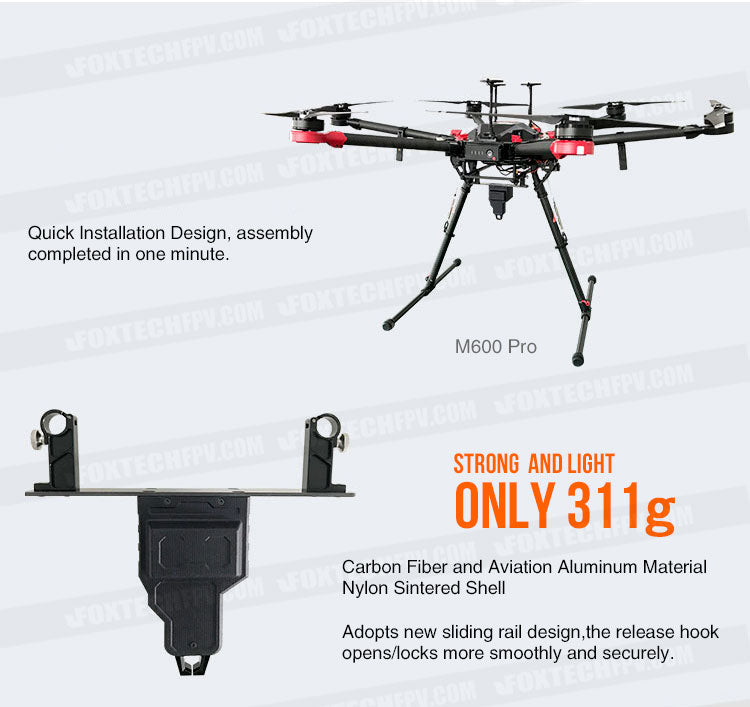

Quickly installable with a one-minute assembly time, this device features strong and lightweight materials – 31g carbon fiber and aviation aluminum. The nylon-sintered shell incorporates a new rail design for smoother and more secure release hook opening.

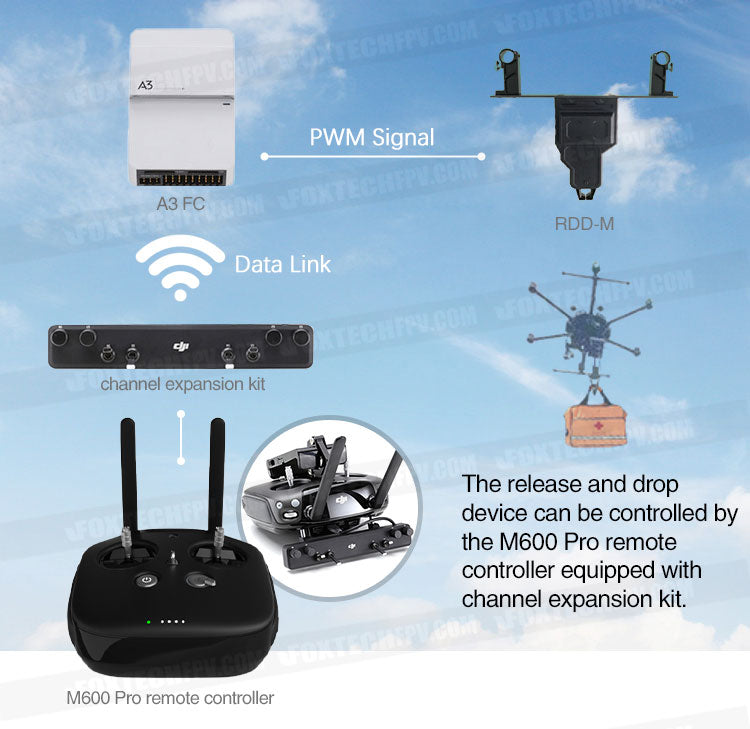

The RDD-M 10KG Payload Release and Drop Device can be controlled using the M600 Pro Remote Controller, which includes a data link channel expansion kit for PWM Signal A3 FC.

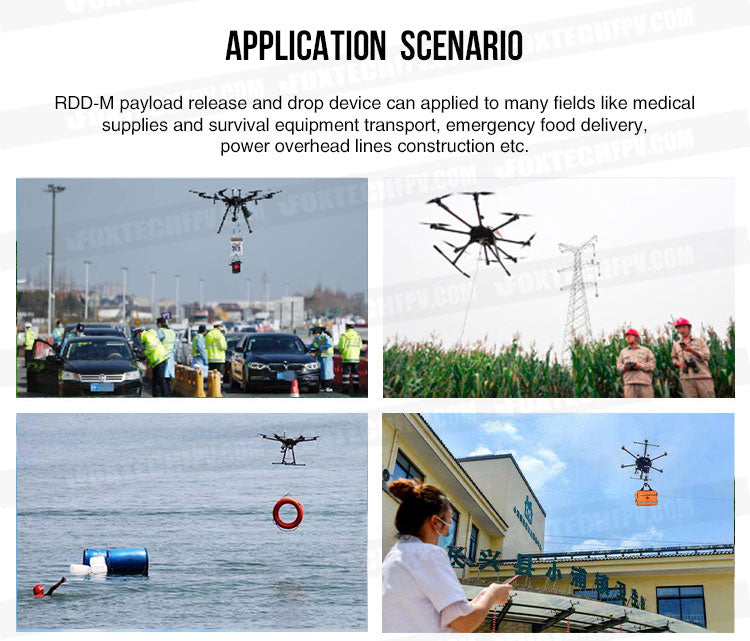

RDD-M Payload Release and Drop Device is suitable for various applications such as transporting medical supplies, survival equipment, and emergency food deliveries, as well as supporting power line constructions.

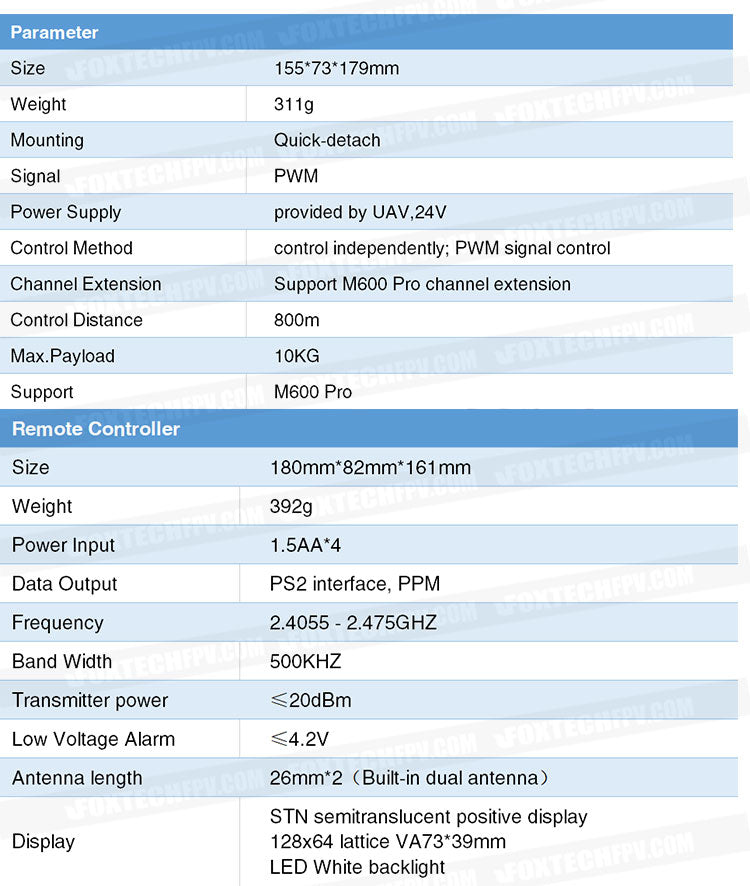

The RDD-M 10KG Payload Release and Drop Device has the following specifications: dimensions 155mm x 73mm x 179mm, weight 311g; mounting method quick-detach with PWM power supply provided by UAV (24V); control method independent PWM signal control. The device supports M6oo Pro channel extension, with a control distance of up to 800m and a maximum payload capacity of 10kg. It also features an M6oo Pro remote controller with dimensions 18Omm x 82mm x 161mm, weighing 392g; power input is via 1x SAA*4 and data output via PS2 interface.
