RDD-5 5-hook payload release and drop device features light weight, large loading capacity and quick-detach design, which can be used to deliver and drop emergency supplies such as food, medicine, communication and survival equipment. RDD-5 payload release and drop device supports both OSDK and PWM mode.
The aviation aluminum and carbon fiber material make the device light but durable. The weight of RDD-5 is only 295g, it has 5 loading hooks and can load Max.25kg (5kg/hook). The device can be controlled both by OSDK and PWM signal.
The RDD-5 drop device OSDK mode adopts OSDK+APP control method, breaking the limitation of control distance, and does not occupy the gimbal interface, so it can work with gimbal camera at the same time; The RDD-5 PWM mode is compatible with other UAVs that support PWM signal, the operation range of the device is the same as the drone radio controller.

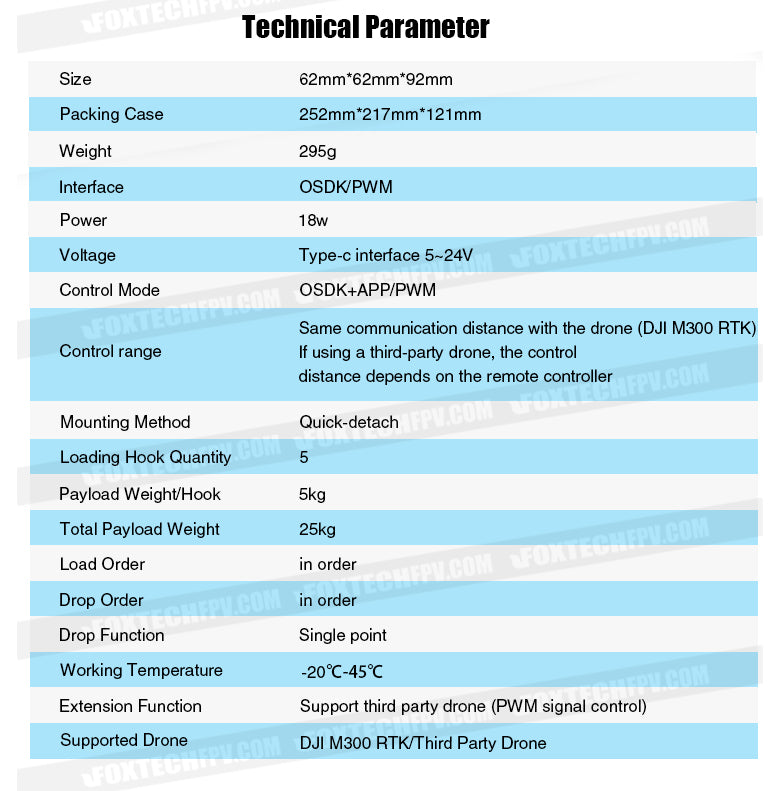

Specifications
| Technical Parameter | |
|---|---|
| Size | 62mm62mm92mm |
| Packing Case | 252mm217mm121mm |
| Weight | 295g |
| Interface | OSDK/PWM |
| Power | 18w |
| Voltage | Type-c interface 5~24V |
| Control Mode | OSDK+APP/PWM |
| Control range | Same communication distance with the drone (DJI M300 RTK). If using a third-party drone, the control distance depends on the remote controller. |
| Mounting Method | Quick-detach |
| Loading Hook Quantity | 5 |
| Payload Weight/Hook | 5kg |
| Total Payload Weight | 25kg |
| Load Order | in order |
| Drop Order | in order |
| Drop Function | Single point |
| Working Temperature | -20°C~45°C |
| Extension Function | Support third party drone (PWM signal control) |
| Supported Drone | DJI M300 RTK/Third Party Drone |
YOUR PURCHASE INCLUDES:
1x RDD-5 Payload Release and Drop Device
1x Loading Bracket
1x TF Card
1x Power Cable
1x Carrying Case
Manual Download

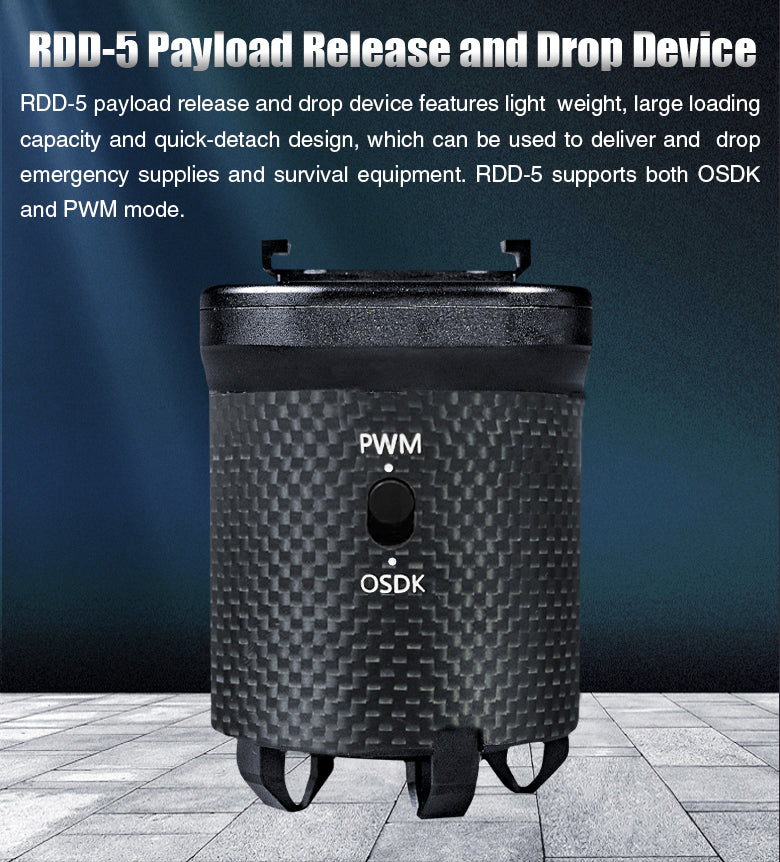

The RDD-5 Payload Release and Drop Device offers a lightweight design, accommodates large payloads, and features quick detachment for rapid deployment. This device is ideal for delivering emergency supplies and survival equipment. It supports both OSDK and PWM modes for versatile operation.

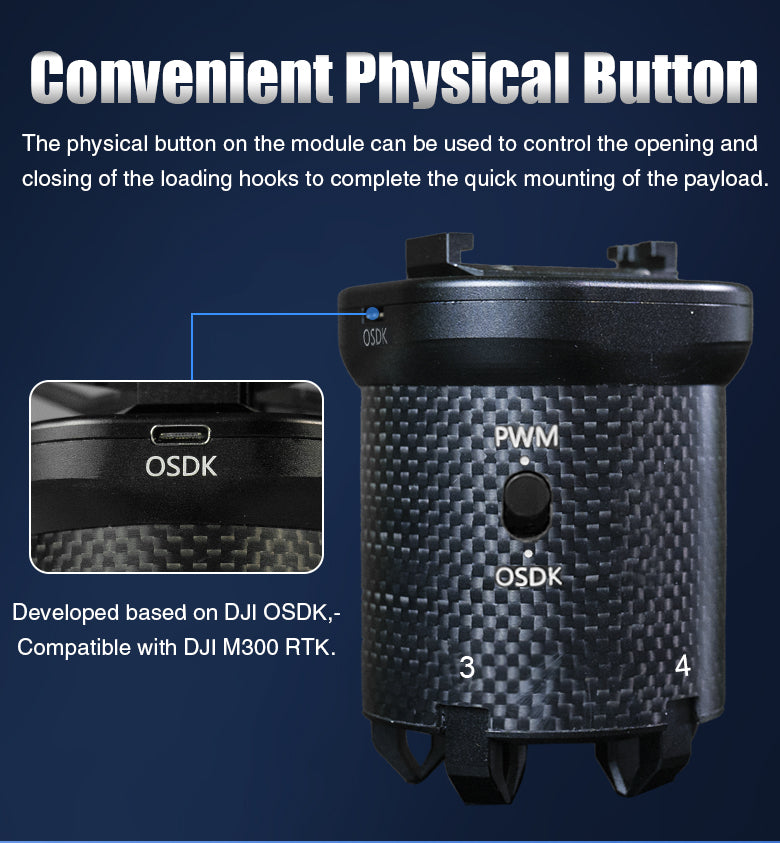

Control the payload release with a convenient physical button. This module features a physical button that allows for quick and easy opening/closing of loading hooks, facilitating efficient payload mounting.

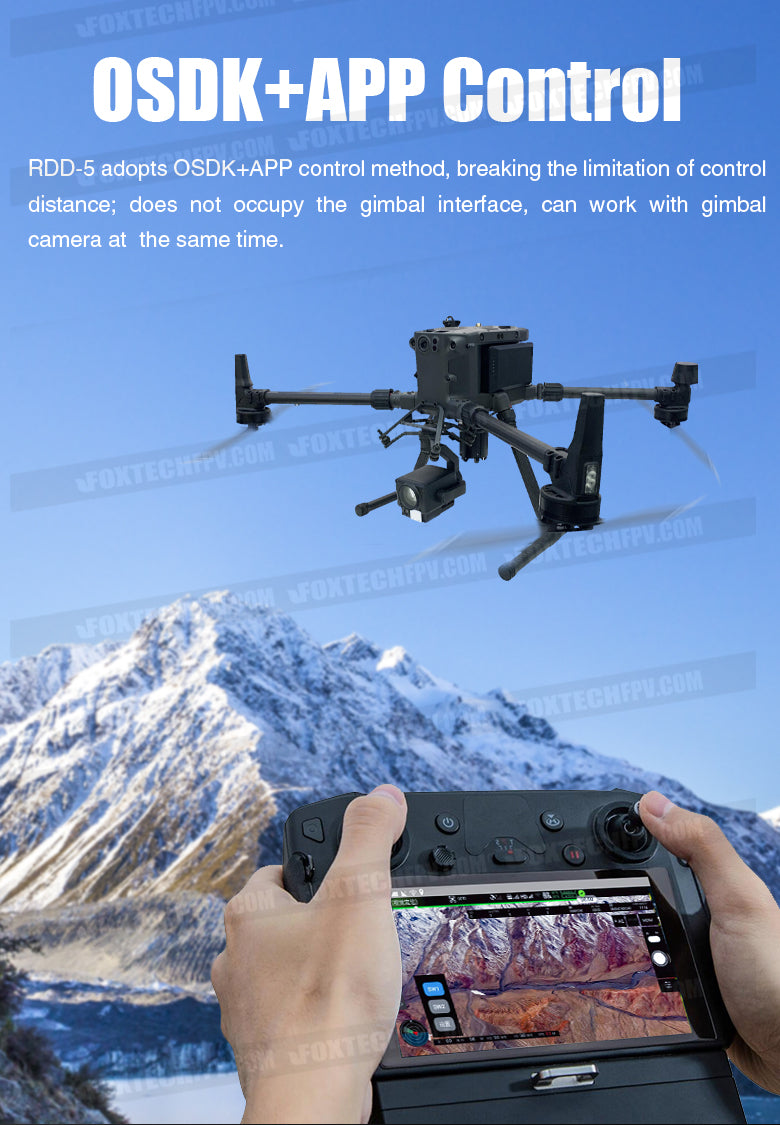

The RDD-5 uses an OSDK+APP control method, eliminating distance limitations while not occupying the gimbal interface. This allows simultaneous use with a gimbal camera.

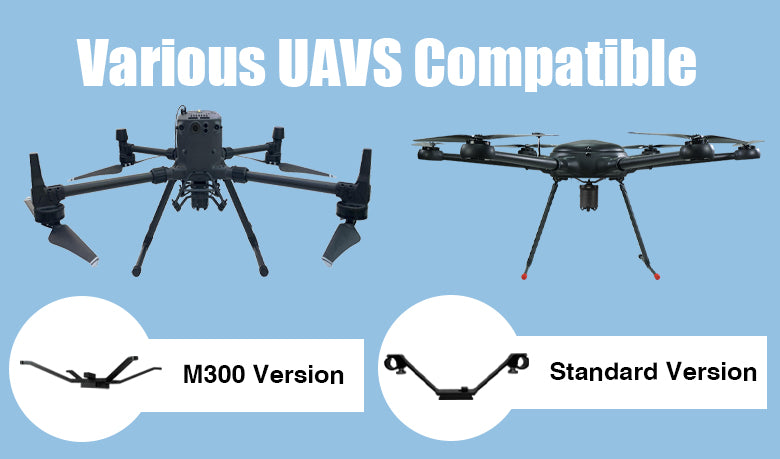

Compatible with various UAV models, this product meets the M3000 industry standard.

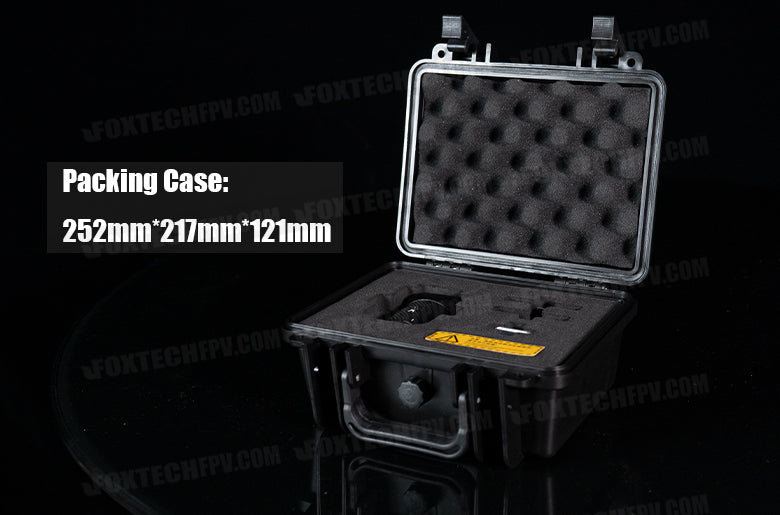

Original Packaging Case: 25.2cm x 21.7cm x 12.1cm, small in size but compact and easy to set up.
