Basic parameters
Material:EPO, carbon fiber, aviation aluminum alloy, engineering plastic, etc.
Wingspan: 2180mm
VTOL arm: 755mm(including motor base)
Fuselage height: 255mm (inclouding foot pads)
Fuselage length: 1140mm
Wing area: 53dm2
Disassembly method: tool-less quick disassembly
Transport box size: 1095×340×435mm
Payload
Max. payload: 1kg
Max. takeoff weight: 7kg
Flight
Takeoff and landing mode: VTOL
Maximum takeoff altitude: 3000m
Practical lift altitude: 6500m
Wind resistance: Class 5 (normal operation)
Cruising speed: 17-22m/s
Stall speed: 12m/s
Mapping endurance: 136min/144km (speed 19m/s, load 600g, battery 6S@22000mah, take-off weight 6.65kg)
Monitoring endurance: 125min/126km (speed 18m/s, load 450g, battery 6S@22000mah, take-off weight 6.5kg)
Makeflyeasy HERO SPECIFICATIONS
Warranty: AS Description
Warning: AS Description
Video Capture Resolution: Other
Type: Airplane
State of Assembly: Unassembled Kit
Remote Distance: 2km
Remote Control: Yes
Recommend Age: 14+y,12+y
Power Source: Electric
Plugs Type: AS Description
Package Includes: Original Box
Origin: Mainland China
Operator Skill Level: Expert
Model Number: AS Description
Material: Plastic
Indoor/Outdoor Use: Indoor-Outdoor
Flight Time: AS Description
Features: GPS
Dimensions: 31cm-50cm
Controller Mode: MODE1,MODE2
Controller Battery: 2-4S
Control Channels: 8 Channels
Charging Voltage: AS Description
Charging Time: AS Description
Camera Mount Type: Other
CN: Sichuan
Brand Name: uuustore
Aerial Photography: No
The Hero VTOL is a multi-purpose vertical take-off and landing fixed wing. The nose can be replaced, and it can be equipped with an orthophoto camera or a tilt camera for surveying and mapping, and an optoelectronic pod for monitoring.
Makeflyeasy HERO VTOL inspection drone Aerial survey carrier Vertical take-off landing fixed wing Surveying mapping Monitoring

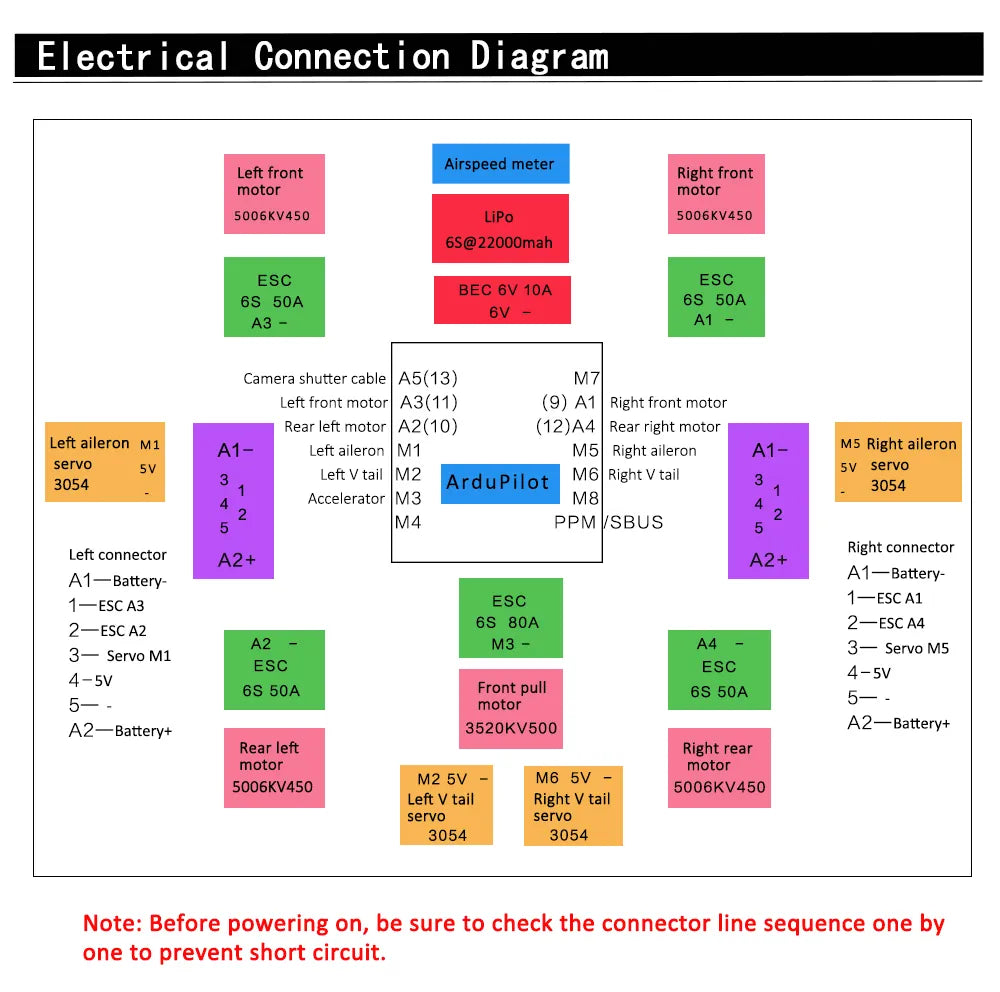

ESC ESC BEC 6V 10A 6S 50A 6s 50A A3 6V A1 Camera shutter cable A5(11) (9) A1 Right front motor Rear left motor A2(10) (12) A4 Rear right motor Left aileron M1 A1- Left ace servo Left tail M2 M6| Right tail serv o 3054 ArduPilot 3054 Accelerator |M3 M8 M4 PPM ‘SBUS’ Left
Makeflyeasy aerial survey series products are sensitive items . it is prohibited to use it for military purposes . keep the aircraft out of the reach of children .
APPLICATION AREAS
With small storage volume, flexible and convenient use, it can be widely used in topographic mapping, land survey, engineering survey, digital city, planning and construction, landscape planning, precision agriculture, environmental protection monitoring, ecological monitoring and other fields.
