KST X08N V5.0 Metal Gear SPECIFICATIONS
Wheelbase: Bottom Plate
Upgrade Parts/Accessories: Gear
Tool Supplies: Assembled class
Technical parameters: Value 5
Size: As show
Remote Control Peripherals/Devices: Servos
Recommend Age: 14+y,12+y
RC Parts & Accs: Servos
Origin: Mainland China
Model Number: X08N V5.0
Material: Metal
Four-wheel Drive Attributes: Assemblage
For Vehicle Type: Airplanes
Brand Name: uuustore

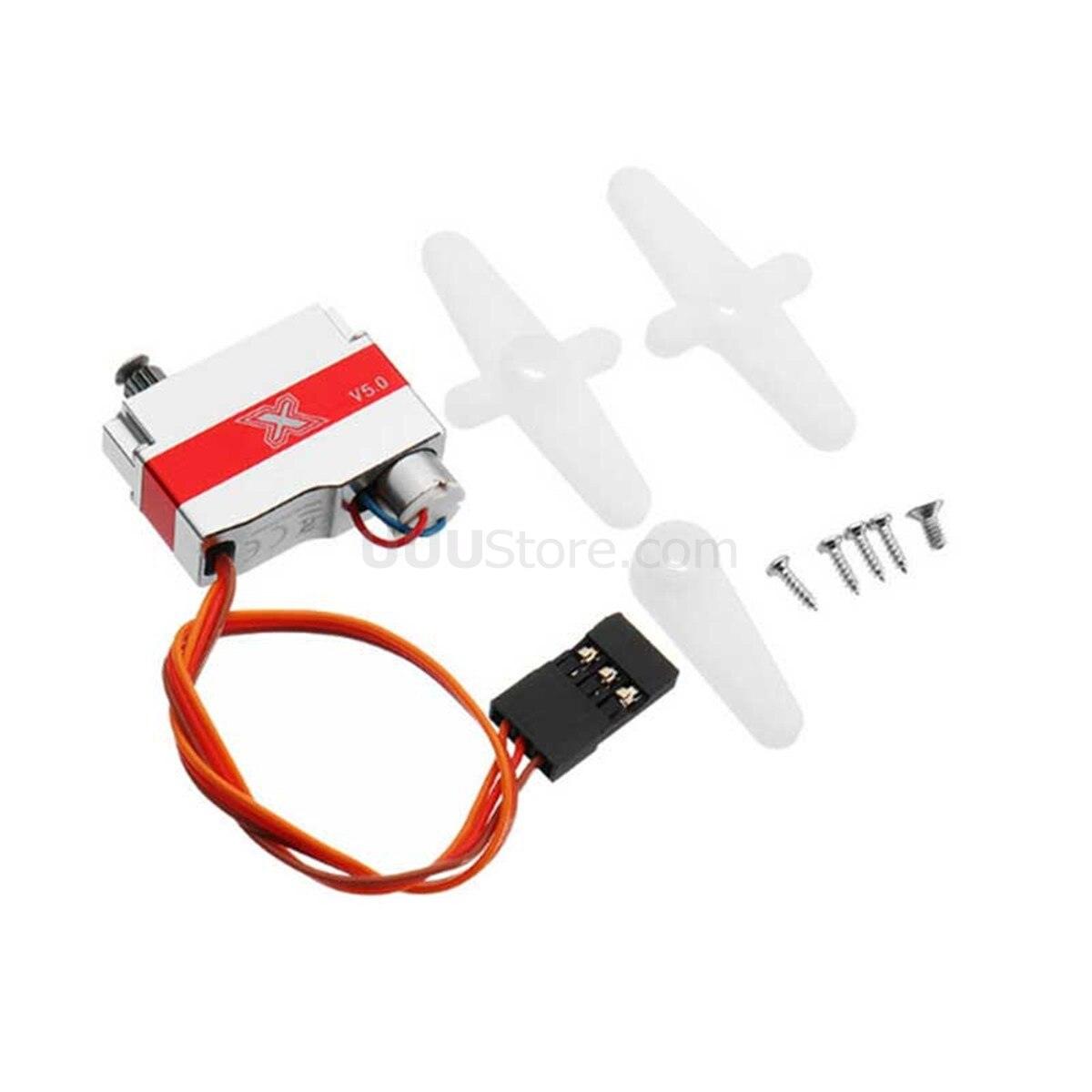

KST X08N V5.0 Metal Gear 2.7kg.cm@7.4V 9g Digital Wing Coreless Servo for RC Model Operation Voltage 3.8-8.4V

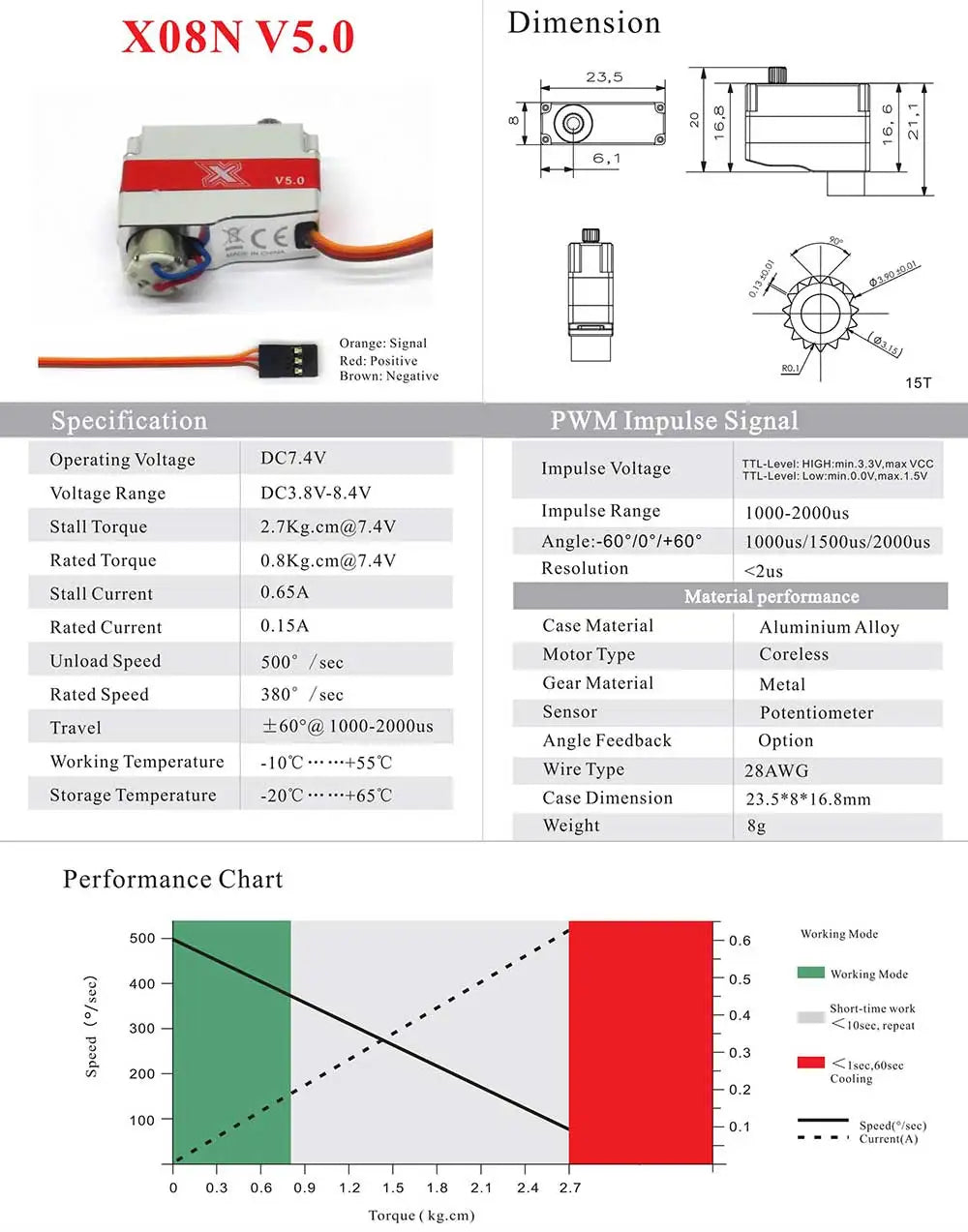

X08N V5.0 Specifications

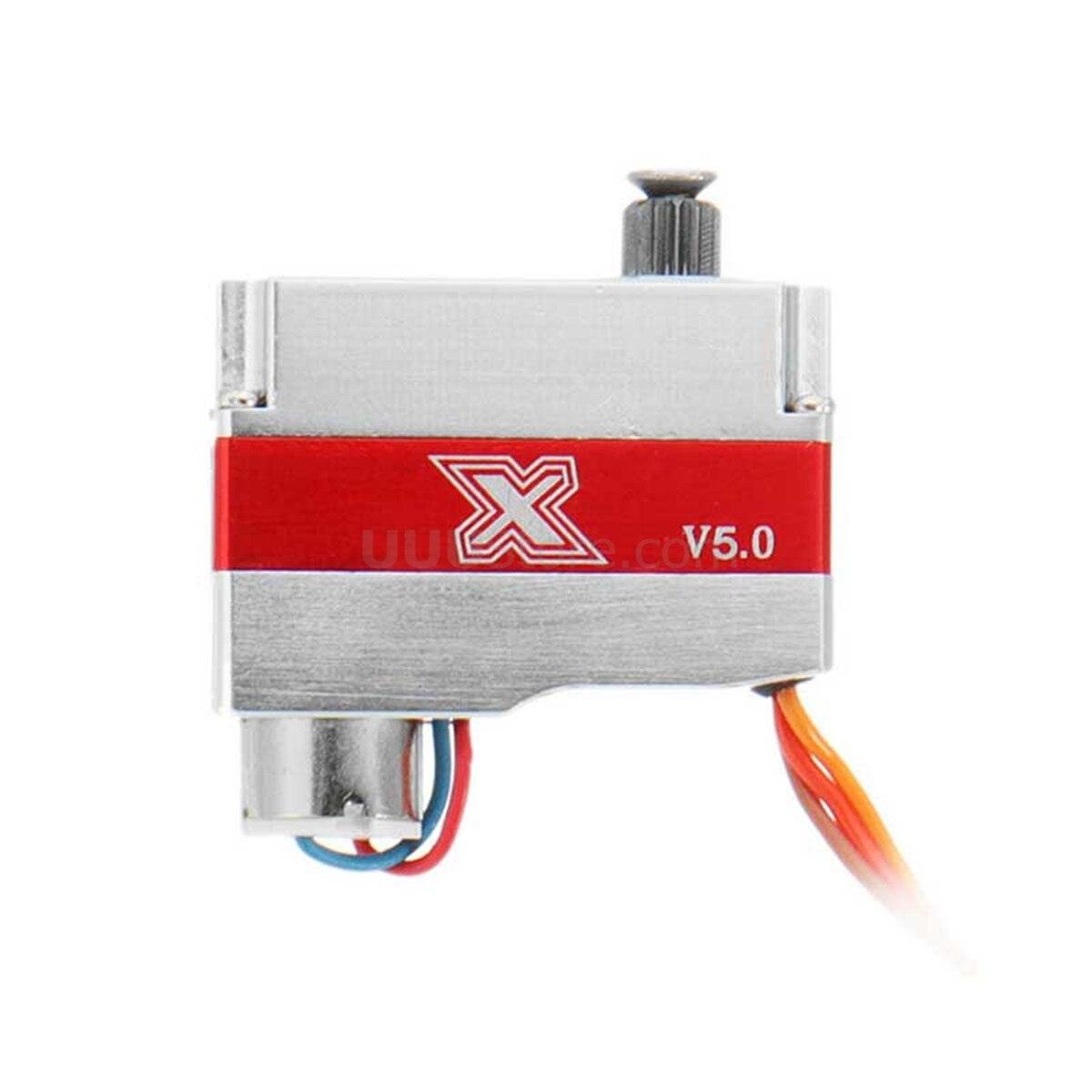

Product: KST X08N V5.0 Metal Gear Servo

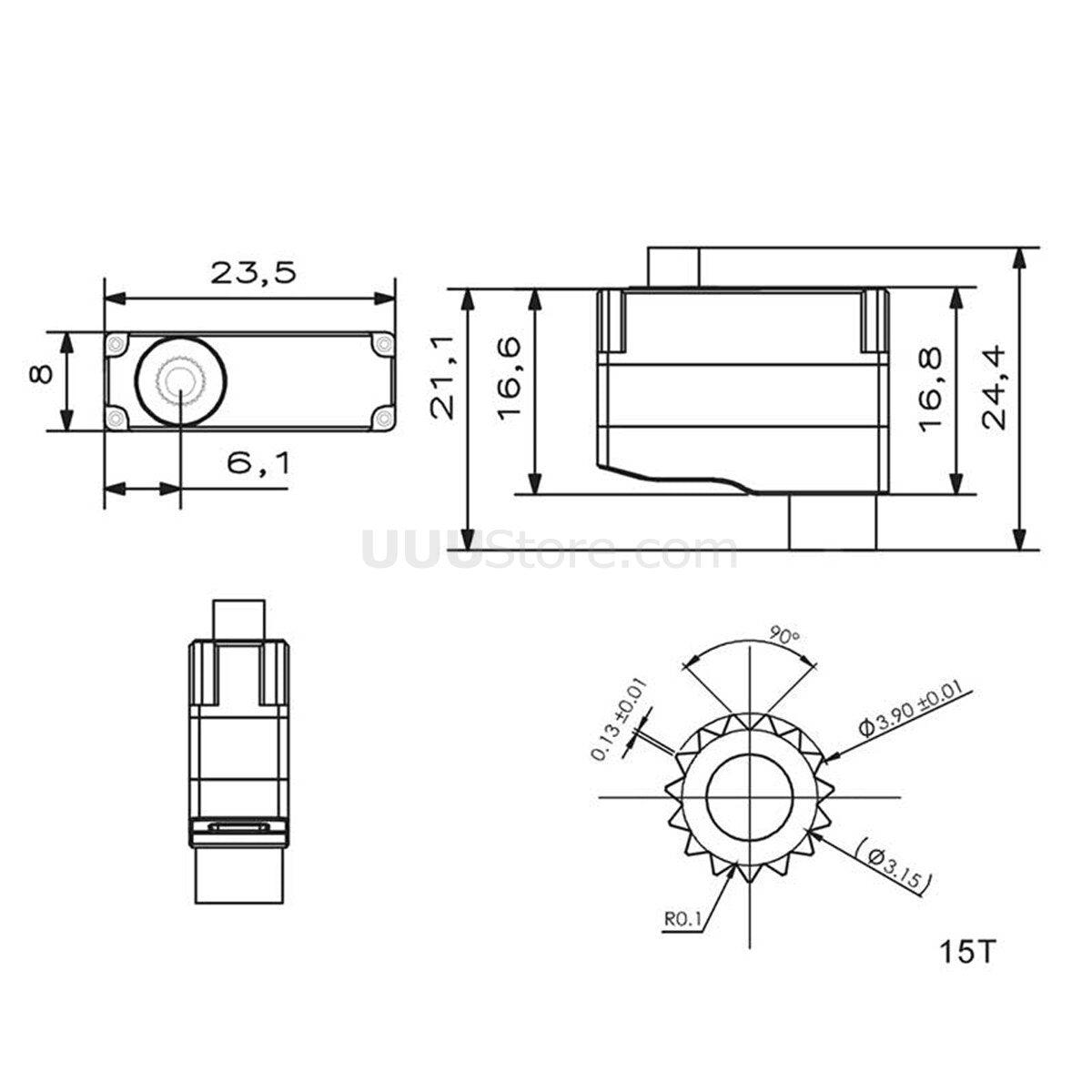

Dimensions:
– Length: 23.5mm
– Color: Orange (EC6)
Signal Colors:
– Signal Wire: Red
– Positive Wire: Brown
– Negative Wire: Black (15T Specification)
Specifications:
– PWM Impulse Signal Operating Voltage: DC 7.4V, Maximum VCC TTL-Level; Low: min. 0.0V, max. 1.5V
– Voltage Range: DC 3.8V – 8.4V
– Impulse Response Time: 1000 – 2000us
– Stall Torque: 2.7 kg.cm @ 7.4V (Angle: -60°/0°/+60°)
– Rated Torque: 9g

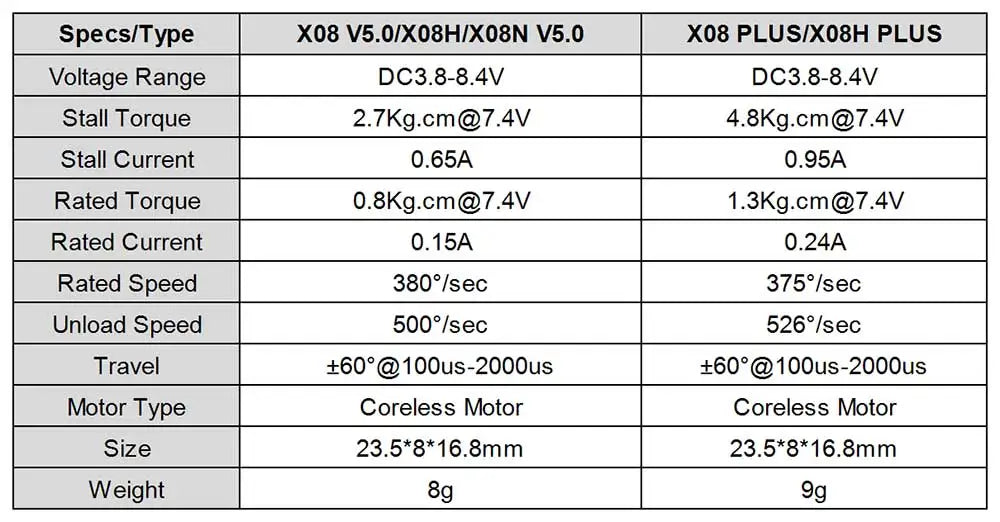

Specifications: KST X08N V5.0 Metal Gear Servo
Type: Digital Wing Coreless Servo
Operation Voltage Range: DC 3.8-8.4V
Torque: 2.7 kg.cm (at 7.4V)
Stall Current: 0.65A (low), 0.95A (high)
Rated Torque: 15mA (low), 24mA (high)
Rated Speed: 38,002 rpm (low), 37,500 rpm (high)
Unloaded Speed: 5,000 rpm
Travel: +60° to -2000µs (total travel of 2,060µs)
Motor Type: Coreless Motor
Size: 23.5mm x 8mm
