KST X08H Plus Metal Gear SPECIFICATIONS
Wheelbase: Upper Shell
Upgrade Parts/Accessories: Gear
Tool Supplies: Assembled class
Technical parameters: KV1100
Size: As show
Remote Control Peripherals/Devices: Servos
Recommend Age: 14+y,12+y
RC Parts & Accs: Servos
Origin: Mainland China
Model Number: X08H Plus
Material: Metal
Four-wheel Drive Attributes: Assemblage
For Vehicle Type: Airplanes
Brand Name: uuustore
KST X08H Plus Metal Gear 4.8kg.cm@7.4V 9g Digital Wing Coreless Servo for RC Model Operation Voltage 3.8-8.4V

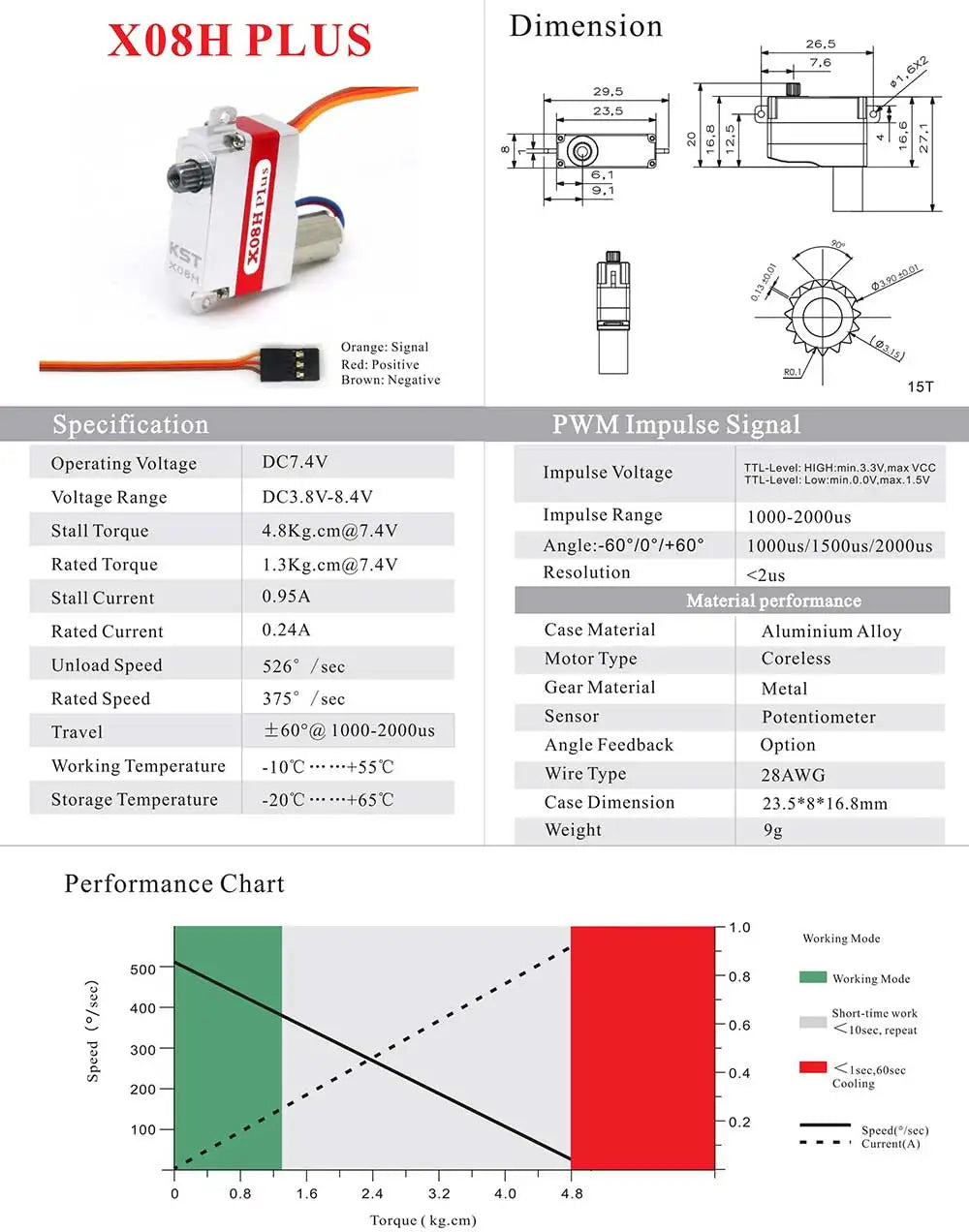

X08H Plus Specifications
Product Specifications:

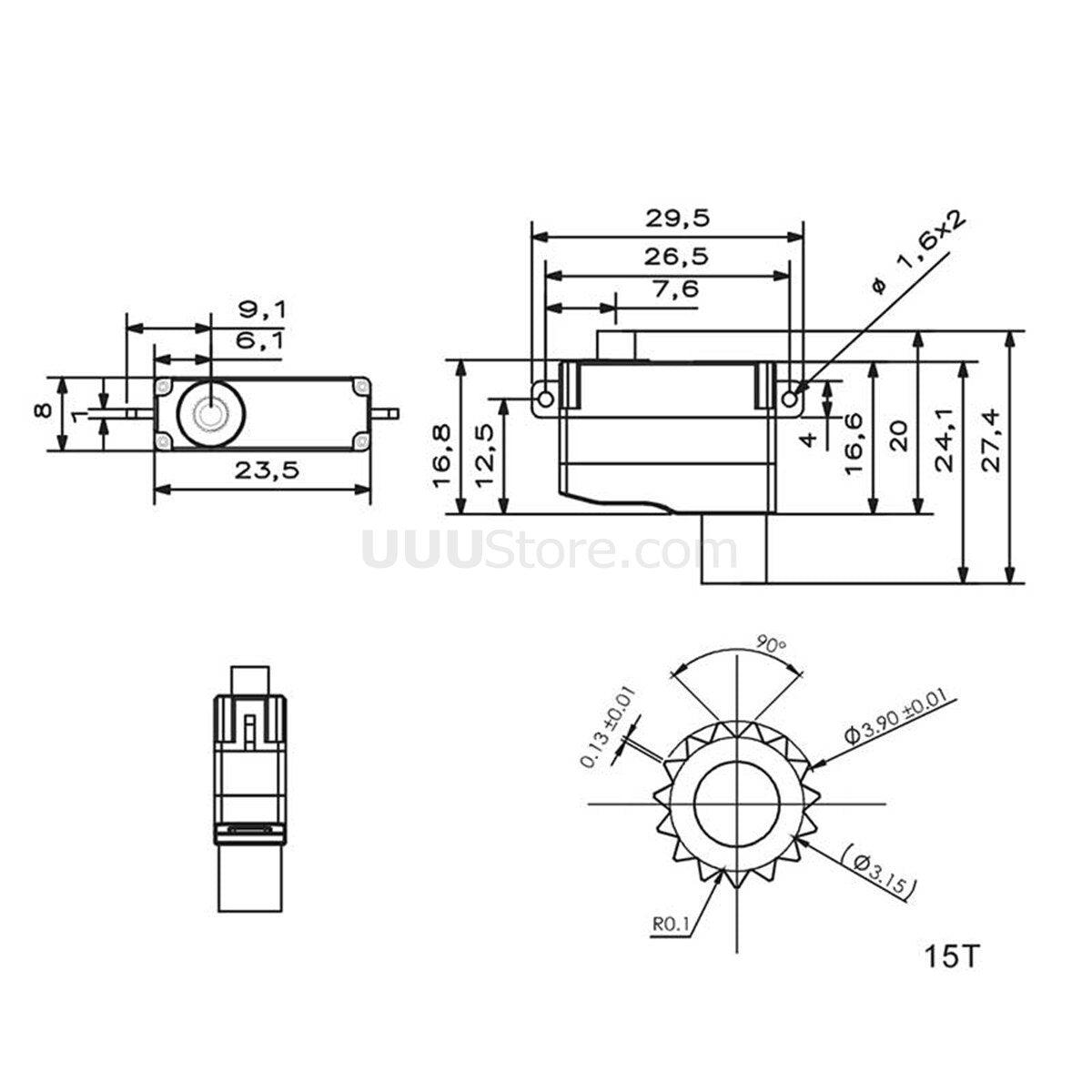

* Dimension: 26.5mm x 76mm x 23.5mm (Orange)
* Signal: Red
* Positive Wire: Brown
* Negative Wire: –
* Specification:
+ PWM Impulse Signal: Operating Voltage DC – 7.4V
+ Impulse Voltage (TTL Level):
– HIGH: Minimum 3V, Maximum VCC
– LOW: Minimum 0V, Maximum 1.8V
* Operating Voltage: 3.8V to 8.4V
* Impulse Time: 1000-2000us
* Stall Torque: 4.8Kg/cm (at 7.99V)
* Angle: -60°/+60° (within 100ms)
The KST X08H Plus Metal Gear servo has the following specifications: it is a digital wing coreless servo that operates within a voltage range of DC 3.8-8.4V, with a maximum torque of 4.8kg.cm at 7.4V. The stall current is 0.65A to 0.95A, while the rated torque and speed are 0.15A and 3802/second, respectively. The unload speed is 500
