SPECIFICATIONS
Brand Name: JX
Origin: Mainland China
Material: Composite Material
RC Parts & Accs: Servos
For Vehicle Type: Cars
Use: Vehicles & Remote Control Toys
Upgrade Parts/Accessories: Gear
Remote Control Peripherals/Devices: Servos
Tool Supplies: Battery
Technical parameters: KV1100
Model Number: BLS-12V7137
Four-wheel Drive Attributes: Assemblage
FEATURE:
— 12V High voltage
— High performance programmable digital brushless standard servo

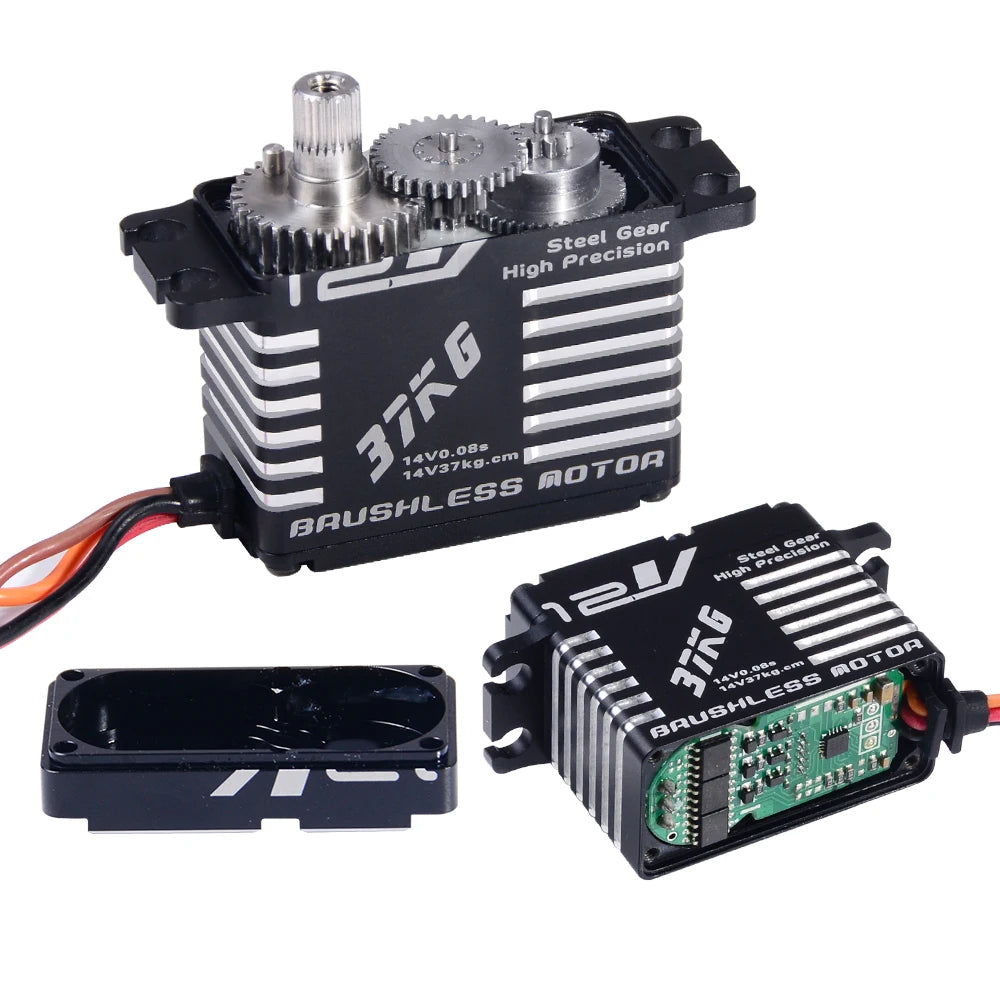

— High-precision Taiwan-made steel gears with hard anodizing
— Full CNC aluminium Shell structure
— Dual ball bearings
SPECIFICATIONS:
Dead band: 1μs
Working frequence: 1520μs / 330hz
Motor: brushless motor
Operating Speed (11.1V): 0.1sec/60°
Operating Speed (14V): 0.08sec/60°
Stall Torque (11.1V): 33kg.cm
Stall Torque (14V): 37.5kg.cm

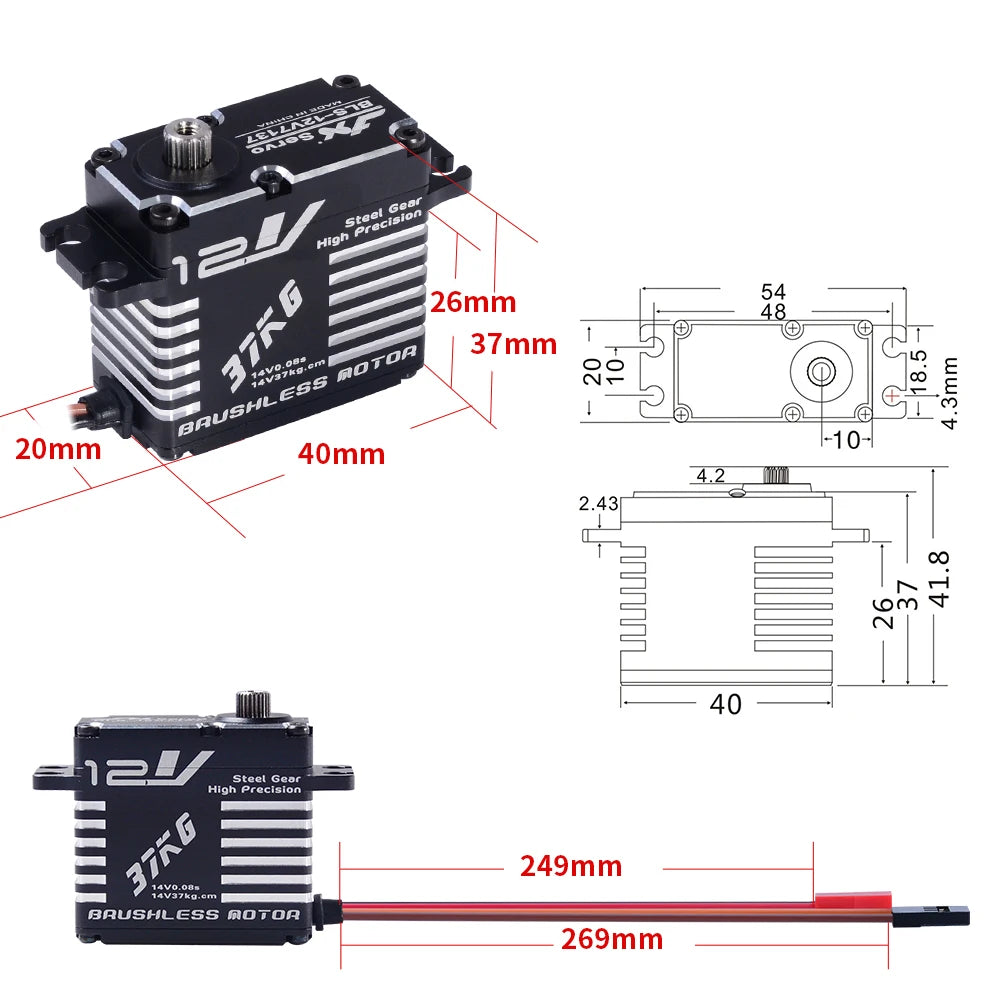

Dimensions: 40X20X37mm
Gear Teeth:25T

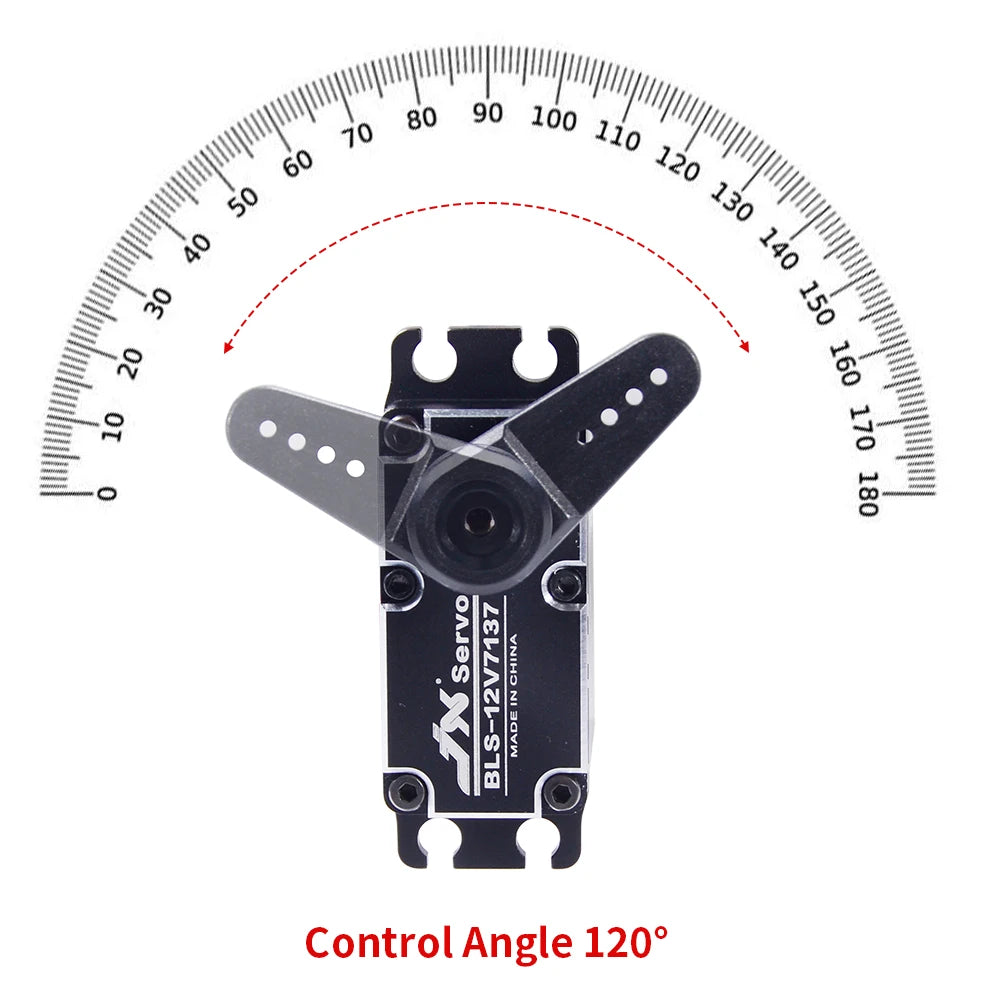

Control Angle:120 Degree
Weight: 71 g
Connector Wire Length: JR 265 mm
Bearing: 2BB
2Omm 40mm 2.43 C 7 40 hZV Steel Hioh Pfecision 249mm Lald Javakuot baushESS Wotor 269mm HUEZE 37575 Goot Stcel Ptocision 120 Hiph _ 1 Noton 04r Ovo 3037id baushless Gcdr 37rg .
High precision steel gear full CNC digital brushless servo for RC car, crawler, boat, or robot, featuring 14V voltage, 37kg torque, and 120° rotation angle with a response time of 0.08 seconds per 60 degrees.
