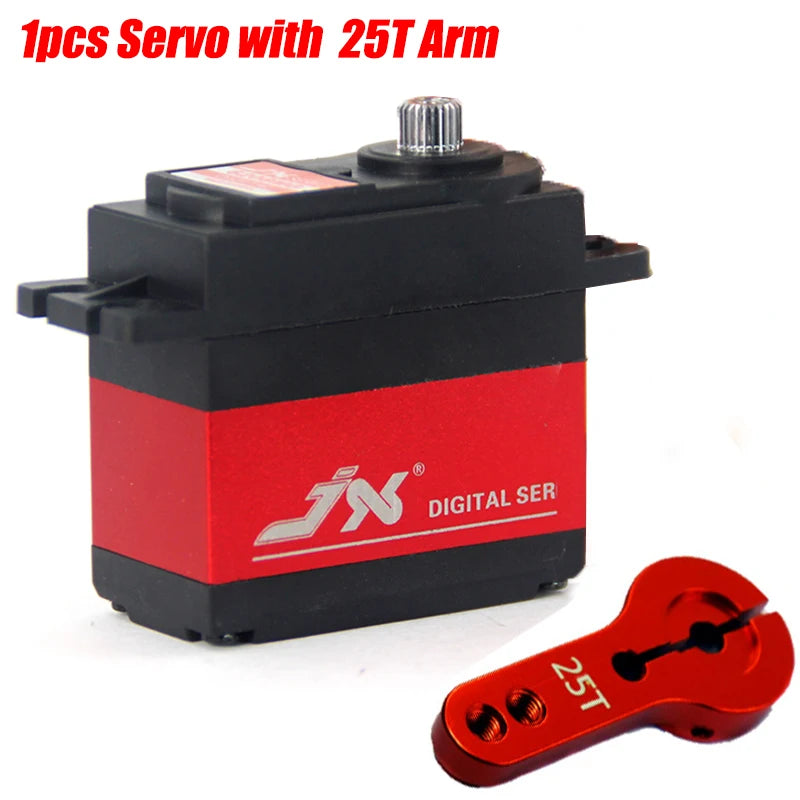

JX PDI-6208MG Rc Servo 8KG 120 degree high speed Digital Standard Metal Gear RC car 1/10 car model plane

Features：
Dead band: 2μs
Working frequence: 1520μs / 330hz
Operating Speed (4.8V): 0.09 sec/60°
Operating Speed (6V): 0.07 sec/60°
Stall Torque (4.8V): 6.8 kg/cm
Stall Torque (6V): 8.2 kg/cm
Dimensions: 40.5X20.2X38mm
Weight: 62 g
Connector Wire Length: JR 265 mm
Bearing: 2BB

Item Packing
JX PDI-6208MG 8KG Servo with 25T Servo Arm

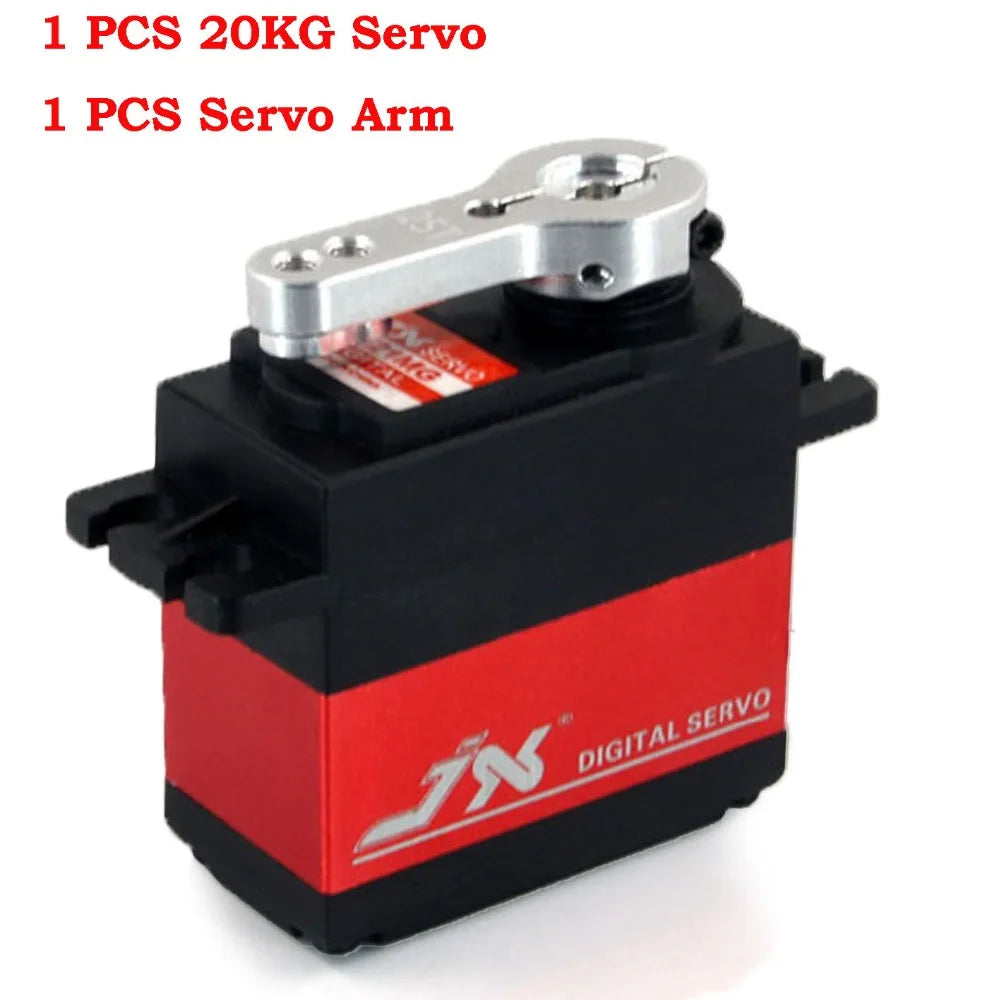

1PCS JX PDI-6221MG 20KG Large Torque Digital Coreless Servo for RC Car Crawler RC Boat Helicopter RC Model

Features
– High-precision metal gears with hard anodizing
– CNC aluminium middle Shell,

Control system :PWM control （1500 u-sec is the central point）
Working voltage:4.8V ~ 6V
Working temperature: -20C°~ +60C°
Torque :4.8V /17.2kg.cm
6.0V /20.3kg.cm
Idle speed :4.8V/0.15sec / 60 deg
6.0V/0.13sec / 60 deg
​Steering angle: 0-180 degree
Idle current:4.8V/470mA 6.0V /650mA
Load current :4.8V/750mA 6.0V /950mA
Dead band :2usec
Lifetime:>15000 times without load
Moving angle:60°±10°
Drive type: MOS drive
Motor type:Cored motor
Potentiometer type:Direct drive
Signal booster type:Digital
Size:40.5X20.2X40.3mm
Weight : 62g (without accessories)
Ball Bearing:2BB
Gear material:Metal gear
Case material: PA66+fiber40%
Wire length:260mm
Wire gauge No and plug type:26AWG，JR plug
Brown wire:Negative
Red wire:Positive
Orange wire:Singal
Application:RC car, RC airplane, Helicopter

Item Packing
1 x JX6221MG Digital Servo
1 x 25T servo Metal Arm

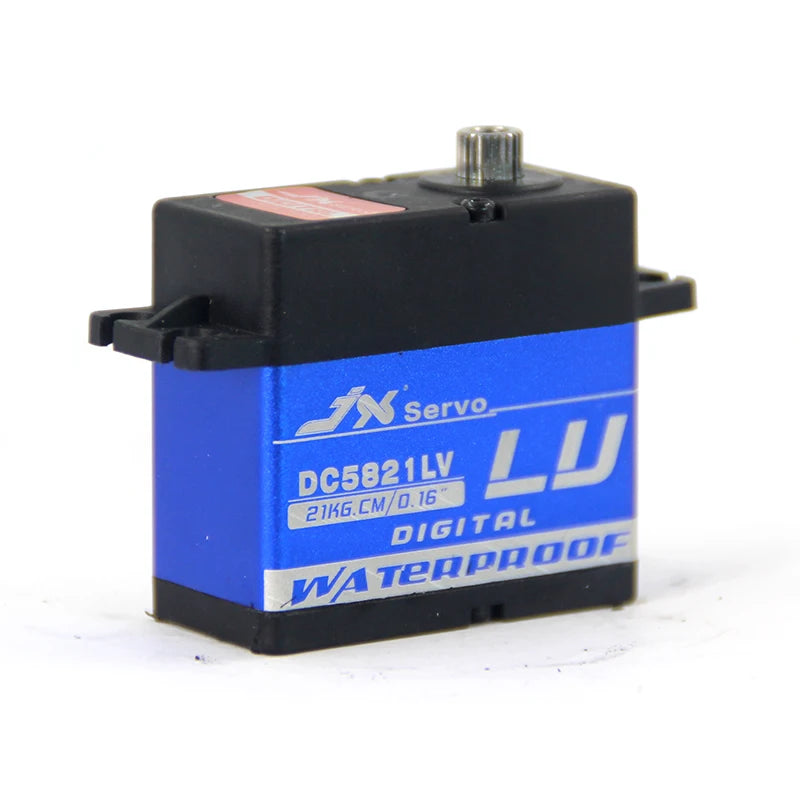

JX servo DC5821LV 21KG Full waterproof Rc Servo Coreless mental gear 1:8 1:10 Scaler Buggy Crawler RC4WD Baja RC car

Features
Double ball bearing
New waterproof
Specification:
Article number: DC5821LV
Dead-band: 2μs
working frequency: 1520μs / 330hz
Operating speed (4.8V): 0.18 sec / 60 °
Operating speed (6 V): 0.16 sec / 60 °
Stall torque (4.8 V): 16.5 kg. cm (582.02 oz / in)
Stall torque (6 V): 21.8 kg. cm (768.97 oz / in)
Dimensions: 40.5X20.2X40mm / 1.59X0.80X49 in
Weight: 58g (2.05oz)
Steering angle: 0-120 degrees
Connection cable length: JR 260mm
Stock: 2BB
Usage: For RC models

Item Packing

1 X DC5821LV 21KG Servo
1 X 25T Arm

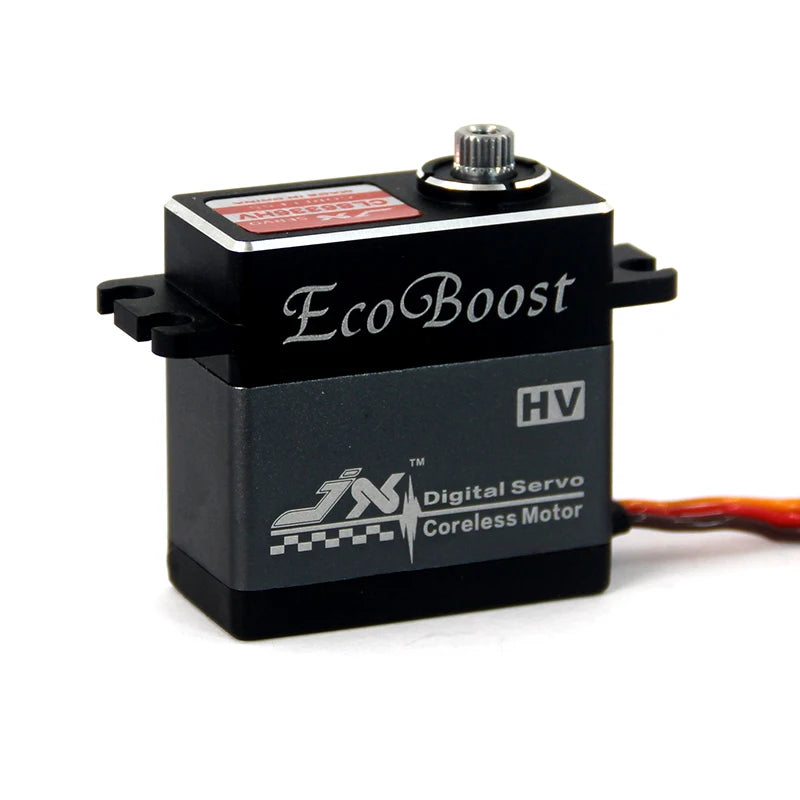

JX Ecoboost CLS6336HV 36KG Large Torque 180Degree CNC Digital Coreless Servo for RC Models Helicopter Cars

Features
Dead band: 1μs 1520μs / 330hz
Motor: Brushless Motor
Operating Speed (6.0V): 0.13sec/60°
Operating Speed (7.4V): 0.11sec/60°
Stall Torque (6.0V): 26.7kg.cm (370.47oz/in)
Stall Torque (7.4V): 33.7kg-cm (467.16oz/in)
Dimensions: 40.5X20.5X40mm/1.59X0.80X1.57in
Weight: 65g (2.29oz)
Connector Wire Length: JR 265 mm (10.43in)
Bearing: 2BB

Item Packing
1x CLS6336HV 36KG Servo

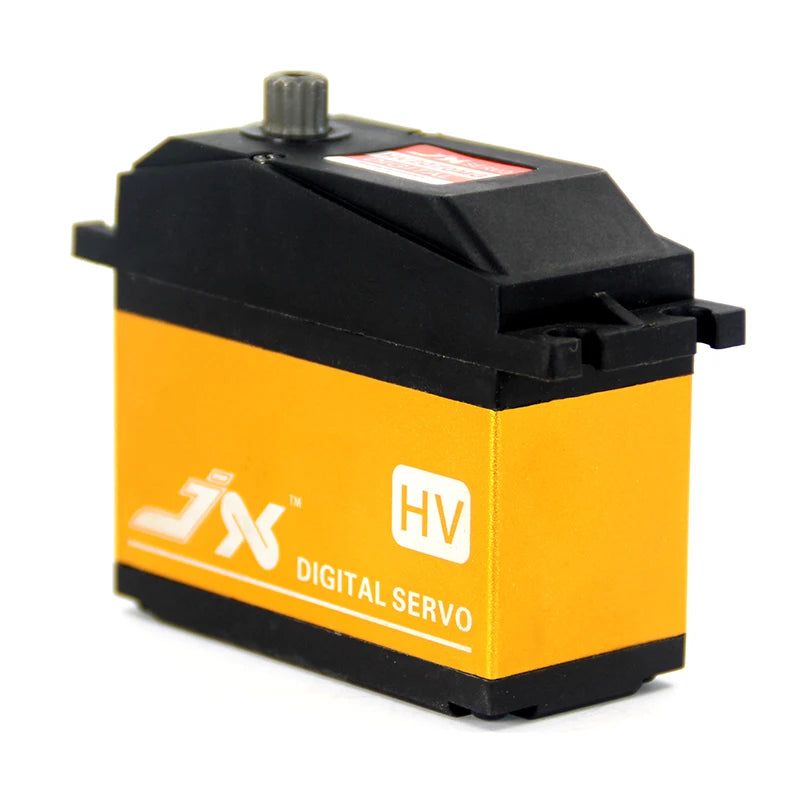

JX Rc Servo PDI-HV2060MG 60KG High Torque 180 Digital Servo For RC Model Helicopter Parts 1/5 Rc Car Helicopter

Features
Brand: JX Servo
Item: PDI-HV2060MG
Dead ch: 4μs 1520μs / 330hz
Max PW:650-2350us ,180 compatible (don’t exceed max PW)
Standard PW: 850-2150us
Motor: High quality core motor
Operating Voltage: DC 6.0V-7.4V
Operating Temperature Range: -20 — + 60C
Operating Speed: (6.0V) 0.15 sec/60°
Operating Speed: (7.4V) 0.13 sec/60°
Stall Torque: (6.0V) 48kg.cm
Stall Torque: (7.4V) 62kg.cm
Dimensions: 65.8X30X57.4mm
Weight: 200g
Bearing: 2BB
Connector Wire Length: JR 265mm

High-performance and high-torque standard digital servo.
High-precision metal gear.
Dual ball bearing.

Item Packing
1 x JX Servo PDI-HV2060MG Servo
1 x Accessories bag

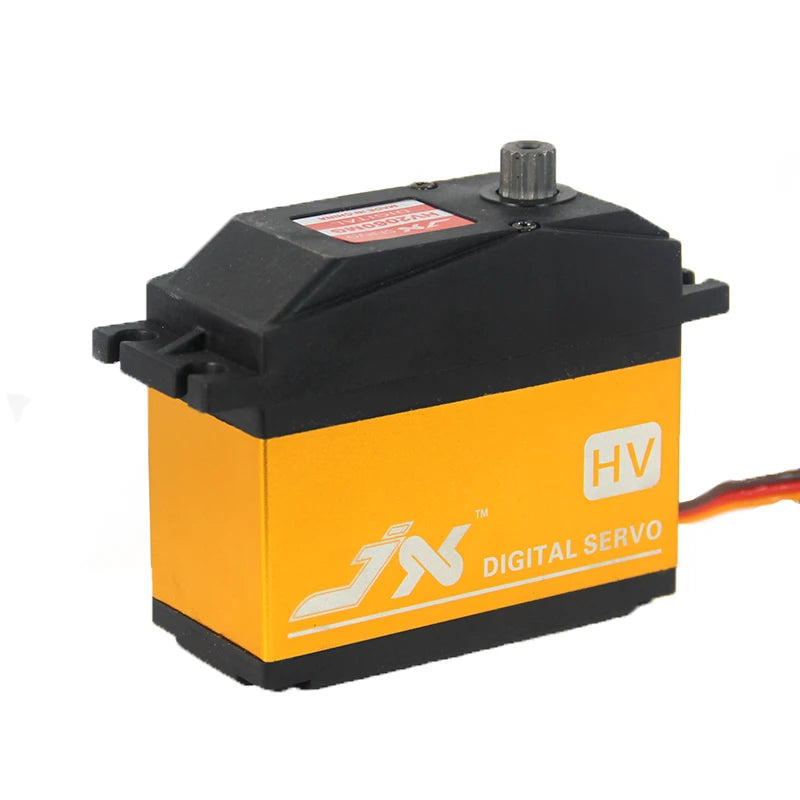

JX Servo PDI-HV2070MG 73KG Metal gear Core Digital Servo 1/5 Car compatible LOSI XL 5T BAJA PDI-HV2060MG DS516

Feature
CNC metal On the cover In the shell
High-precision Taiwan-made aluminium gears with hard anodizing
High Voltage Core Digital Servo
Dead band:4μs
Working frequence:1520μs / 330hz
Motor:Core
Operating Speed6.0v :0.15 sec/60°
Operating Speed7.4v :0.13 sec/60°
Stall Torque 6.0v :62 kg.cm
Stall Torque 7.4v :73 kg.cm
Dimensions:65.8X30.2X57.4mm
Weight:200 g
Wire/Color:JR 265 mm/ -Brown +Red S Orange
Bearing:2BB

Item Packing
JX Servo PDI-HV2070MG X 1
Parts package X1
