SJumper T Pro Internal 2.4G 1000mW ExpressLRS ELRS PECIFICATIONS
Use: Vehicles & Remote Control Toys
Remote Control Peripherals/Devices: Remote Controller
Recommend Age: 12+y
Origin: Mainland China
Model Number: T-PRO
Material: Composite Material
T-PRO-ELRS-SE is built-in 100mw, with a control distance of 7km and a return transmission distance of 3km.
ELRS SE version is based on the ELRS version for downsizing, the built-in module is only 100mW, other configurations and ELRS version remain the same.

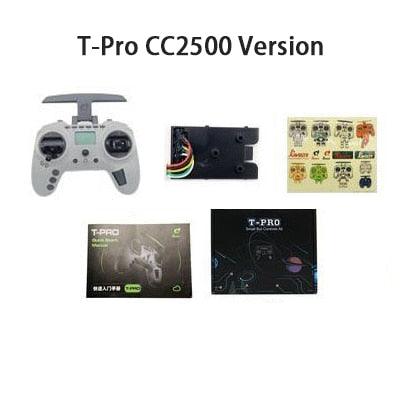

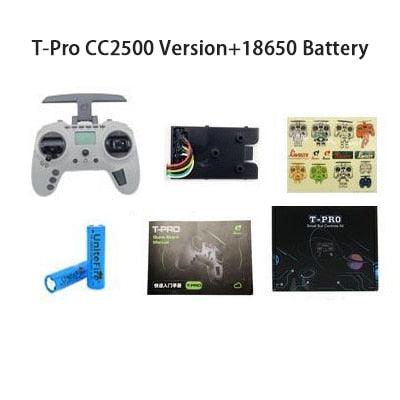

CC2500 version:
External NANO interface, ELRS compatible
Nano/TBS CRSF Nano HF head
Compatible with D8,D16,S-FHSS,Hitec,
Radiolink Esky and other protocols

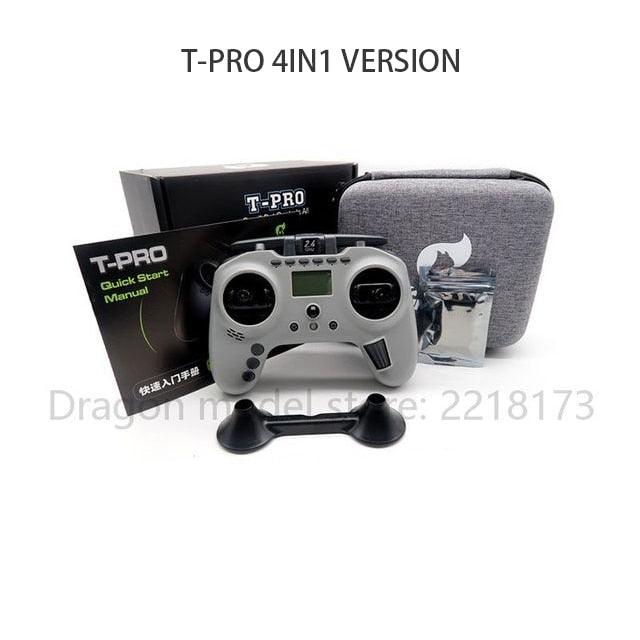

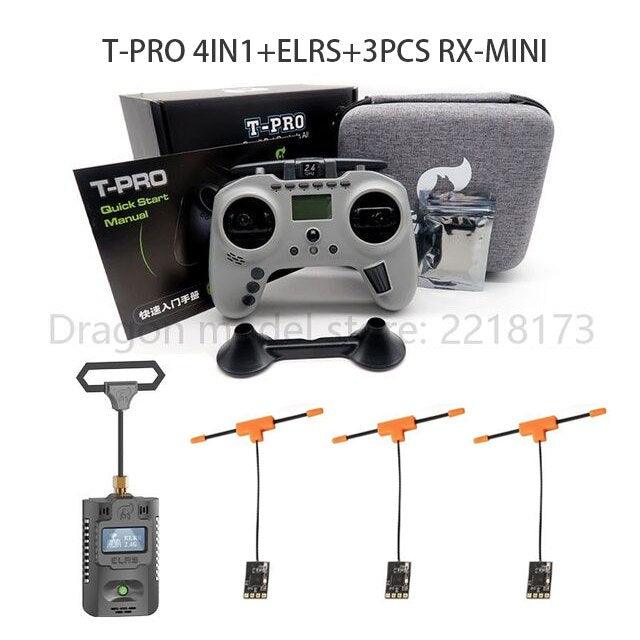

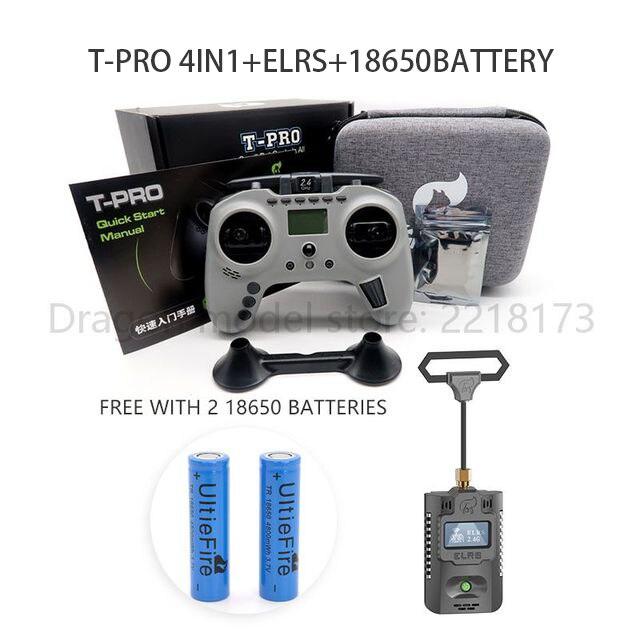

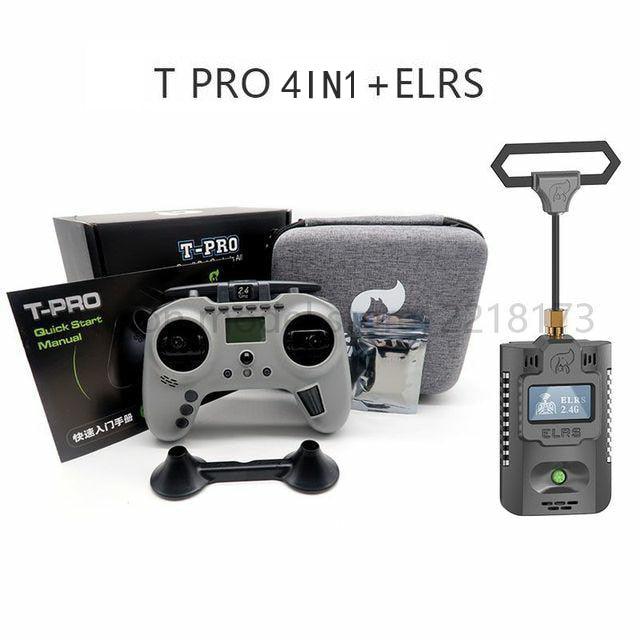

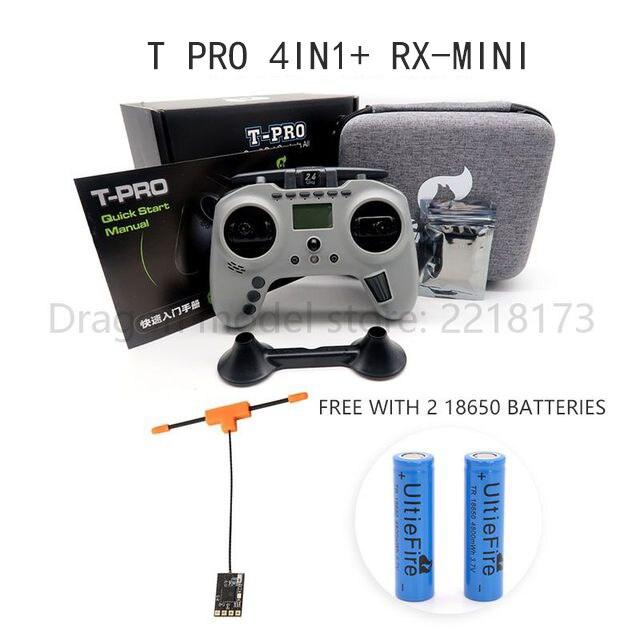

4IN1 version:
External NANO interface, compatible with ELRS
Nano/TBS CRSF Nano and other HF heads
Support multiple types of casters and receivers, such as;
DSM2/X.FrSKY, SFHSS
Flysky. FlySky AFHDS2A,
Hubsan, etc. (including CC2500 protocol)

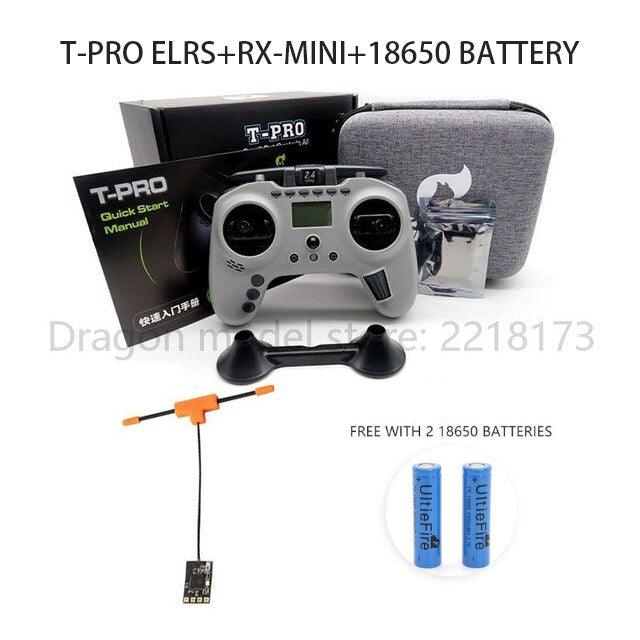

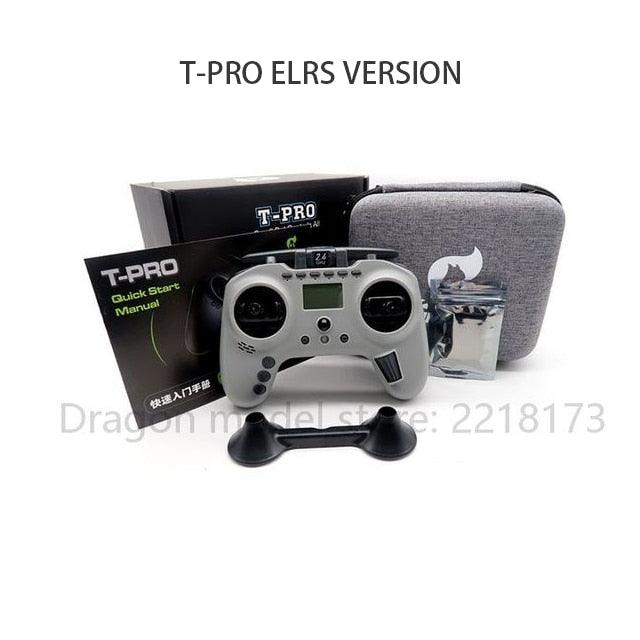

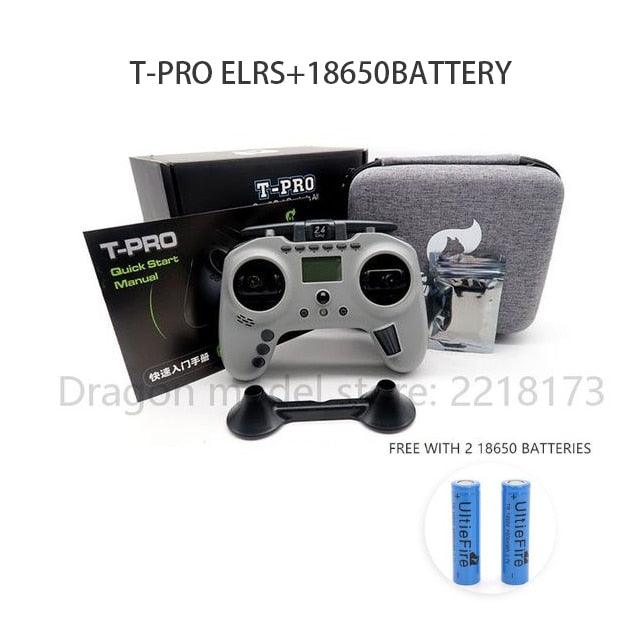

ELRS version:
Built-in ELRS high-frequency head
Use only ELRS receivers

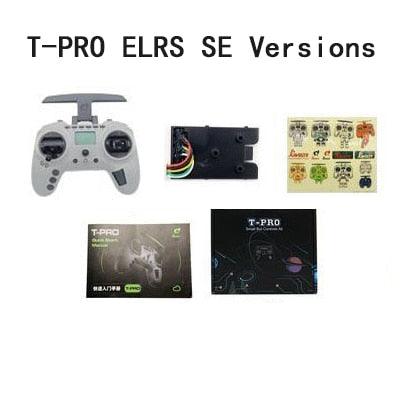

ELRS SE version:
Built-in ELRS high-frequency head
Only ELRS receivers can be used
(The ELRS SE version is based on the ELRS version.
on the ELRS version! The built-in module is only 100mW
Other configurations remain the same as the ELRS version.)
Specification:
Size:160*128*68
Weight: 488g (without battery)
Working voltage: DC6V-DC8.4V
Firmware: OpenTX
Display: 1.3 inch LCD display, 128* 64 resolution

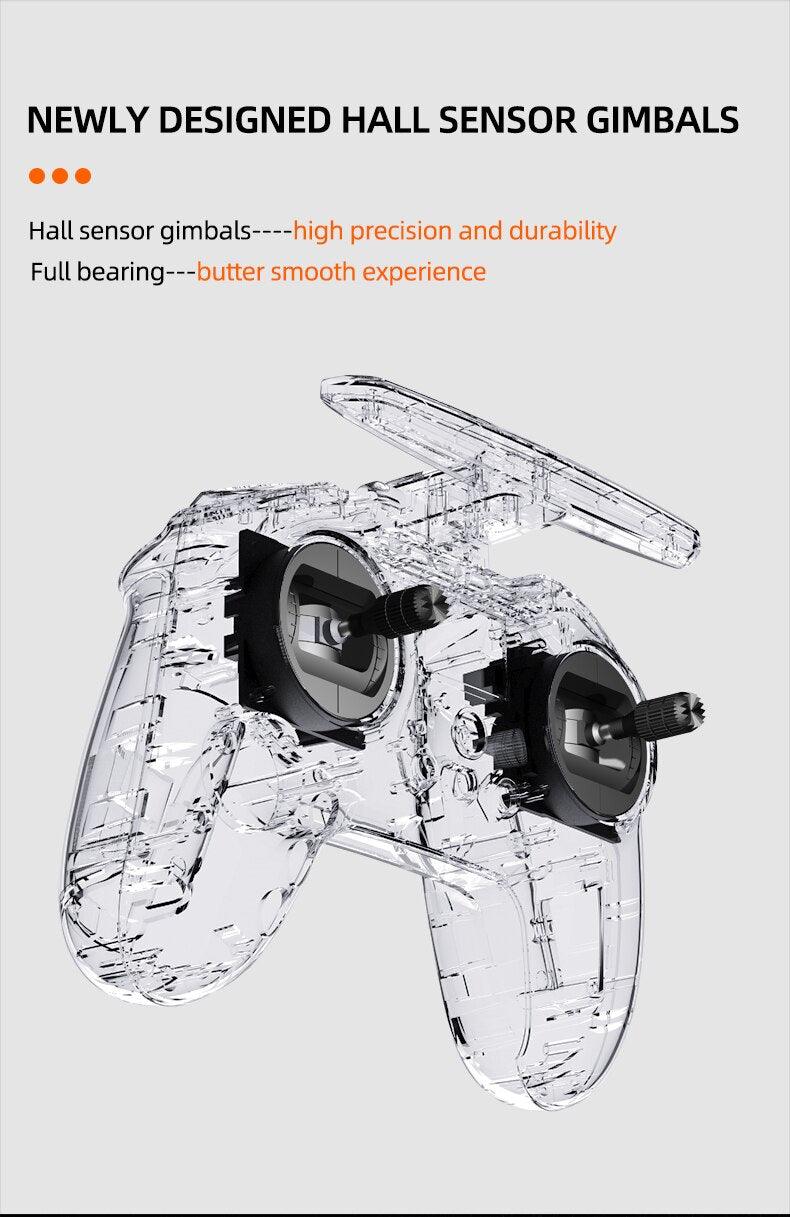

Gimbal Type: HALL Sensor
Upgrade method: USB online upgrade
Simulator mode: 3.5mm standard ppm output or USB
Battery: 2×18650 (Battery not included)
External Micro SD Card: reserved SD card slot

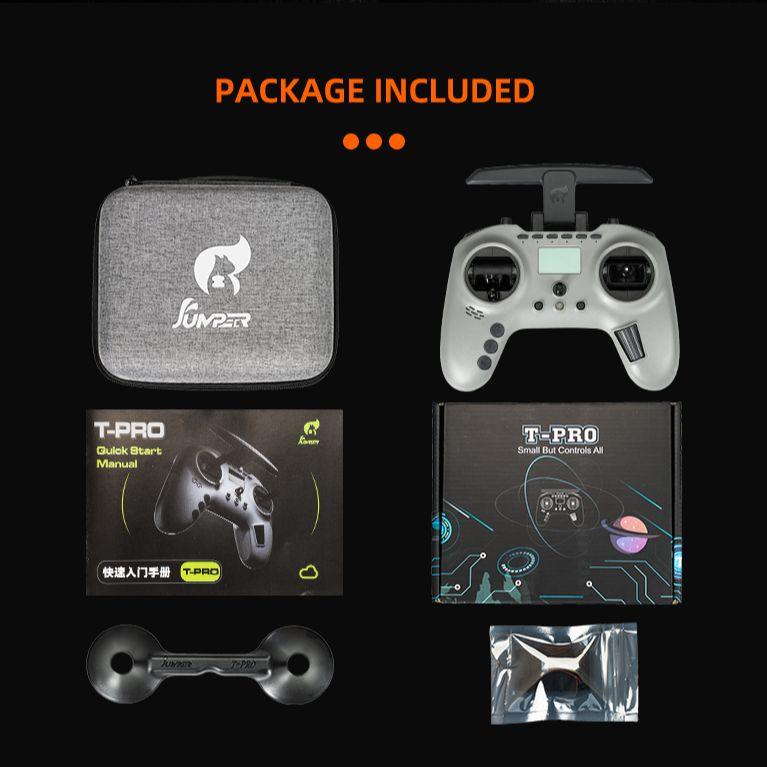

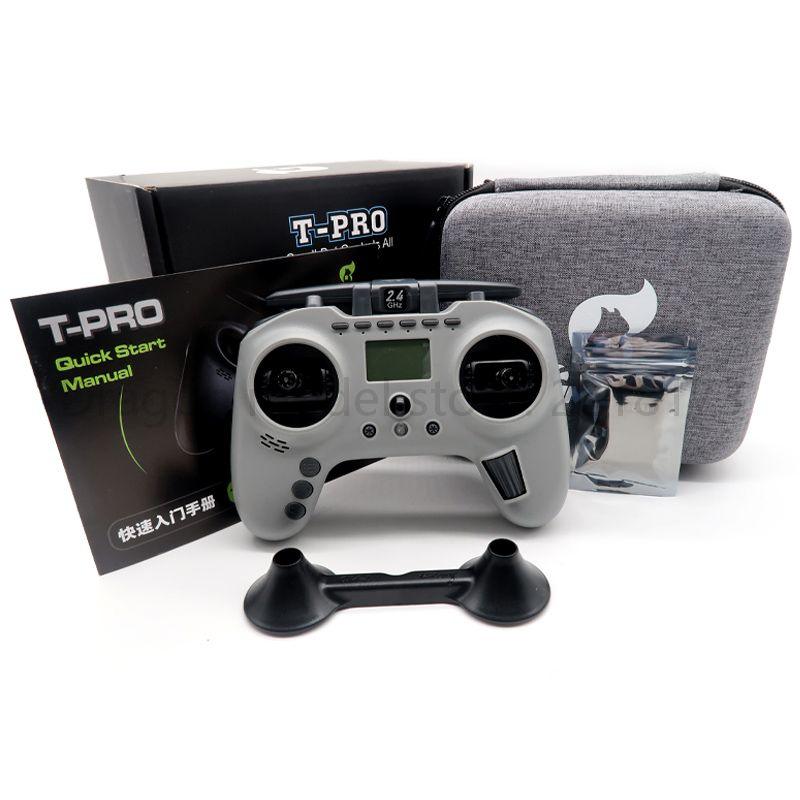

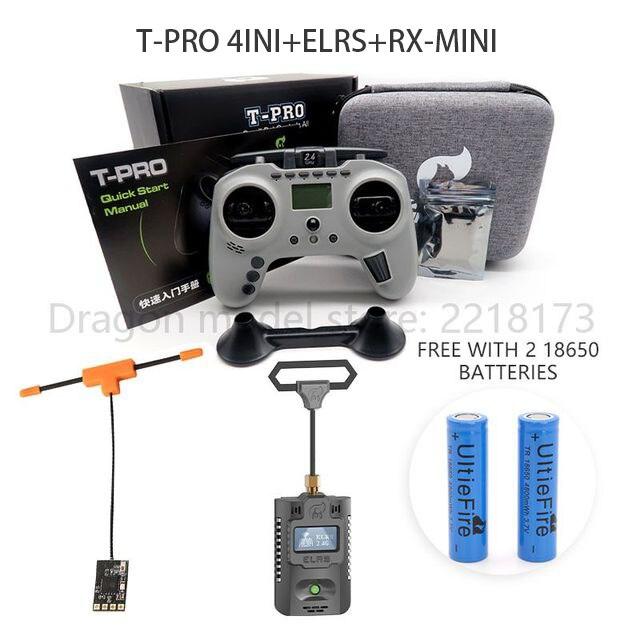

Package Included:
1*T-Pro Remote Controller
1*Zipper Case
JP4-in-1 multi-protocol, CC2500 version, ELRS version the difference between these three versions.
JP4-in-1 multi-protocol module version: The advantage is that there are many receiver types supported, such as: Tiandi Fei WFLY, Radiolink part, DSM2/X, FrSKY, SFHSS, FlySky, FlySky AFHDS2A, Hubsan, etc.
CC2500 version: The advantage is that it is cheaper and supports less receiver types, it can support: D8, D16, S-FHSS, Hitec, Radiolink, Esky.

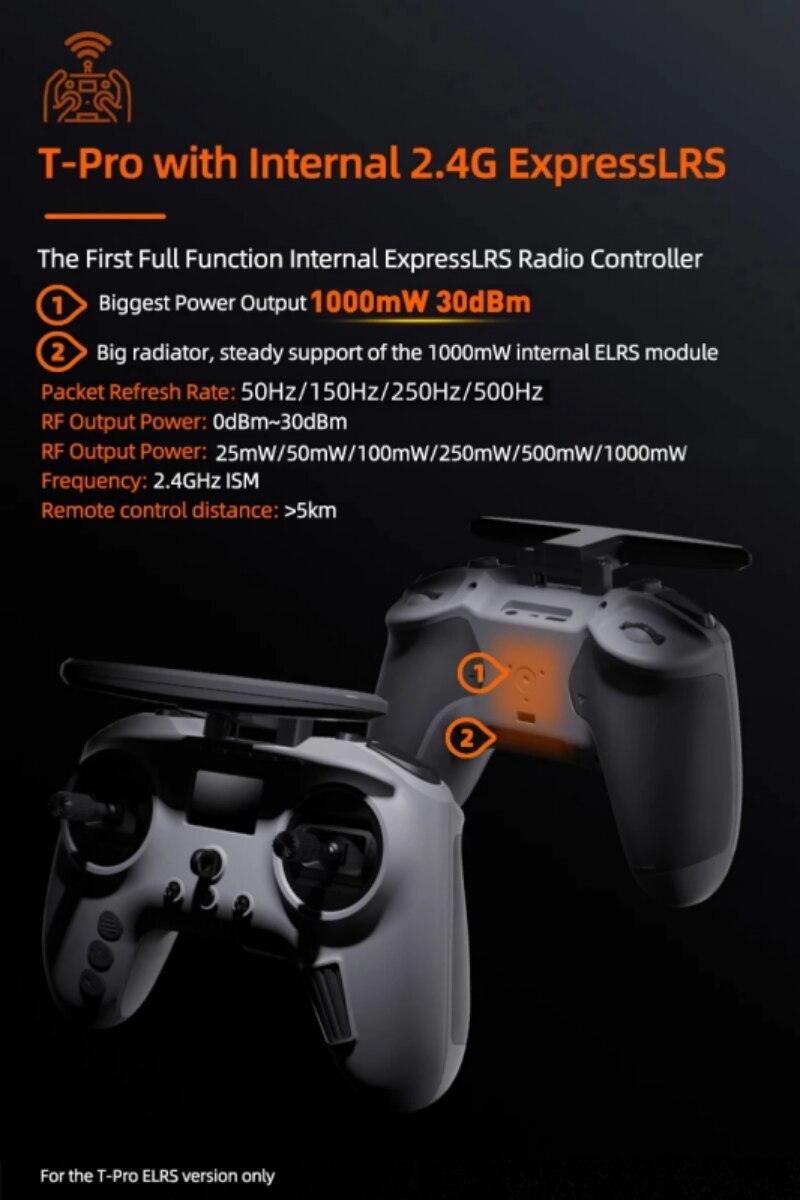

ELRS version: This version is built-in ELRS HF head, only ELRS receiver can be used.
LCD screen Foldable antenna, Clear display and small easy packing and sense of granularity adjust as you wish screen control Removable 18650 25 battery: Easy change Hall sensor gimbals_ and swap_ Smooth and accurate Ultra-endurance power operation msopllet for your ELRS rocker battery Built-in USB-C balance of function and fun: charge: switch charge
JPAINI MULTI-PROTOCOL MODULE ONE RADIO TO RULE THEM ALL! 03 CC2500 NFR2401 Frsky; Futaba SFHSS Hisky, Syma, ASSAN eic, Hitec .
EXTERNAL NANO INTERFACE Supports ELRS/CRSF/Tracer NANO modules . the module is not included in the package .

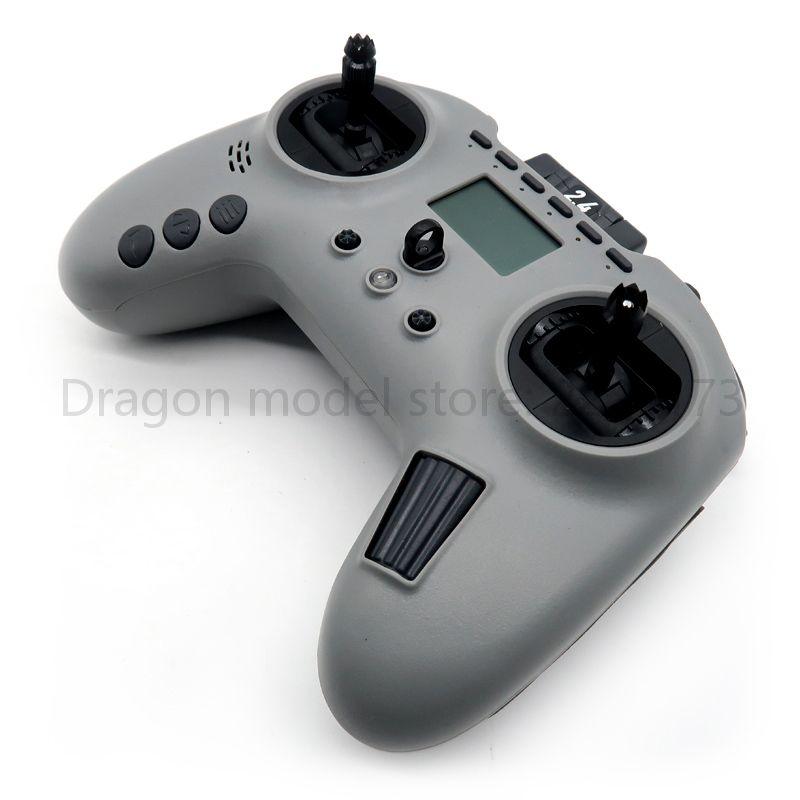

the first full-featured gamepad-style remote controller . ERGONOMIC AND COMPACT DESIGN with an excellent,
6-POS PUSH BUTTONS (each button is connected to the MCU separately): High utility and flawless functioning: 59 6 2 MODELOI BOV SA4 SC SBT .

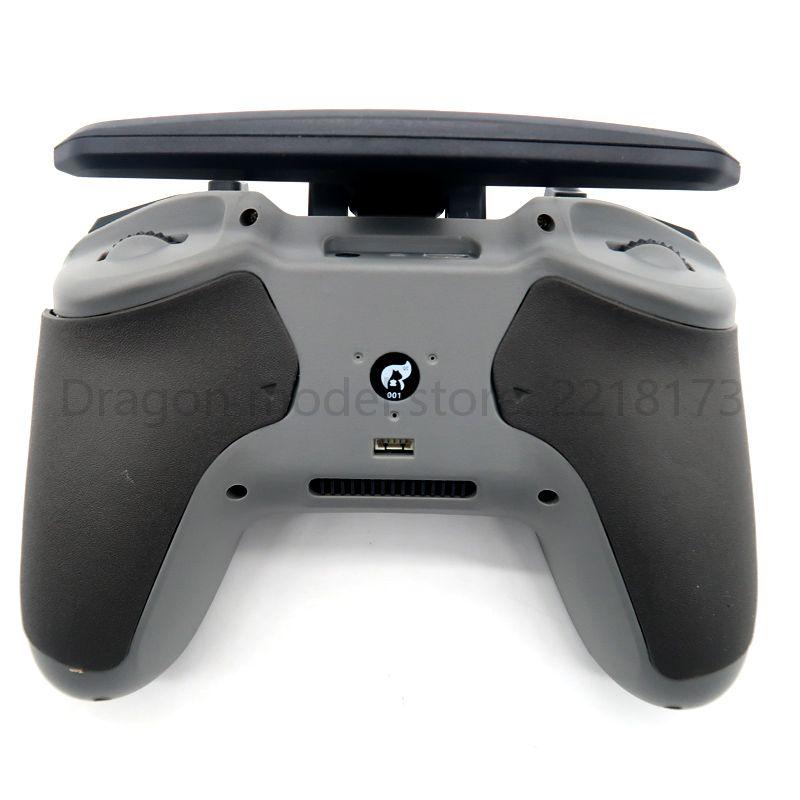

BATTERY 2 standard 18650 batteries with a maximum battery capacity equal to 2s 3400mah . built-in USB-C charging port and an independent button for firmware updating for even more convenient user experience .
VARIABLE ANGLE FOLDABLE ANTENNA Foldable antenna 5-way joystick– easy to use Newly designed trim buttons high responsiveness 36 78 .
Jumper T-Pro Internal RF: JPAINI Multi-Protocol Module Working voltage: DC 6V-8.4V Compatible firmware: OpenTX EdgeTX Screen: 1.3″ LCD 128*64 resolution Gimbal: Hall sensor gimbals
assan bayang bayang RX Bugs BugsMini Cabell CFlie CG023 Corona CX1O Devo DSM EOIX ESky 150 Flysky Flysky AFHDSZA RX Flyzone FQ777 FrskyD Frskyl ZSX Frskyx2 Frsky_RX Fx816 FY326 GDOOX GWO08 H8_30 Hisky Hitec Hontai HoTT Hubsan JGPro KF606
