SPECIFICATIONS
Brand Name: IFLIGHT
Origin: Mainland China
Material: Carbon Fiber
RC Parts & Accs: Antennas
Size: 420mm 10inch
For Vehicle Type: Airplanes
Use: Vehicles & Remote Control Toys
Certification: CE
Upgrade Parts/Accessories: Frame
Remote Control Peripherals/Devices: Remote Controller
Tool Supplies: Battery
Quantity: 1 pcs
Technical parameters: Value 2
Model Number: XL10 V6
Four-wheel Drive Attributes: Assemblage
Wheelbase: Bottom Plate
Description

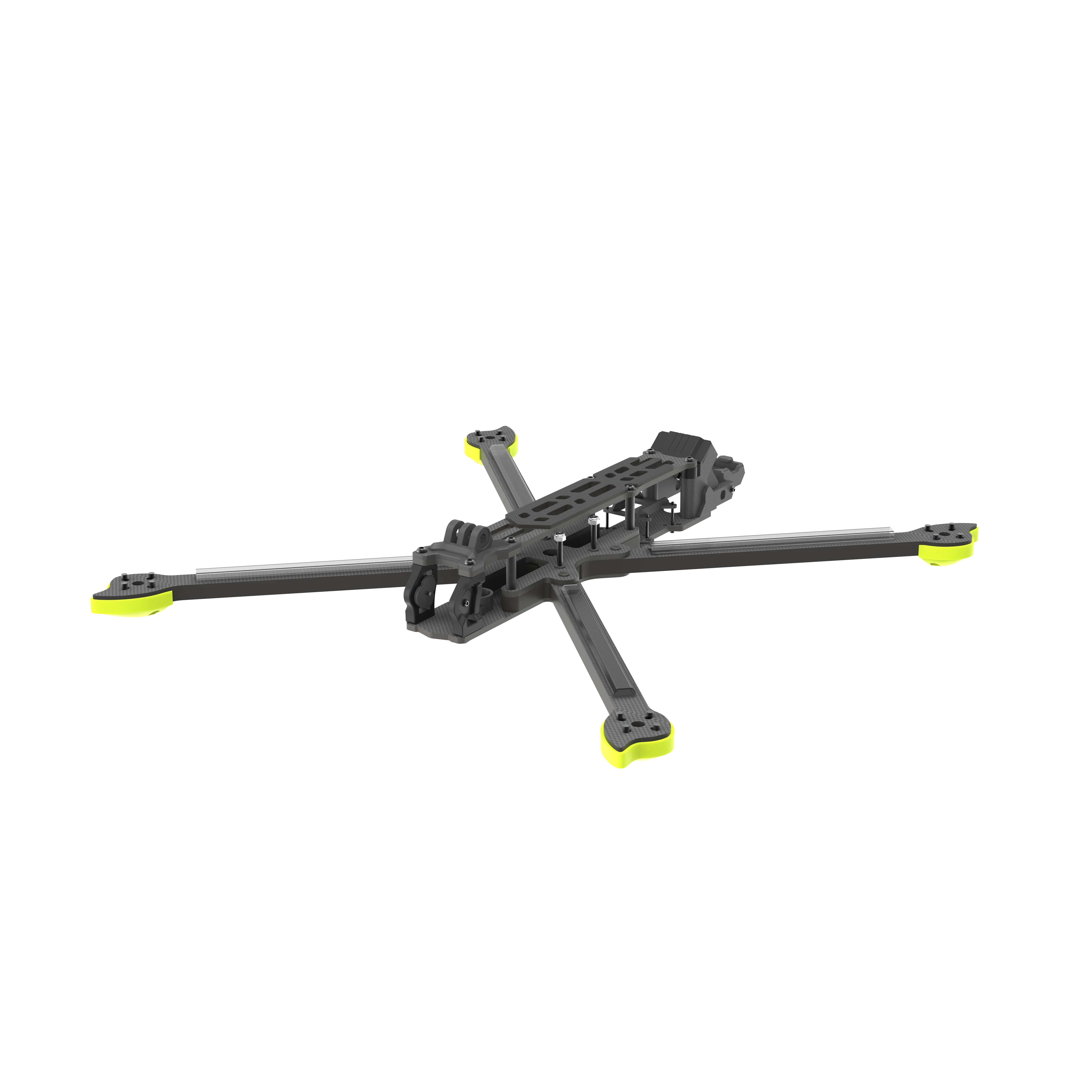

It’s proud to announce the release of the XL series V6 Frames, XL10 V6 is a 10″ size quadcopter, fit for the DJI O3 Air Unit system and Caddx Digital FPV system on it.
The main advantages of the XL series V6 are in the flight performance, and the stronger and thick arms. The XL series V6 frames fly balanced because of the true X configuration and wide stance. These main changings make flight stable in the air.
- Full 3K Carbon Fiber airframe
10″ version fits popular 10″ style propellers
Popular True-X configuration
Fits both 30.5×30.5 and 20×20 stacks
Compatible with DJI O3 Air Unit, Caddx Vista HD System, BLITZ Whoop 1.6W VTX
360° TPU protection and Antenna mounts
Specifications
Product Name：XL10 V6 10 inch Frame Kit
Wheelbase: 420mm
Frame Dimension: L297*W297*H35mm
Arm Thickness: 7mm
Bottom Plate Thickness: 3mm
Top Plate Thickness: 3mm
Upper Plate Thickness: 3mm
Motor Mounting：16x16mm/19x19mm
VTX Mounting：20*20 Φ2mm/ 25.5*25.5 Φ2mm/ 30.5*30.5 Φ3mm
Weight: 345±5 grams
Packing List
1 x XL10 V6 Frame
1 x Screw Bag
1 x TPU Set
1 x Battery anti-slip mat
2 x Battery straps
