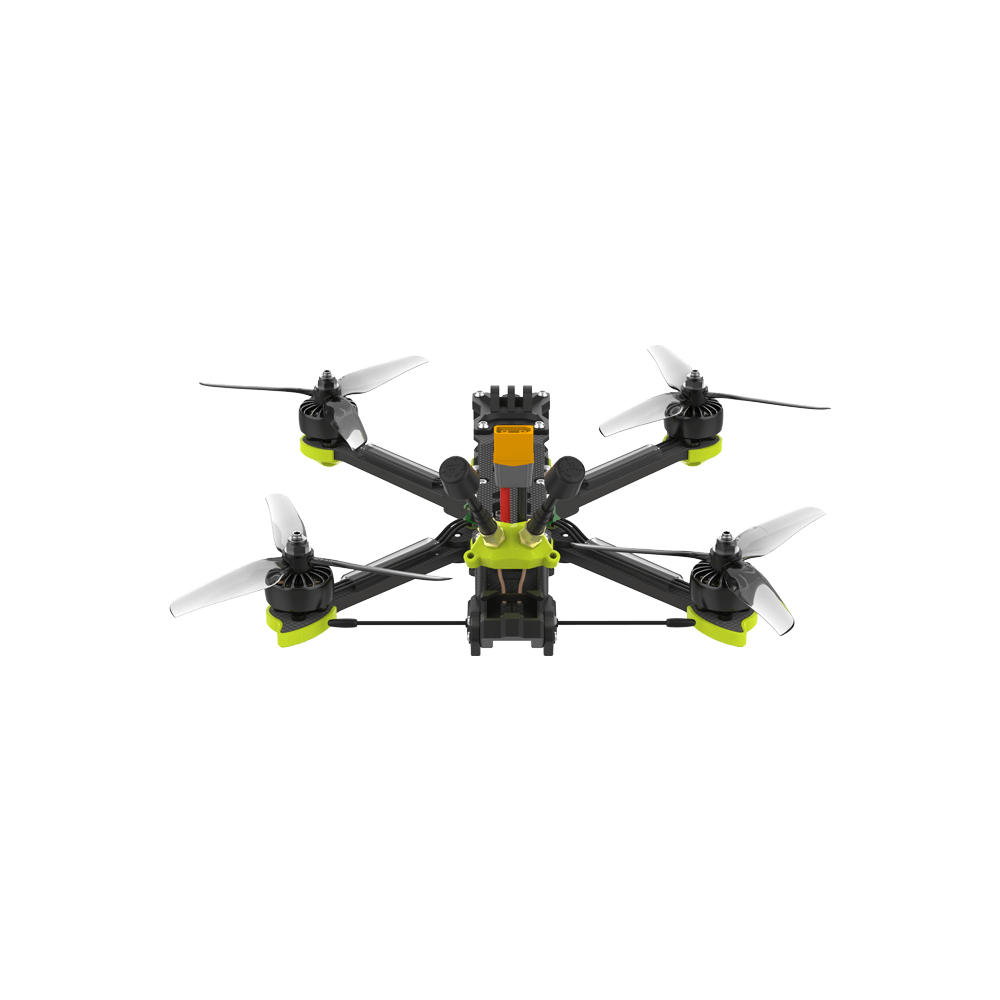

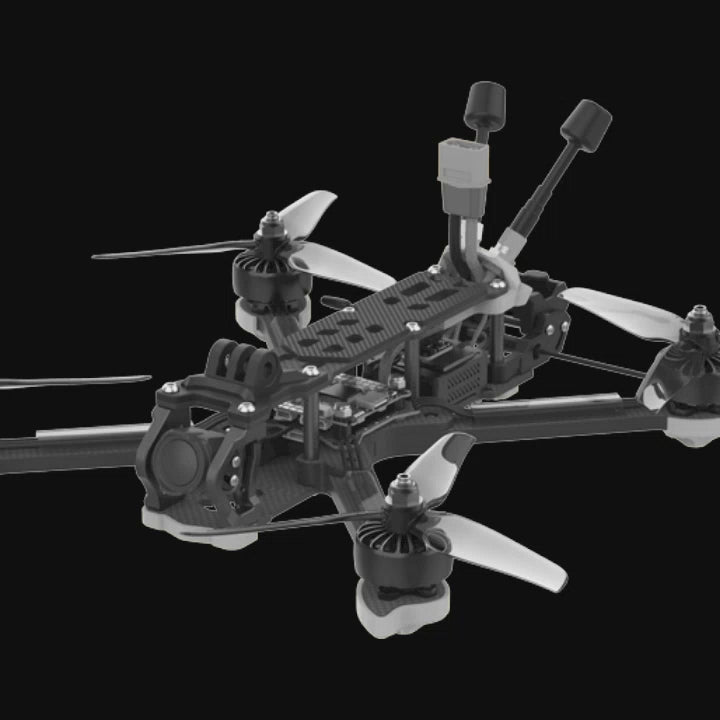

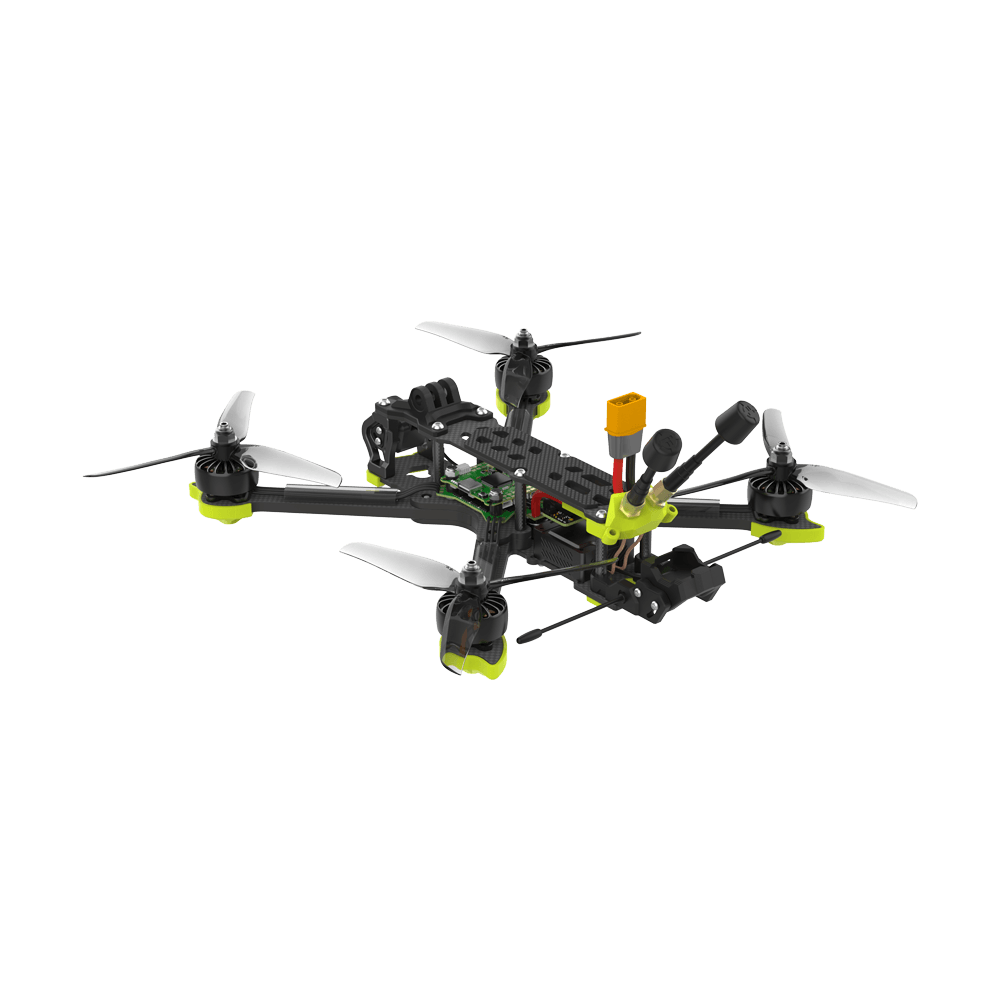

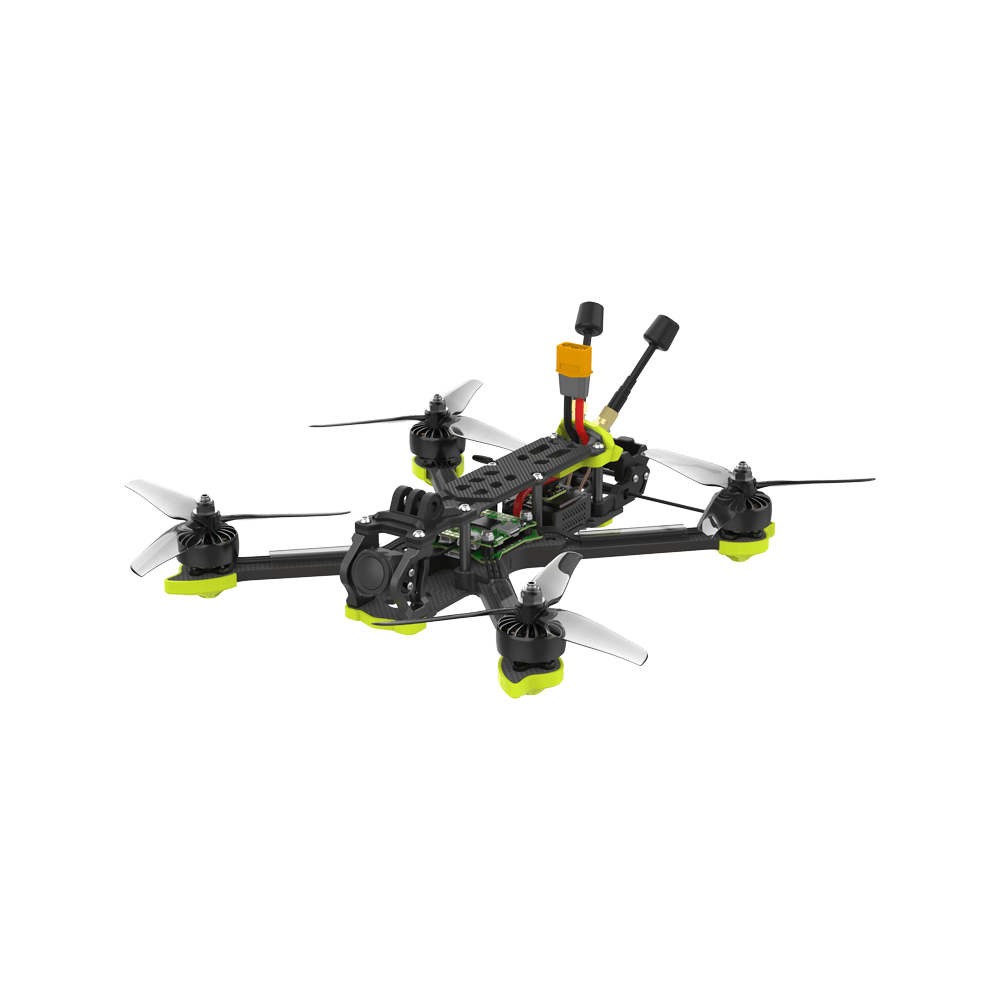

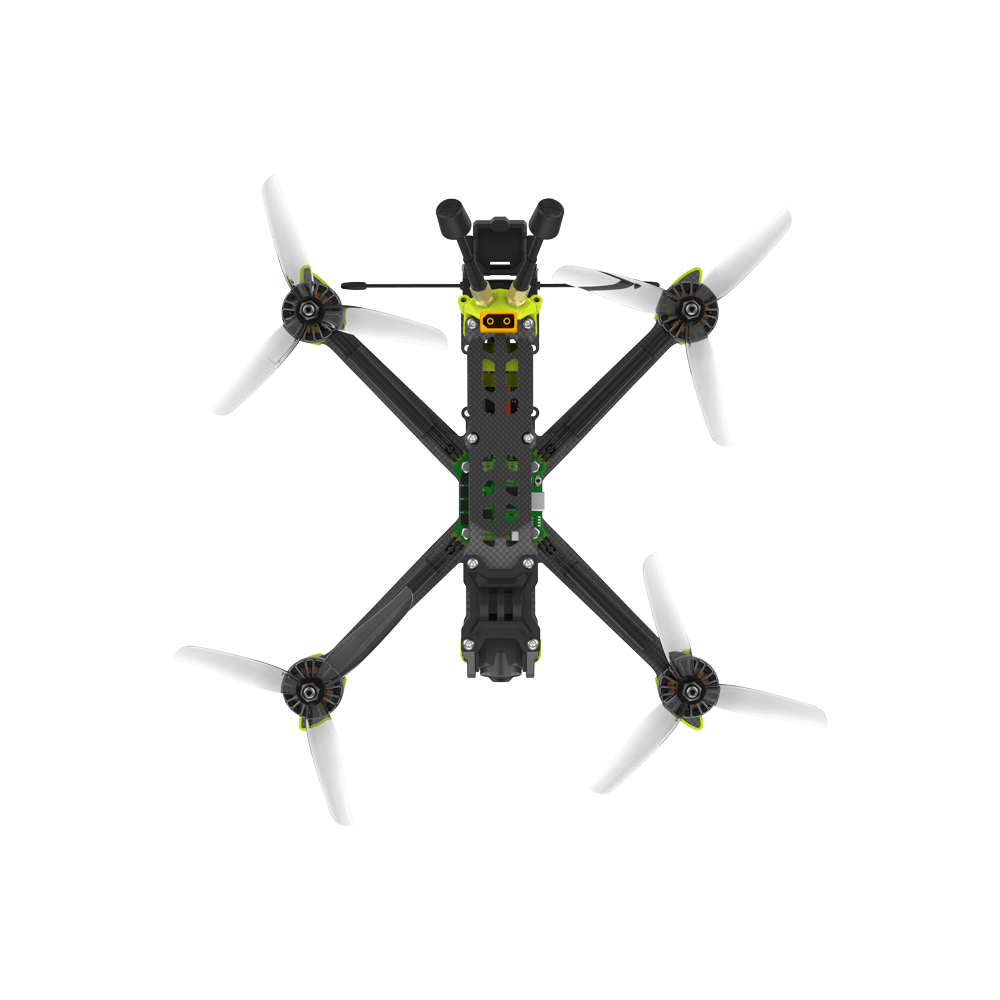

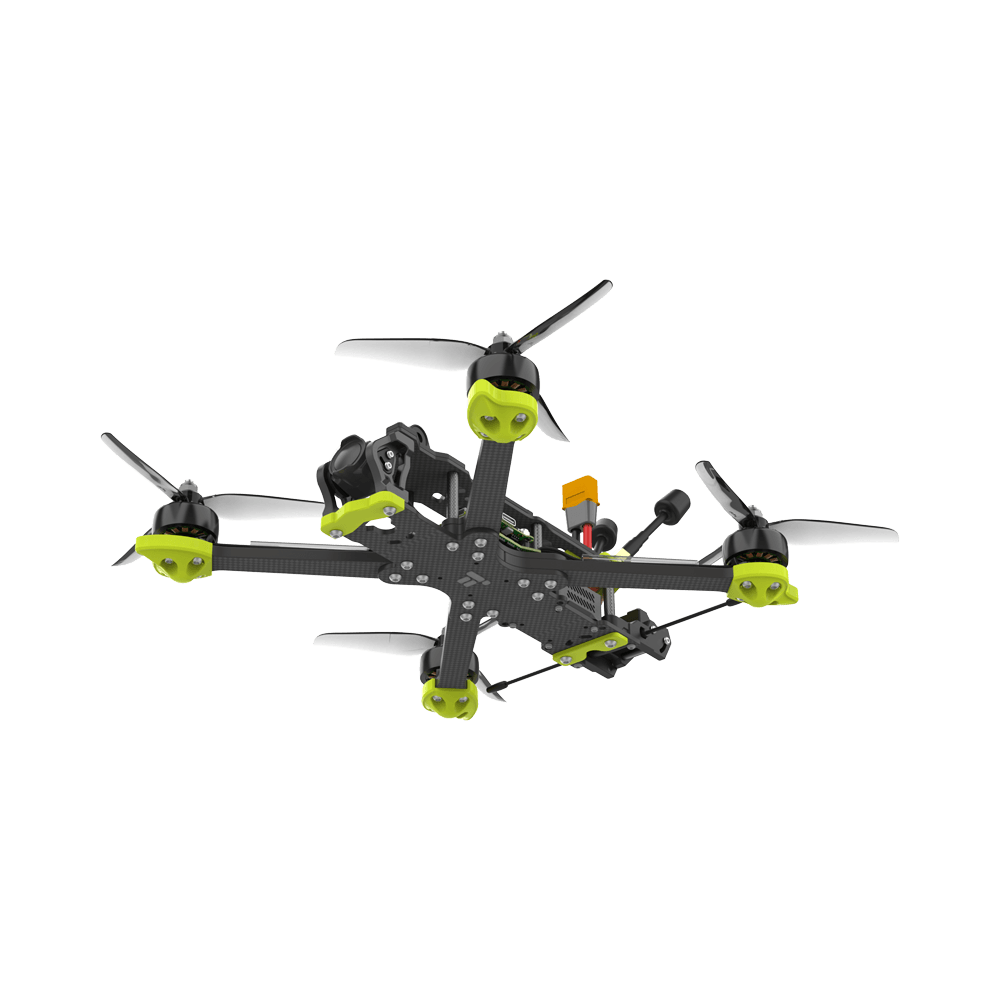

iFlight Nazgul5 V3 FPV Drone SPECIFICATIONS
Wheelbase: Bottom Plate
Use: Vehicles & Remote Control Toys
Upgrade Parts/Accessories: Frame
Tool Supplies: Battery
Technical parameters: Value 2
Size: 5inch 255mm
Remote Control Peripherals/Devices: Remote Controller
Recommend Age: 12+y
RC Parts & Accs: Antennas
Quantity: 1 pcs
Origin: Mainland China
Model Number: Nazgul5 V3 HD
Material: Carbon Fiber
Four-wheel Drive Attributes: Assemblage
For Vehicle Type: Airplanes
Certification: CE
Brand Name: IFLIGHT
- This Nazgul5 V3 HD is a 5″ RTF/ BNF (Bind-and-Fly) quadcopter that comes with the DJI Newest O3 Digital HD System,and Nazgul 5″ 3-Blade propellers. The Nazgul5 V3 HD has been pre-tuned and set up with everything you need, all you need to do is bind-and-fly! Loaded with lots of power; it comes with the XING-E 2207 6S motors, BLITZ F7 Flight Controller, and the BLITZ E45 2-6S 55A BLHeli32 4-in-1 ESC, which make this quad a must-have!
Highlights
- XING-E 2207 motors and NAZGUL F5 props
- 5″ version also fits 5.1″ style propellers
- Fits both 30.5×30.5 and 20×20 stacks
- DJI O3 HD System
- 5mm arm design for more durability
- Popular True-X configuration
- LED illuminated Logo
- TPU crash-guards
- Easy-Swap arms
Specifications
- Product Name：Nazgul5 V3 6S HD
- FC: BLITZ F722
- ESC: BLITZ E55 55A 4-IN-1 ESC
- Video Transmission: DJI O3 Air Unit
- Frame: 255mm wheelbase
- Motor: XING2 2207 motors
- Prop: Nazgul 5 inch propellers
- Takeoff Weight：Approx. 620 g
- Dimensions (L×W×H)：180×180×80 mm
- Diagonal Distance：245mm
- Max Speed：130 Km/h (Manual Mode)
- Maximum Takeoff Altitude：5000 m
- Max Hover Time：Approx. 8 mins
- Max Flight Distance：5 km
- Max Wind Speed Resistance：130 Km/H (Level 4)
- Operating Temperature Range：-10° to 40° C (14° to 104° F)
- Antennas: 2 Antenna
- GNSS：N/A
Package included
- 1 x Nazgul5 V3 O3 HD BNF
- 2 x Antennas
- 2 x Battery pads
- 2 x Prop(Pairs)
Important
- Please check our linked article on “How to disable Angle-Mode, activate Acro-Mode“
- Angle-Mode (self balancing level mode) is enabled by default to make sure your first flight doesn’t end in a mess!
- To restore lost tunes or updates, please check our linked article on “Firmware/Factory Dumps”
- Don’t worry about tuning, we did that for you already! A basic PID- and Filter tuning was applied for a great flight experience!
iFlight Nazgul5 V3 Review
Introduction:
The iFlight Nazgul5 V2 is an exceptional FPV racing drone that combines cutting-edge technology, high-performance components, and an optimized design to deliver an adrenaline-fueled racing experience. In this article, we will delve into the features and improvements of the iFlight Nazgul5 V2, explore its composition, flight parameters, advantages over its predecessor, customization options, assembly process, operating instructions, and address common questions to help racing enthusiasts make an informed decision.
Composition of the iFlight Nazgul5 V2:
The iFlight Nazgul5 V2 is built using top-quality components to ensure durability and optimal performance:
1. Frame: The drone features a robust carbon fiber frame, designed to withstand high-speed impacts and protect internal components.
2. Flight Controller: Equipped with the advanced iFlight SucceX-E F4 flight controller, it provides precise control and stability during flight.
3. Motors and Propellers: The powerful XING-E 2207 motors paired with the durable Nazgul 5140 propellers offer exceptional thrust and efficiency.
4. Electronic Speed Controllers (ESCs): The iFlight 45A 4-in-1 ESC provides smooth and responsive throttle control.
5. FPV Camera: The Caddx Ratel 2 FPV camera captures high-quality video footage with a wide dynamic range, ensuring a clear and immersive racing experience.
6. Video Transmitter (VTX): The adjustable power output VTX allows for seamless video transmission and compatibility with various frequencies.
Flight Parameters and Performance:
The iFlight Nazgul5 V2 delivers outstanding flight performance, enabling pilots to push their limits on the race track:
1. Flight Time: With a recommended 4S or 6S LiPo battery, the drone offers an impressive flight time, allowing for longer racing sessions.
2. Speed and Agility: The combination of powerful motors, well-matched propellers, and precise flight control delivers exceptional speed and maneuverability, essential for competitive racing.
3. Flight Modes: The drone supports multiple flight modes, including Angle, Horizon, and Acro, catering to pilots of different skill levels and preferences.
4. Enhanced Stability: The integrated gyro stabilization system ensures a smooth and stable flight, even during high-speed maneuvers and tight turns.
Advantages of the iFlight Nazgul5 V2:
1. Upgraded Components: The V2 version incorporates several improvements, such as the SucceX-E F4 flight controller and the Caddx Ratel 2 FPV camera, enhancing overall performance and video quality.
2. Durability: The carbon fiber frame and robust construction make the drone highly resistant to crashes and impacts, ensuring its longevity.
3. Customization Options: The iFlight Nazgul5 V2 allows for customization, enabling pilots to fine-tune the drone’s settings, such as PID values and flight modes, to suit their racing style and preferences.
4. Easy Maintenance: The modular design of the drone simplifies maintenance and component replacements, minimizing downtime and ensuring continuous racing enjoyment.
Choosing the Right FPV Racing Drone:
When selecting an FPV racing drone, consider factors such as your skill level, budget, desired performance, and available accessories and spare parts. Researching and comparing different models, including the iFlight Nazgul5 V2, will help you make an informed decision based on your specific requirements.
DIY Assembly and Operating Instructions:
For those interested in assembling their own drone, the iFlight Nazgul5 V2 offers a straightforward assembly process. Follow the manufacturer’s instructions, ensuring proper wiring, soldering, and component placement. Once assembled, calibrate the flight controller, configure
the radio transmitter, and test all the controls before taking off.
Operating the iFlight Nazgul5 V2 is an exhilarating experience. Follow safety guidelines, including flying in open areas away from people and obstacles. Arm the motors, adjust throttle, and explore different flight modes to unlock the drone’s full potential. Wear FPV goggles or use a compatible monitor to enjoy the real-time video feed from the Caddx Ratel 2 FPV camera.
Frequently Asked Questions (FAQs):
1. What battery voltage is recommended for the iFlight Nazgul5 V2?
2. Can I upgrade the motors and propellers for better performance?
3. How do I fine-tune the PID values for optimal flight performance?
4. Is the drone compatible with different FPV goggles and radio transmitters?
5. What are the recommended maintenance practices to keep the drone in top condition?
Conclusion:
The iFlight Nazgul5 V2 is a remarkable FPV racing drone designed to meet the demands of competitive racing enthusiasts. With its advanced components, optimized design, and customizable features, it offers exceptional speed, agility, and durability on the race track. Whether you’re a seasoned racer or a passionate beginner, the iFlight Nazgul5 V2 is a worthy choice that combines performance, reliability, and customization options to deliver an unforgettable racing experience.
Disclaimer: The information provided in this article is fictional and created for illustrative purposes. For accurate and detailed information about the iFlight Nazgul5 V2, please refer to the official documentation and product specifications provided by the manufacturer.
