iFlight Mach R5 HD FPV Drone SPECIFICATIONS
Wheelbase: Bottom Plate
Use: Vehicles & Remote Control Toys
Upgrade Parts/Accessories: Frame
Tool Supplies: Cutting
Technical parameters: Value 2
Size: 215mm 5inch
Remote Control Peripherals/Devices: Remote Controller
Recommend Age: 12+y
RC Parts & Accs: Antennas
Quantity: 1 pcs
Origin: Mainland China
Model Number: Mach R5 HD
Material: Carbon Fiber
Four-wheel Drive Attributes: Assemblage
For Vehicle Type: Airplanes
Certification: CE
Brand Name: IFLIGHT
- In response to our customer needs, this is our answer for all the racers in out there: The iFlight Mach R5 BNF!
- Equipped with XING2 2506 motors for more torque and efficiency as well as high speed and consistent lap times.
- We use Beast F7 55A AIO, the most powerful of our iFlight AIOs available currently.
- Quick-swap arm assembly for easy repair on your flying spot or race day.
- Enhanced canopy design with low wind resistance for maximum speed and efficiency.
FEATURES:
- Super durable design, 6mm arms and 7075 CNC middle plate
- Super lightweight but superpower with our newest XING2 2506 motors
- 55A powerful Beast AIO power at small footprint
- New Caddx Polar Vista Digital HD System
HIGHLIGHTS:
- XING2 2506 1850KV motors
- Beast F7 55A AIO board
- Caddx Polar Vista Digital HD System Kit
PRE-TUNED & PRE-SETUP:
- Don’t worry about tuning, we did that for you already! A basic PID- and Filter tuning was applied for a great flight experience!
- To restore lost tunes or updates, please check our linked article on“Firmware/Factory Dumps”
- Angle-Mode (self-balancing level mode) is enabled by default to make sure your first flight doesn’t end in a mess!
- Please check our linked article on“How to disable Angle-Mode, activate Acro-Mode”
- GPS Rescue is OFF by default to prevent unwanted or unexpected drone behavior.
- Please check our linked article on“GPS Rescue Mode // Setup”
FRAME //：Mach R5
- Wheelbase: 215mm
- Main body dimension: 152*152mm
- Arm thickness: 6mm
- Bottom plate thickness: 3mm
- Top plate thickness: 2.5mm
- Middle Plate thickness: 2.5mm CNC 7075 aluminum alloy
- TPU Camera plate
- FC: 30.5*30.5/25.5*25.5mm/20*20mm
- FPV Cam:14mm /19mm Micro / 20mm
FC // Beast F7 AIO Specification:
- MCU: BGA-STM32F745
- Gyro: MPU6000
- Blackbox: 16Mb Onboard Flash
- BEC output: 5V 2.5A
- Barometer: DPS310
- Connector: Micro-USB
- OSD: AT745E
- FC Firmware：IFLIGHT_F745_AIO
- Mounting pattern: 25.5*25.5mm φ3mm
- Dimensions: 32.5*32.5mm
- Weight: 8.5g
ESC // 55A 2-6S Specification:
- UARTs: 5
- Current Sensor: Yes
- Input: 2-6S LIPO
- Current scale: 200
- Constant: 55A / Burst: 60A
- BLHeli: BLHeli-S
- Telemetry: no
- ESC Firmware:BlheliS G-H-30 BLS
- Mounting pattern: 25.5*25.5mm/Φ3mm
- Dimensions:32.5*32.5mm
Mach R5 HD Quad BNF Included Components and Parts
- Prebuilt and tested Quadcopter
- 1x Mach R5 HD Frame
- 1x Caddx Polar Vista Digital HD System Kit
- 1x Sigma LHCP Ipex/UFL5.8g antenna
- 2sets x Nazgul R5 3-blades (Set of 4 – Color may vary)
- 1×20*250mmMicrofiber PU Leather Battery Strap (Color May Vary)
Mach RS O Bor Foy Racmg C Quick-swap High strength 7075 Up to High quality arms aluminum base 20Okmlh lectronic
Born for Racing: Designed with the highest standards in mind, this product is ideal for racing or competitive use, offering both analog and high-definition (HD) options.

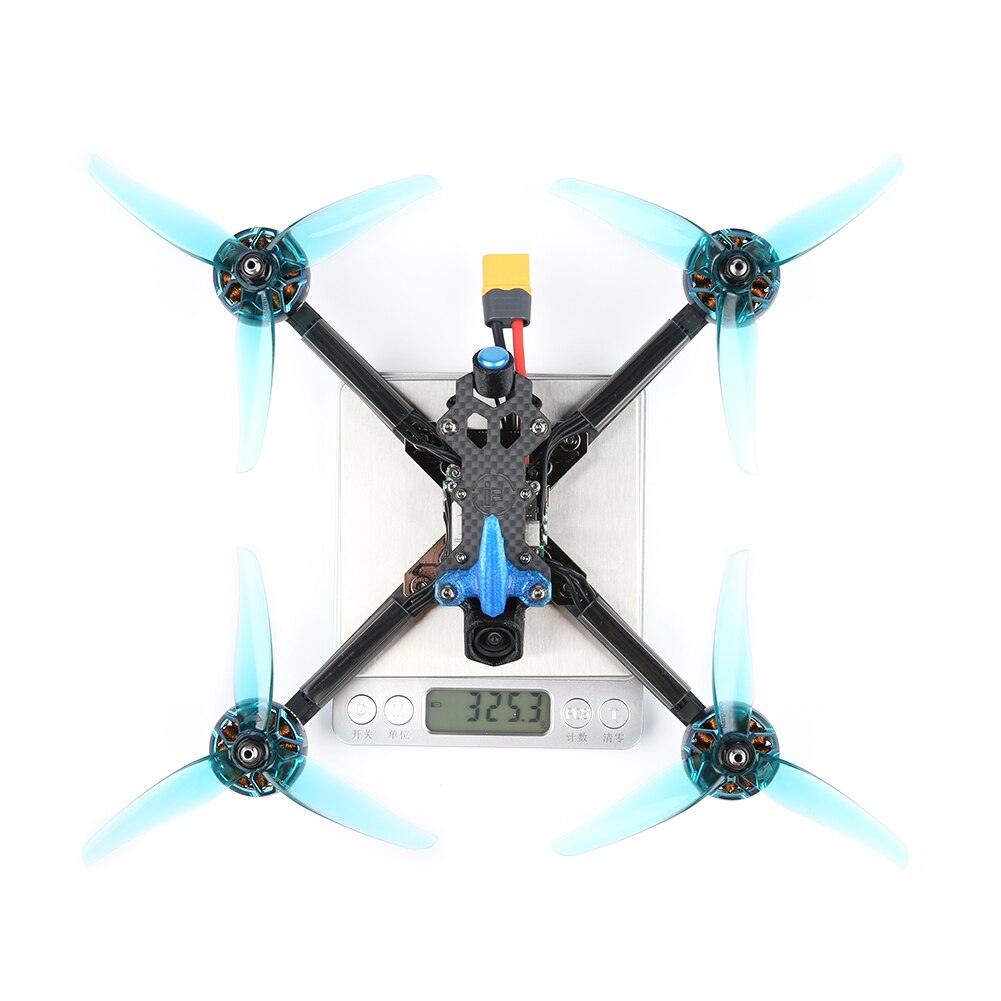

The Mach R5 has the following technical specifications: model wheelbase dimensions are 152mm, while the actual model size is 215.2mm. The layout is built with an X-geometry, weighing approximately 321g (analog) or 325g (HD). The inner installation height of the motor pattern is 25mm, and the motor center hole is 16*16mm.
The iFlight Mach R5 HD FPV drone comes with a setup that includes a Beast F7 55A AIO board, SucceX-D Mini F7 TwinG ESC, and a Caddx Polar Vista digital HD system. The specifications are: 215mm (8.5 inches) in length, 6S configuration, and a 2506 motor with an 1850KV rating.
iFlight Mach R5 Review
Related Article:
(There may be errors in related articles, please refer to the description of the product itself)
The iFlight Mach R5 HD is a high-performance FPV drone designed for immersive high-definition flying experiences. It combines top-of-the-line components to deliver exceptional flight performance and stunning digital HD footage. Let’s delve into the key features of the iFlight Mach R5 HD:
1. Design and Construction:
The Mach R5 HD features a robust 215mm carbon fiber frame, which strikes a balance between durability and weight reduction. The frame design ensures stability during flight maneuvers and offers sufficient space for mounting components.
2. Caddx Polar Vista Digital HD System:
The Mach R5 HD is equipped with the Caddx Polar Vista Digital HD System, offering an exceptional high-definition digital FPV experience. The system consists of a high-quality camera and the Vista HD video transmitter, which transmits clear and low-latency HD video feed to your FPV goggles or monitor.
3. Flight Controller and Electronics:
The drone is powered by the Beast F7 55A AIO flight controller, which provides reliable and precise flight control. The integrated F7 processor enables fast and accurate flight performance, while the 55A ESCs offer smooth and responsive throttle control.
4. Motors and Propellers:
The Mach R5 HD is equipped with powerful iFlight XING2 2506 1850KV motors, known for their excellent performance and efficiency. Paired with well-matched propellers, these motors deliver impressive thrust and responsiveness for both freestyle and racing maneuvers.
5. Battery and Flight Performance:
Designed to be powered by a 6S LiPo battery, the Mach R5 HD offers ample power for aggressive and dynamic flight maneuvers. The efficient power system, combined with the lightweight frame, ensures extended flight times and enhanced overall performance.
6. Bind-and-Fly (BNF) Configuration:
The Mach R5 HD comes in a BNF configuration, meaning it’s ready to fly out of the box once bound to a compatible transmitter. This eliminates the need for complex assembly and setup, allowing you to quickly get airborne and enjoy the immersive HD flying experience.
In summary, the iFlight Mach R5 HD is a top-of-the-line FPV drone that combines powerful components with an advanced digital HD system. With its high-quality camera, reliable flight controller, powerful motors, and efficient power system, it offers exceptional flight performance and stunning HD footage. Whether you’re a freestyle enthusiast or an avid racer, the Mach R5 HD is a capable and versatile drone that delivers an immersive and thrilling FPV experience.
