Description

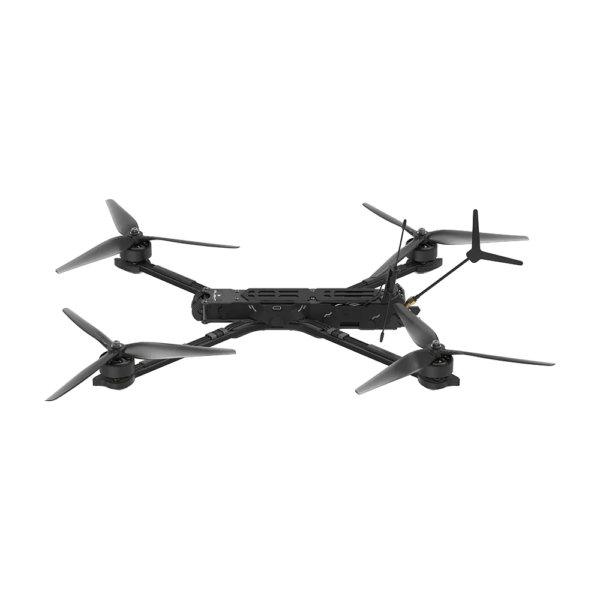

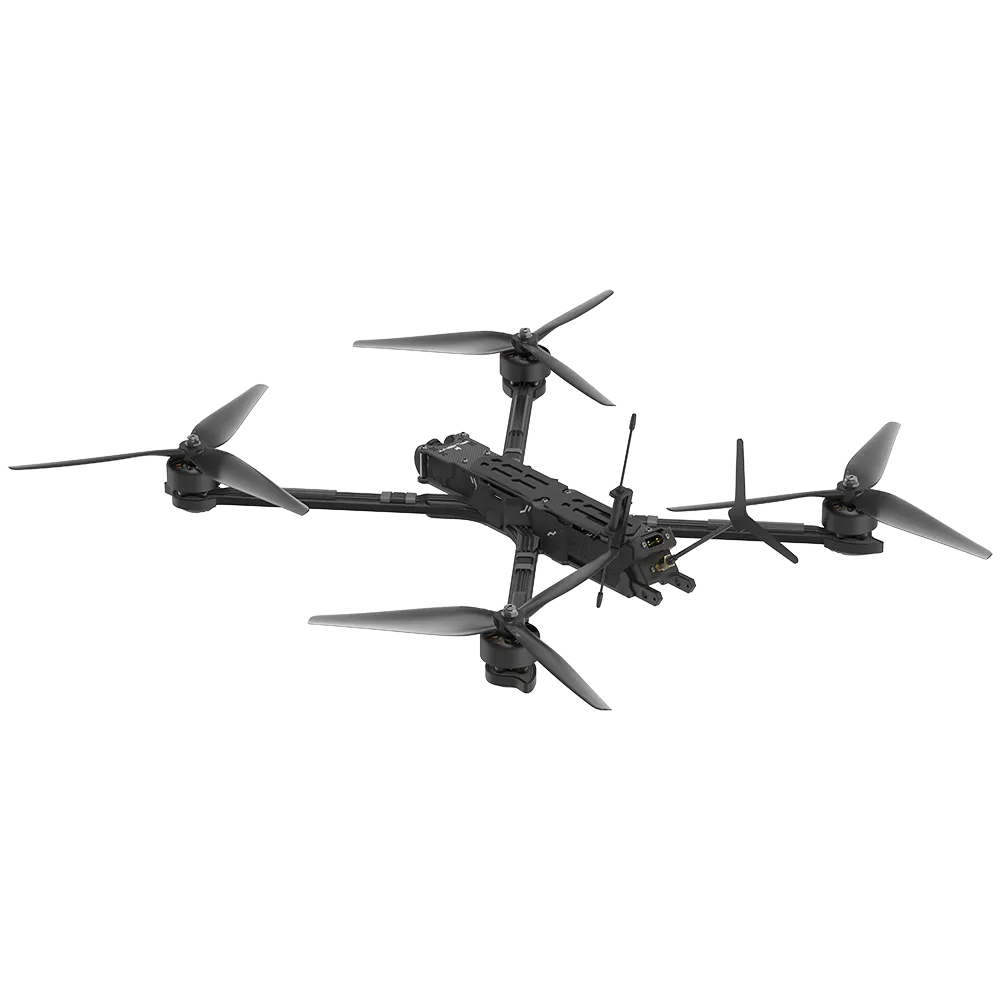

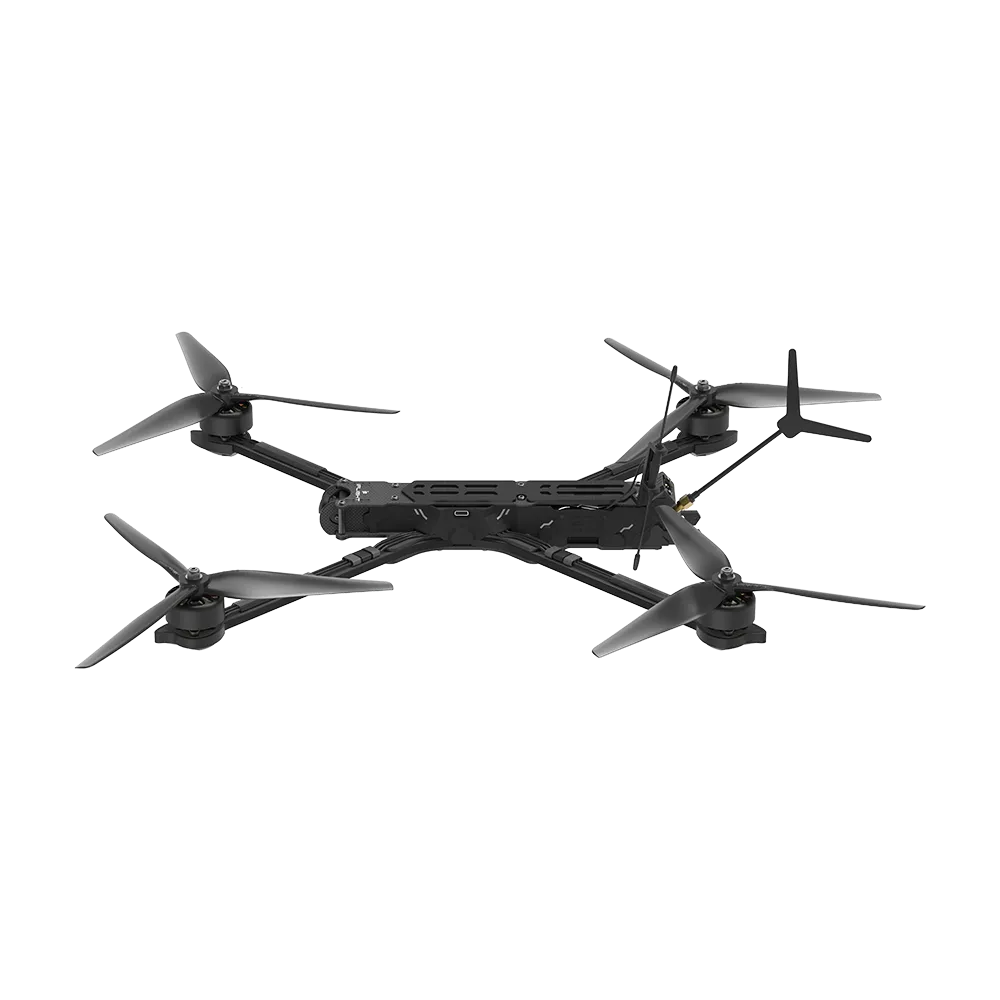

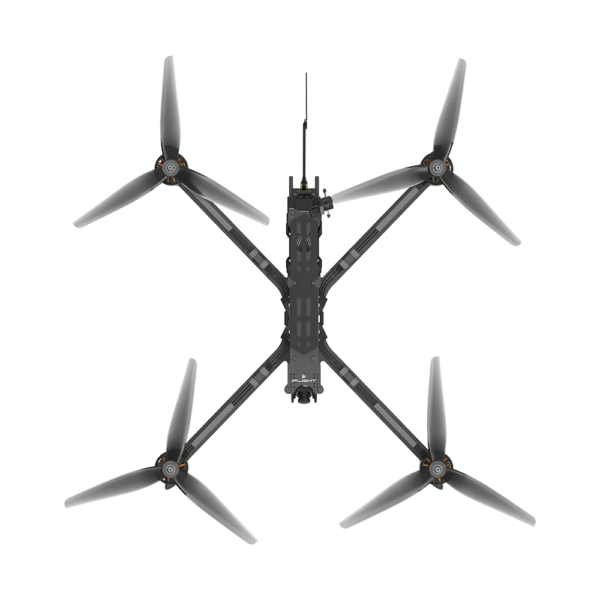

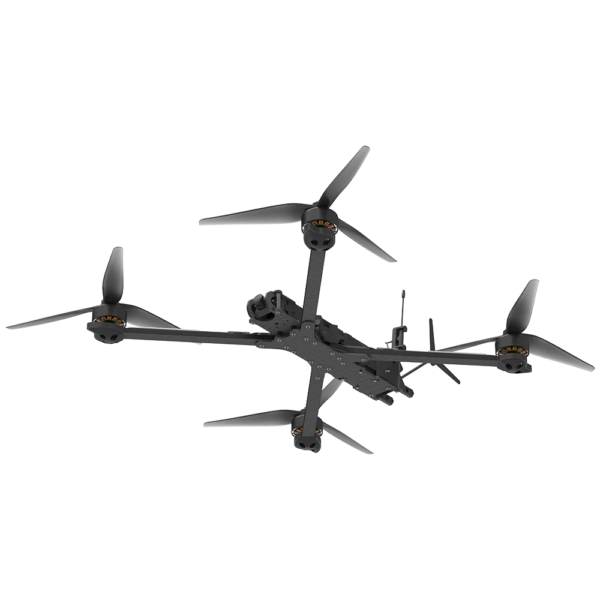

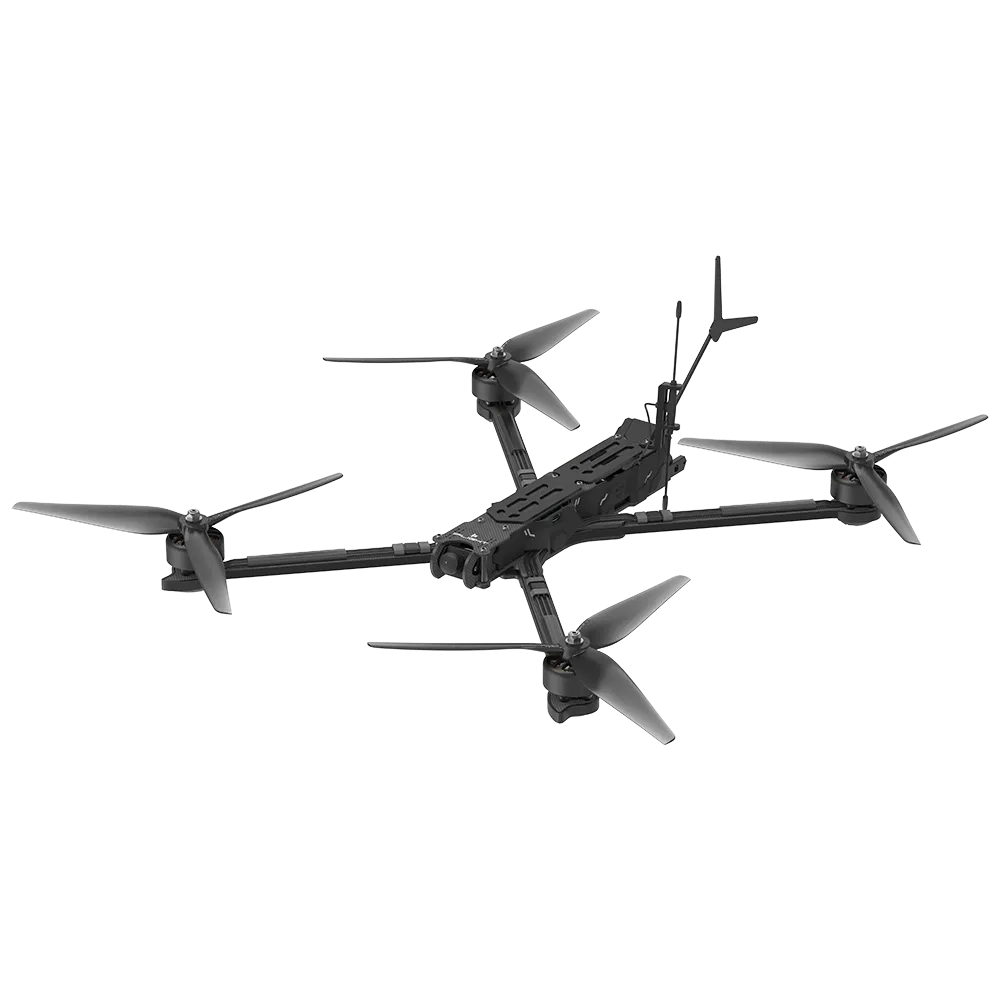

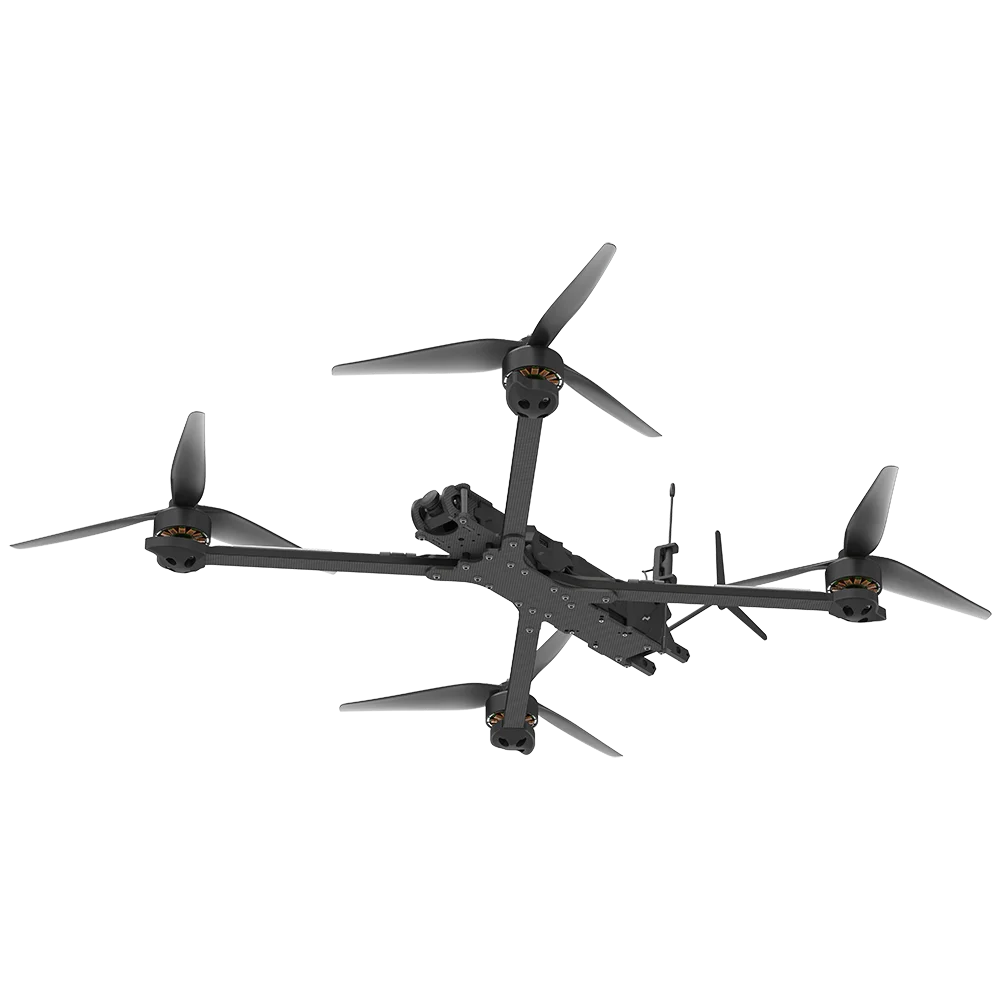

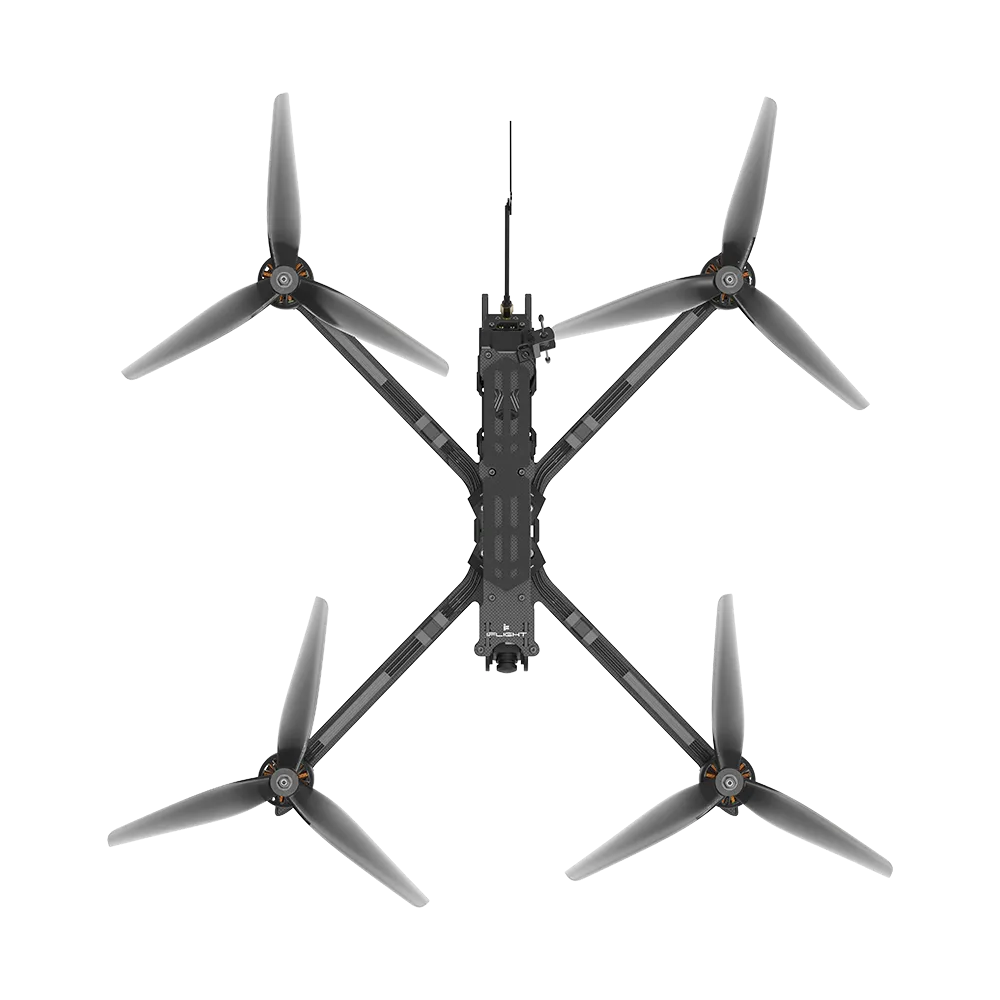

• It’s proud to announce the release of the Chimera CX10 ECO analog BNF, CX10 6S Analog is a 10″ BNF quadcopter that comes with the BLITZ Whoop 1.6W VTX Video Transmission System, and HQ 10″ 3-Blade  propellers. The CX10 has been pre-tuned and set up with everything you need, all you need to do is bind-and-fly! Loaded with lots of power; it comes with the XING-E 3110motors, BLITZ ATF435 Flight Controller, and the BLITZ E55S 4-IN-1 ESC, which make this quad a must-have!

• Full 3K Carbon Fiber airframe

• Big size XING-E 3110 with extreme lift and flight performance

• Latest Lightweight Side Panels for Maximum Protection

Not included in BNF Lite Version:

• GPS module

• Anti Spark Filter

Specifications

• Product Name: Chimera CX10 ECO Analog 10 inch

• FC: BLITZ ATF435 Flight Controller

• ESC: BLITZ E55S 4-IN-1 2-6S 55A ESC

• Video Transmission: BLITZ Whoop 1.2G 1.6W VTX/BLITZ Whoop 1.6W VTX/ BLITZ Whoop 2.5W VTX

• Frame: 452mm wheelbase

• Motor: XING-E 3110 900KV motors

• Prop: 10X4.5X3 propellers

• Weight: 860g (Without Battery)

• Dimensions (L×W×H)：338x299x34mm

• Max Speed: 140km/h

• Maximum Takeoff Altitude: 6000 m

• Max Hover Time: Approx. 40 mins (with 6S2P 8000mAh no load)

• Payload: 1.5-2.5kg

• Max Wind Speed Resistance: Level 7

• Operating Temperature Range: -10° to 40° C (14° to 104° F)

• Antennas: Single Antenna

• GNSS: No

Video Transmission

BLITZ Whoop 1.2G 1.6W VTX

• Product Name: BLITZ Whoop 1.2G 1.6W VTX

• Output Power: 0-25-400-800-1600mw

• Input Volts: 7-34V

• Working Current: ≤25mw@12V 410mA, ≤400mw@12V 470mA, ≤800mw@12V 490mA, ≤1600mw@12V 590mA

• Transmission fre: 8CH(1080-1360MHz)

• Antenna Interface: MMCX

• Mounting Hole: 25*25/φ1.6mm

• Weight: 32g

• Dimensions: 50*30*16mm

BLITZ Whoop 5.8G 1.6W VTX

• Product Name: BLITZ Whoop 5.8G 1.6W VTX

• Output Power: 0-25-400-800-1600mw

• Input Volts: 12V

• Working Current: ≤pit @40mA，≤25mw@150mA，≤400mw@330mA，≤800mw@460mA，≤1600mw@660mA

• Transmission fre: 40CH(A-B-E-F-R)

• Antenna Interface: IPEX

• Mounting Hole: 25*25/φ1.6mm

• Weight: 16.5g (Antenna not included)

• Dimensions: 37mm*31.5mm*10mm

BLITZ Whoop 5.8G 2.5W VTX

• Product Name: BLITZ Whoop 5.8G 2.5W VTX

• Output Power: 0-25-400-1000-2500mw

• Input Volts: 7-34V

• Working Current: ≤pit @12V 140mA, ≤25mw@12V 200mA, ≤400mw@12V 340mA, ≤1000mw@12V 480mA, ≤2500mw@12V 780mA

• Transmission fre: 40CH(A-B-E-F-R)

• Antenna Interface: MMCX

• Mounting Hole: 25*25/φ1.6mm

• Weight: 32g

• Dimensions: 50mm*30mm*16mm

Packing List

• 1 x Chimera CX10 ECO 6S Analog BNF

• 1 x Battery pad

• 1 x Antenna

• 2 x Propellers(Pair)

• 2 x Battery strap
