CCD Camera IR Sensitive for FPV SPECIFICATIONS

Use: Vehicles & Remote Control Toys

Upgrade Parts/Accessories: Other

Unit Type: piece

Tool Supplies: Assembled class

Technical parameters: Value 5

Remote Control Peripherals/Devices: Other

Recommend Age: 18+,12+y

RC Parts & Accs: Connectors/Wiring

Package Weight: 0.1kg (0.22lb.)

Package Size: 10cm x 10cm x 10cm (3.94in x 3.94in x 3.94in)

Origin: Mainland China

Model Number: HS1177

Material: Composite Material

Four-wheel Drive Attributes: Assemblage

For Vehicle Type: Airplanes

Brand Name: uuustore

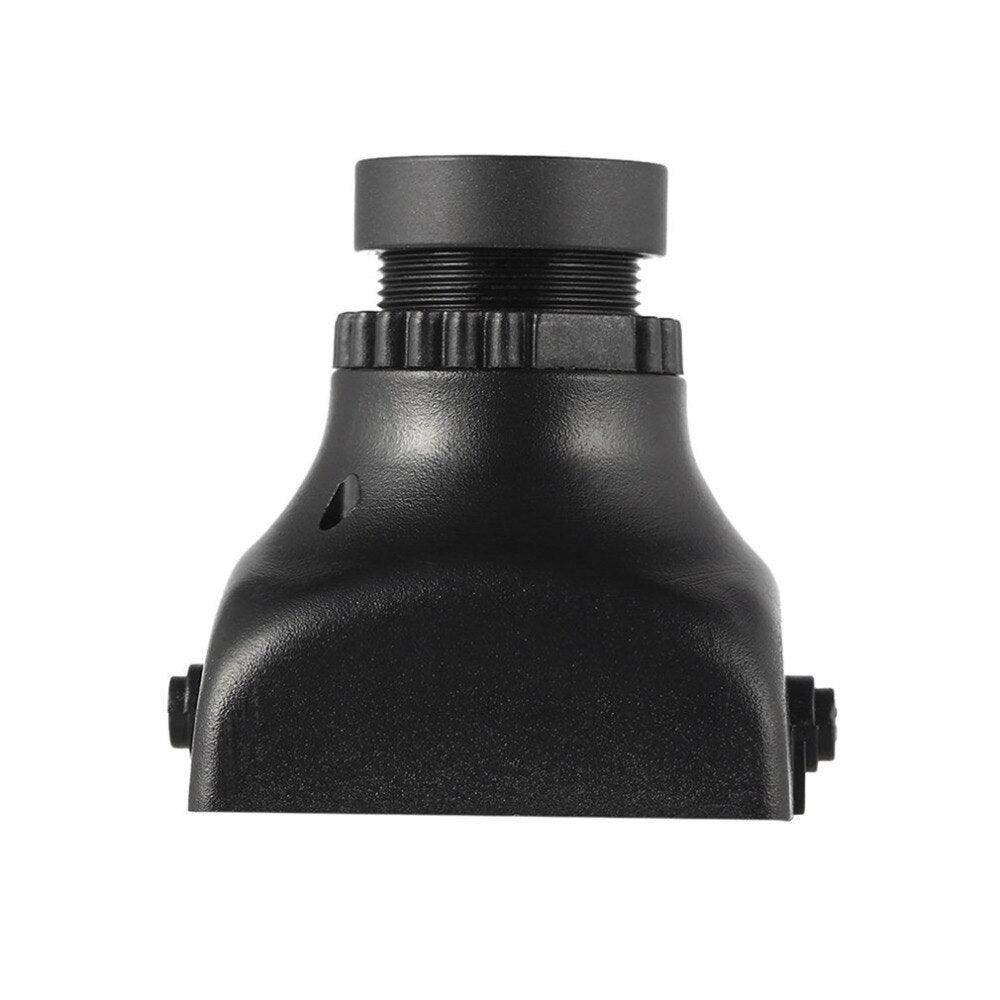

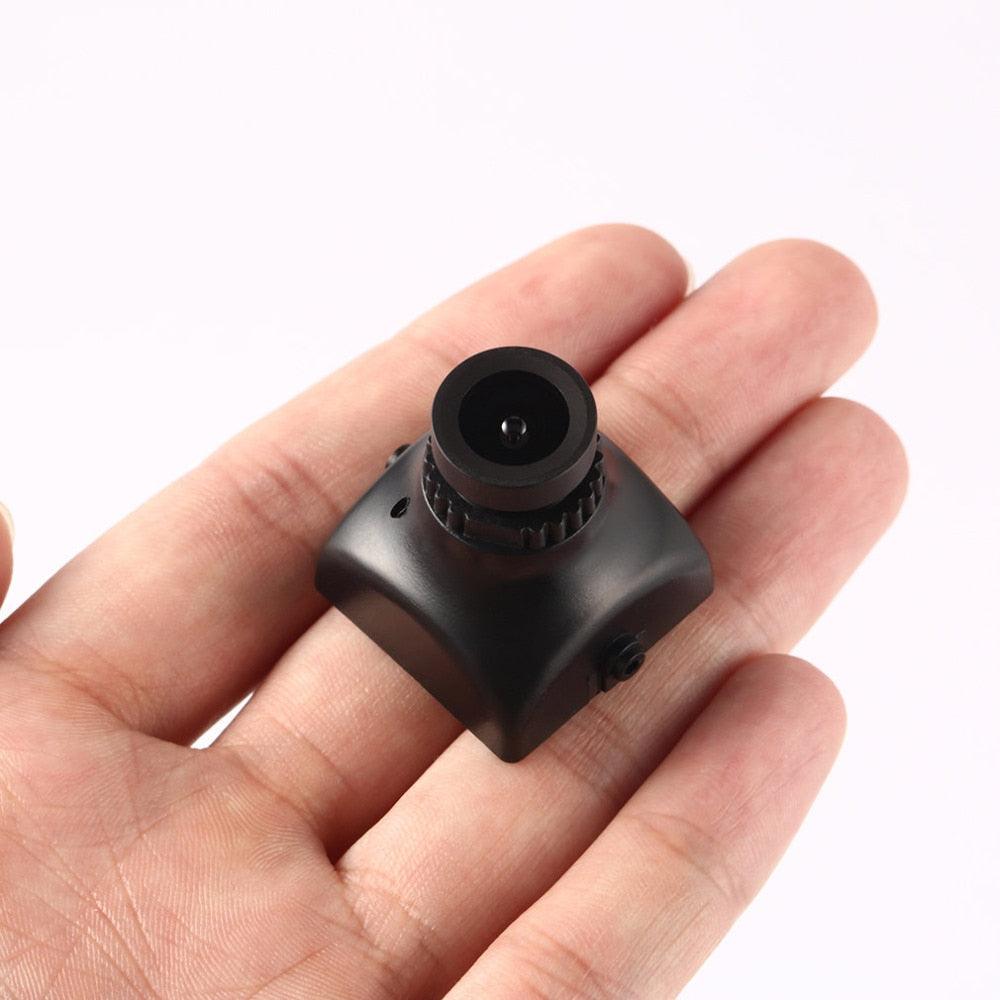

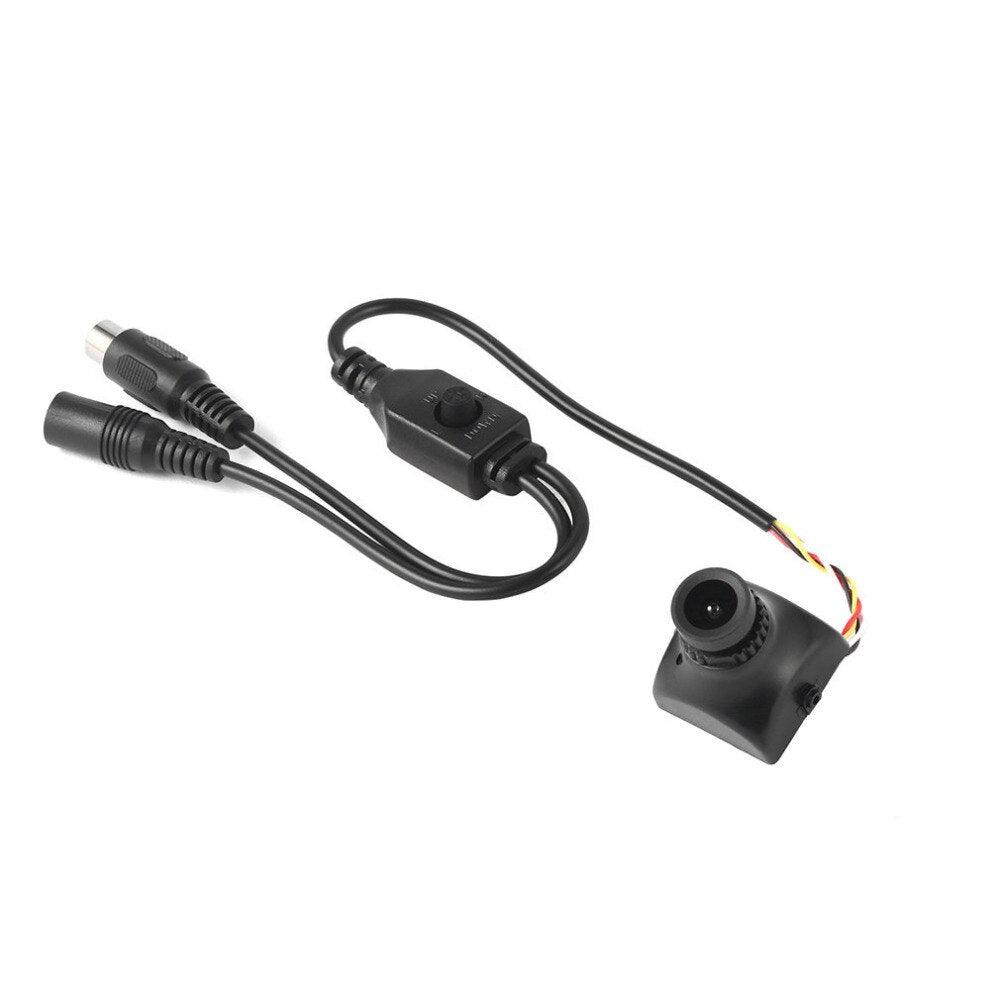

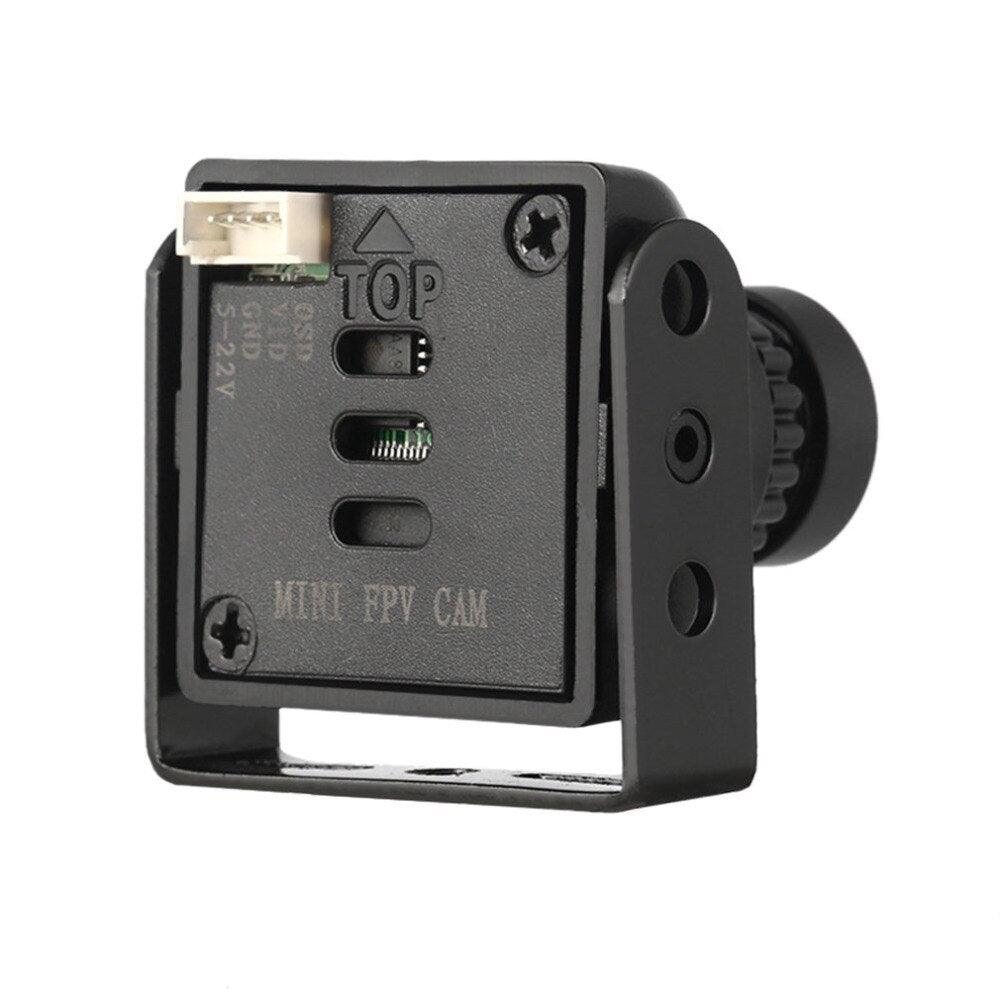

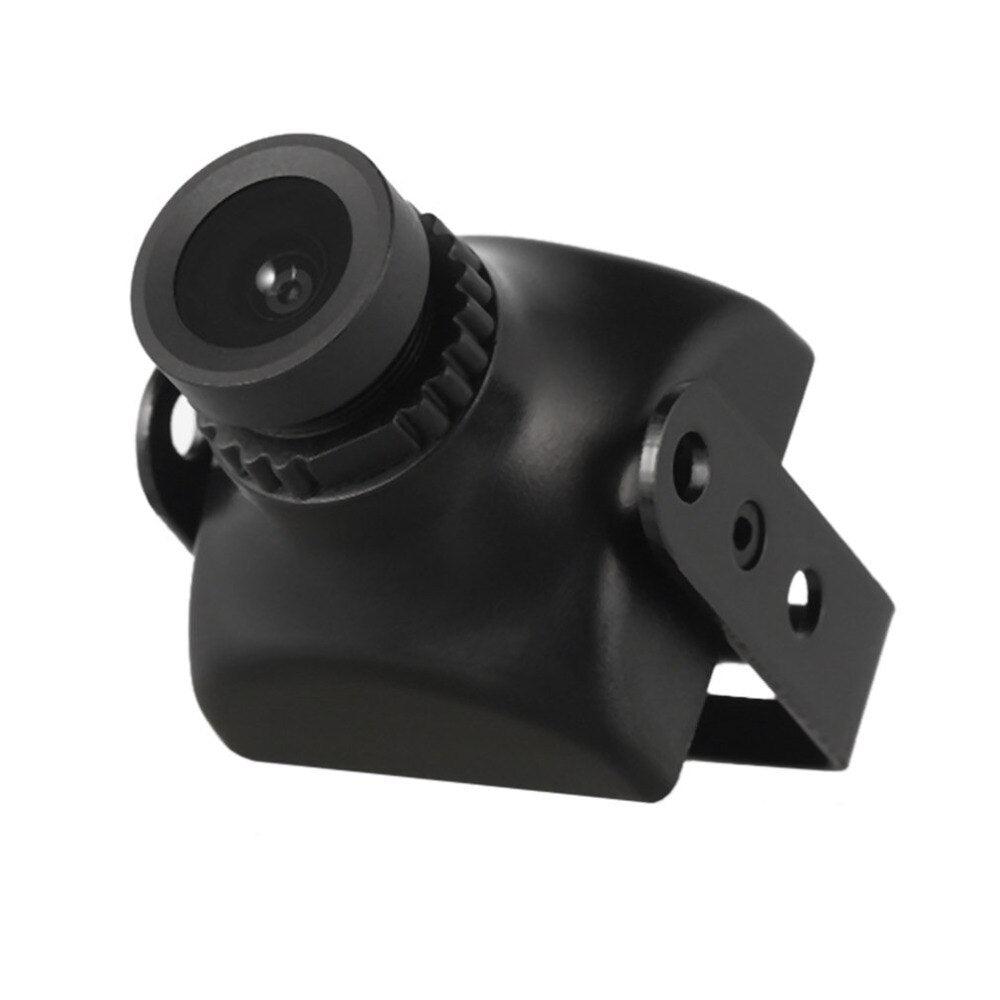

1PCS HS1177 600TVL 2.8mm Lens 1/3″ SUPER HAD II CCD Camera IR Sensitive for FPV Racing Quadcopter QAV250 PAL/NTSC

This is a mini version of the classic CC1333 600TVL Sony Super Had II CCD board FPV camera. It uses a 1/3″ Sony Super HAD II CCD, Nextchip 2040 DSP, D-WDR, 2D-DNR, minimum illumination reach 0.01 Lux (black/white) with a powerful OSD.



A customized 3pin servo cable is also included.



NOTE: This is the plastic cased version of this camera. See the related items for the heavier metal cased version.



Features:

– 600TVL high picture quality

– 1/3″ SONY SUPER HAD II CCD

– Nextchip 2040 DSP

– Powerful OSD menu

– D-WDR (Wide Dynamic Range)

– 2D-DNR (Digital Noise Reduction)

– Low Power Consumption(70mA)

– Mirror function

– Privacy areas: 8 areas

– Low illumination: 0.01Lux

– 2.8mm Lens

– Low Power Consumption

– Suitable for FPV



Specifications:

– Model: HS1171

– CCD: 1/3” Sony SUPER HAD II CCD

– Pixel: PAL: 976(H) x 494(V);NTSC: 768(H)×494(V)

– TV System: PAL/NTSC(according to country)

– Resolution: 650TVL(b/w), 600tvl(color)

– Synchronization : internal synchronize

– Shutter Speed: (CCD IRIS) PAL: 1/50~1/100000 sec; NTSC: 1/60~1/100000 sec

– Noise: > 60 (AGC OFF)

– Video Out: 75ohm, synchronize

– Min. Illumination: 0.01Lux

– Auto Gain: Off/Low/Mid/High

– Back Light Compensation (BLC): Off /Back light compensation/ Strong light suppression

– Private shading (PRIVACY): 1~8 private shading area

– Motion Detection (MD): On/ Off (Multi level sensitivity settable)

– Auto White Balance: Manual / Auto / Auto track

– Mirror: Horizontal Mirror optional

– Negative: Positive / Negative optional

– Color to B&W: Auto

– DNR: 2DNR

– WDR: D-WDR

– Day / Night Shift: Auto/ Color/ B&W

– Menu (OSD): English menu

– White Dot Repair: Support

– Image Adjustment: Support

– Camera Title: Support

– Power Requirement: DC5V~22V

– Working Temperature: -10 C ~ +50 C

– Working Humidity: 20~80%

– Storage Temperature: -40 C ~ +60 C

– Storage Humidity: 20~95%

– Dimensions(mm): 25X25(W*L)

– Power Consumption: 70mA

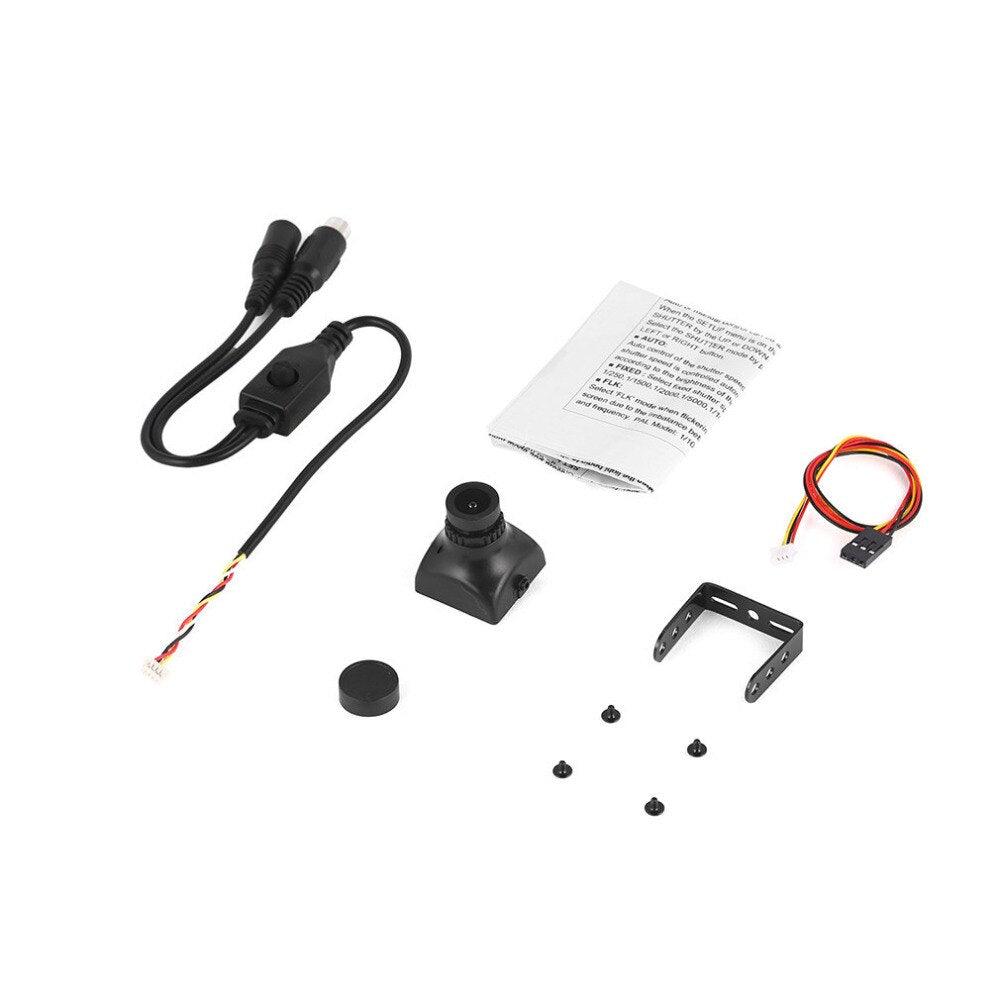

Package includes:

1 x 650TVL HS1177 Camera

1 x 3pin video cable

1 x 4pin servo cable

1 x Manual

1 x Mount

4 x Screws



‘
