HGLRC Rekon 6 HD SPECIFICATIONS
Warranty: Not include
Warning: Minors please use under the supervision of an adult
Video Capture Resolution: 1080p FHD
Type: Airplane
State of Assembly: Ready-to-Go
Remote Distance: 2000 meters
Remote Control: Yes
Recommend Age: 12+y,14+y
Power Source: Electric
Plugs Type: XT60
Package Includes: Original Box,Camera
Origin: Mainland China
Operator Skill Level: Intermediate,Expert
Model Number: HGLRC Rekon 6 Mini Long Range Quad Digital Version
Material: Metal,Plastic,Carbon Fiber
Indoor/Outdoor Use: Indoor-Outdoor
Flight Time: 10-20 minutes
Features: App-Controlled,FPV Capable,Integrated Camera,Other
Dimensions: 6inch
Controller Mode: MODE2,MODE1
Controller Battery: Not include
Control Channels: 8 Channels
Charging Voltage: 14.8V
Charging Time: 30 minutes
Certification: CE
Camera Mount Type: Fixed Camera Mount
CE: Certificate
Brand Name: HGLRC
Concept
This six-inch platform is an adaptation of the Rekon 5 to match the new light 6” t-mount props that now entered the market. The main advantage of 6″ compared to the 5″ version is the ability to carry even higher loads, especially large four cell 21700 Lithium-Ion packs with over 4000mAh for extreme flight times. With its 1500kV 2105.5 motors the quad can be run on 6S for increased power, but it is mainly intended as an ultra-high efficiency cruiser on 4S.
Features:
– Lightweight frame with 10mm aluminium bolt construction, compact 25/20mm standoff split deck main body for double 20×20 stacks
– Shock absorbing TPU front with integrated GoPro mount
– Foldable crossfire immortal T-mount inspired by Alexandre Arvinte (@ledrone.club)
– Mild dead cat design reducing the props in view while not affecting flight performance
– Optional braces for improved vibration dampening and crash resistance
– Optimized for 2105.5 and 2303 motors with 12×12 M2 mounts
– GPS mount for M80 GPS
– External buzzer mount for Soter Buzzer
– Power plug:XT60
Specification:
HGLRC Rekon6 LR HD Quad FPV Drone F722 mini flight controller 28A 4in1 ESC Aeolus 2006 Motor CADDX Nebula Nano
Product Name:HGLRC Rekon6 LR Drone HD 4S Version

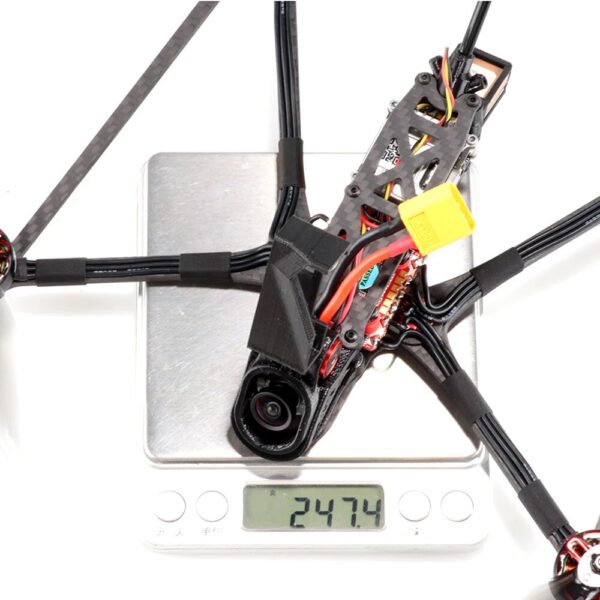

Net Weight:247.4g(without receiver)
Rekon 6 LR Frame
Type: 6 inches Frame
Wheelbase:242mm
Support for props:Up to 6 inches
Overall size:235 * 178mm
Zeus F722 mini FC
MPU:BMI270
Input Voltage:3-6S Lipo
BEC Output:5V/2A,9V/1.5A
Zeus 28A BL_S 3-6S 4in1 ESC
Input Voltage:3-6S Lipo
Steady Current:28A
Peak Current:35A（10 Sec）
CADDX Nebula Nano
Operating Frequency:5.725-5.850 GHz
Input Power:7.4-26.2V
Channels:8
Rekon 2006 1500KV Motor
No.of Cells(Lipo):16.8 V (4S)
Recommended Prop(inch):6 Inches
M80 GPS
Power Supply:5V
Size:18.5mm x 18.5mm x 7.1mm
Soter FPV drone buzzer
Input voltage: 5V
Size:22mm x 12mm x12mm
GEMFAN 6026 6 Inches 2-Blades Propeller
Quantity:4 CW & 4 CCW

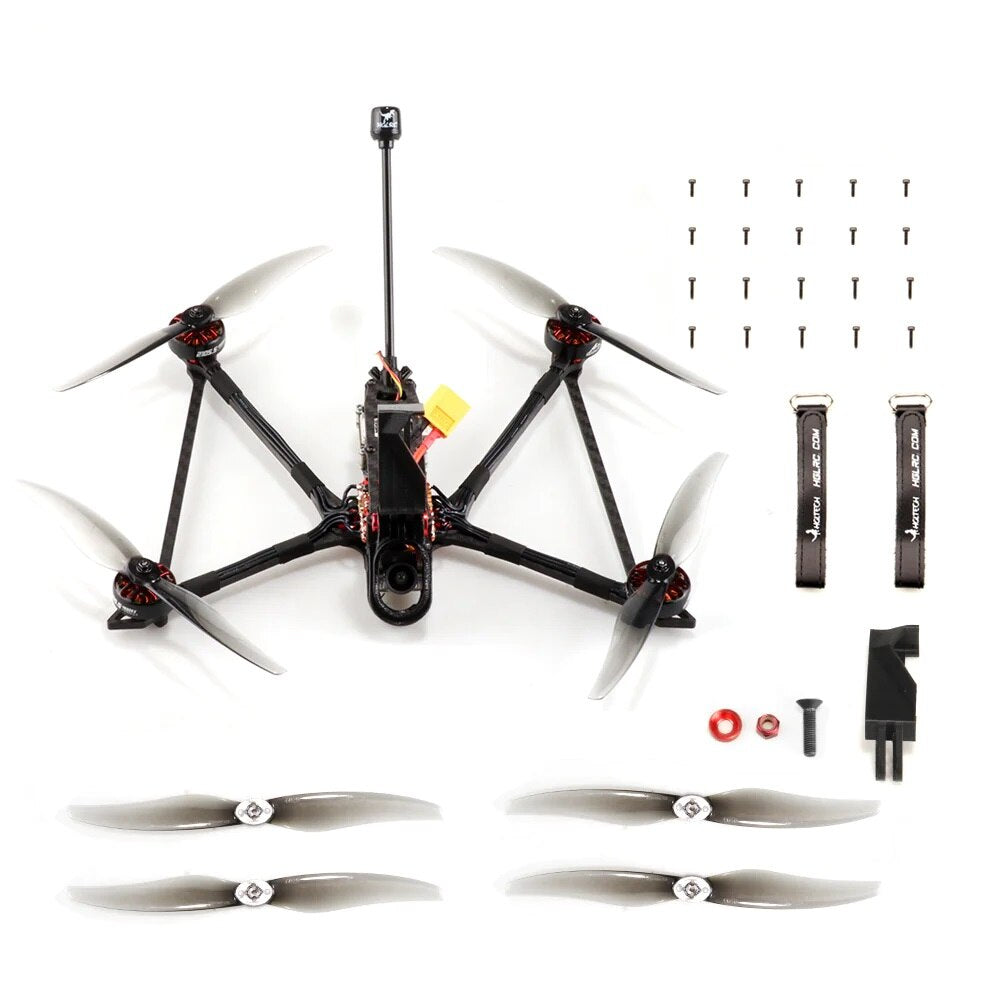

include:
1x Rekon6 LR Frame
1x Zeus F722 mini FC
1x Zeus 28A BL_S 4in1 ESC
1x CADDX Nebula Nano
4x Rekon 2006 1500KV Motors
1x M80 GPS
1x Soter FPV drone buzzer
8x GEMFAN 6026 Propellers
1x SMA Mini Inner Needle Hammer Antenna (LHCP)
2x Battery Straps
1x TPU naked Gopro mount
1x Receiver（Optional）
Recommended battery:
4S:1000mAh-1500mAh
18650 lithium-ion battery
The HGLRC Rekon 6 HD mini long-range quad digital version has a flight time of over 25 minutes when tested with a Lionpack 18650 battery, making it suitable for carrying cameras like Naked GoPro SMO 4K or Insta360 go 2. The SMO 4K mount is available separately.
The RekonFPV features an Aeolus 2105.5 motor with a high-performance output of 500KV. The aircraft’s lightweight yet strong 7075 aluminum alloy crankset bolts provide a secure attachment point for the arms and body, offering improved durability and crash resistance thanks to optional braces. Additionally, the Zeus F728/F722 flight controller features a powerful 28A BL-ESC and an STM32F722 microcontroller chip.
