HGLRC Racewhoop30 V2 FPV Racing Drone Analog Version SPECIFICATIONS
Warranty: Not include
Warning: Minors please use under the supervision of an adult
Video Capture Resolution: 1080p FHD
Type: Airplane
State of Assembly: Ready-to-Go
Remote Distance: 2000 meters
Remote Control: Yes
Recommend Age: 12+y,14+y
Power Source: Electric
Plugs Type: XT30
Package Includes: Original Box,Camera
Origin: Mainland China
Operator Skill Level: Intermediate,Expert
Model Number: HGLRC Racewhoop30 V2 FPV Racing Drone Analog Version
Material: Metal,Plastic,Carbon Fiber
Indoor/Outdoor Use: Indoor-Outdoor
Flight Time: 5 minutes
Features: App-Controlled,FPV Capable,Integrated Camera,Other
Dimensions: 3inch
Controller Mode: MODE2,MODE1
Controller Battery: Not include
Control Channels: 8 Channels
Charging Voltage: 14.8V
Charging Time: 30 minutes
Certification: CE
Camera Mount Type: Fixed Camera Mount
CE: Certificate
Brand Name: HGLRC
Features:
*Made of composite material, super explosion resistant;
*Fluorescent effect, 5 colors optional, ultra-high color value;
*With 2006 motor, super powerful and violent;
*3 Inches racewhoop frame, compact and fly anywhere you want;
*Racewhoop Structure design, strong and No damage to the the frame or the components.
Specification:
Weight:293.3g
HGLRC Racewhoop30 Frame

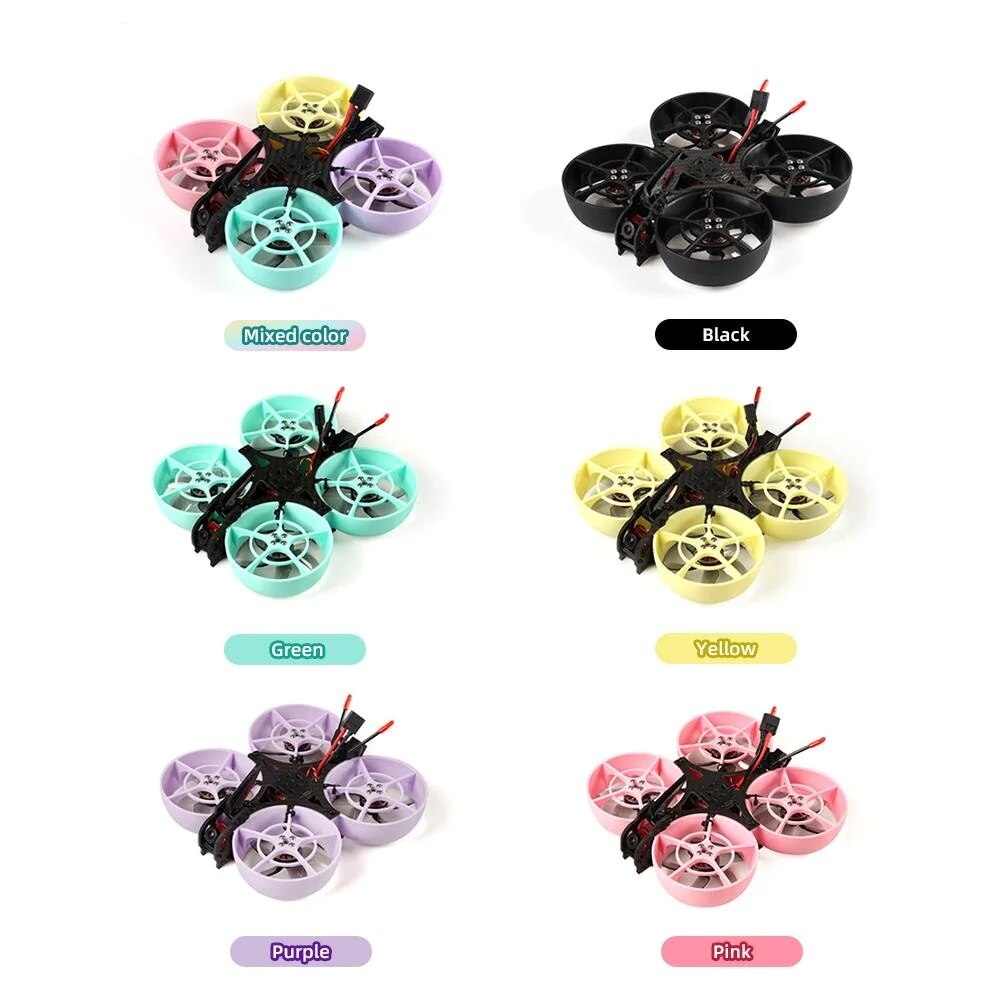

Culvert ring:Black/Yellow/Green/Mixed color/Pink/Purple
Model:3 inches Racewhoop Frame
Wheelbase:147mm
Size:200*200mm
Zeus F722 mini flight controller
Gyro:BMI270
Input voltage:3-6S Lipo
BEC output:9V1.5A/5V/2A
Firmware:HGLRCF722
Zeus 28A BL_S ESC
Input voltage:3-6S
Continuous current:28A
Peak current:35A (10 seconds)
Firmware:BLS-F-H-40
Zeus 800mW VTX
Output Power:PIT/25/100/200/400/800mW
Input Voltage:DC6-26V
Antenna:MMCX
Caddx Ratel 2 Camera
Image Sensor:1/1.8 ” 1200TVL CMOS
Input Power:DC 5-40V
Dimensions:19mm*19mm*20mm
AEOLUS 2006 motor
Motor:KV3600 4s / KV2800 6S
Input voltage:3-6S
Recommended props:3 inches
Mounting hole:4*M2-∅9
GEMFAN D76mm 3 inch 5-blades propellers
Quantity:4 CW & 4 CCW

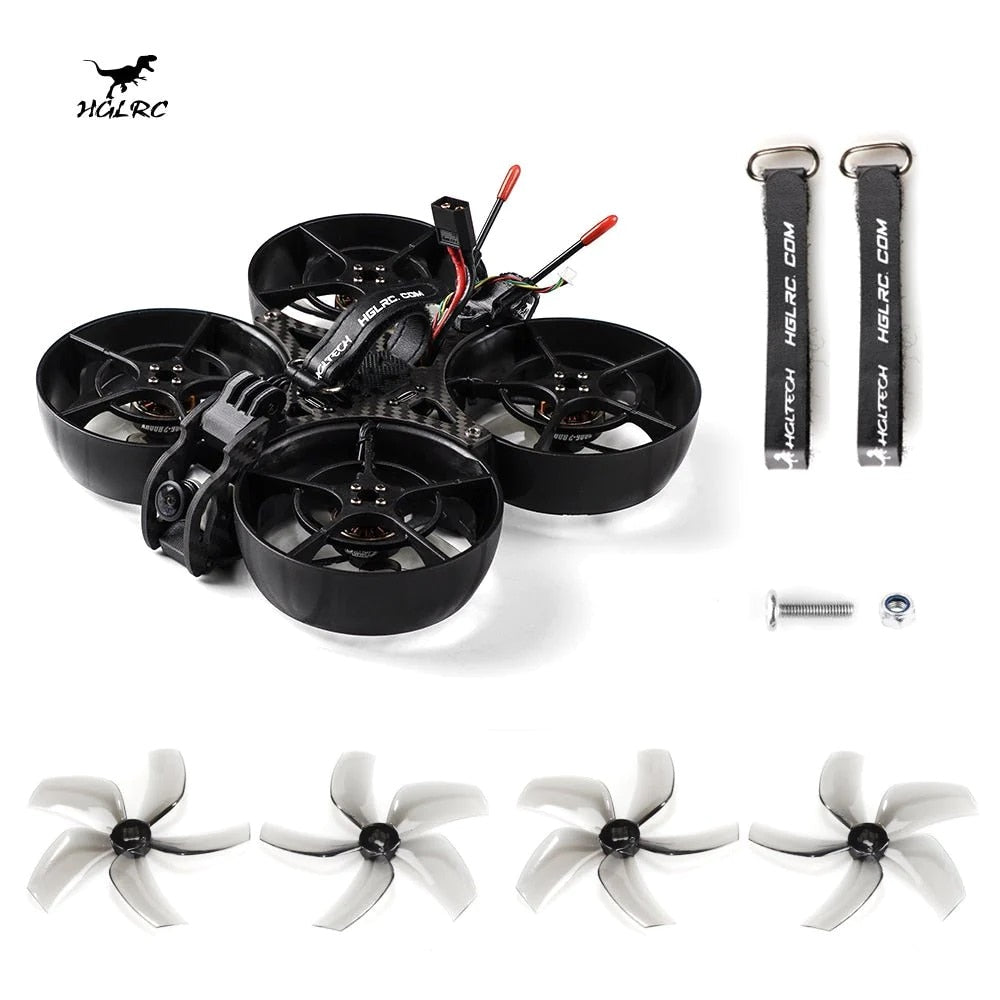

Include:
1x Zeus F722 mini flight controller（270）
1x Zeus 28A BL_S ESC
4x AEOLUS 2006 motor
1x Racewhoop30 Frame
1x Zeus 800mW VTX
1x Caddx Ratel 2 Camera
8x GEMFAN D76mm 5-bladess propellers
1x mini Hammer Antenna (RHCP)
1x Receiver (optional)
Recommended Battery:
4-6S:850mah-1300mAh
Experience limitless flight freedom with this HGLRC Racewhoop30 V2 FPV Racing Drone, which outperforms regular cinewhoops in terms of speed and power. Its versatility meets various flying needs, and includes a USB adapter for easy tuning – no more searching for the right port! This makes it even more convenient to get the most out of your drone’s capabilities.
