HGLRC DS230 Drone Soccer Standard Version SPECIFICATIONS
Warranty: Not include
Warning: Minors please use under the supervision of an adult
Video Capture Resolution: 720P HD
Type: Airplane
State of Assembly: Ready-to-Go
Remote Distance: 300 meters
Remote Control: Yes
Recommend Age: 12+y,14+y
Power Source: Electric
Plugs Type: XT30
Package Includes: Original Box,Camera
Origin: Mainland China
Operator Skill Level: Beginner,Intermediate,Expert
Model Number: HGLRC DS230 Drone Soccer Standard Version
Material: Metal,Plastic,Carbon Fiber
Indoor/Outdoor Use: Indoor-Outdoor
Flight Time: 5 minutes
Features: App-Controlled,FPV Capable,Integrated Camera,Other
Dimensions: 3inch
Controller Mode: MODE2,MODE1
Controller Battery: Not include
Control Channels: 8 Channels
Charging Voltage: 14.8V
Charging Time: 30 minutes
Certification: CE
Camera Mount Type: Fixed Camera Mount
CE: Certificate
Brand Name: HGLRC
Features:
*Long battery life performance to meet various scenarios;

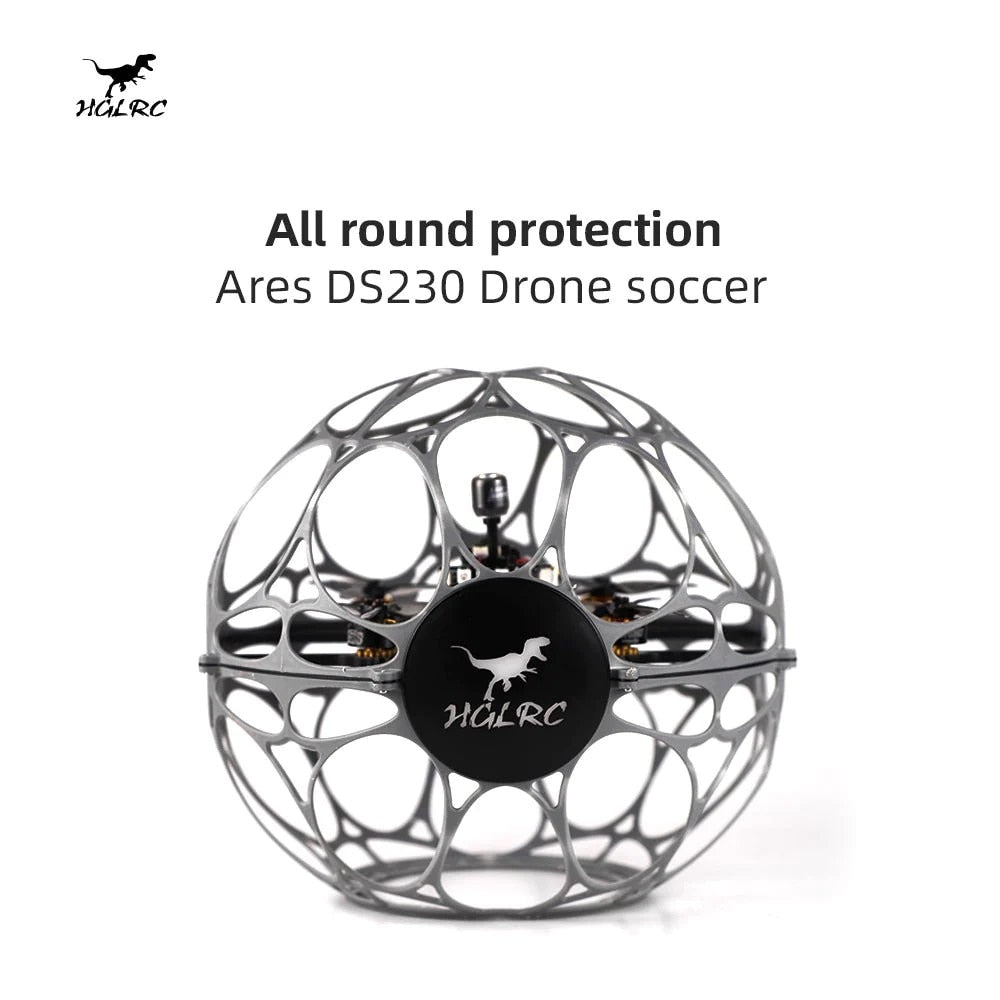

*Spherical explosion-proof material frame, you can do whatever you want;

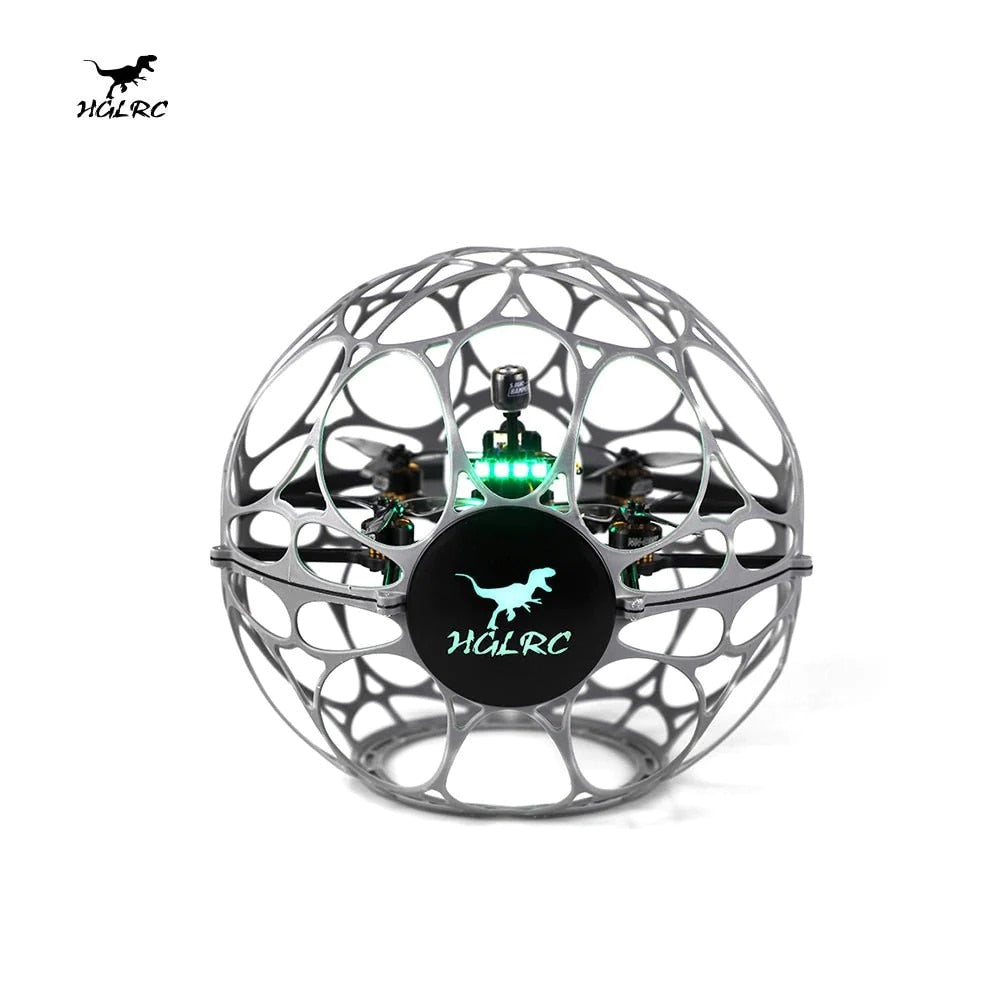

*Support multi-color LED light strip adjustment, you can quickly identify
yourself and the enemy in multiplayer mode;

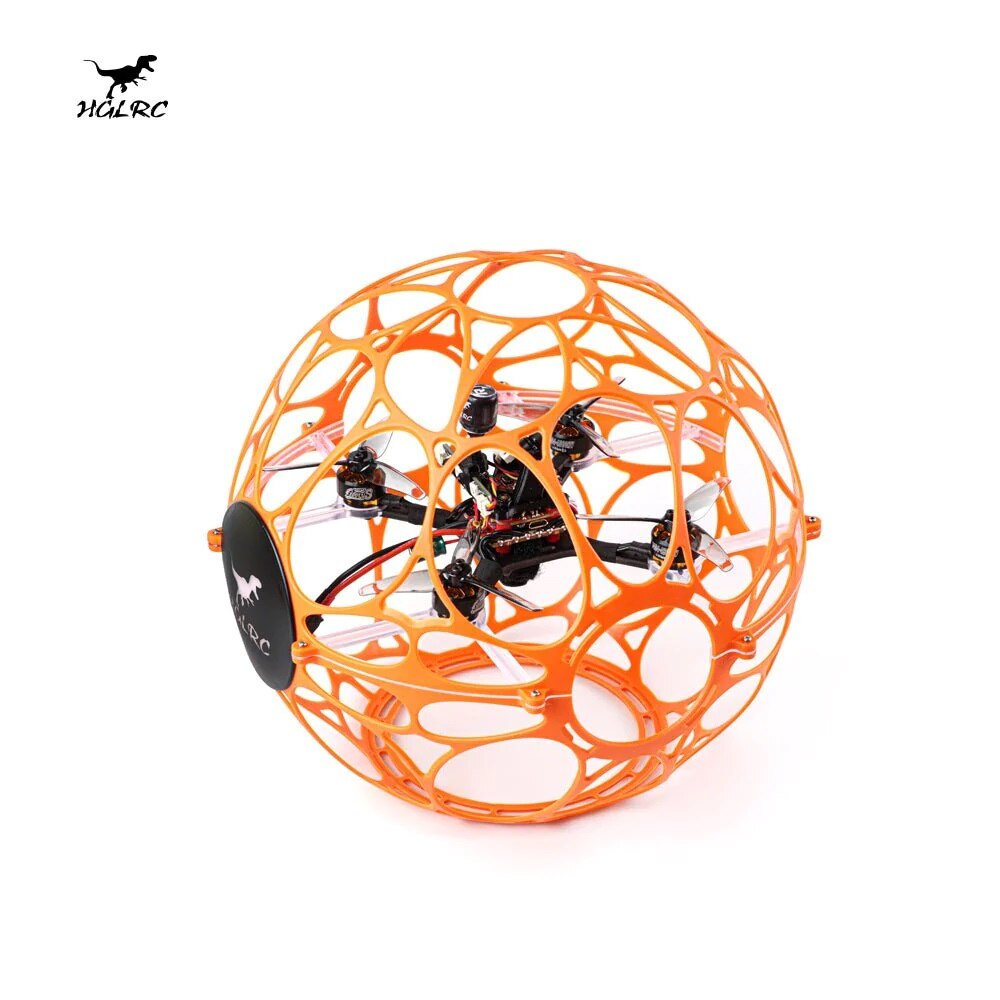

*The protective cover is available in three colors, including orange, yellow and grey,
which are easy to distinguish.
Specification:
Product Name: HGLRC DS230 Standard version

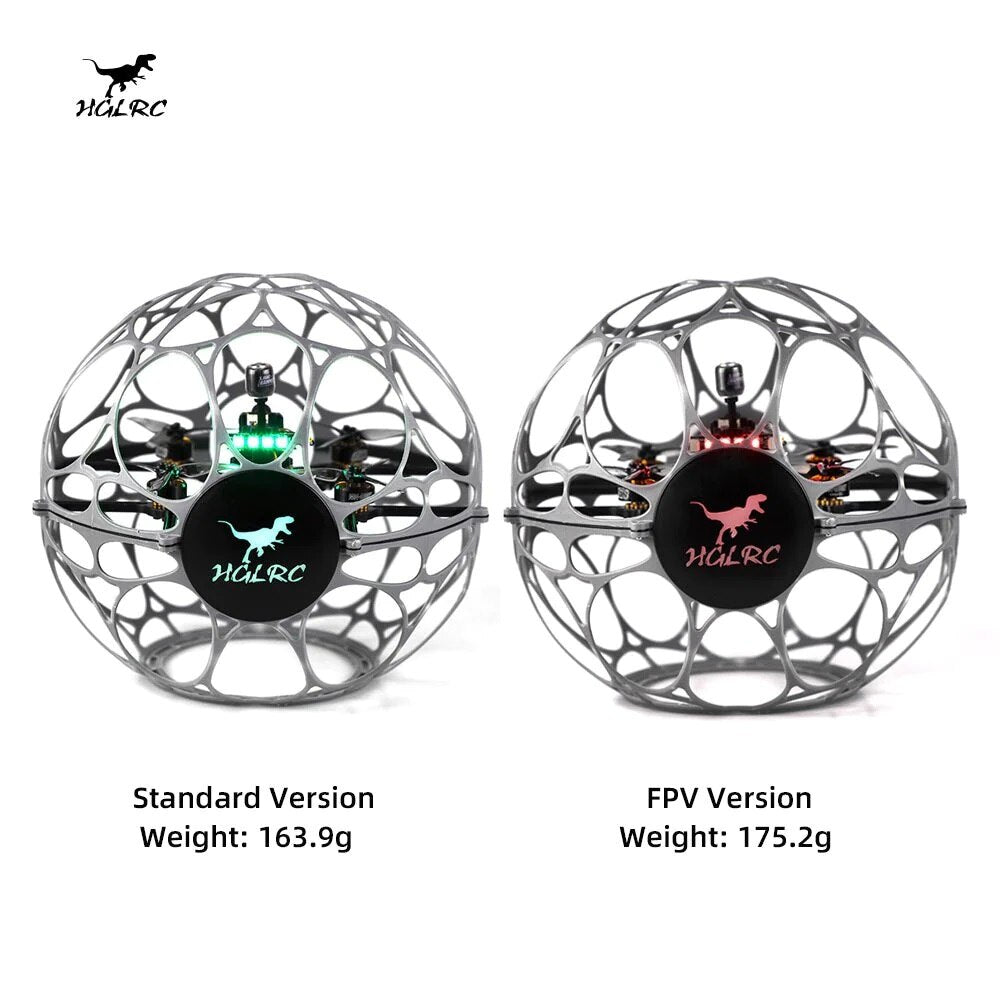

Weight:163.9g
HGLRC DS230 Frame
Type:3-inch frame
Wheelbase:126mm
Size:230*230*220mm
Zeus F722 mini flight controller
Gyro:BMI270
Input voltage:3-6S Lipo
BEC output:9V1.5A/5V/2A
Firmware:HGLRCF722
Zeus 28A BL_S ESC
Input voltage:3-6S
Continuous current:28A
Peak current:35A (10 seconds)
Firmware:BLS-F-H-40
AEOLUS 1404 4800KV Motor
Motor KV:4800KV
Input Voltage:3-4S
Mounting hole:4*M2-∅9
Gemfan3016 -PC 3 inch 3 blade propeller
Quantity:4 CW & 4 CCW
Include:
1x Zeus F722 mini flight controller（270）
1x Zeus 28A BL_S ESC
1X DS230 Frame(Orange / yellow / gray)
4X AEOLUS 1404 4800KV Motor
8x Gemfan3016 -PC 3 inch 3 blade propeller（Pcs）
1x Receiver (optional)
Recommended Battery:
3S:850mah
The HGLRC DS230 Drone Soccer Standard Version package includes: IrXFPV Version, RTF (Ready-To-Fly), TF (Transmitter Frequency) and FF (Flight Frequency); also included are an HC8 Remote Controller, CC2S Charger, and 10 lithium-polymer batteries.
