Summary

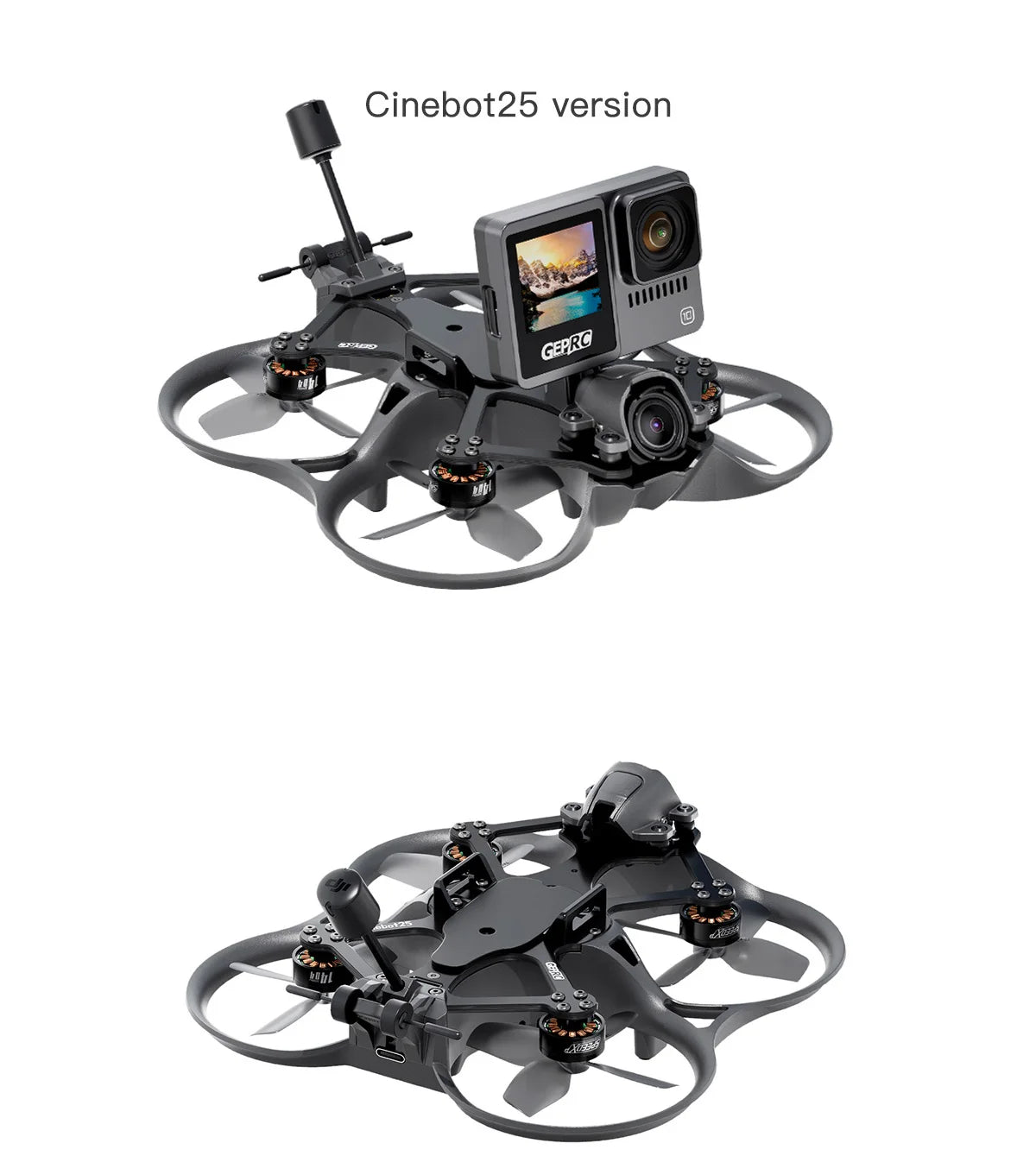

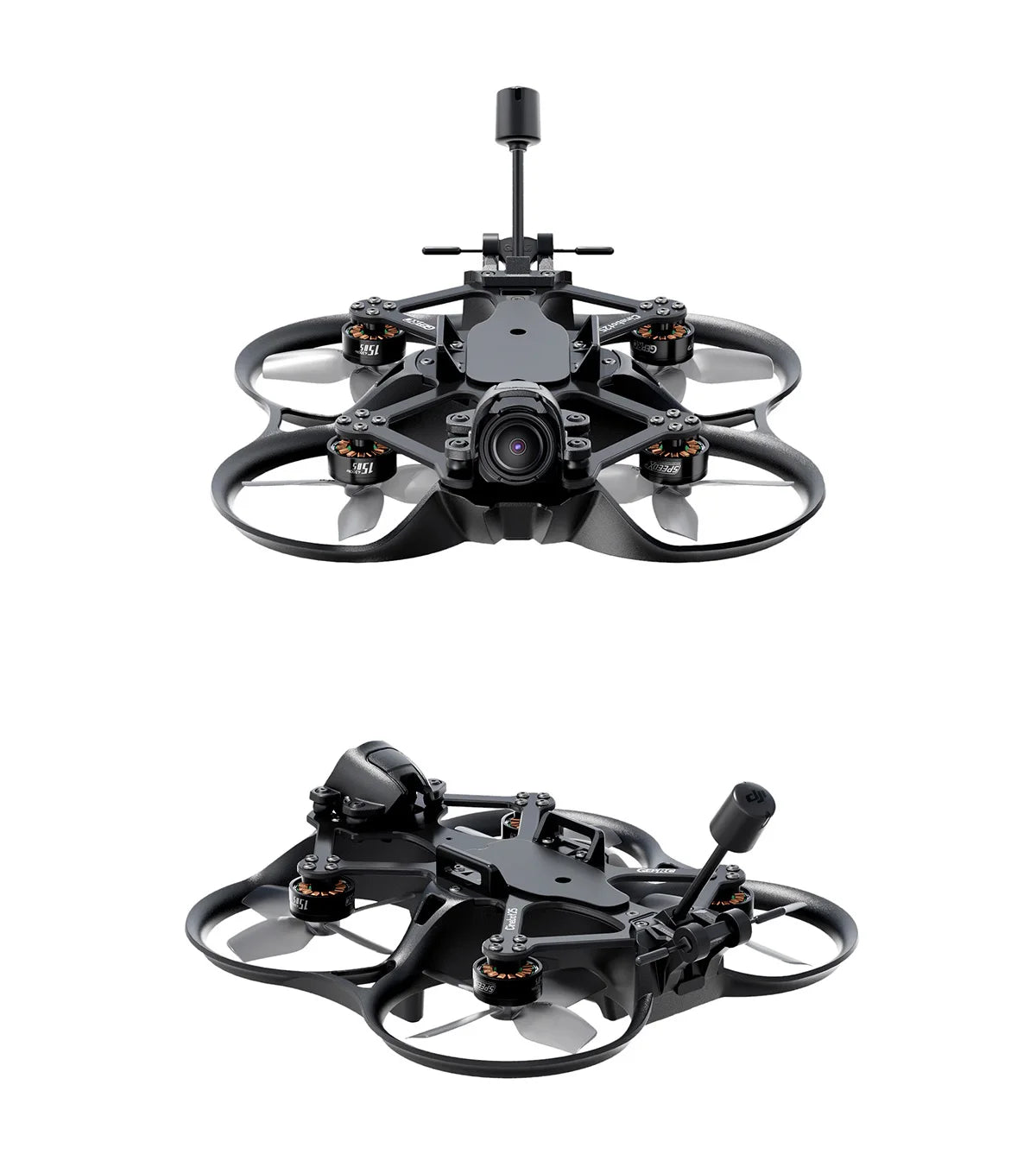

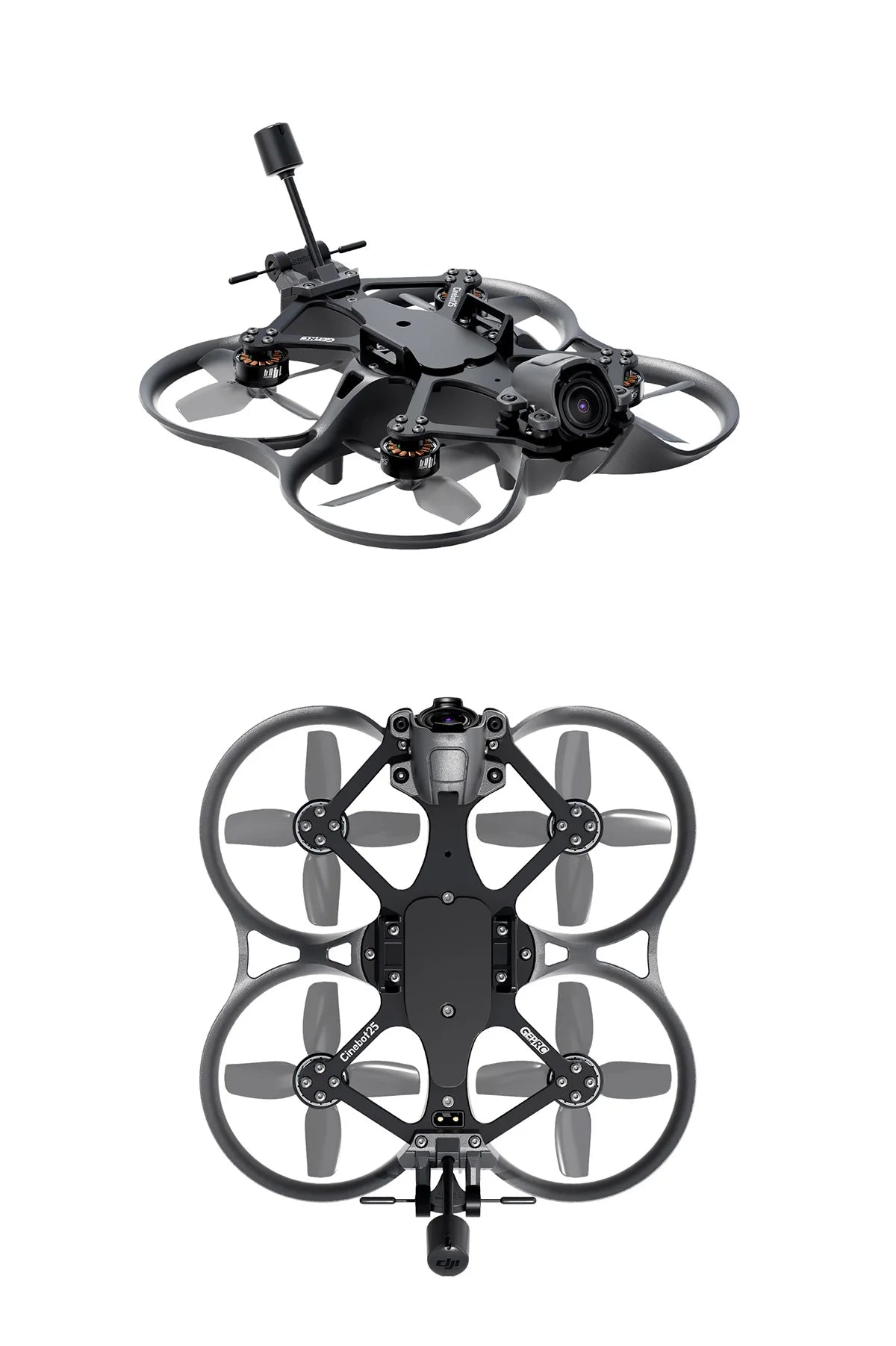

Cinebot25 is a model that possesses unparalleled controllability and steady aerial footage shooting capability. It will debut with a revolutionary external design and unbelievable performance.

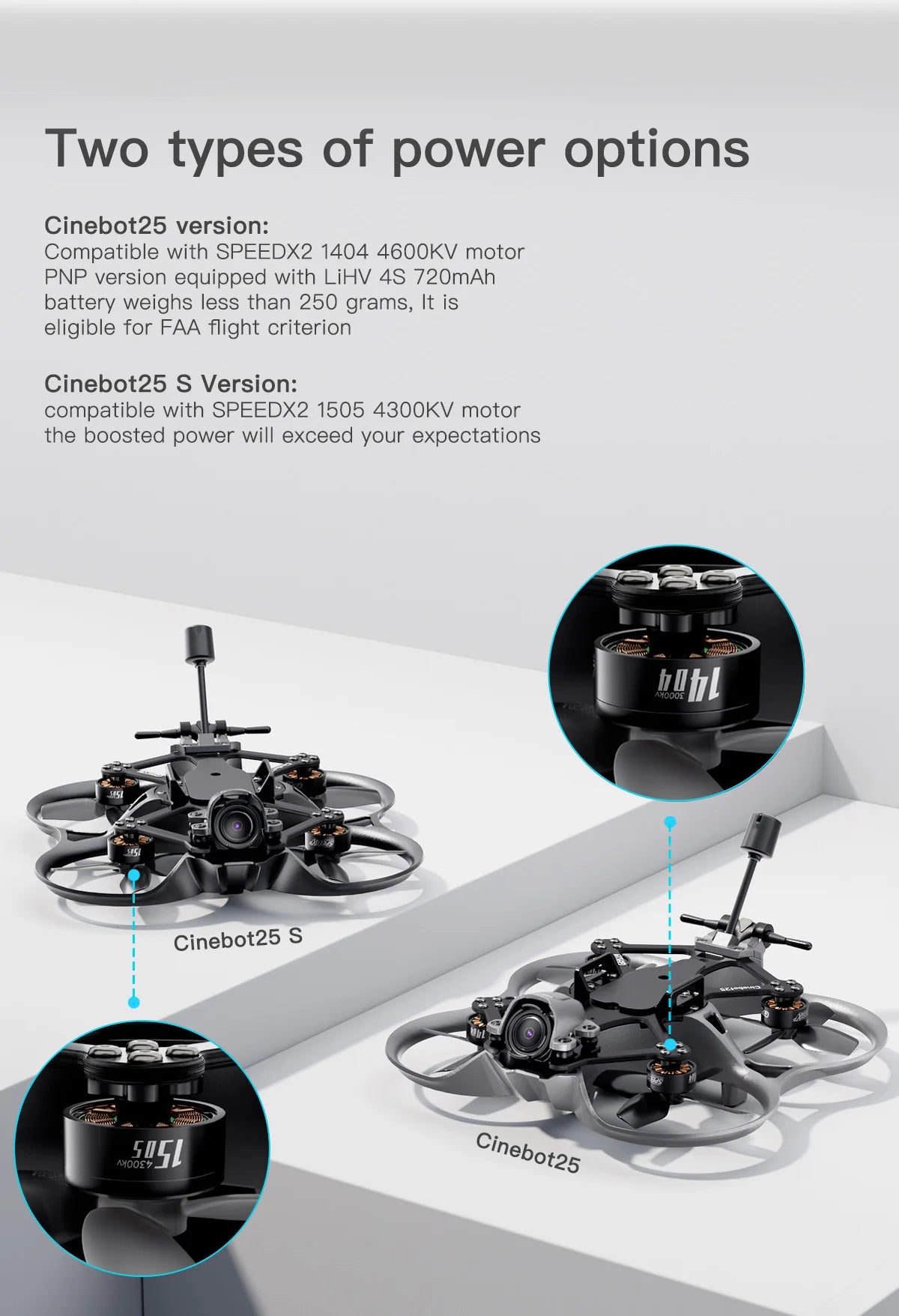

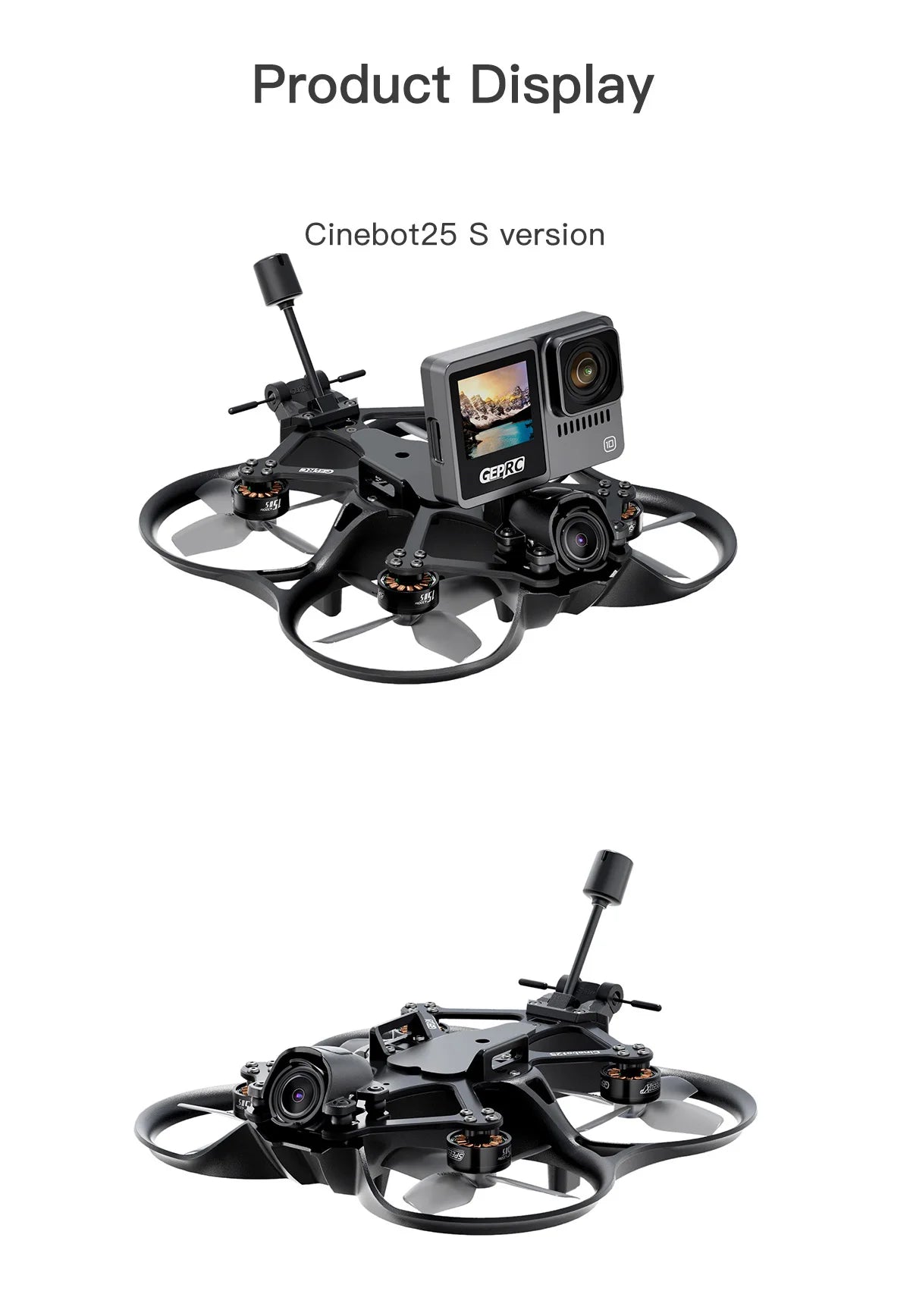

Cinebot 25 comes with two different options for the power version. They are the regular version with the SPEEDX2 1404 motor and the S(sport) version with the SPEEDX2 1505 motor.

The O3 anti-shake design applies four silicone damping balls to reduce vibration and filter jello, providing high-performance videos. The integrated structure adopts revolutionary modified materials to satisfy the need for rigidity and flexibility, reducing the possibility of damage to a minimum. The fuselage space is highly compatible with various video transmission systems like the O3 Air Unit， and it is equipped with a convenient outlet to make the use of the SD card slot and USB faster and more effective.

After a host of testing on parameters, Cinebot25 adopts a TAKER G4 45A AIO FC that will breathe new life into the footage-shooting experience.

Feature

1. Integrated external design. Equipped with reinforced carbon plate and modified material for one-piece injection molding at the bottom.

2. The shock-absorbing protection cover of the camera provides better stability for footage shooting.

3. Two power versions are available: the regular one with SPEEDX2 1404 motor and the superior one with SPEEDX2 1505 motor.

4. The TYPE-C and BOOT button on the rear makes parameter adjustment convenient.

5. Optimized silicone T-shaped antenna fixing component.

6. Cinebot25 Lite quadcopter eqquiped with a LiHV 4S 720mAh battery that weighs less than 250g.

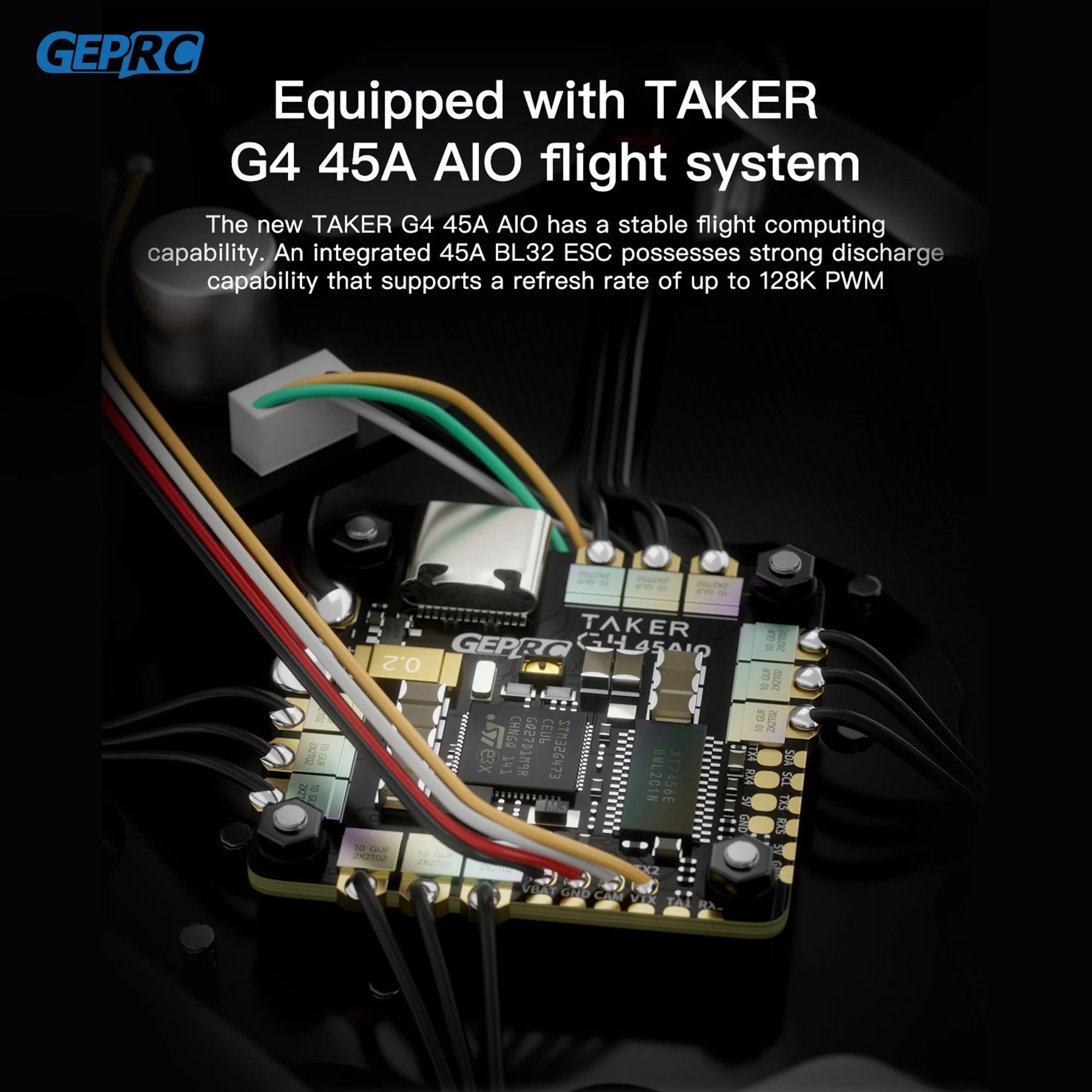

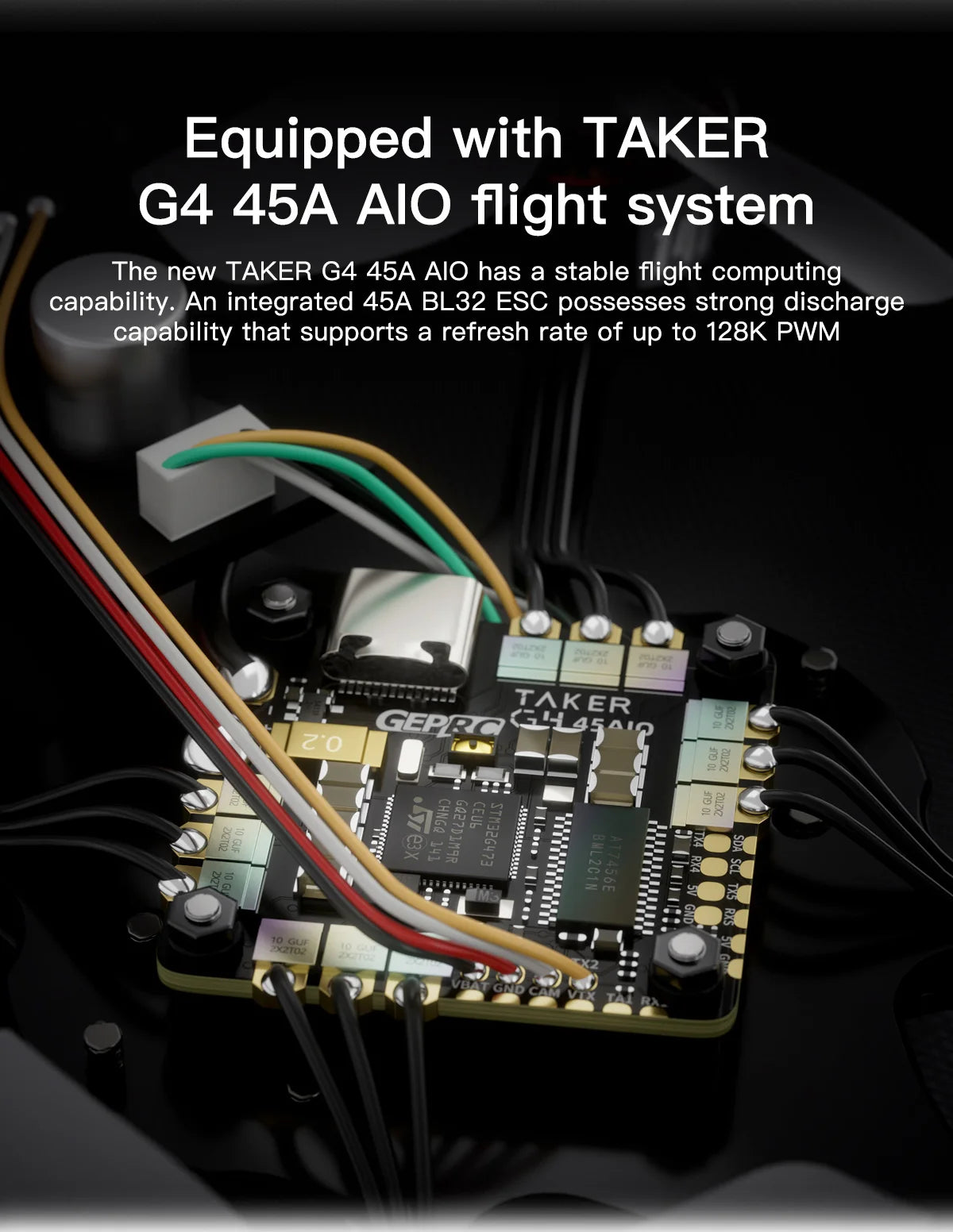

7. Equipped with the new TAKER G4 45A AIO, the G4 FC has a stable flight computing capability. An integrated 45A BL32 ESC possesses strong discharge capability that supports a refresh rate of up to 128K PWM.

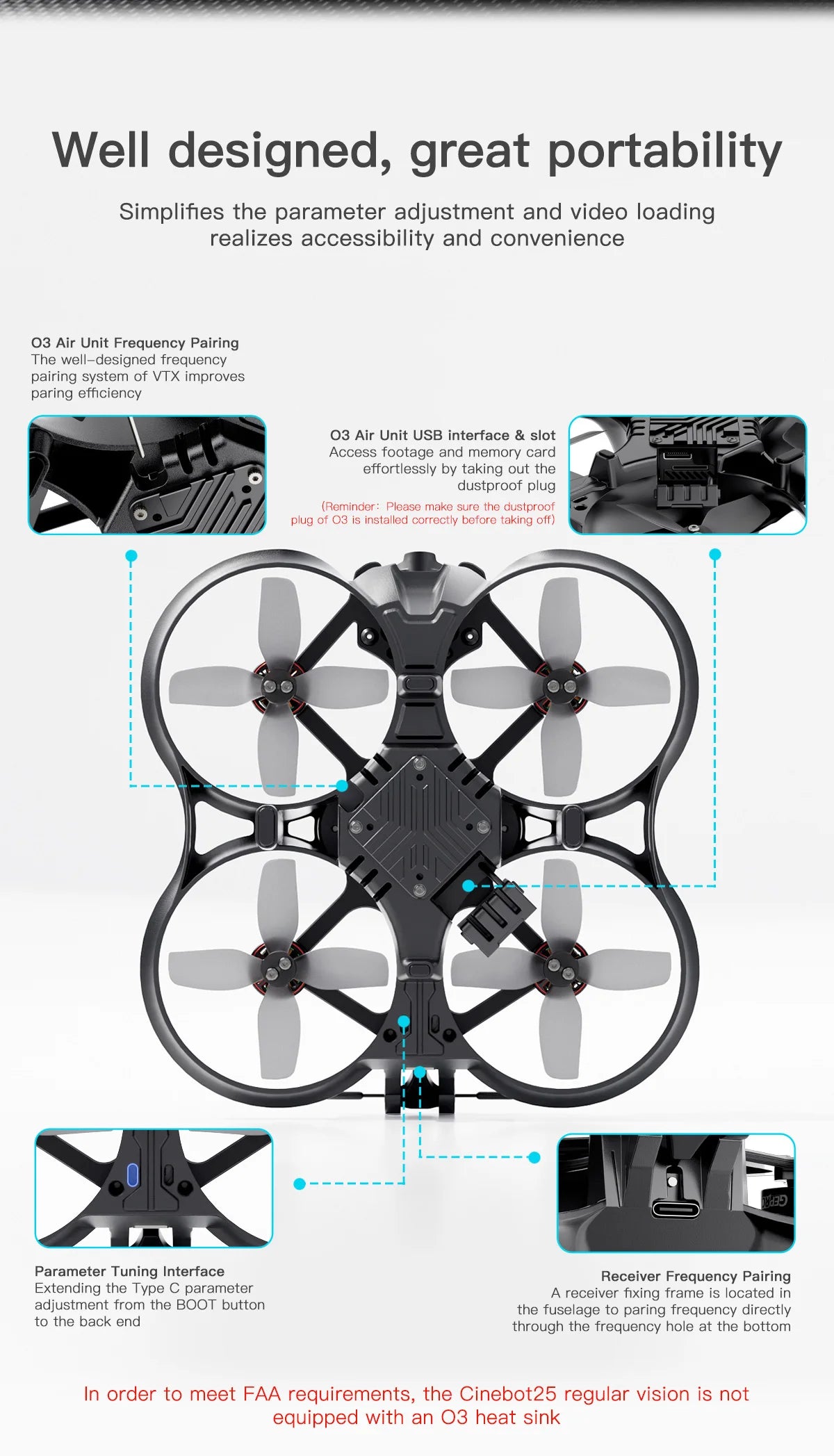

8. The compatibility between O3 VTX and Cabinet makes the installation of memory cards and footage loading easier.

9. The customized fixing stand of the receiver simplifies the internal space.

10. Diversify the selectivity of the battery with the comprehensive fixing method of aluminum components and straps.

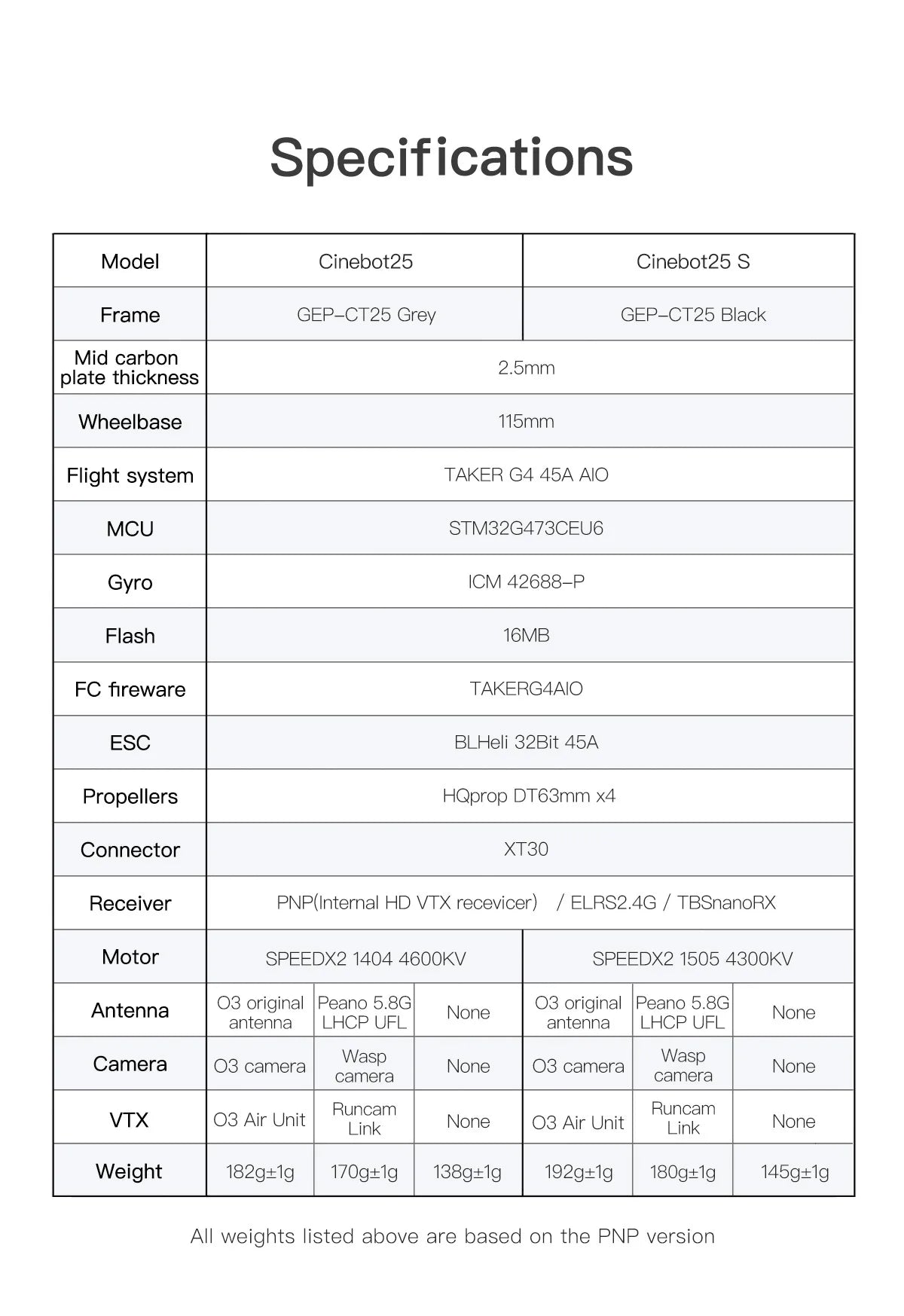

Specifications

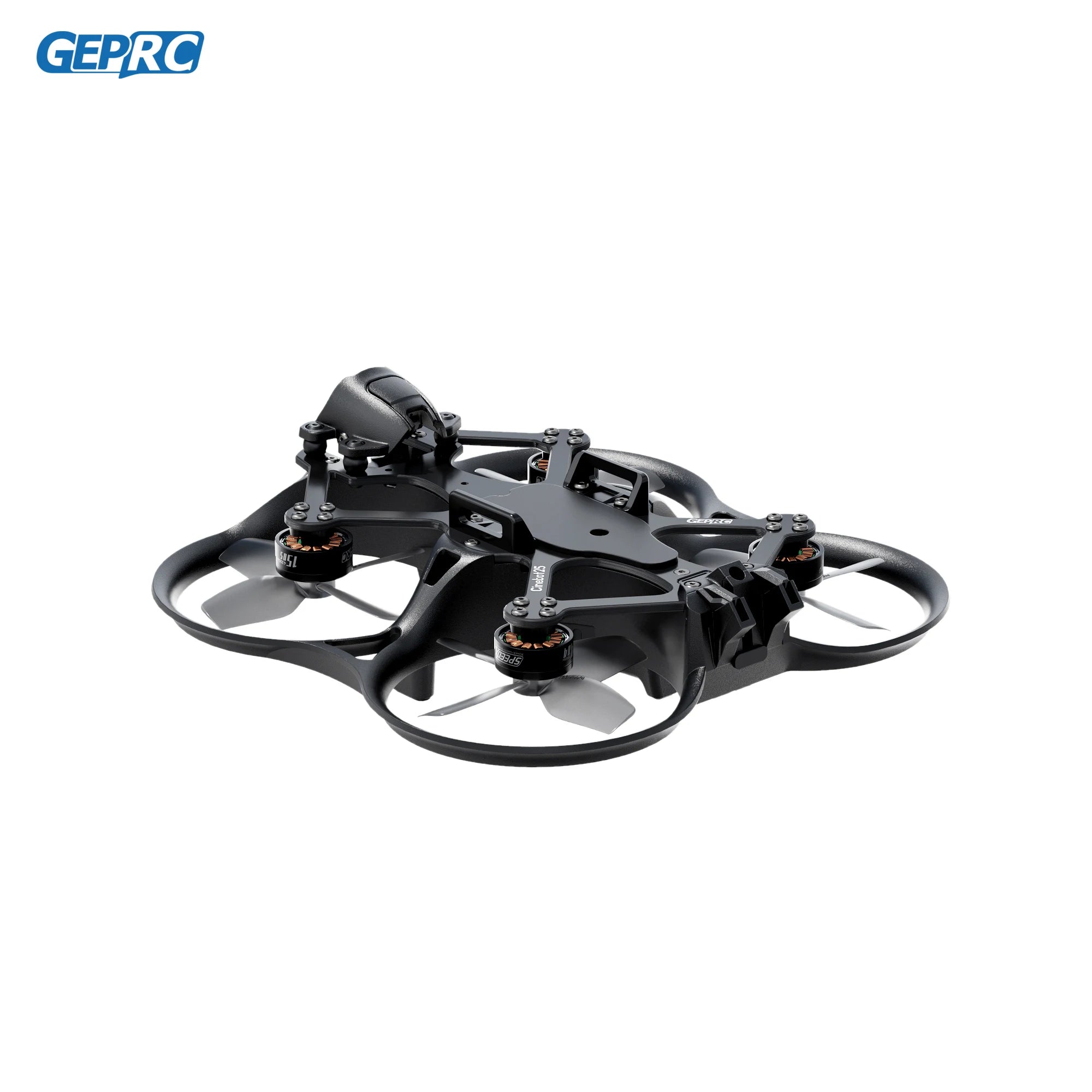

• Model: Cinebot25 S WTFPV Quadcopter

• Frame: GEP-CT25 Black

• Wheelbase: 115mm

• FC: TAKER G4 45A AIO

• MCU: STM32G473CEU6

• Gyro: ICM 42688-P

• FC firmware: TAKERG4AIO

• ESC: BLHeli 32Bit 45A

• Motor: SPEEDX2 1505 4300KV

• Propellers:  HQprop DT63mm x4

• Connector: XT30

• VTX: None

• Camera: None

• Antenna: None

• Receiver: PNP(internal VTX receiver) / ELRS2.4G / TBS NanoRX

• Weight: Cinebot25 S WTFPV PNP version 145g±1g

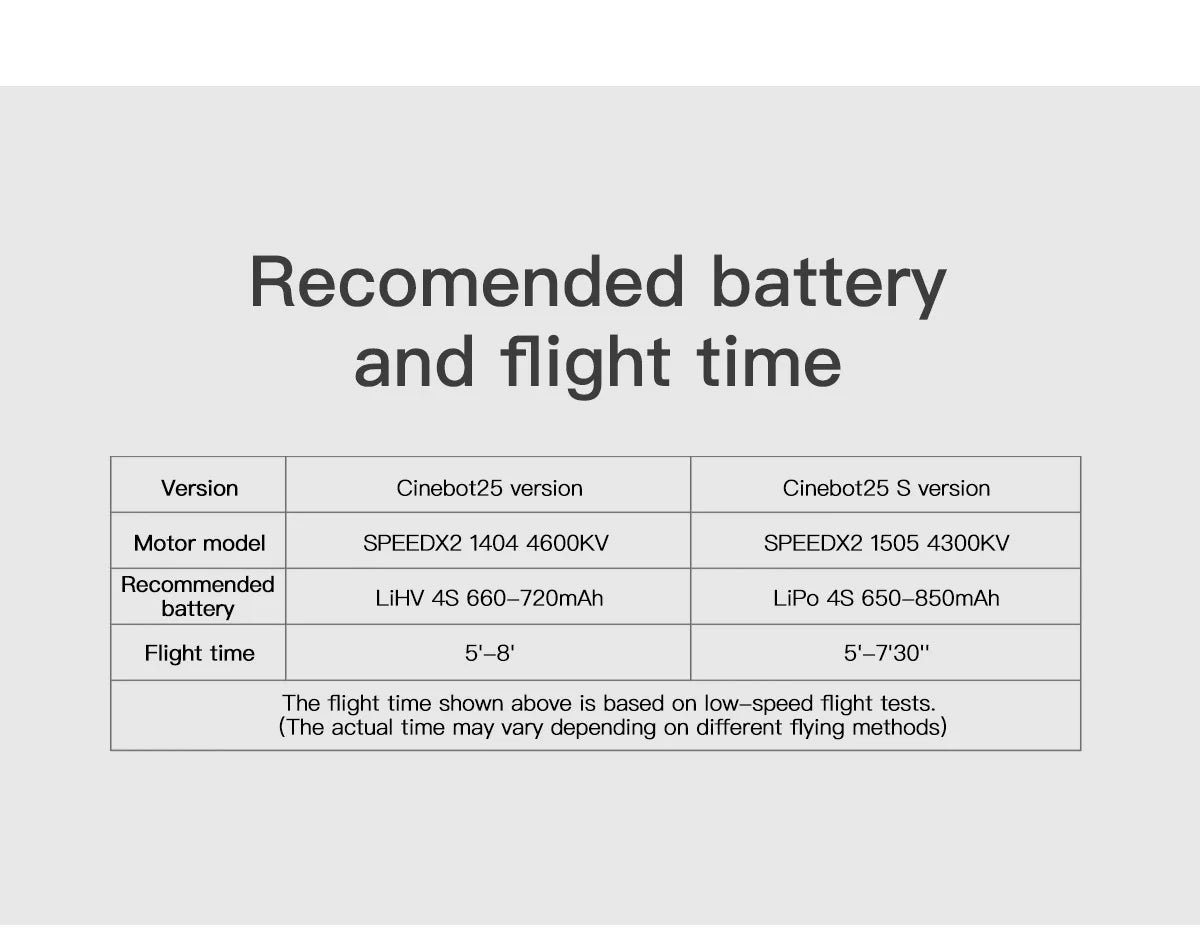

• Recommended battery: LiHV 4S 660mAh-720mAh

• Flight Time：5′-7’30”（The reference time is based on low-speed flight. The actual time depends on individuals’ flying methods. ）

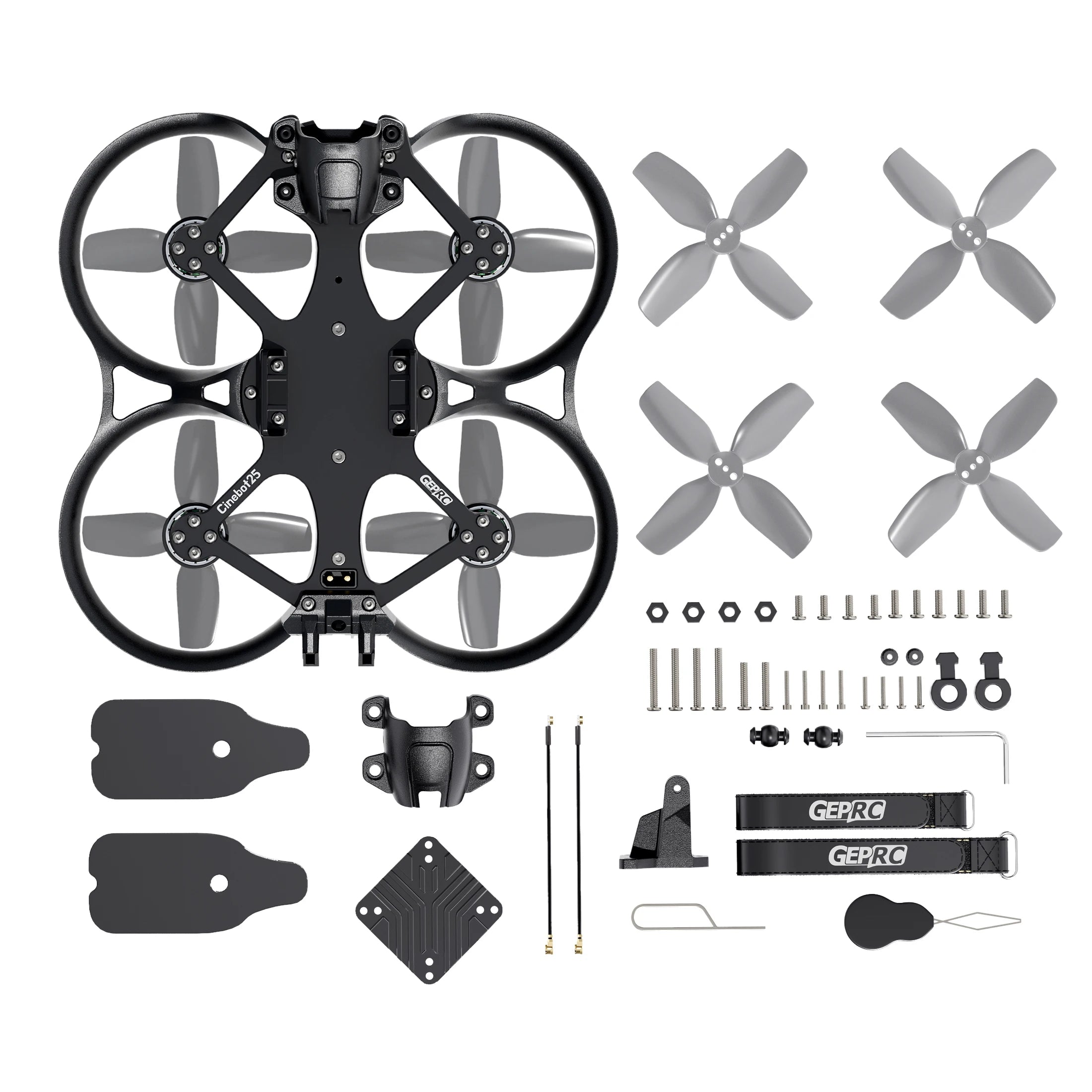

Includes

1 x Cinebot25 quadcopter

1 x HQprop DT63mmx4 propeller（pack）

2 x  Battery anti-slip pads

1 x 15*150mm battery strap

1 x 15*180mm battery strap

1 x Naked GoPro base

1 x O3 heat sink

1 x 19*19mm lens cover

2 x O3 antenna extension cords

1 x Reserved screw pack

1 x L-shaped screwdriver 1.5mm

1 x Frequency paring pointer

1 x Damping ball puncher

Reserved screw pack includes

2 x Camera damping balls

4 x M2 nuts

6 x M2*6 button head screws

4 x M2*18 button head screws

4 x M1.6*8 round Head screws with collar

4 x M2*5 button head screws

4 x M1.6*10 allen screw

2 x M2*12 button head screws

2 x M2 self-clinching nuts

2 x T-shaped antenna fixing silicones

GEPRC Cinebot25 Aerial marvel,like no thers buhl G4 Integrated design Camera vibration G4 flight control Tail-end parameter reduction adjustment interface New modified Battery outlet Receiver stand 03 dust-proof material silicone

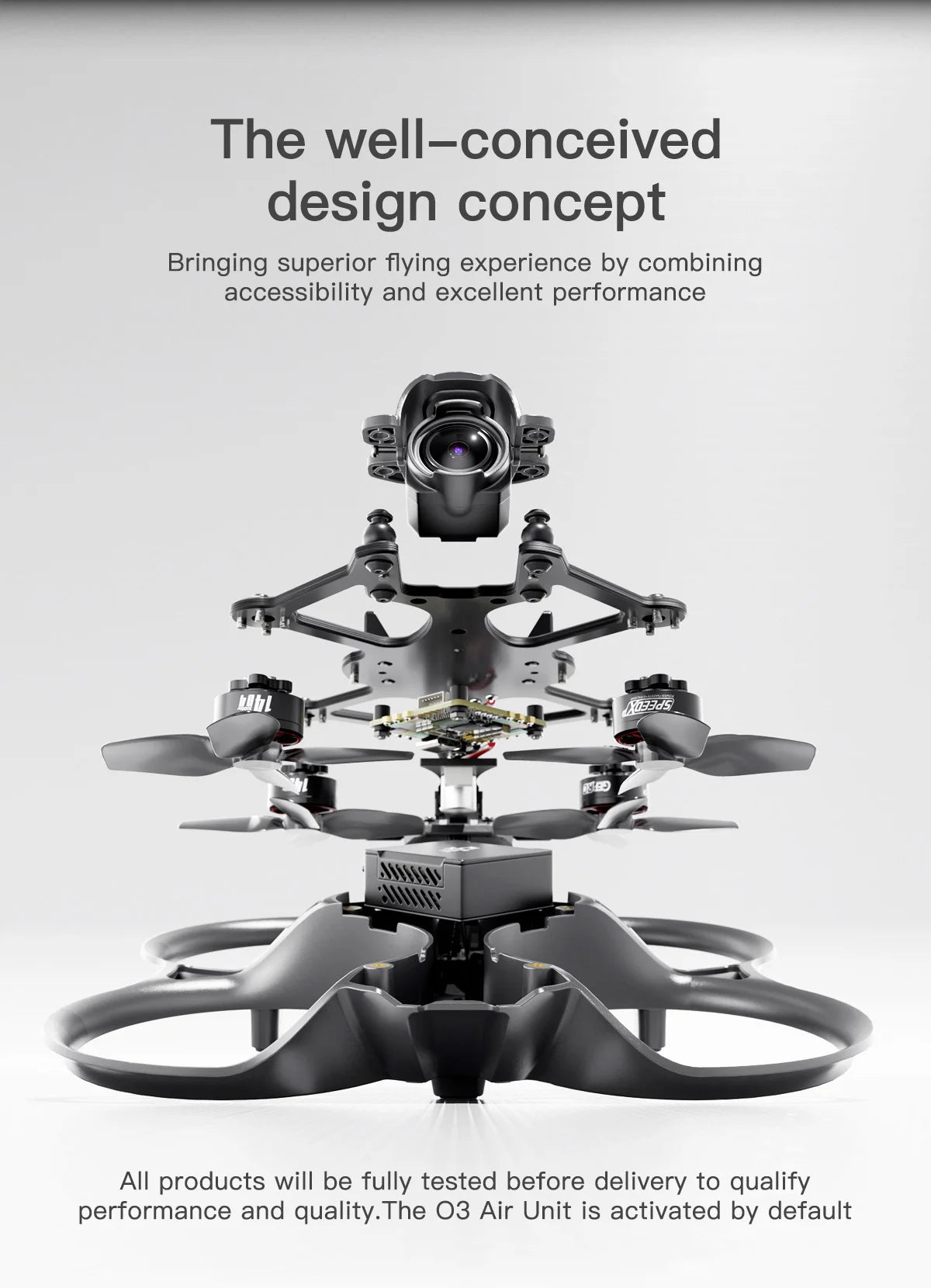

The well-designed Cinebot 25 S offers an exceptional flying experience, balancing ease of use with outstanding performance. All GEPERC products undergo rigorous testing before shipping, ensuring both high-quality and reliable results.

The GEPRC Cinebot 25 S is an ideal companion for various activities. Its safe propeller guard and precise control make it suitable for video creation in a range of settings, from amusement parks to indoor events, car chases, and even parties.

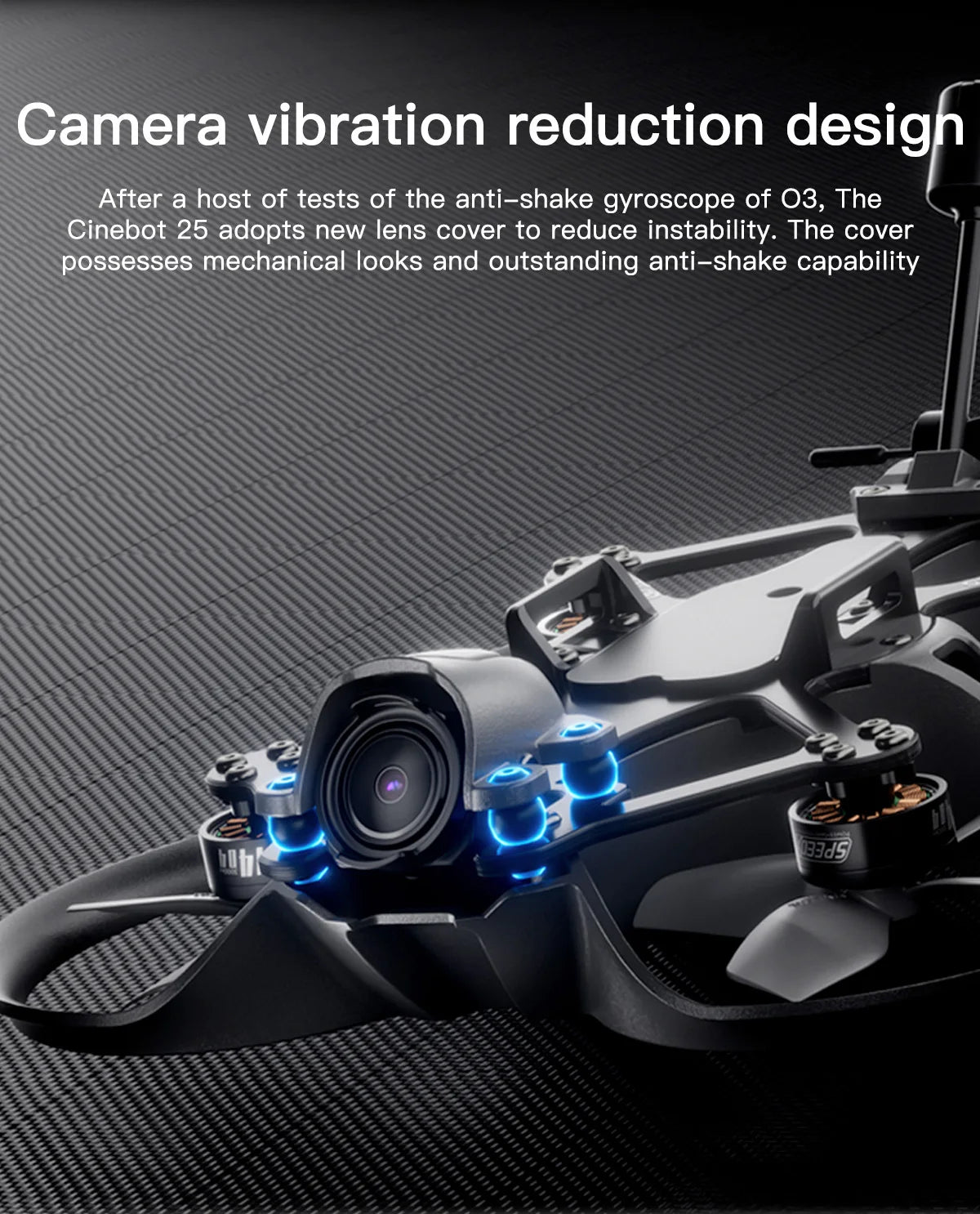

The GEPRC Cinebot 25 S features an innovative lens cover designed to minimize camera shake and instability. This cover boasts a sleek, mechanical design and exhibits exceptional anti-vibration capabilities.

Note that the Cinebot25 does not come equipped with an optical heat sink for regular vision. The VTX, on the other hand, features a portable design that makes it easy to carry around. Additionally, it’s available in various colors and sizes to meet the requirements of the Federal Aviation Administration (FAA).

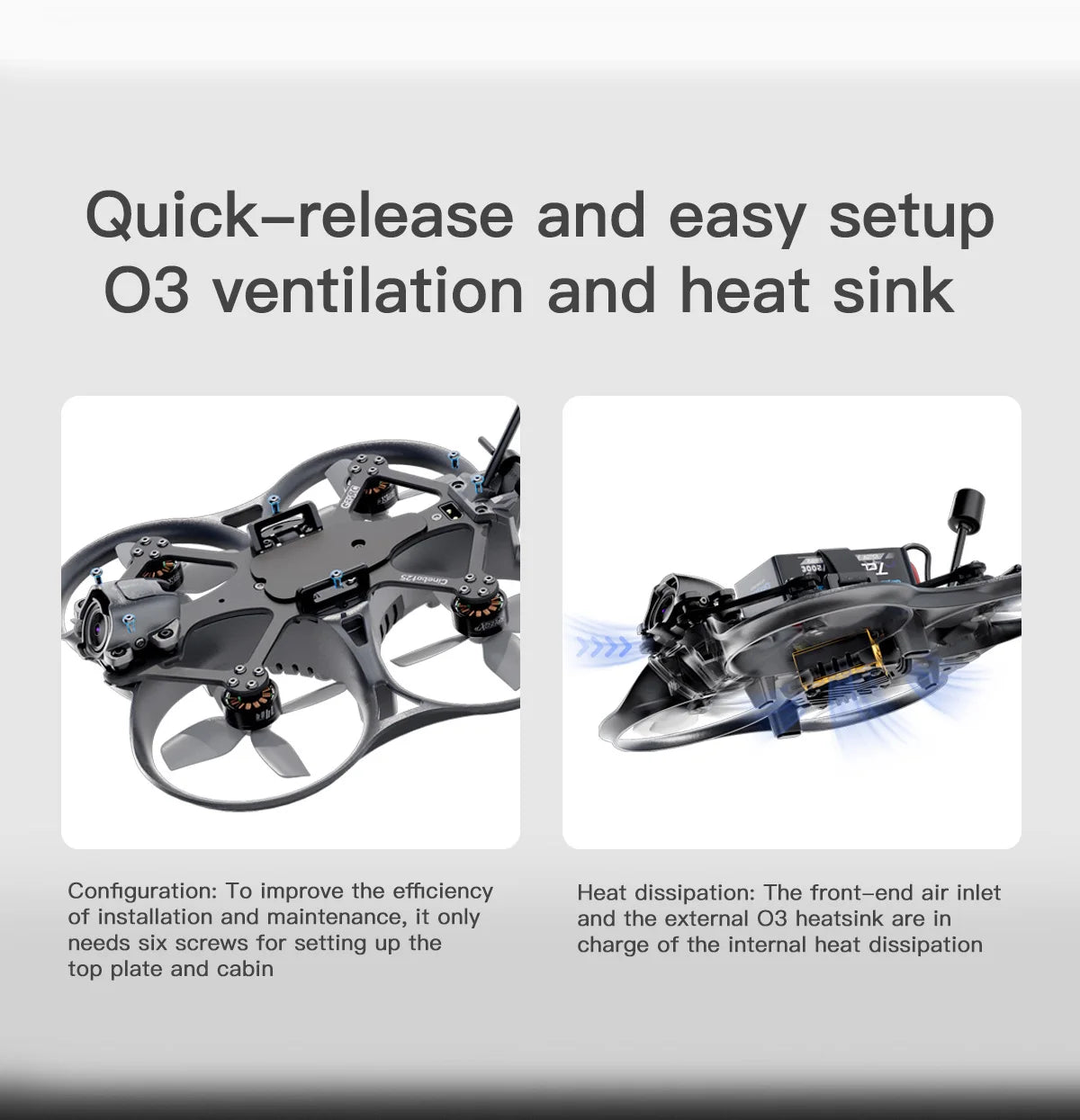

The Cinebot25 S features a quick-release design for easy setup, along with an innovative ventilation and heat sink configuration. This configuration improves efficiency by promoting effective heat dissipation through the following features: a front-end air inlet for installation and maintenance, which only requires six screws to secure the top plate and cabin.

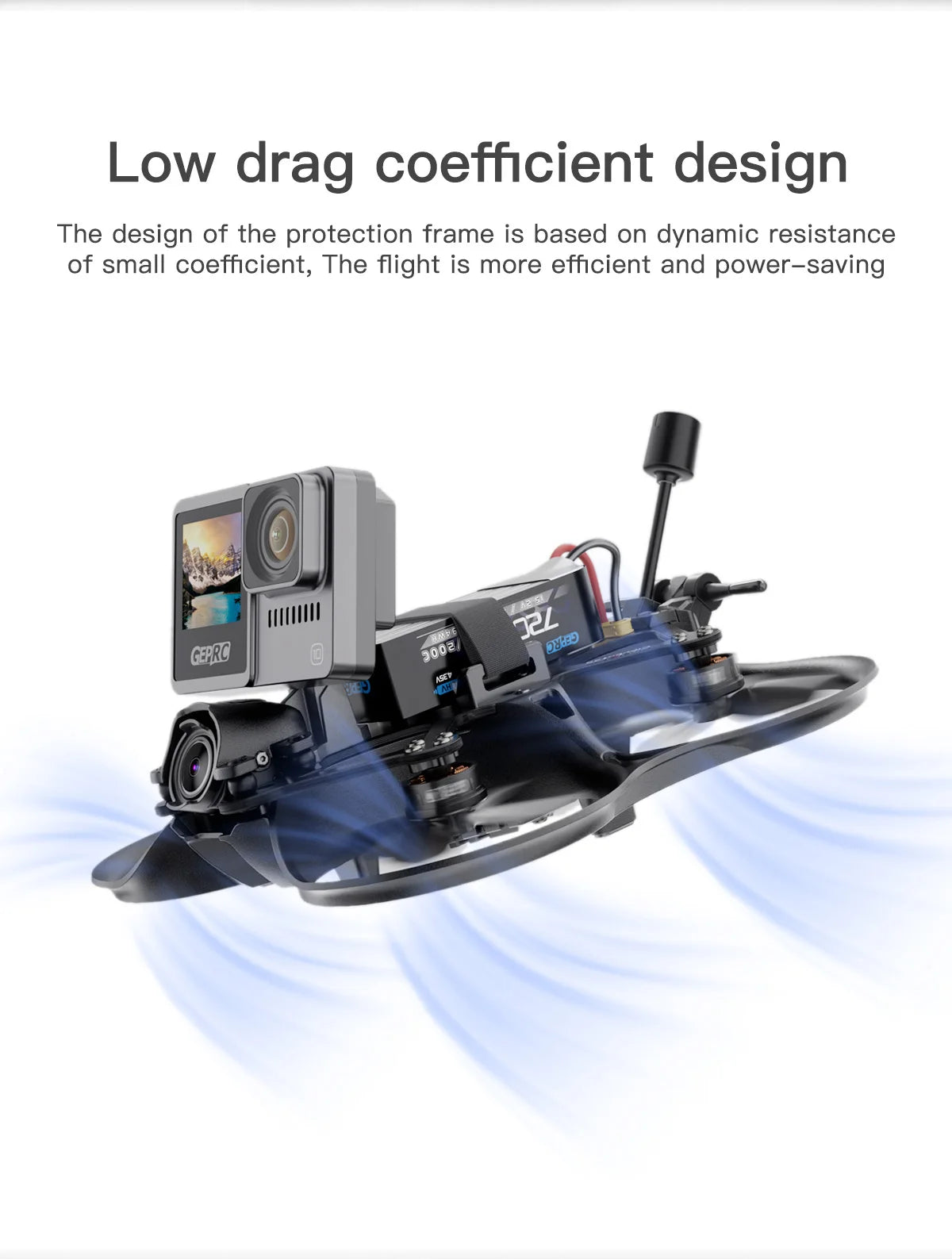

The Cinebot25 S features a low-drag coefficient design for its protection frame, which is optimized to reduce dynamic resistance. This results in more efficient flight and power conservation.

The Cinebot25 S features a compatible design with SPEEDX2 1404 4600KV motor PNP versions, which come equipped with LiHV 4S 7200mAh batteries. This configuration results in a lightweight quadcopter that weighs less than 250 grams, making it eligible for FAA flight criteria.

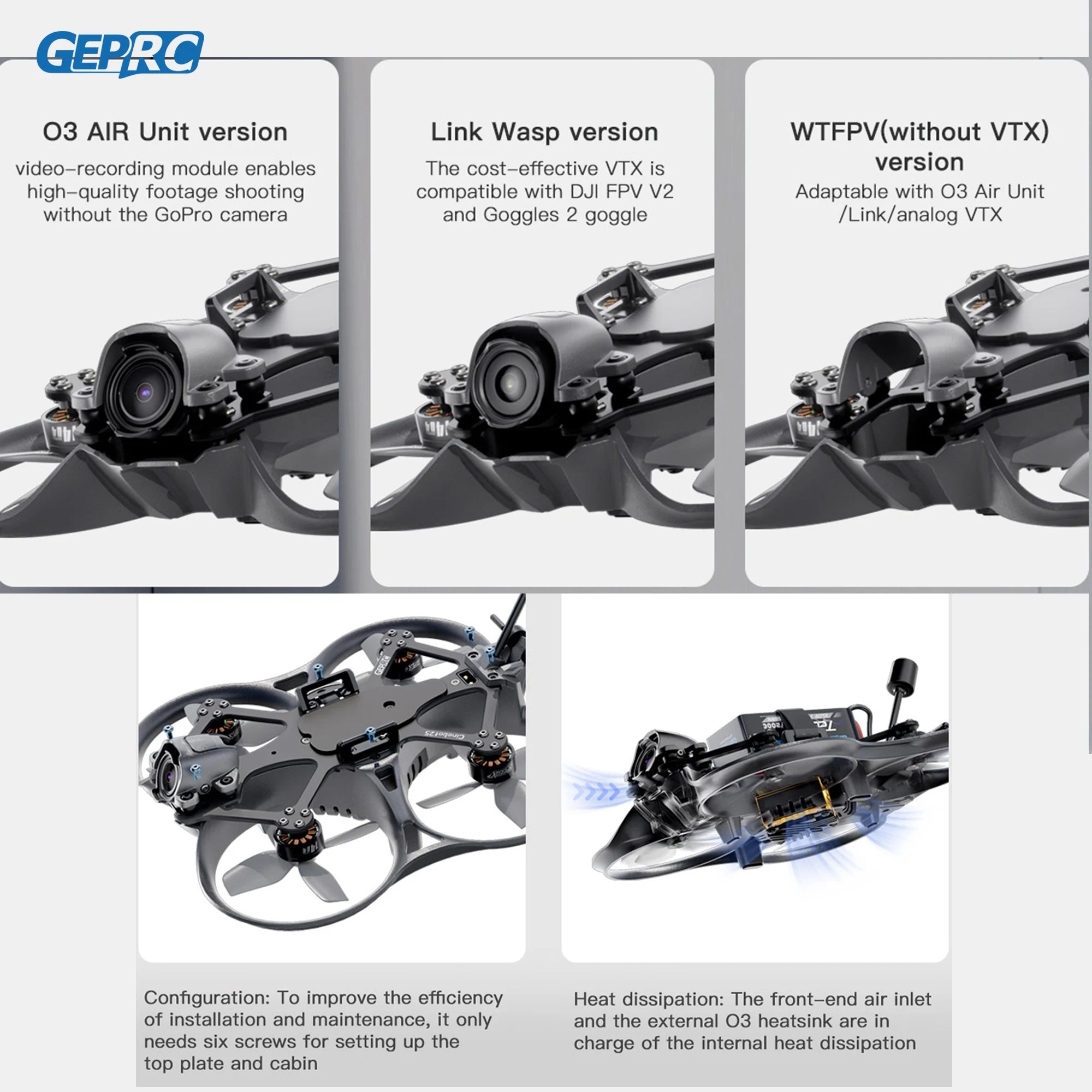

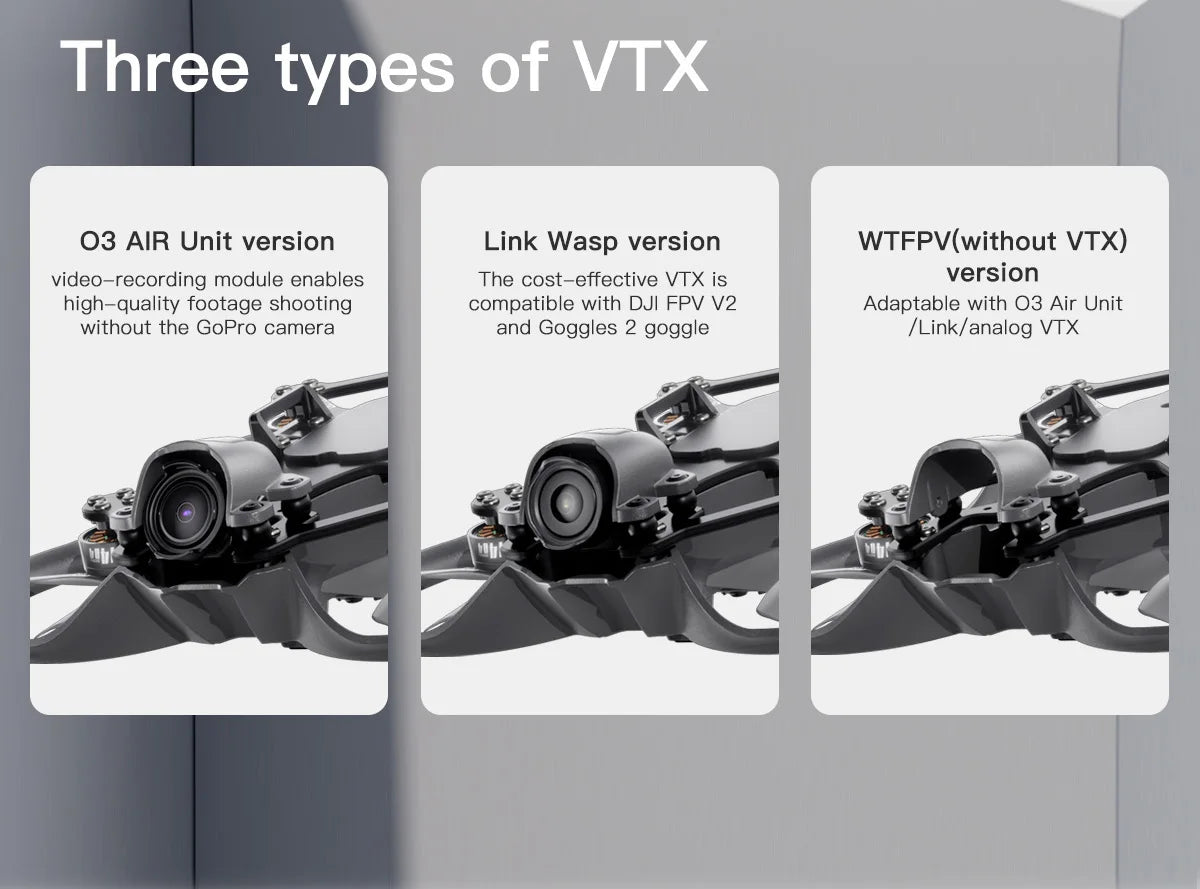

The Cinebot25 S’s VTX is compatible with high-quality footage shooting on DJI FPV V2, and can be used in conjunction with the DJI AIR Unit without the need for a GoPro camera or Goggles 2 goggles.

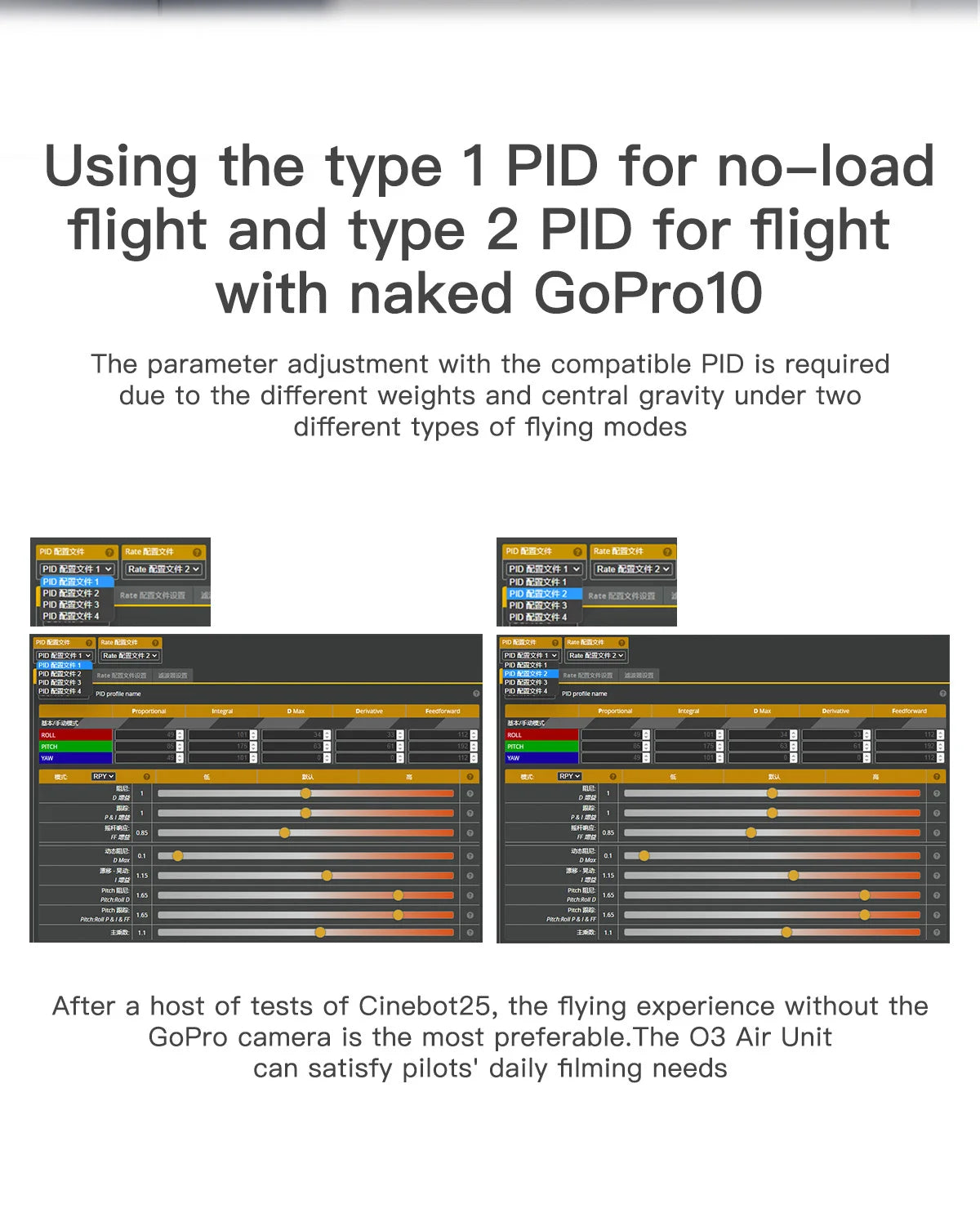

The DJI AIR Unit, when used with the Cinebot25 S, can meet pilots’ daily filming needs without the need for a GoPro camera. Moreover, our testing has shown that flying experiences without a GoPro camera are often preferred by users.
