CADDXFPV Polar Starlight Vista Kit

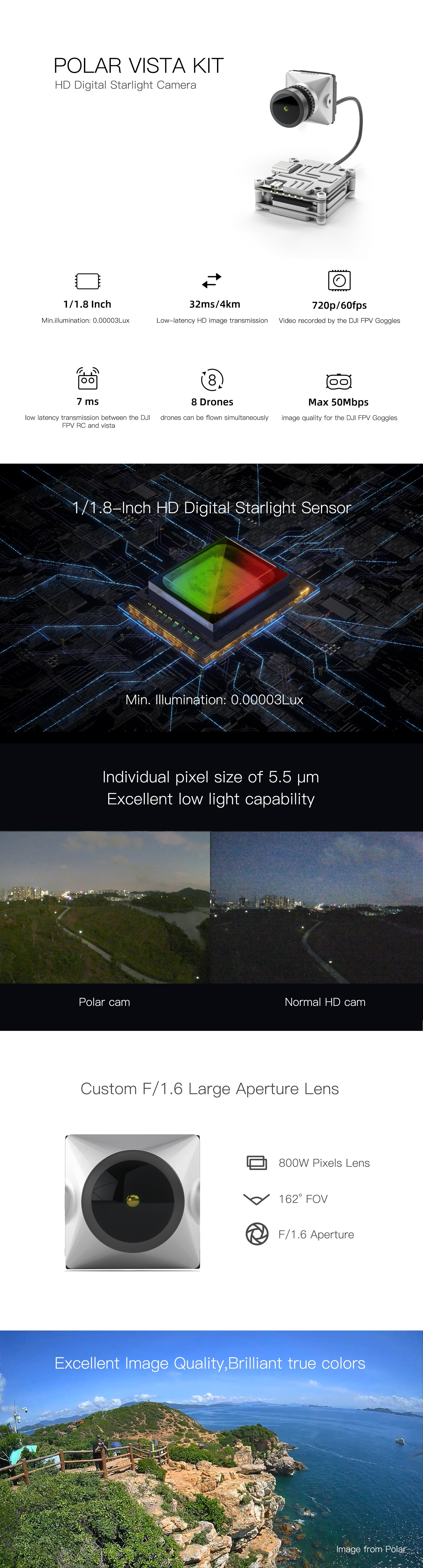

0oo03Lux Low- latency HD image transmission Video recorded by the DJI FPV Goggles ms 8 Drones Max SOMbps low latency transmission between the DJl drones .

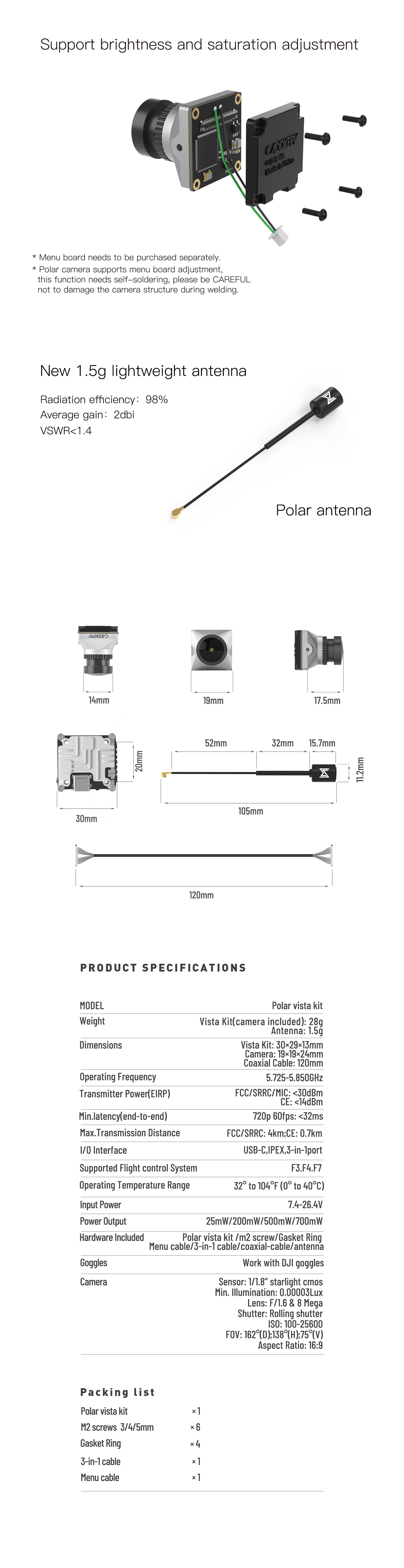

Polar camera supports menu board adjustment; this function needs self-soldering . Polar vista kit(camera included): antenna: 389 Dimensions Vista Kit: 30×29*13mm Camera: 1g*79*24mm Coaxial Cable: 12Omm Operating Frequency 5.725-5.850GHz Transmission power(EIRP)

Introducing the CADDXFPV Polar Starlight Vista Kit, an advanced HD Digital Starlight Camera designed for exceptional performance in FPV applications. With a 1/1.8 Inch sensor and 32ms/4km low-latency transmission, this kit delivers stunning 720p/60fps video quality, even in low-light conditions with a minimum illumination of 0.00003Lux.

Key Features:

• 1/1.8-Inch HD Digital Starlight Sensor
• Low-latency transmission (32ms/4km)
• 720p/60fps video recorded by DJI FPV Goggles
• Min. Illumination: 0.00003Lux
• F/1.6 Large Aperture Lens
• 800W Pixels Lens with 1620 FOV
• Excellent low light capability
• Customizable image settings for DJI FPV Goggles
• Supports brightness and saturation adjustment

The Polar camera is equipped with a 1.6 F-stop aperture lens, delivering excellent image quality with brilliant true colors. The camera supports menu board adjustment for further customization, but please note that the menu board needs to be purchased separately, and self-soldering is required (exercise caution to avoid damage).

New in this kit is a lightweight antenna with a radiation efficiency of 98% and an average gain of 2dbi. The compact dimensions (14mm x 19mm x 17.5mm) make it easy to integrate into your setup.

Product Specifications:

• Model: Polar Vista Kit
• Weight: Vista Kit (camera included) – Antenna: 389g
• Dimensions: Vista Kit – 30mm x 29mm x 13mm, Camera – 19g x 79mm x 24mm, Coaxial Cable – 120mm
• Operating Frequency: 5.725-5.850GHz
• Transmitter Power (EIRP): FCC/SRRC/MIC: <30dBm, CE: <4dBm
• Min. Latency (end-to-end) 720p 60fps: <32ms
• Max Transmission Distance: FCC/SRRC: 4km; CE: 0.7km
• I/O Interface: USB-C, IPEX, 3-in-1 port
• Supported Flight Control System: F3, F4, F7
• Operating Temperature Range: 32°F to 104°F (0°C to 40°C)
• Input Power: 7.4-26.4V
• Power Output: 25mW/200mW/500mW/700mW

Hardware Included:

• Polar Vista Kit
• M2 screws
• Gasket Ring
• Menu cable
• Coaxial cable
• Antenna

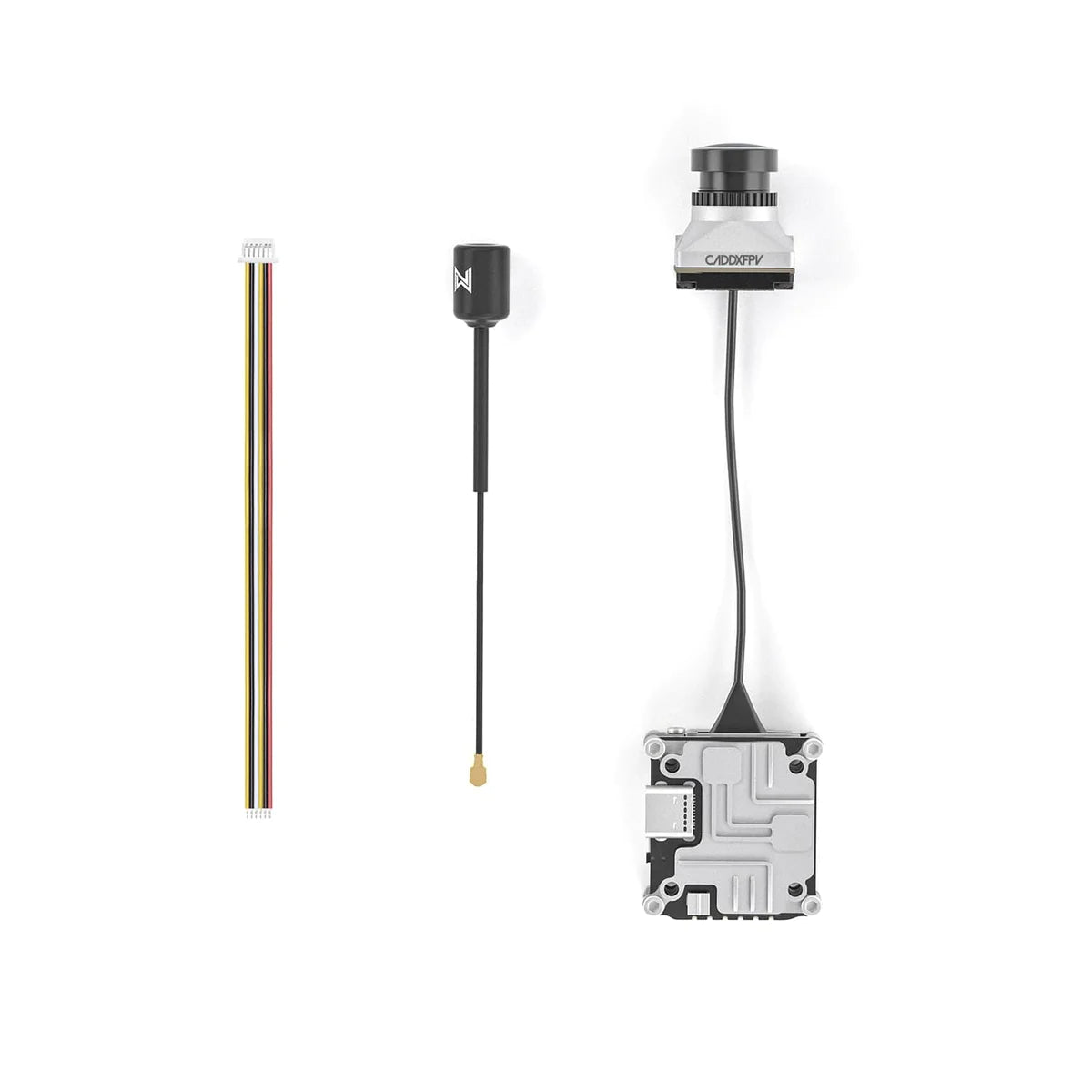

Packing List:

• Polar Vista Kit x1
• M2 screws (3/4/5mm) x6
• Gasket Ring x4
• 3-in-1 cable
• Menu cable x1

Elevate your FPV experience with the CADDXFPV Polar Starlight Vista Kit, designed for high-performance and versatility.
