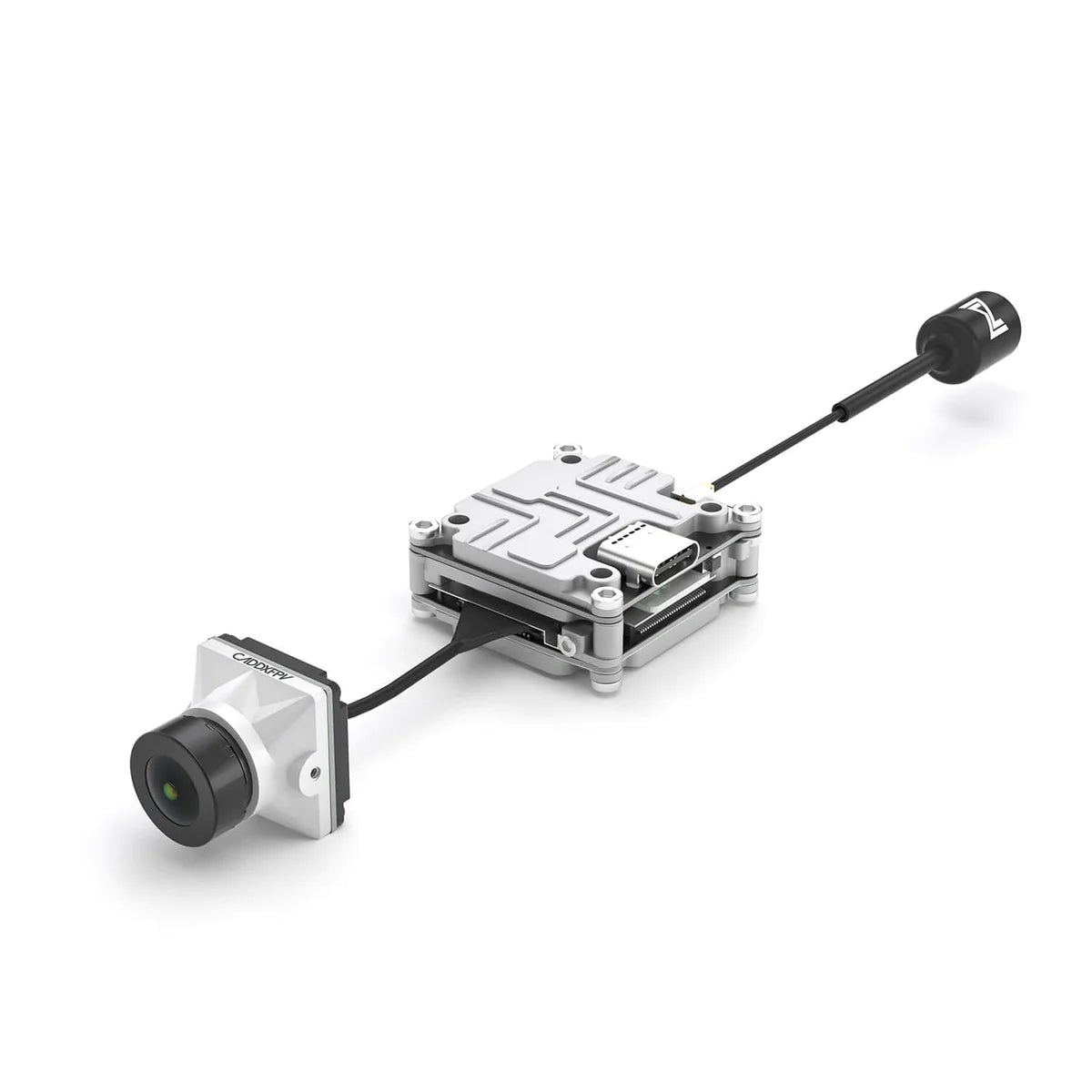

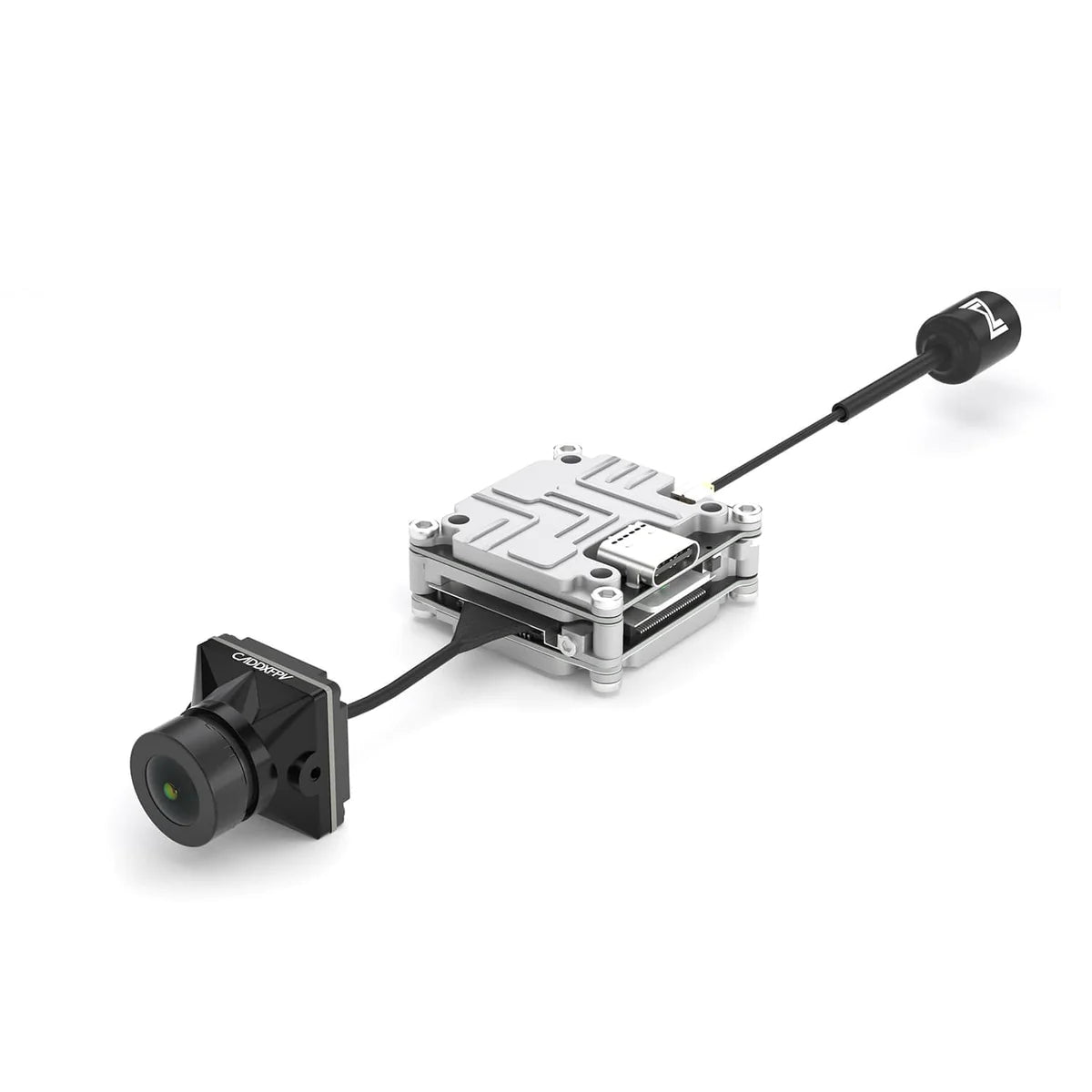

CADDXFPV Nebula Pro Vista Kit

NEBULA PRO HD Digital Video Transmission System VISTA KIT 720p |12Ofps,28ms | 4km 27g weight The Vista HD system is designed for small drones; and weighs as low as 27 grams (Including antenna)

Introducing the CADDXFPV Nebula Pro Vista Kit, an advanced HD Digital Video Transmission System designed for high-performance FPV applications. This Vista Kit offers outstanding features and capabilities for an immersive and clear FPV experience.

Key Features:

• NEBULA PRO HD Digital Video Transmission System
• VISTA KIT: 720p | 120fps | 28ms | 4km range
• Lightweight design: 27g (Including antenna)
• Licensed by DJI for reliable compatibility
• Single antenna usage for a streamlined setup
• 720p / 120fps digital high-definition picture
• Transmission range of up to 4km
• Supports up to 8 drones flying simultaneously
• Exclusive channels for reduced cross-interference
• Embedded Remote Controller Receiver for easy connection
• Choose power settings (25mW/200mW/500mW/700mW) from DJI Goggles
• New 1.5g lightweight antenna with 98% radiation efficiency and 2dbi average gain

Product Specifications:

• Model: NEBULA PRO VISTA KIT
• Weight: Vista Kit (camera included) – 27g, Antenna – 2g
• Dimensions: Vista Kit – 30mm x 29mm x 13mm, Camera – 19mm x 79mm x 20mm, Coaxial Cable – 120mm
• Operating Frequency: 5.725-5.850GHz
• Transmitter Power (EIRP): FCC/SRRC/MIC: <30dBm, CE: <14dBm
• Min. Latency (end-to-end): Low Latency Mode (720p 120fps): 21-28ms, High Quality (60fps): Not specified
• Max Transmission Distance: FCC/SRRC: 4km; CE: 0.7km
• I/O Interface: USB-C, IPEX, 3-in-1 port
• Supported Flight Control System: F3, F4, F7
• Operating Temperature Range: 32°F to 104°F (0°C to 40°C)
• Input Power: 7.4-26.4V
• Power Output: 25mW/200mW/500mW/700mW

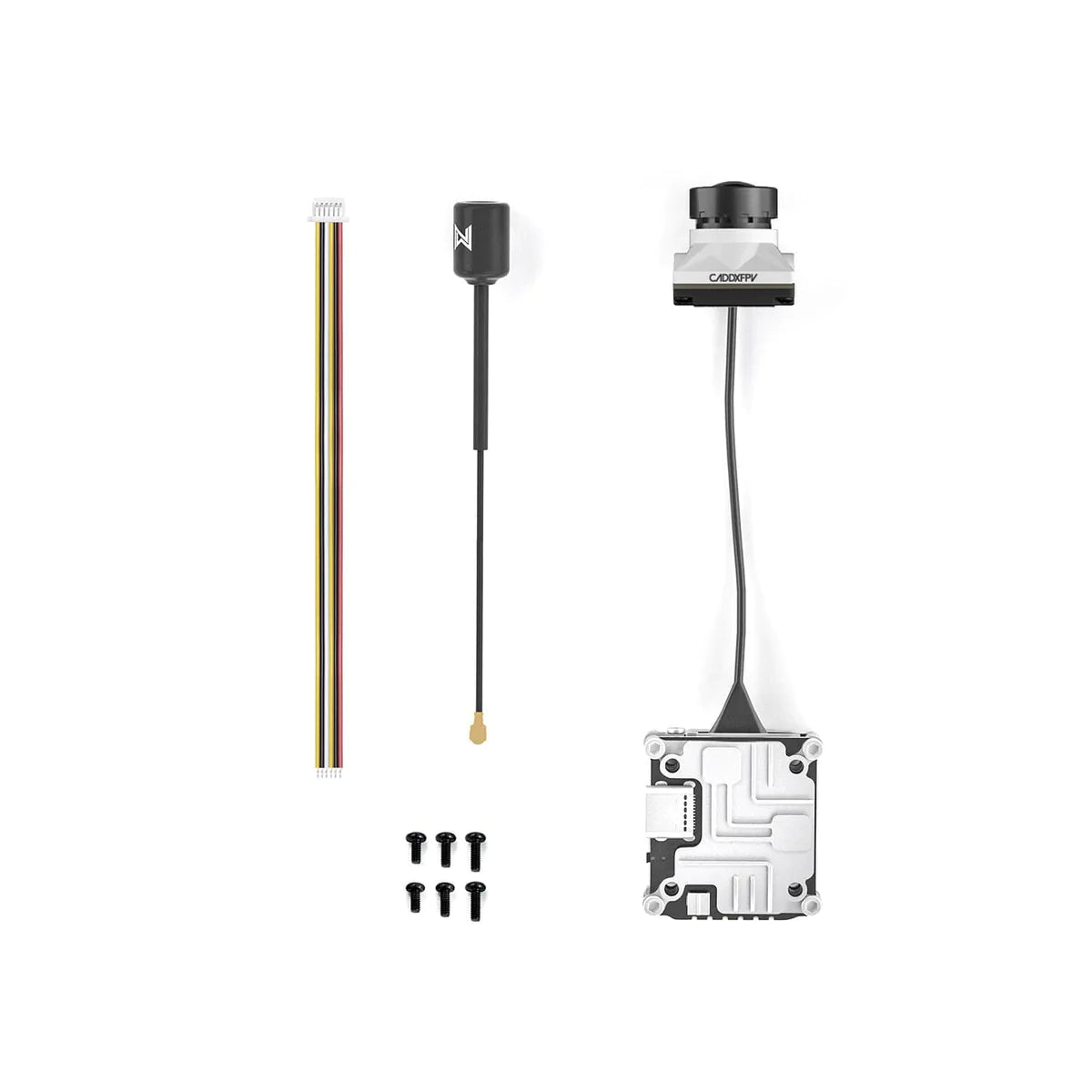

Hardware Included:

• Vista Kit
• Nebula Pro
• Coaxial cable
• Antenna

Goggles Compatibility:

• Works seamlessly with DJI goggles

Camera Specifications:

• Sensor: 1/3″ CMOS
• Lens: 2.1mm, f/2.1
• Shutter: Rolling shutter
• FOV: 150°(D); 122°(H), 93%V)
• Gain: Not specified

Experience the world of FPV in a small and lightweight package with the CADDXFPV Nebula Pro Vista Kit, offering stable and clear HD video transmission for an unparalleled flying experience.
