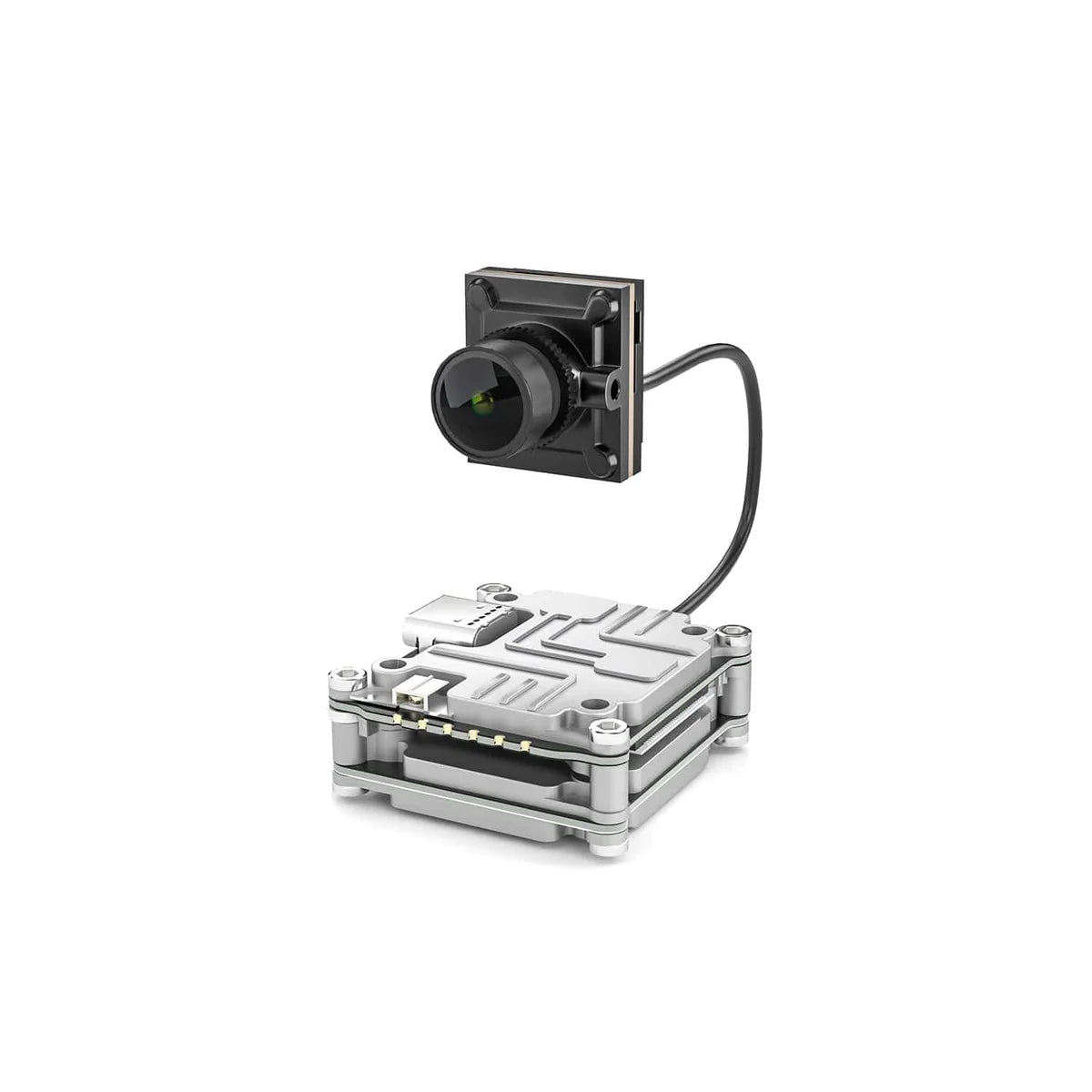

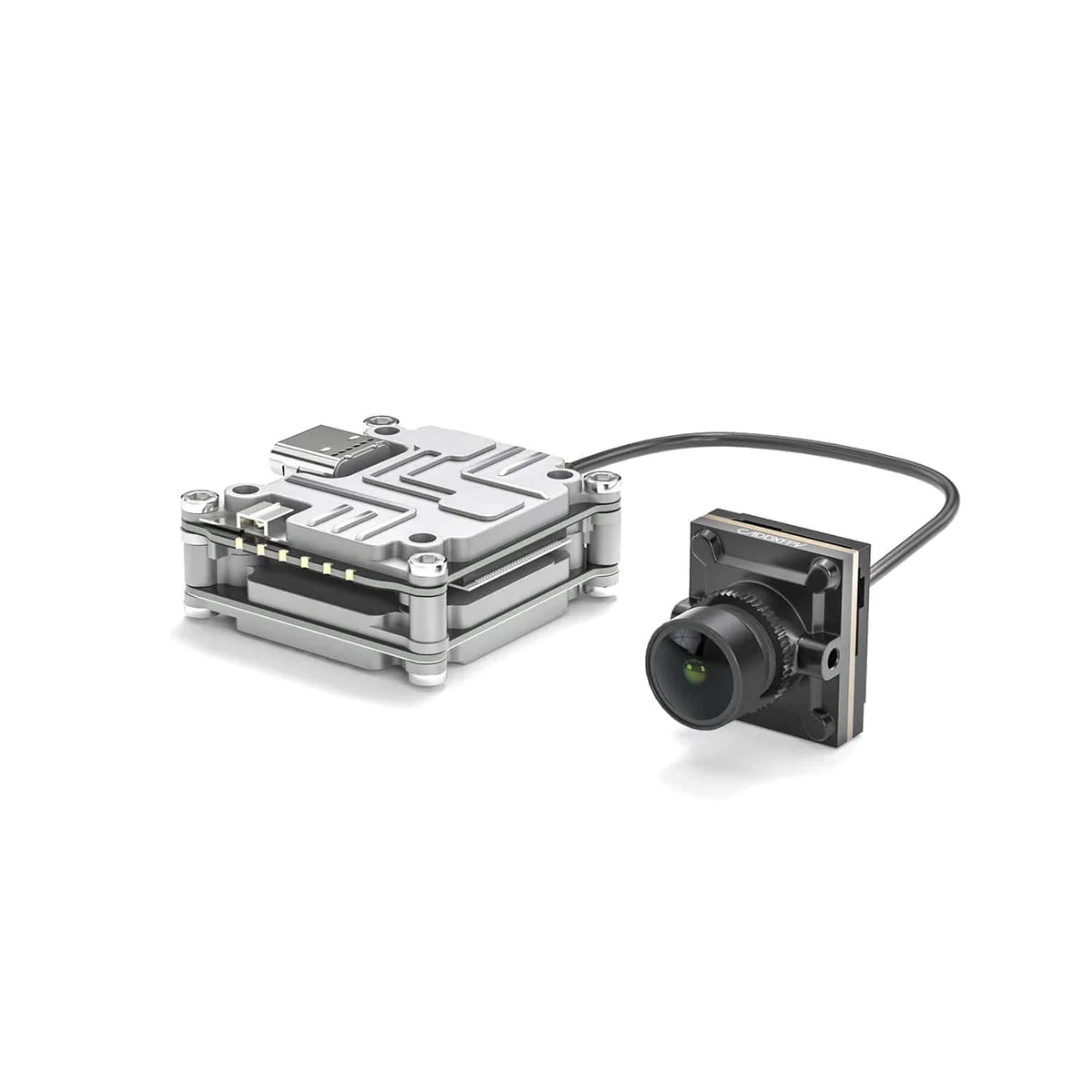

CADDXFPV Nebula Pro Nano Vista Kit

NEBULA PRO NANO VISTA KIT 4MP sensor; 1080p/120fps input 14x16mm 3.5g camera 4.3 ratio sensor output 4mm nano size camera 28ms/4km 720p-720p low-latency HD image transmission .

The Nebula Pro Vista Kit, designed for small drones, weighs as little as 23 grams when including the camera. With DJI Goggles, it enables transmission of high-definition video at 720p and 120fps, with a range of up to 4 kilometers. The system supports up to eight drones flying simultaneously, each on its own dedicated channel, minimizing cross-interference and providing an optimal racing experience.

Vista HD system is designed for small drones, and weighs as low as 23 grams (Including camera) With DJI Goggleslt can provide 720p 120fps digital high-definition picture and a transmission range up to 4km: 8 channels, 8 Drones The VISTA system allow up to eight drones to fly simultaneously: Each operator has an exclusive channel: This helps to reduce cross-interference and provide an optimal racing experience:

Nebula pro nano vista kit /m2 screwl 3-in-1 cable/antenna Goggles Work with DJI goggles . fpsali8-4tde VO Interface USB-C, IPEX, 3-in-Iport .

Introducing the CADDXFPV Nebula Pro Nano Vista Kit, a cutting-edge solution for FPV enthusiasts seeking compact and lightweight high-definition video transmission. This kit boasts a 4MP sensor with 1080p/120fps input, providing an unparalleled FPV experience.

Key Features:

• NEBULA PRO NANO VISTA KIT
• 4MP sensor; 1080p/120fps input
• Ultra-lightweight design: 3.5g, Nano size (14x16mm)
• 4:3 sensor output without pixel cropping
• Low-latency HD image transmission (28ms/4km)
• Video recorded by DJI FPV Goggles (720p/120fps)
• Oversampling technology for better image quality
• 16:9/4:3 switchable, 28ms Low Latency Mode
• Choose power settings (25mW/200mW/500mW/700mW) from DJI Goggles

Nano Size, Ultra-light Camera:

• Perfect for drones
• Weighs as low as 23 grams (Including camera)

VISTA HD ANALOG Stable and Clear HD Video:

• 720p/120fps, 28ms/4km transmission range
• Designed for small drones

8 Channels, 8 Drones:

• Allows up to eight drones to fly simultaneously
• Each operator has an exclusive channel, reducing cross-interference

Embedded Remote Controller Receiver:

• Wirelessly connects to DJI FPV Remote Controller without additional receivers
• Reduces flight preparation time significantly

New 1.5g Lightweight Antenna:

• Radiation efficiency: 98%
• Average gain: 2dbi
• VSWR<1.4

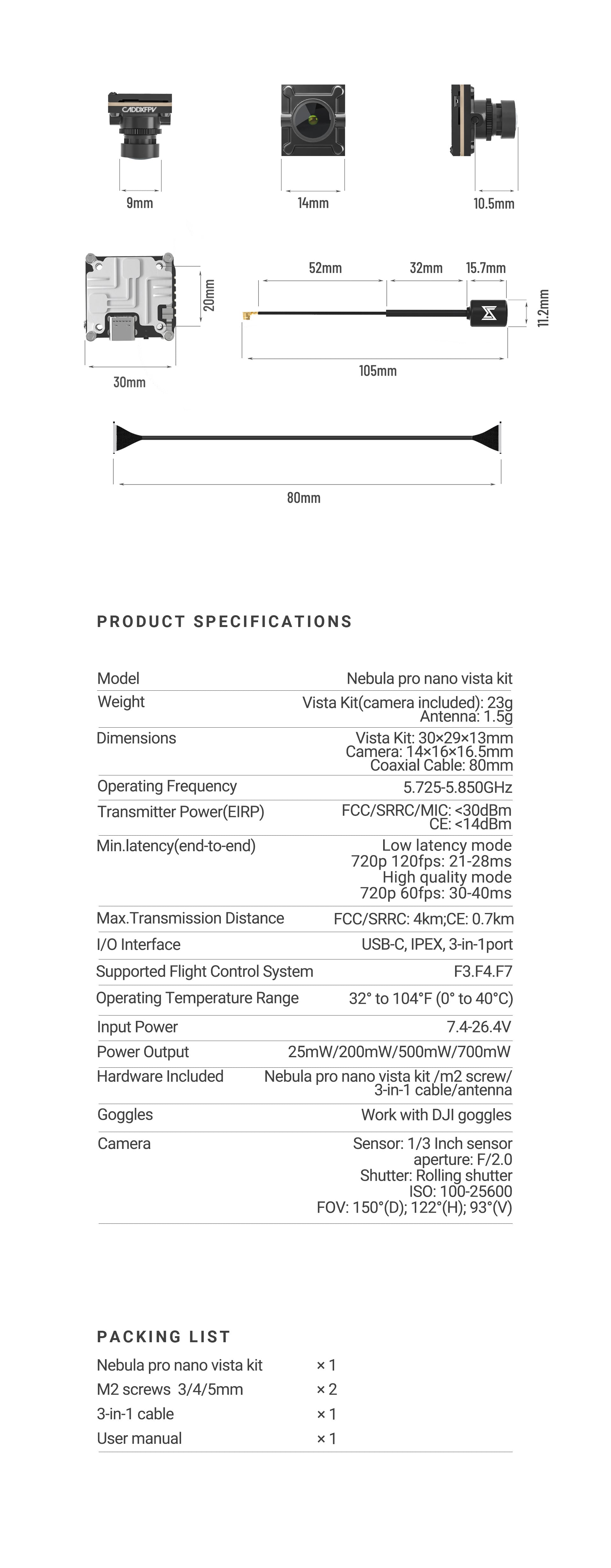

Product Specifications:

• Model: Nebula Pro Nano Vista Kit
• Weight: Vista Kit (camera included) – 23g, Antenna – 1.5g
• Dimensions: Vista Kit – 30mm x 29mm x 13mm, Camera – 14mm x 16mm x 16.5mm, Coaxial Cable – 80mm
• Operating Frequency: 5.725-5.850GHz
• Transmitter Power (EIRP): FCC/SRRC/MIC: <30dBm, CE: <14dBm
• Min. Latency (end-to-end): Low Latency Mode (720p 120fps): 21-28ms, High Mode (720p 60fps): Not specified
• Max Transmission Distance: FCC/SRRC: 4km; CE: 0.7km
• I/O Interface: USB-C, IPEX, 3-in-1 port
• Supported Flight Control System: F3, F4, F7
• Operating Temperature Range: 32°F to 104°F (0°C to 40°C)
• Input Power: 7.4-26.4V
• Power Output: 25mW/200mW/500mW/700mW

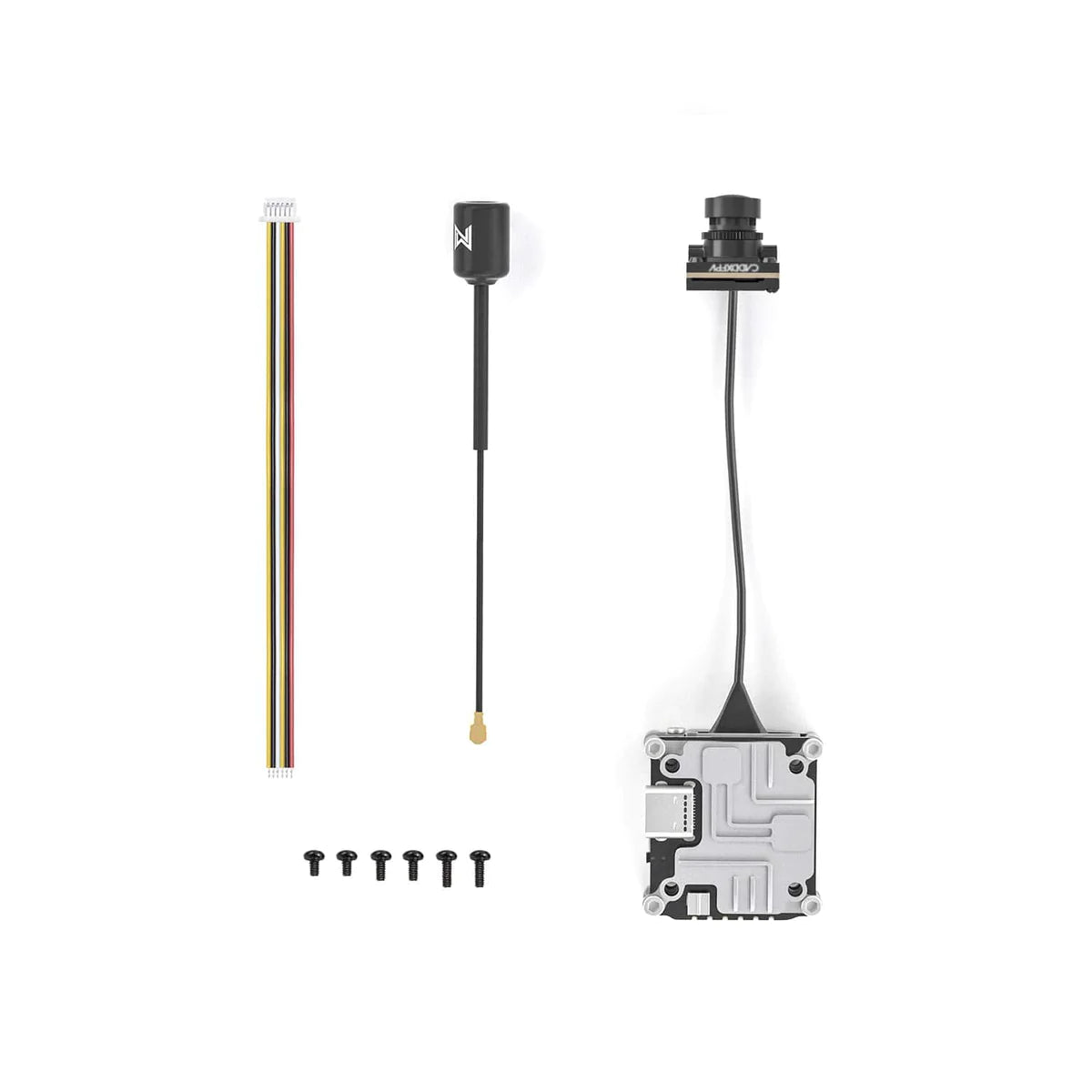

Hardware Included:

• Nebula Pro Nano Vista Kit
• M2 screws (3/4/5mm)
• 3-in-1 cable
• Antenna

Packing List:

• Nebula Pro Nano Vista Kit x1
• M2 screws (3/4/5mm) x2
• 3-in-1 cable x1
• User manual x1

Elevate your FPV experience with the CADDXFPV Nebula Pro Nano Vista Kit, offering exceptional performance in a compact and lightweight design.
