SPECIFICATIONS
Brand Name: ACASOM
Item Type: Antenna
Origin: Mainland China
ACASOM 700MHz 830MHz 960MHz 1100MHz Sweep Signal Source FOR Anti-WiFi/FPV/Drone
High Power VCO For Blocking Drone Flying
Frequency Band Choice1：700MHz-830MHz
Frequency Band Choice2：830MHz-960MHz
Frequency Band Choice3：960MHz-1100MHz
RFOUT POWER1=47dBm（50W）
RFOUT POWER2=43dBm（20W）
Also Have 10W AND 40W
ACASOM accept customizing the power you need！
Number | Items | Specifications |
1 | Frequency Range | 700-830MHz |
2 | Operating Voltage | 28V |
3 | Flatness | ±0.5dB |
4 | Output Power | 47dBm |
5 | Current | 4.2A@47dBm 28V |
6 | Efficiency | 42%@43dBm |
7 | LED State | Red |
8 | Operating Temperature | -30℃～85℃ |
9 | Storage Temperature | -40℃～150℃ |
10 | Operating Humidity | ＜95%RH |
11 | RF Connector | Output: SMA-F |
12 | Power Socket | 15cm red/black wire |
13 | Shell Material | Aluminum |

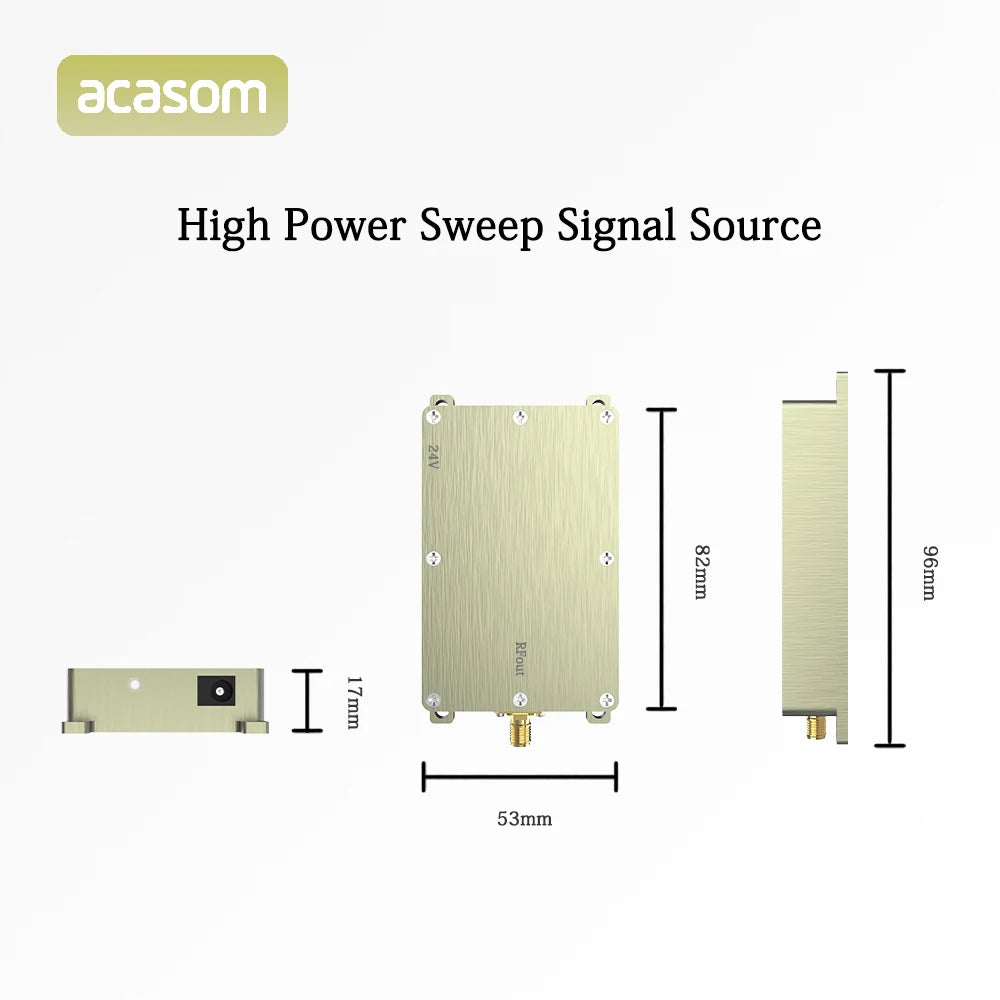

14 | Shell Size | 96*53*17mm |
15 | Net Weight | 0.15Kg |
1 28V /10A power supply.
2 Heat dissipation is recommended, such as adding heat sink or radiator fan.
3 Antenna should be screwed first, then plug the power adapter.
1* Sweep Signal Source
