CNHL 14.8V 1300mah battery SPECIFICATIONS
Use: Vehicles & Remote Control Toys
Upgrade Parts/Accessories: Lithium Battery
Tool Supplies: Battery
Remote Control Peripherals/Devices: Battery
Recommend Age: 12+y
RC Parts & Accs: Batteries – LiPo
Origin: Mainland China
Model Number: 1301004BK Combo 4
Material: lipo
For Vehicle Type: Cars
Brand Name: CNHL
4PCS CNHL 4S 6S 14.8V 22.2V Lipo Battery 1300mAh 1500mAh 100C With XT60 Plug For RC FPV Airplane Quadcopter Helicopter Drone
Model 1:
Stock Number：1301004BK
Capacity：1300mAh
Voltage：14.8V / 4-Cell / 4S1P
Discharge Rate：100C Continual / 200C Burst
Charge Rate：5C Max
Size：33.5X34X74mm
Weight：163g
Output Connector：XT60
Balance Connector：JST / XH
Remarks：N/A
Wire Size (AWG)：12#
Model 2：
Stock Number：1501004BK
Capacity：1500mAh
Voltage：14.8V / 4-Cell / 4S1P
Discharge Rate：100C Continual / 200C Burst
Charge Rate：5C Max
Size：37X35X75mm
Weight：183g
Output Connector：XT60
Balance Connector：JST / XH
Remarks：N/A
Wire Size (AWG)：12#
Model 3:
Stock Number：1301006BK
Capacity：1300mAh
Voltage：22.2V / 6-Cell / 6S1P
Discharge Rate：100C Continual / 200C Burst
Charge Rate：5C Max
Size：48X35X76mm
Weight：230g
Output Connector：XT60
Balance Connector：JST / XH
Remarks：N/A
Wire Size (AWG)：12#
Model 4:
Stock Number：1501006BK
Capacity：1500mAh
Voltage：22.2V / 6-Cell / 6S1P
Discharge Rate：100C Continual / 200C Burst
Charge Rate：5C Max
Size：H54XW34XL75mm
Weight：266g
Output Connector：XT60
Balance Connector：JST / XH
Remarks：N/A
Wire Size (AWG)：12#
Feature：
1.Elected premium-grade materials.
2.Low-resistance, high-reliability, good consistency，Automatic stacking technology, better performance.
3.Lightweight and small size, long battery life, high specific power.
4.Great value without the loss of performance.
Notice：
1.Only if the voltage, dimension and the plug match, then it will fit.
2.Check the battery condition carefully before using or charging.
3.Don’t overcharge more than 4.2V and don’t over discharge below 3.2V, or your battery will be destroyed，never leave battery unattended when charging.
4.If the new battery won’t hold a full charge or loss the charge very quickly in short time, please use Balance Charger to charge and recycle several times first.
Description: The EBLAEK lithium-polymer (Lipo) battery features a capacity of 1300mAh, a voltage of 14.8V, and a discharge rate of 100C. It has a 4S1P cell configuration and is connected with an XT60 plug. The balancer connector is JST-XH, and the weight is approximately 163g.
Dimensions: The battery measures approximately 33mm in length, 34mm in width, and 1.31 inches (or 33.5mm) in height. It has a high power rating of 14.8V and a capacity of up to 1924Wh. This thin and lightweight battery has an ease of use feature with no overheating.
Specifications: The battery measures approximately 37mm in length, 35mm in width, and 1.46 inches (or 37.5mm) in height. It features an ease-of-use design with no overheating (27EZ). This high-performance lithium-polymer (Li-Po) battery has a maximum power output of 448V and a capacity of up to 227Wh. The dimensions are approximately 75mm (or 2.95 inches) in length.
Specifications: The battery measures approximately 47mm in length, 35mm in width, and 1.85 inches (or 47.5mm) in height. It features an elite design with maximum power output of 2886Wh and a high-efficiency rate. The dimensions are approximately 76mm (or 2.99 inches) in length.
Specifications: The battery measures approximately 53mm in length, 33mm in width, and 2.08 inches (or 53mm) in height. It features an elite design with nominal voltage of 15.0V and a high efficiency rate. The dimensions are approximately 75mm (or 2.95 inches) in length.

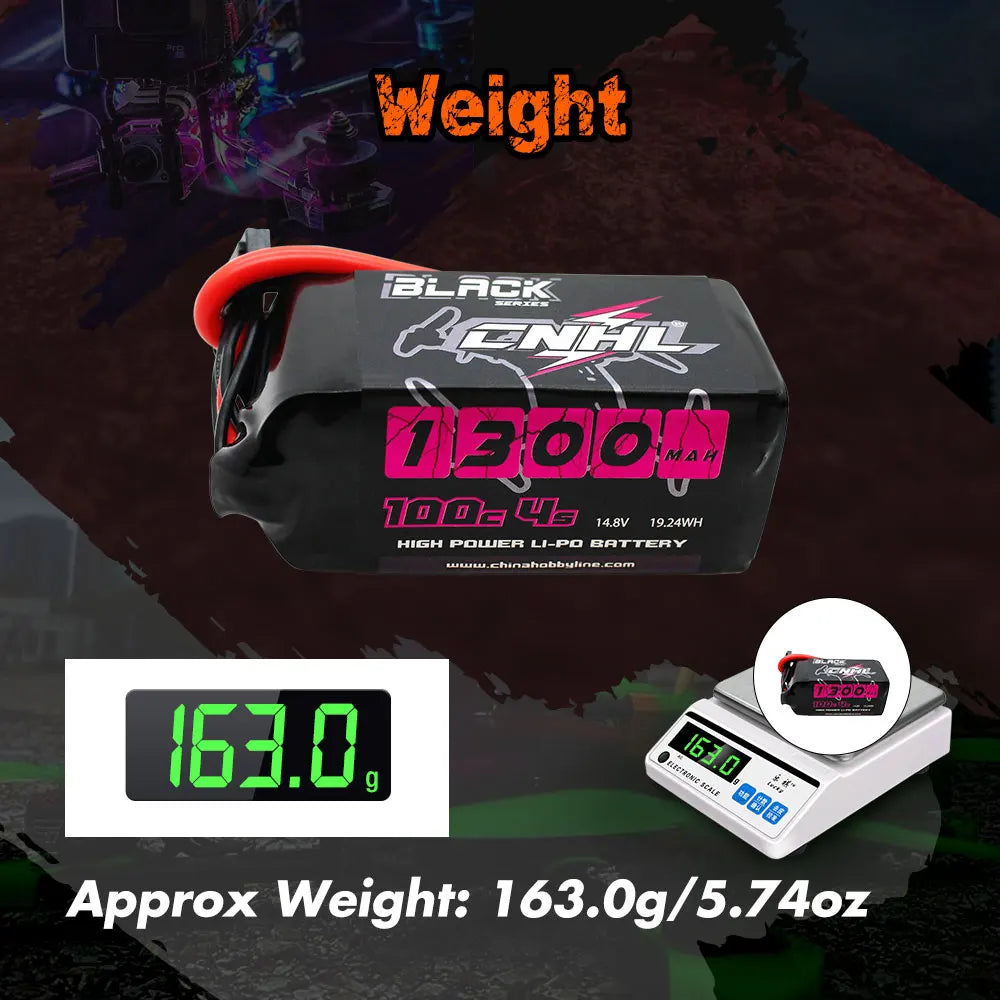

Specifications: The Blazk high-performance lithium-polymer (Li-PO) battery features an impressive 14.8V voltage rating, with a capacity of up to 19.24Wh. It boasts a high power output and has a compact design that is ideal for use in RC FPV airplanes, quadcopters, and helicopters. The approximate weight of this battery is 163.0g (5.74oz).
