CNHL 14.8V 1300mah battery SPECIFICATIONS
Use: Vehicles & Remote Control Toys
Upgrade Parts/Accessories: Lithium Battery
Tool Supplies: Battery
Remote Control Peripherals/Devices: Battery
Recommend Age: 12+y
RC Parts & Accs: Batteries – LiPo
Origin: Mainland China
Model Number: 1301004BK Combo 4
Material: lipo
For Vehicle Type: Cars
Brand Name: CNHL
4PCS CNHL 4S 6S 14.8V 22.2V Lipo Battery 1300mAh 1500mAh 100C With XT60 Plug For RC FPV Airplane Quadcopter Helicopter Drone
Model 1:
Stock Number：1301004BK
Capacity：1300mAh
Voltage：14.8V / 4-Cell / 4S1P
Discharge Rate：100C Continual / 200C Burst
Charge Rate：5C Max
Size：33.5X34X74mm
Weight：163g
Output Connector：XT60
Balance Connector：JST / XH
Remarks：N/A
Wire Size (AWG)：12#
Model 2：
Stock Number：1501004BK
Capacity：1500mAh
Voltage：14.8V / 4-Cell / 4S1P
Discharge Rate：100C Continual / 200C Burst
Charge Rate：5C Max
Size：37X35X75mm
Weight：183g
Output Connector：XT60
Balance Connector：JST / XH
Remarks：N/A
Wire Size (AWG)：12#
Model 3:
Stock Number：1301006BK
Capacity：1300mAh
Voltage：22.2V / 6-Cell / 6S1P
Discharge Rate：100C Continual / 200C Burst
Charge Rate：5C Max
Size：48X35X76mm
Weight：230g
Output Connector：XT60
Balance Connector：JST / XH
Remarks：N/A
Wire Size (AWG)：12#
Model 4:
Stock Number：1501006BK
Capacity：1500mAh
Voltage：22.2V / 6-Cell / 6S1P
Discharge Rate：100C Continual / 200C Burst
Charge Rate：5C Max
Size：H54XW34XL75mm
Weight：266g
Output Connector：XT60
Balance Connector：JST / XH
Remarks：N/A
Wire Size (AWG)：12#
Feature：
1.Elected premium-grade materials.
2.Low-resistance, high-reliability, good consistency，Automatic stacking technology, better performance.
3.Lightweight and small size, long battery life, high specific power.
4.Great value without the loss of performance.
Notice：
1.Only if the voltage, dimension and the plug match, then it will fit.
2.Check the battery condition carefully before using or charging.
3.Don’t overcharge more than 4.2V and don’t over discharge below 3.2V, or your battery will be destroyed，never leave battery unattended when charging.
4.If the new battery won’t hold a full charge or loss the charge very quickly in short time, please use Balance Charger to charge and recycle several times first.

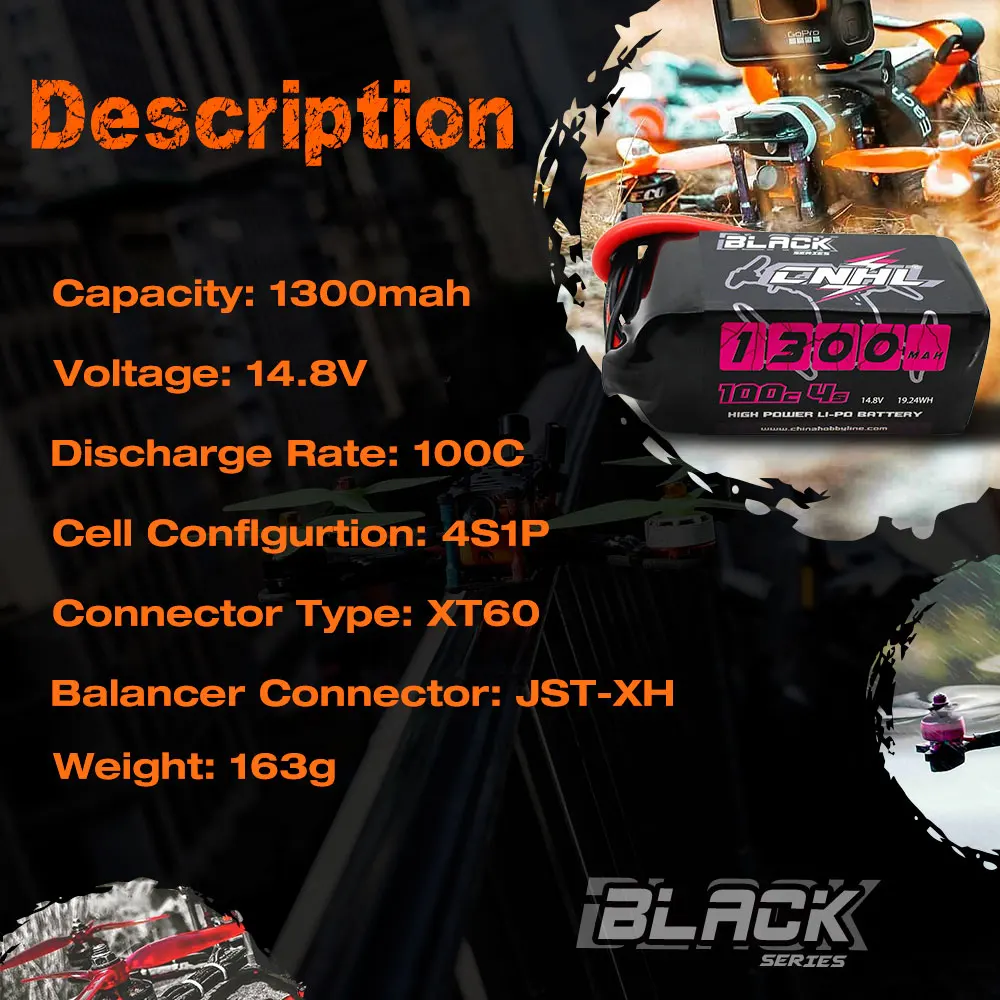

Description EBLAEK Capacity: 130mah Voltage: 14.8V “ag ] TfkQ JaSV J9zah Higk DOWEA LIPD RTTAY Aeeenneneunn Discharge Rate: 1OOC Cell Conflgurtion: 4S1P Connector Type: XT6O Balancer Connector: JST-XH Weight: 163g Bi_ACK SER
ME 33.Smm 1.31inch 34mm 1.33inch EZE daida nE QJ High PoWeR 148v Li-Po Qutot 1924wH thinbhebbunng BATTERY Eom 74mm 2.91inch
Abcut ME 37mm 1.46inch 35mm 1.38inch EZFEK 27EZ ds00 io0LC 0b Mgx Poler Ant L-Po 448v erinenebbuune baTTERY 227wH eon 75mm 2.95
BLAZK 12a0 H fkaT 14.8V 19.24WH HisH POWeR Li-PO BaTTERY Oiotekobbulnm Com 82uk Don 163.8, Approx Weight: 163.0g/5.74oz 1610, IALI ‘000|
